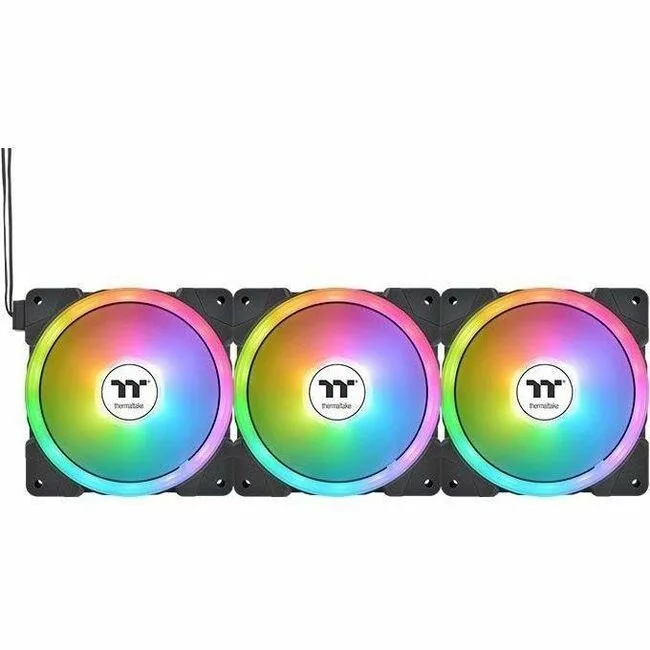

Three black 140mm ARGB case fans with magnetic frames and swappable blades

Thermaltake

Thermaltake CL-F168-PL14SW-A 140mm ARGB case fan 3-pack 500-2000 RPM

SKU CH-68T9-A7SEW MPN CL-F168-PL14SW-A

Three 140 mm magnetic ARGB fans with reversible blades, 500–2000 RPM PWM control and hydraulic bearings

  • Fan Counts3 Fans
  • Fan ControllerNo Controller
  • TypeCase Fan
  • Fan Size140mm
  • Fan Thickness25mm
  • Bearing TypeHydraulic
  • Magnetic daisy-chain simplifies wiring and cuts install time
  • Reversible blades let you switch airflow direction without tools
  • PWM 500-2000 RPM delivers up to 81.6 CFM per fan
  • Hydraulic bearing runs at 34.5 dB-A in standard mode
  • 5V ARGB header syncs lighting with motherboard software

Ready-to-use three-fan kit

The Thermaltake SWAFAN EX14 arrives as a matched 140mm three-fan pack with hydraulic bearings and PWM control from 500 to 2000 RPM. Standard blades deliver 81.6 CFM at 34.5 dB-A while reverse blades provide 79.3 CFM at 38.8 dB-A. ARGB lighting connects through a 5V three-pin header and synchronises with motherboard RGB software.

Magnetic daisy-chain and swappable blades

Each frame uses a magnetic connector that links both the 2510 4-pin PWM cable and the 5V ARGB cable when fans are placed side by side, allowing up to five fans per cable run. Standard and reverse blades are both included and can be popped out and swapped without tools for different airflow directions or easy cleaning.

Check headers and blade orientation

Verify your motherboard has enough 5V ARGB three-pin headers and 4-pin PWM headers for the daisy-chain length you plan. Decide whether standard or reverse blades suit your radiator, filter or case layout before mounting, as airflow and noise figures differ between the two orientations.

Pontos fortes

  • Magnetic daisy-chain simplifies wiring and cuts install time
  • Reversible blades let you switch airflow direction without tools
  • PWM 500-2000 RPM delivers up to 81.6 CFM per fan
  • Hydraulic bearing runs at 34.5 dB-A in standard mode
  • 5V ARGB header syncs lighting with motherboard software

Especificações

BrandThermaltake
ModelSWAFAN EX14
Part NumberCL-F168-PL14SW-A
Fan Counts3 Fans
Fan ControllerNo Controller
TypeCase Fan
Fan Size140mm
Fan Thickness25mm
Bearing TypeHydraulic
RPMPWM 500 ~ 2000 R.P.M
Air FlowStandard Fan Blade: 81.6 CFM (one fan)
Reverse Fan Blade: 79.3 CFM (one fan)
Noise LevelStandard Fan Blade: 34.5 dB-A (one fan)
Reverse Fan Blade: 38.8 dB-A (one fan)
Power Connector2510-4 PIN PWM, 5V ARGB header-3PIN
ColorBlack
LEDARGB
Dimensions140 x 140 x 25 mm
Package Contents3 x Fan Frames
3 x Standard Fan Blade (Pre-installed)
3 x Reverse Fan Blade
3 x Cable
Peso de envio1.32 kg
Dimensões da embalagem203 × 170 × 150 mm

Perguntas sobre este artigo

How often will the hydraulic bearing in these 140mm fans need replacement?

The hydraulic bearing is sealed for the life of the fan and does not require scheduled replacement; only the removable blades may need occasional cleaning.

What airflow drop appears first when three fans run continuously at 2000 RPM?

At 2000 RPM each fan delivers 81.6 CFM with standard blades or 79.3 CFM with reverse blades; sustained operation does not reduce these rated figures.

How loud and how much power do three fans draw at full speed all day?

Three fans at 2000 RPM produce 34.5 dB-A each with standard blades or 38.8 dB-A each with reverse blades, powered through a single 2510 4-pin PWM and 5V ARGB header.
