Black 2U rack tower UPS with LCD display and multiple outlets

Tripp Lite

Tripp Lite SMART3000RMXLN 3000 VA 2880 W UPS

SKU CH-T8S5-RSR35 MPN SMART3000RMXLN

Line-interactive sine-wave UPS delivering 3000 VA / 2880 W with extended runtime, 120 V input and output, USB, RS-232 and pre-installed network management in a 2U rack/tower form factor

  • Input Voltage Range120 V AC Nominal
  • VA Rating3000 VA
  • Watts2880W
  • Output Voltage120 V AC Nominal
  • Outlets1 x NEMA L5-30R 8 x NEMA 5-15/20R
  • Battery TypeValve Regulated Lead Acid (VRLA)

VA 3000 VA w/ WEBCARDLX

As versões riscadas existem, mas não estão disponíveis aqui.

  • 3000 VA capacity supports critical servers and network gear
  • Pure sine-wave output protects sensitive electronics during power events
  • Pre-installed WEBCARDLX card enables remote monitoring over IP
  • Eight 5-15/20R plus one L5-30R outlets connect diverse loads
  • Intelligent battery management extends VRLA service life

Capacity and Application

The Tripp Lite SMART3000RMXLN is a 3000 VA line-interactive UPS delivering 2880 watts of sine-wave output at 120 V. It suits servers, network gear and critical workstations that require pure sine-wave power and extended runtime capability in a 2U rack or tower form factor.

Installation and Common Issues

The unit weighs 55 and mounts in a standard four-post rack or sits as a tower. Connect the NEMA L5-30P input to a 30 A branch circuit; the eight NEMA 5-15/20R and single L5-30R outlets accept mixed plug types. Pre-installed WEBCARDLX, USB and RS-232 ports enable remote monitoring, but DB9 serial cables are easily misplaced during deployment.

Pre-Order Checks

Verify your facility provides a 120 V, 30 A circuit with an L5-30 receptacle for the input plug. Confirm the connected load stays within 2880 W and 0.96 power factor to avoid overload shutdowns. Ensure rack depth accommodates the 2U chassis and that ambient temperature supports VRLA battery life; recharge takes under eight hours after a discharge.

Pontos fortes

  • 3000 VA capacity supports critical servers and network gear
  • Pure sine-wave output protects sensitive electronics during power events
  • Pre-installed WEBCARDLX card enables remote monitoring over IP
  • Eight 5-15/20R plus one L5-30R outlets connect diverse loads
  • Intelligent battery management extends VRLA service life

Especificações

BrandTripp Lite
ModelSMART3000RMXLN
Input Voltage Range120 V AC Nominal
VA Rating3000 VA
Watts2880W
Output Voltage120 V AC Nominal
Outlets1 x NEMA L5-30R
8 x NEMA 5-15/20R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run Time0.05 Hour
0.17 Hour
Battery Recharge Time<8 Hours
Interface PortRS-232, USB
Features3-year warranty with registration
Weight55
Peso de envio42.59 kg
Dimensões da embalagem617 × 538 × 216 mm

Outras versões deste modelo

Mais 5 nesta gama

Mesma família, memória, ventoinha ou frequência diferentes — compare antes de decidir.

Perguntas sobre este artigo

How do I confirm the UPS is delivering clean 120 V sine-wave power after installation?

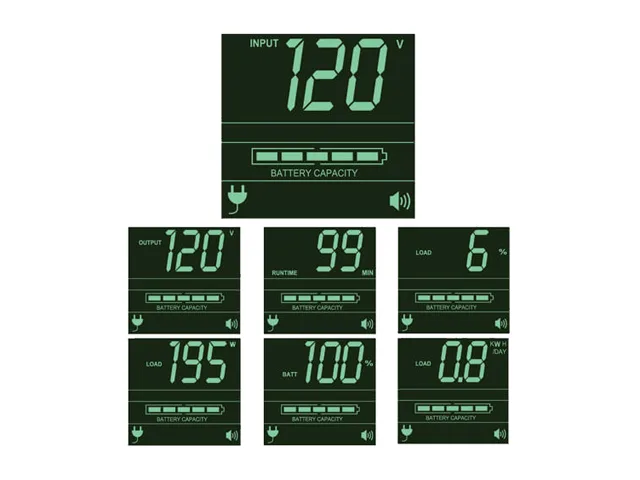

Check the front-panel LCD for a steady 120 V output reading and sine-wave indicator while your load is connected.

What cables or accessories come in the box and what must I purchase separately for a 120 V rack install?

The unit ships with the pre-installed WEBCARDLX network card, USB and RS-232 cables, and 4-post mounting rails; a NEMA L5-30P input cord and any PDU whips are sold separately.

Should I choose the 3000 VA model or a lower-capacity unit for a 2880 W critical load?

At 2880 W and 0.96 power factor this 3000 VA model matches the load exactly; a smaller unit would not support the full wattage.
