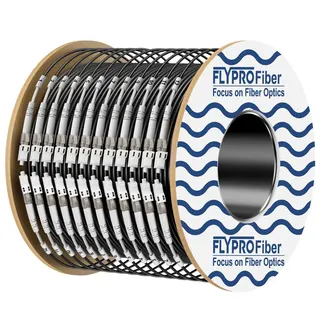

Outdoor armoured 12-core fibre cable 75m OM3 LC connectors

ARCTIC

ARCTIC 12 Core Outdoor Armored Fibre Optic Cable 75m OM3 LC to LC

SKU CH-8WRM-Y79ZJ

A 12-core outdoor armoured multimode cable with LC connectors, OM3 rated for 100 Gbps and built for direct burial

  • 12-core multimode fibre supports 100 Gbps bandwidth
  • TPU jacket resists water, UV, abrasion and extreme temperatures
  • Dual steel armour protects cores from crushing and rodent damage

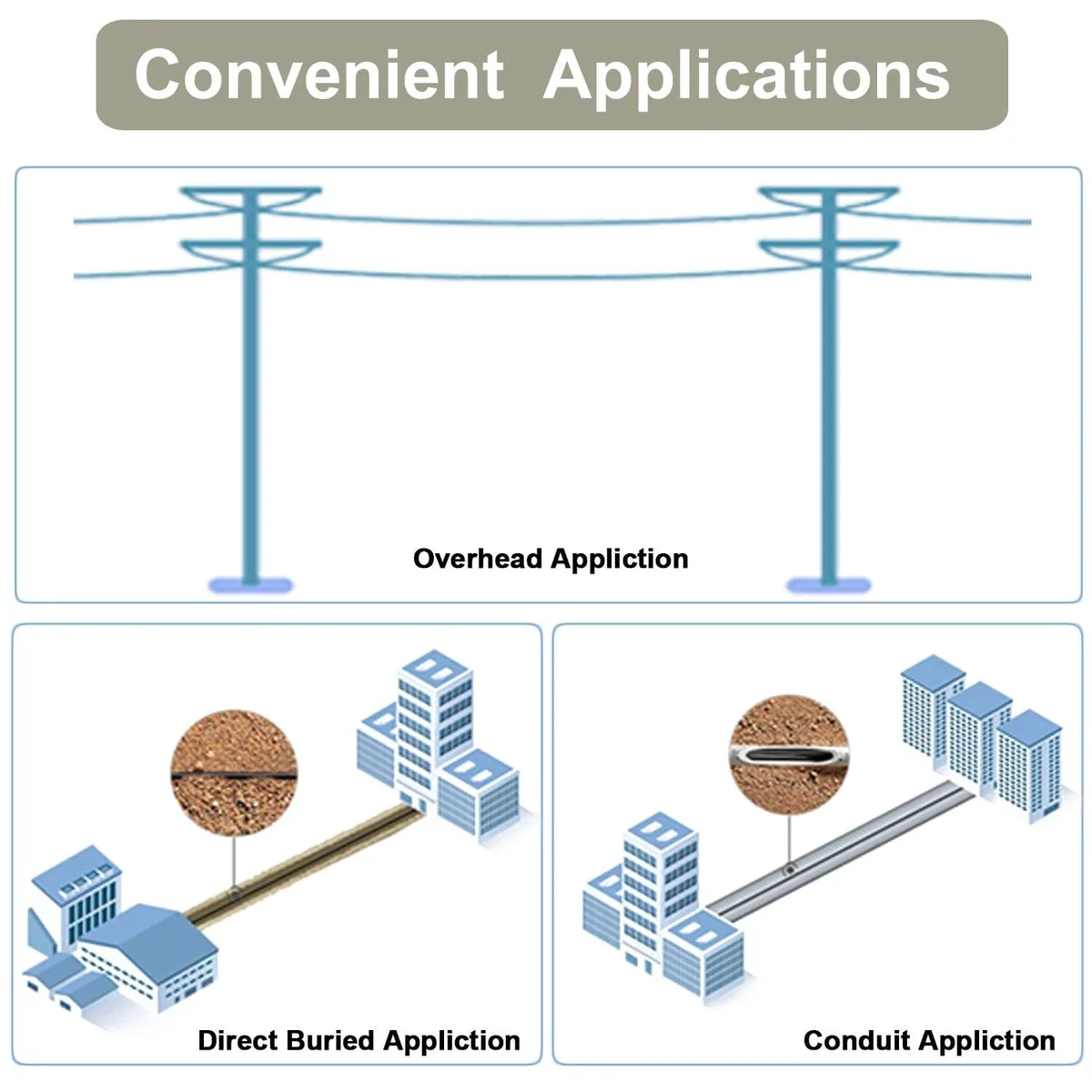

  • 75 m length with LC connectors enables direct-burial or conduit runs
  • OM3 50/125 µm fibre rated for 10 Gbps and 40 Gbps links

Outdoor Armored 12-Core Fibre Cable

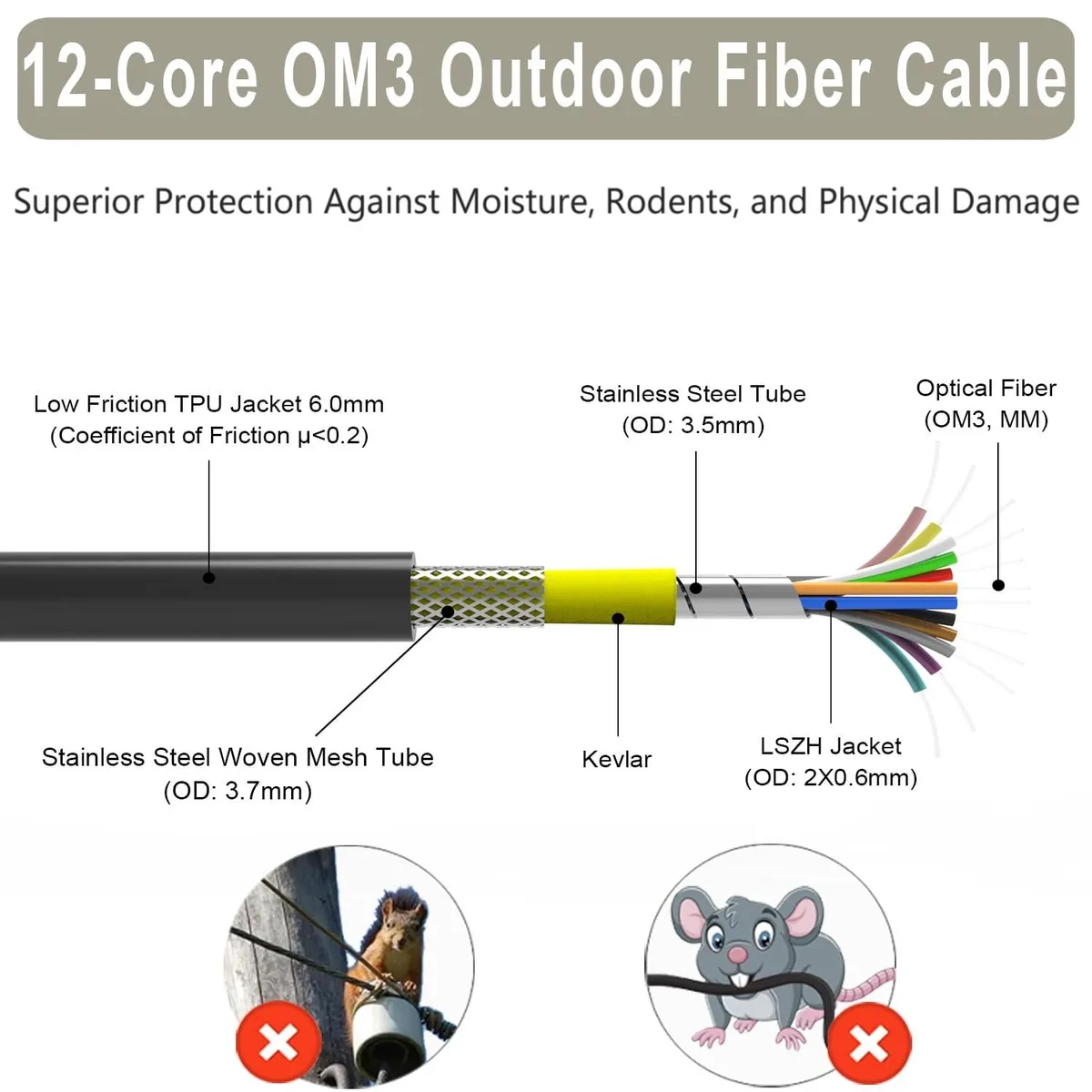

This 75-metre outdoor armoured fibre optic cable carries twelve OM3 multimode strands under a rugged TPU jacket. Dual protection from steel armour and stainless-steel mesh shields the glass cores from crushing, rodents and abrasion. LC connectors on both ends give immediate plug-and-play connectivity for campus, industrial or direct-burial links.

Suited For And Not Suited For

Installers who need a single tough cable for long outdoor runs between buildings, across roads or through ducts will find the length and armour ideal. Projects that require fewer than twelve fibres, indoor-only routing or a different connector type should select an alternative cable.

OM3 50/125 Multimode Bandwidth

The OM3 50/125 µm multimode fibre supports up to 100 Gbps over short-reach links, with 10 Gbps and 40 Gbps operation well within spec. Matching the link speed and distance to this bandwidth rating decides whether the cable meets the design.

商品特色

  • 12-core multimode fibre supports 100 Gbps bandwidth
  • TPU jacket resists water, UV, abrasion and extreme temperatures
  • Dual steel armour protects cores from crushing and rodent damage
  • 75 m length with LC connectors enables direct-burial or conduit runs
  • OM3 50/125 µm fibre rated for 10 Gbps and 40 Gbps links

商品規格

本商品目前尚未公佈規格。

商品問答

Will the 12-core OM3 cable work with my existing 10 GbE SFP+ transceivers?

Yes — OM3 50/125 µm fibre supports 10 GbE over the full 75 m length with standard LC SFP+ modules.

How can I verify the 75 m armoured link is performing correctly after installation?

Use a fibre inspection scope on every LC end-face and run a dual-wavelength loss test; all 12 cores should show low insertion loss and clean connectors.

What connectors and accessories arrive in the box, and what must I source separately?

The cable comes factory-terminated with 12 LC connectors on each end; you only need compatible patch panels, transceivers or enclosures for your gear.
