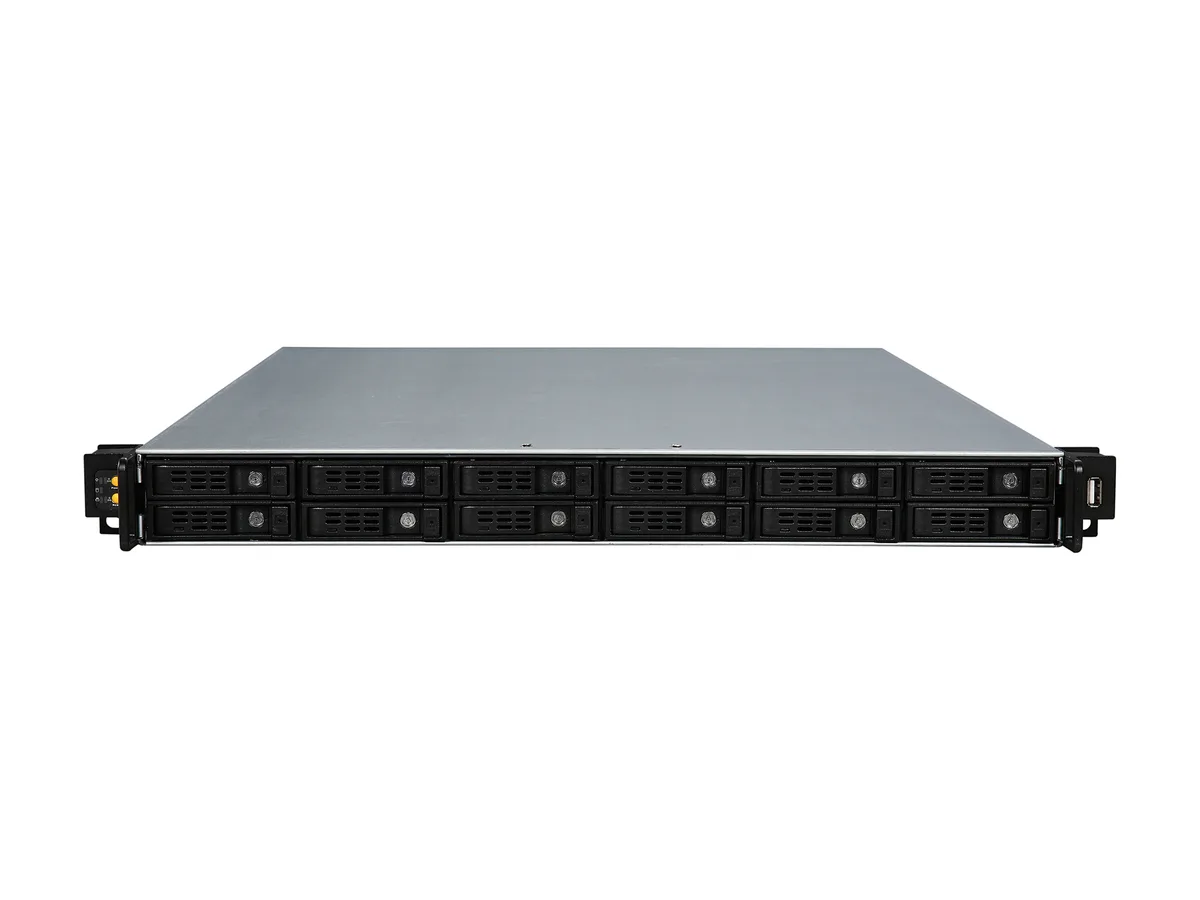

Silver-black 1U rackmount server chassis with twelve front hot-swap 2.5-inch drive bays

Athena Power

Athena Power RM-1U1122HE12 1U 12-bay E-ATX server chassis

SKU CH-THQ4-6AANM MPN RM-1U1122HE12

A 1U rackmount chassis holding twelve hot-swap 2.5-inch SAS or SATA drives on a 12Gb/s Mini-SAS HD backplane with six high-CFM 40mm fans

  • Chassis TypeRackmount
  • Form Factor1U
  • ColorSilver / Black
  • Case Material1.2mm SGCC
  • Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.) ATX (12 in. x 9.6 in.) E-ATX (1
  • Power SupplyFlexATX 1U Single 1U Redundant
  • 12 hot-swap bays fit 2.5" enterprise drives up to 15mm height
  • 12Gb/s Mini-SAS HD backplane delivers high-speed SAS and SATA connectivity
  • E-ATX motherboard support up to 12x13 inches enables full server builds
  • Six 40mm high-CFM fans provide focused 1U cooling airflow
  • Front USB 2.0 plus status LEDs for power, drives and network visibility

1U 12-bay E-ATX server chassis

The Athena Power RM-1U1122HE12 is a 1U rackmount chassis that fits MicroATX, ATX, E-ATX and Mini-ITX boards. It provides twelve front-accessible 2.5-inch hot-swap bays for SAS or SATA drives. The unit targets builders who need dense storage in a single rack unit. Buyers who require 3.5-inch drive support or more than twelve bays should look elsewhere.

Sustained-load thermal behaviour

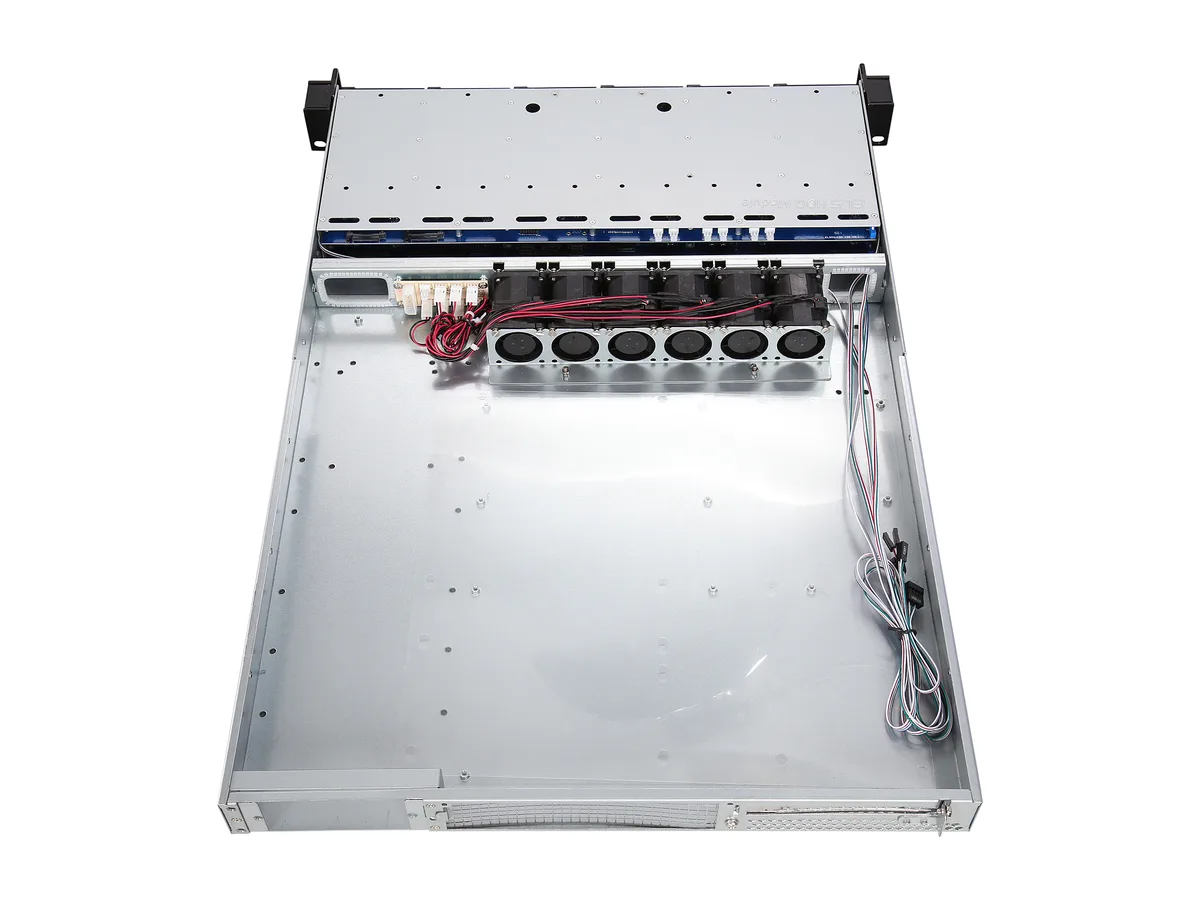

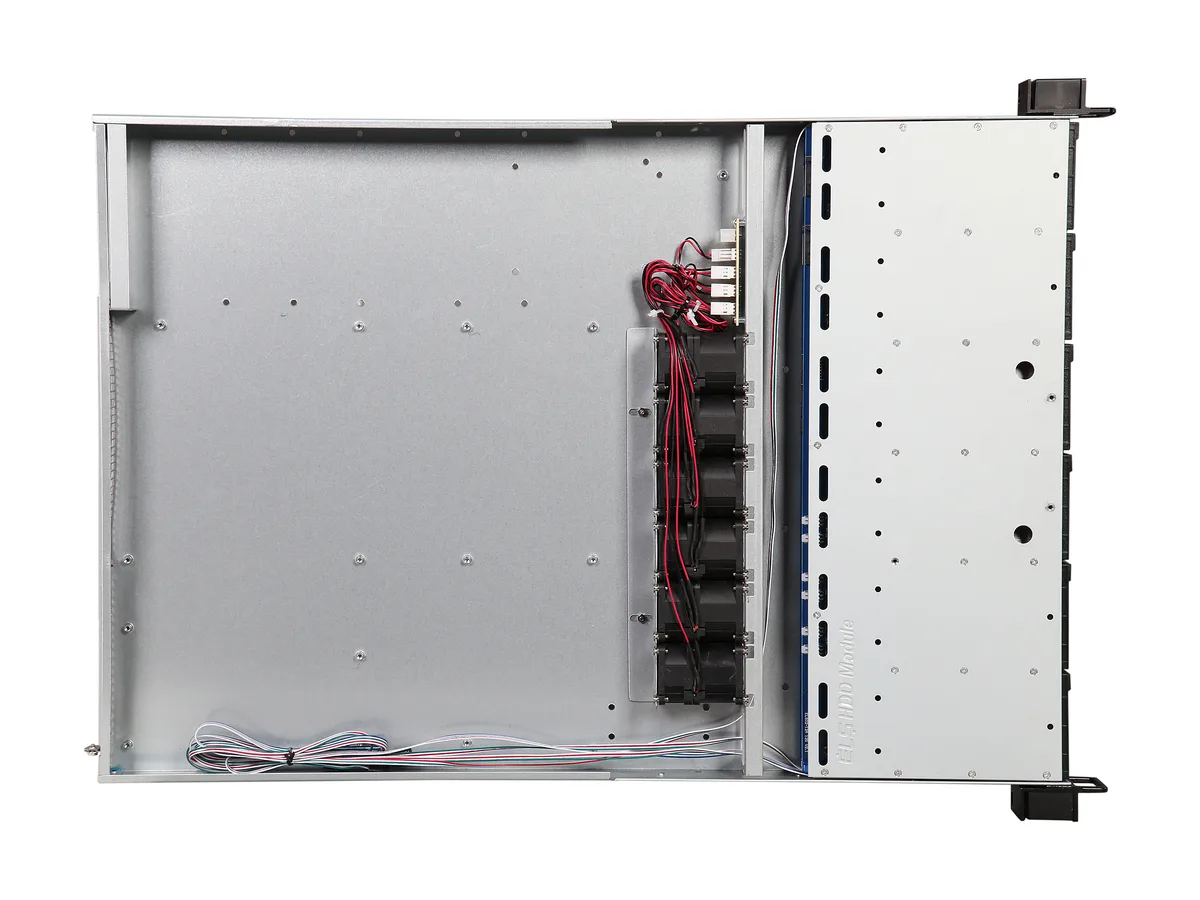

Six 40 x 40 x 56 mm high-CFM fans sit in the centre of the chassis to move air across the drive bays and motherboard. The 1.2 mm SGCC shell and metal caddy design add structural rigidity and EMI grounding up to 5 kV. Anti-vibration mounts on each caddy help keep drive temperatures stable during continuous operation. No liquid-cooling provisions or larger fan mounts are present.

Installation and common pitfalls

Tool-less drive caddies accept enterprise 2.5-inch drives up to 15 mm height and lock with a metal triangle security latch. The 12 Gb/s Mini-SAS HD backplane uses SFF-8643 connectors; cables are not included. Power options are FlexATX, 1U single or 1U redundant units, all sold separately. Front-panel LEDs show power, drive activity, LAN1, LAN2 and warning status. Depth of 25.30 inches may exceed some shallow racks.

商品特色

  • 12 hot-swap bays fit 2.5" enterprise drives up to 15mm height
  • 12Gb/s Mini-SAS HD backplane delivers high-speed SAS and SATA connectivity
  • E-ATX motherboard support up to 12x13 inches enables full server builds
  • Six 40mm high-CFM fans provide focused 1U cooling airflow
  • Front USB 2.0 plus status LEDs for power, drives and network visibility

商品規格

BrandAthena Power
ModelRM-1U1122HE12
Chassis TypeRackmount
Form Factor1U
ColorSilver / Black
Case Material1.2mm SGCC
Motherboard CompatibilityMicroATX (9.6 in. x 9.6 in.)
ATX (12 in. x 9.6 in.)
E-ATX (12 in. x 13 in.)
Mini-ITX (6.7 in. x 6.7 in.)
Power SupplyFlexATX
1U Single
1U Redundant
Hot-Swap Drive Bays12 x 2.5" SAS / SATA HDD / SSD Hot-swappable
Front PortsUSB 2.0 x 1 (Front)
40mm Fans6 x 40 * 40 * 56mm High CFM Central Fans
Features12Gb/s Mini-SAS HD (SFF-8643) Backplane
LED Indicators: Power On / HDD Activity / LAN1 / LAN2 / Warning
Switch: Power On / Off; Reset
HDD Caddy (x12): Support Enterprise HDD (H=15mm), Anti-vibration, EMI Grounding (up to 5kV), Metal Triangle Security Lock, LED Optical Lightpipe Indicator
Dimensions1.75" x 17.20" x 25.30"
出貨重量12.07 kg
包裝尺寸828 × 602 × 216 mm

商品問答

How loud and hot does the 1U chassis get with six 40mm high-CFM fans running continuously?

Six 40mm high-CFM central fans provide forced airflow through the 1.75" tall chassis; noise and heat levels depend on the installed components and fan-speed settings.

Which power-supply form factor must I already have to fit this chassis?

The chassis accepts a FlexATX, 1U single or 1U redundant power supply; you must supply one of those form factors.

Will my existing E-ATX motherboard measuring 12" x 13" mount correctly in this 1U rackmount case?

Yes, the chassis supports motherboards up to E-ATX 12" x 13" as well as ATX, MicroATX and Mini-ITX.
