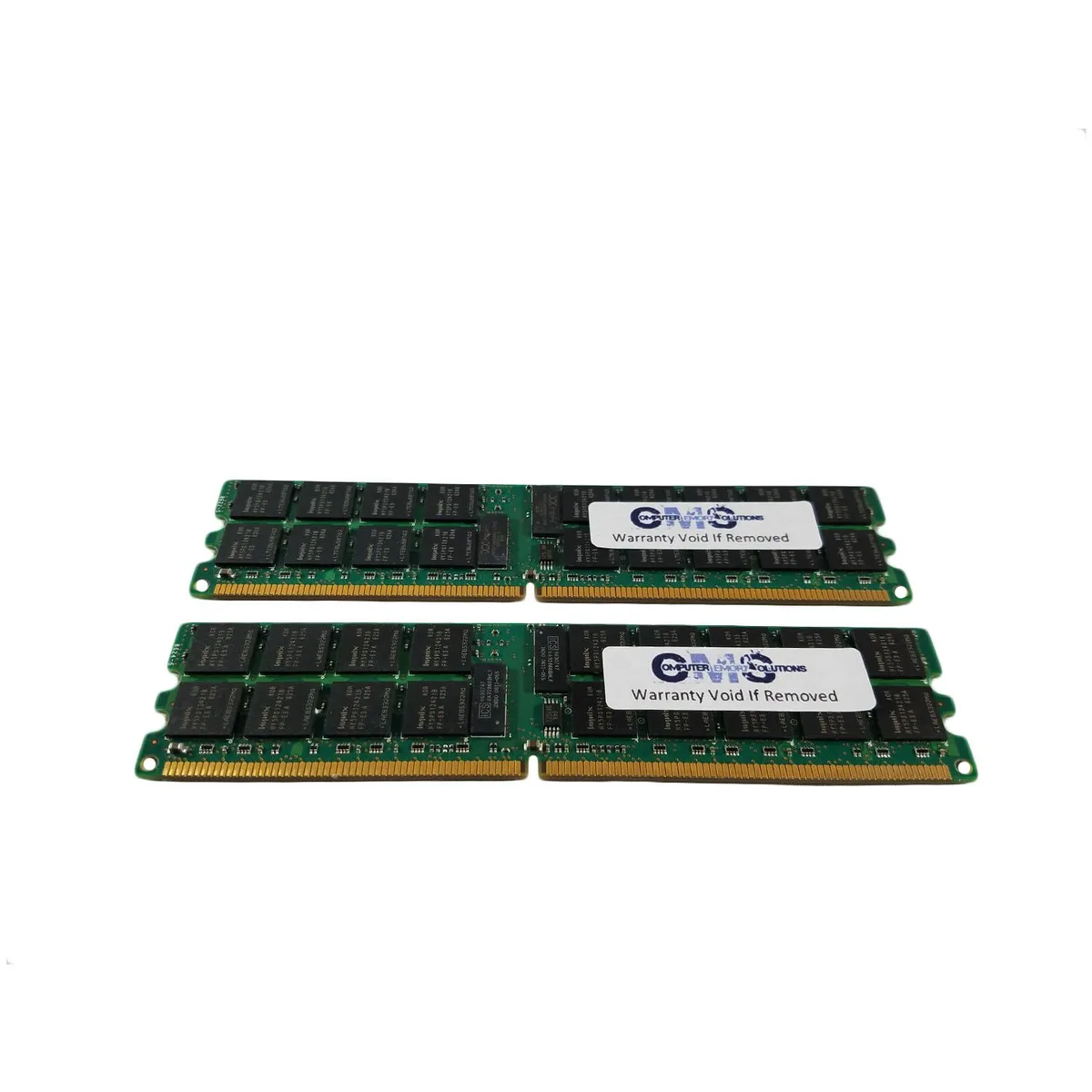

Two green DDR2 DIMMs with gold contacts, registered ECC, 240-pin

Computer Memory Solutions

Computer Memory Solutions 8GB (2x4GB) DDR2 5300 667MHz ECC Registered DIMM B49

SKU CH-WEG3-XF2TK

Two 4 GB DDR2 667 MHz ECC registered DIMMs validated for Dell PowerEdge R300 servers

  • Capacity8GB (2 x 4GB)
  • Type240-Pin DDR2 SDRAM
  • SpeedDDR2 667 (PC2 5300)
  • CAS LatencyCL5
  • Timing5-5-5
  • Voltage1.8V
  • ECC protection prevents data corruption with registered design
  • 667 MHz DDR2 speed matches Dell PowerEdge R300 specs
  • 8 GB dual-channel kit (2 × 4 GB) fills two slots
  • 240-pin registered DIMMs install directly in server board
  • CL5 5-5-5 timing at 1.8 V for stable operation

Server memory kit

This 8 GB kit consists of two 4 GB DDR2 667 MHz registered ECC DIMMs built for the Dell PowerEdge R300. Each module runs at 1.8 V with CL5 5-5-5 timings and a 2Rx4 organisation. The 240-pin form factor matches the server's six memory sockets. System integrators upgrading that platform receive a matched pair tested for compatibility.

Suited for R300 upgrades

Administrators expanding a PowerEdge R300 toward its 48 GB maximum will find the registered ECC design required by that server. Builders working on desktop boards, workstations or any system that needs unbuffered memory cannot use these modules. The kit is also unsuitable for platforms limited to single-rank DIMMs or lower voltages.

Registered ECC requirement

The single specification that decides fit is the registered ECC architecture; the R300 memory controller only accepts registered modules with error correction. Unbuffered or non-ECC DIMMs will not function in this server. Confirm the platform demands registered ECC DDR2 before purchasing.

商品特色

  • ECC protection prevents data corruption with registered design
  • 667 MHz DDR2 speed matches Dell PowerEdge R300 specs
  • 8 GB dual-channel kit (2 × 4 GB) fills two slots
  • 240-pin registered DIMMs install directly in server board
  • CL5 5-5-5 timing at 1.8 V for stable operation

商品規格

BrandComputer Memory Solutions
ModelCM512725300ECCREG2R4
Capacity8GB (2 x 4GB)
Type240-Pin DDR2 SDRAM
SpeedDDR2 667 (PC2 5300)
CAS LatencyCL5
Timing5-5-5
Voltage1.8V
ECCYes
Buffered/RegisteredRegistered
Rank2Rx4
ChipsetMajor Brand Chipset
Heat SpreaderBased on Current Inventory (If Required Please Contact)
Compatible SystemDell Poweredge R300 Server
Package Content1 Memory RAM Stick

商品問答

Will the ECC registered DIMMs need any firmware updates or re-seating over time?

The modules are validated for the Dell PowerEdge R300 and carry a limited lifetime warranty from CMS; no firmware updates are required and re-seating is only needed if the server is moved or cleaned.

What limits throughput when the R300 runs at full load for hours?

The six DIMM slots and 48 GB maximum capacity of the PowerEdge R300 set the hard ceiling; once all slots are filled the memory controller cannot address more data.

How much heat and power do the two 4 GB sticks draw in a 24/7 server?

Each stick runs at 1.8 V DDR2 voltage and the registered buffer adds minimal overhead; total draw stays well within the R300's standard DIMM thermal envelope.
