Green Raspberry Pi Zero HAT with RJ45 port, three USB ports and grey ABS case with two snap-on lids

LORDWORLD

LORDWORLD PoE Ethernet USB Hub HAT with ABX Case for Raspberry Pi Zero

SKU CH-SGS1-31DHG

Adds 10/100 Ethernet and three USB 2.0 ports to a Raspberry Pi Zero while powering it over 802.3af PoE, housed in a snap-on ABS case

  • Power via Ethernet cable with 802.3af PoE support
  • Wired 10/100M network through RTL8152B chip
  • Three extra USB ports compatible with USB 2.0 and 1.1
  • Snap-on ABS case with rounded edges and anti-fingerprint finish
  • Includes two interchangeable lids for flexible access

PoE HAT for Raspberry Pi Zero

The LORDWORLD PoE-ETH-USB-HUB-BOX adds wired networking and extra USB ports to any Raspberry Pi Zero series board. It draws power from an 802.3af-compliant PoE switch through a single RJ45 cable, removing the need for a separate power adapter. A fully isolated switch-mode supply protects the Pi from voltage spikes. The RTL8152B Ethernet chip provides 10/100 Mbps auto-negotiation for reliable wired connectivity.

Makers needing PoE and USB expansion

Builders who want to power a Zero over Ethernet and connect up to three USB 2.0 or 1.1 peripherals will find this HAT a compact, all-in-one solution. Projects that require gigabit Ethernet speeds or USB 3.0 bandwidth should look at alternative hardware, as this board is limited to 100 Mbps networking and USB 2.0 data rates.

RTL8152B 10/100 Ethernet chip

The onboard RTL8152B controller determines the maximum wired throughput of 100 Mbps and the PoE power class. Verify that your network infrastructure supplies 802.3af power and that 100 Mbps bandwidth meets your application requirements before purchasing.

商品特色

  • Power via Ethernet cable with 802.3af PoE support
  • Wired 10/100M network through RTL8152B chip
  • Three extra USB ports compatible with USB 2.0 and 1.1
  • Snap-on ABS case with rounded edges and anti-fingerprint finish
  • Includes two interchangeable lids for flexible access

商品規格

BrandLORDWORLD

商品問答

What comes in the box and do I need to buy a Raspberry Pi Zero separately?

The package includes the PoE HAT board, the ABX case with two interchangeable lids, and mounting hardware. A Raspberry Pi Zero, Zero W, Zero 2 W, Zero WH or Zero 2 WH must be purchased separately.

Which Raspberry Pi Zero models does this HAT support?

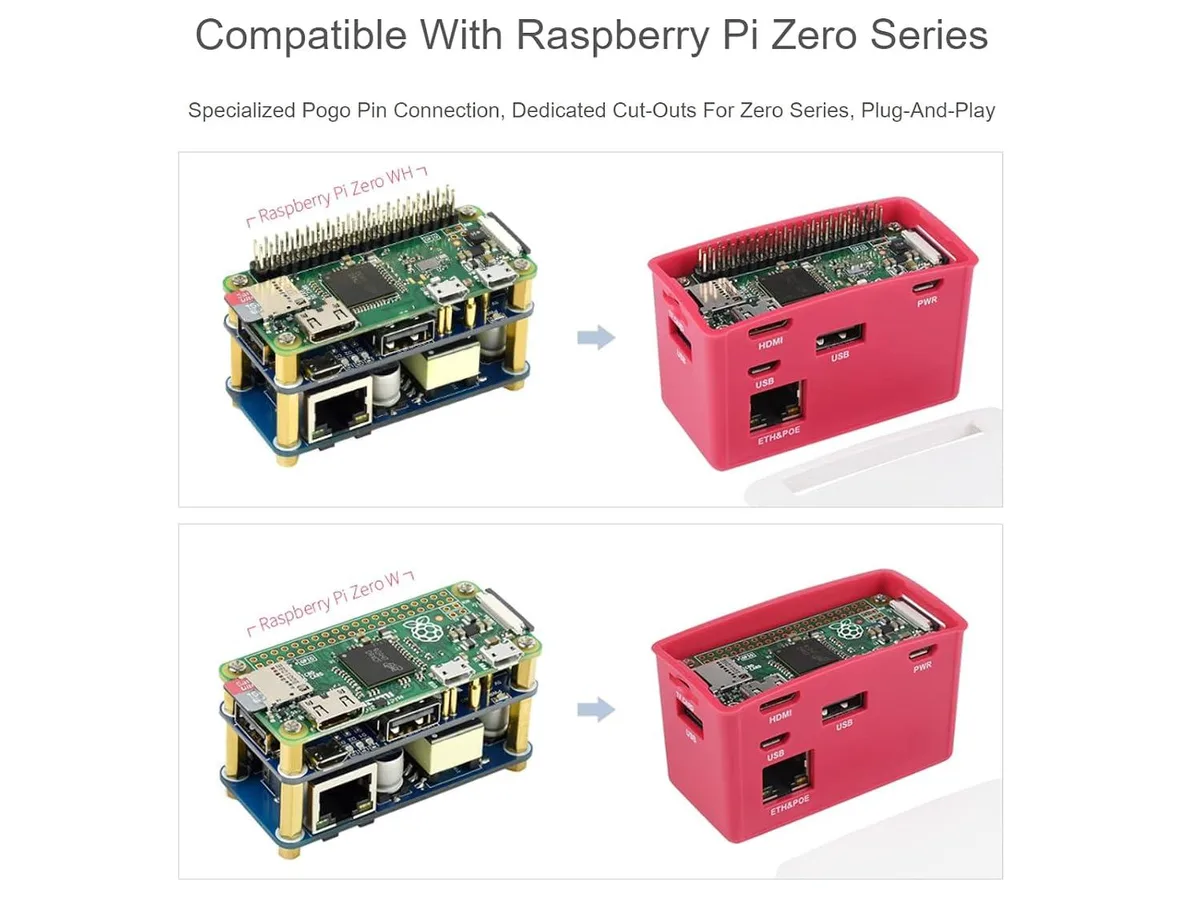

It fits all Zero-series boards: Zero, Zero W, Zero 2 W, Zero WH and Zero 2 WH.

What does the 10/100 Mbit Ethernet port mean for real-world throughput?

The RTL8152B chip auto-negotiates at 10 or 100 Mbit/s, so wired network traffic is limited to Fast Ethernet speeds.
