Wearable ESP32-S3 dev board with 2.06inch AMOLED touch screen and detachable straps

MCDODO

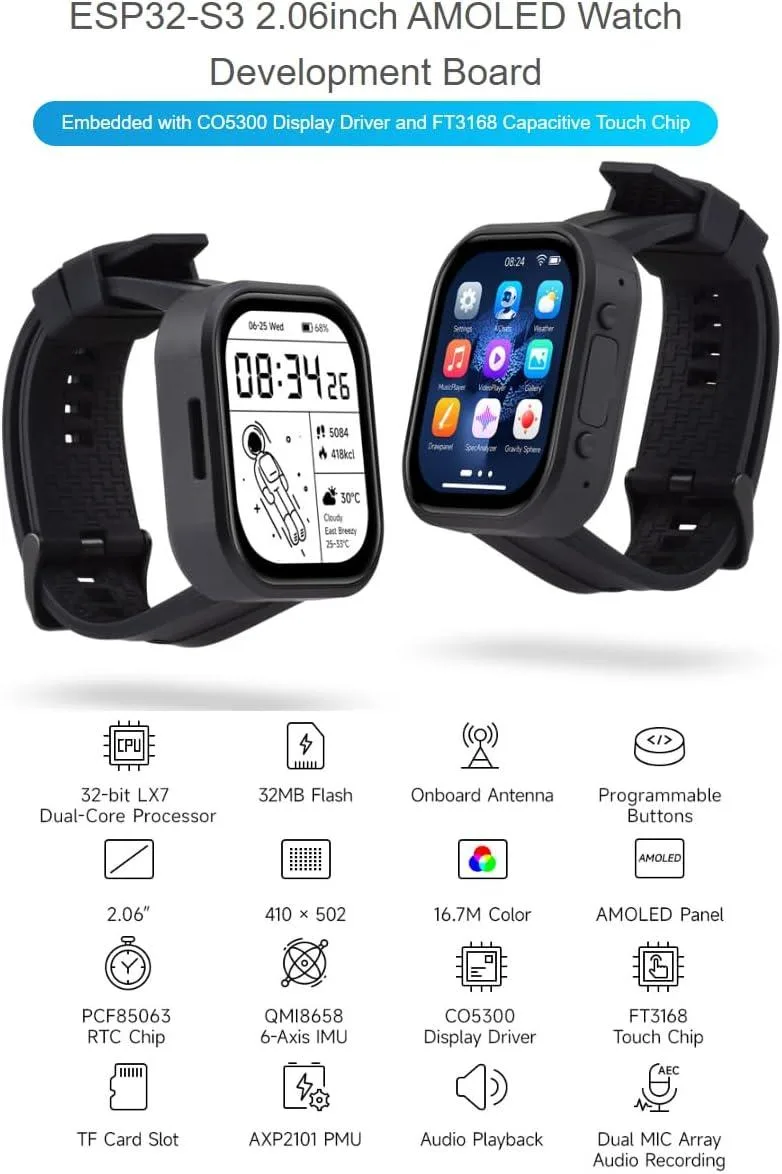

MCDODO ESP32-S3 2.06inch AMOLED Touch Watch Development Board

SKU CH-A9GG-0PPER

A wearable development board with a 2.06 inch AMOLED touch display, ESP32-S3R8 dual-core processor at 240 MHz, 2.4 GHz Wi-Fi and Bluetooth 5, plus offline voice recognition and AI speech interaction

  • TypeSingle Board Computers
  • Dual-core 240 MHz processor powers responsive wearable projects

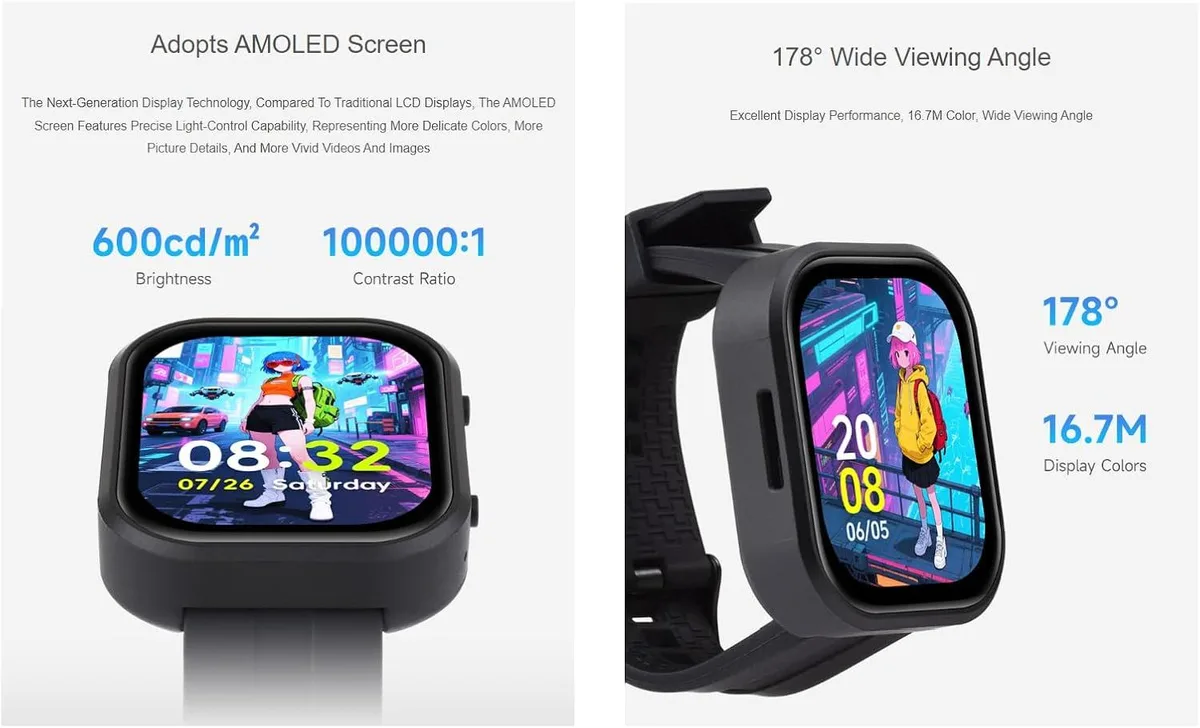

  • 06 inch AMOLED capacitive touch display enables vivid interactive interfaces
  • Onboard ES8311 audio codec and ES7210 echo cancellation support offline voice recognition
  • 4 GHz Wi-Fi 802.11 b/g/n plus Bluetooth 5 LE keeps projects connected
  • Detachable watch straps allow quick style changes for wearable prototypes

DIY Wearable Development Board

This board is a wearable development platform built around the ESP32-S3R8 microcontroller with a 2.06 inch AMOLED capacitive touch display. It integrates a 6-axis IMU, RTC chip, ES8311 audio codec and ES7210 echo cancellation circuit. The dual-core Xtensa LX7 processor runs at up to 240MHz and provides 2.4 GHz Wi-Fi 802.11 b/g/n plus Bluetooth 5 LE connectivity. It is supplied new and requires the user to write firmware for any functionality.

For Developers Building Voice Enabled Wearables

The board suits engineers and hobbyists who want to prototype offline voice recognition, AI speech interaction or audio capture and playback in a watch form factor. Detachable straps allow quick style changes during testing. Buyers expecting a ready to use smartwatch with pre loaded apps or a standard consumer interface should look elsewhere because no application software is included and all features must be programmed from scratch.

Audio Codec and Echo Cancellation Hardware

The onboard ES8311 codec and ES7210 echo cancellation circuit enable direct microphone input and speaker output without extra modules. This hardware supports the offline voice recognition and AI speech interaction highlighted by the manufacturer and also allows access to online large model platforms. The integrated power management IC and RTC chip further reduce the need for external components when building a complete wearable prototype.

商品特色

  • Dual-core 240 MHz processor powers responsive wearable projects
  • 06 inch AMOLED capacitive touch display enables vivid interactive interfaces
  • Onboard ES8311 audio codec and ES7210 echo cancellation support offline voice recognition
  • 4 GHz Wi-Fi 802.11 b/g/n plus Bluetooth 5 LE keeps projects connected
  • Detachable watch straps allow quick style changes for wearable prototypes

商品規格

TypeSingle Board Computers

商品問答

What do I need to provide to power and program the ESP32-S3R8 board?

The board has no built-in battery; you must supply a USB-C cable and a 5 V source, then flash your own firmware with the ESP-IDF or Arduino toolchain.

Will the onboard 6-axis IMU and ES8311 audio codec work with legacy Arduino libraries?

The IMU and ES8311 codec are standard I²C devices, so existing Arduino drivers for similar sensors and the ES8311 will communicate once you initialise the correct bus pins.

How can I confirm the 2.06 inch AMOLED touch panel and microphone are functioning after flashing my code?

Run a test sketch that draws a pattern on the AMOLED display, reports touch coordinates over serial, and records a short clip through the ES7210 echo-cancellation circuit for playback.
