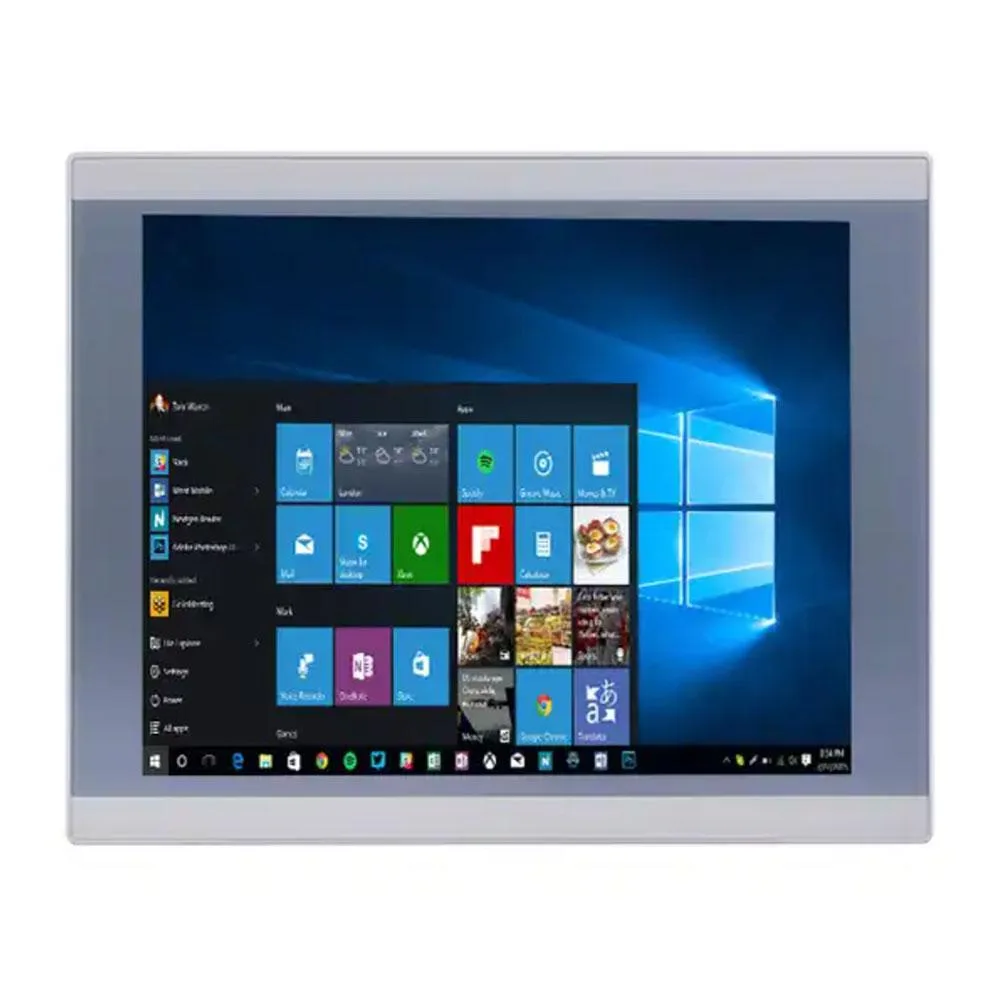

Silver 12.1 inch fanless industrial panel PC with IP65 front bezel and projected capacitive touchscreen

partaker

partaker A1 12.1" Industrial Panel PC i7-8565U 16GB 512GB

SKU CH-4X1B-HXMS3

12.1-inch IP65-rated panel PC with 10-point capacitive touchscreen, Intel Core i7-8565U, 16GB DDR4 and 512GB SSD for continuous industrial operation

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 8th Gen
  • CPU NameIntel Core i7-8565U
  • GPU/VGA TypeIntel UHD Graphics

CPU Type Intel Core i7 8th Gen

CPU Name Intel Core i7-8565U

GPU Intel UHD Graphics

Memory 16GB DDR4

SSD 512GB

HDD None

被劃上刪除線的選項確實存在，但本站並無供貨。

  • IP65 front panel resists dust and water jets in harsh environments
  • 10-point capacitive touch handles multi-finger input on 12.1" display
  • Fanless aluminium alloy chassis runs silently with passive cooling
  • Intel Core i7-8565U with 16GB DDR4 and 512GB SSD delivers responsive performance
  • HDMI, VGA, dual LAN, dual COM and four USB ports connect industrial peripherals

Industrial Panel PC with IP65 Front

The Partaker A1 is a 12.1 inch all-in-one computer built for factory floors and embedded kiosks. Its projected capacitive touchscreen handles ten simultaneous touch points and meets IP65 protection on the front panel. An Intel Core i7-8565U processor with 16 GB of DDR4 memory and a 512 GB SSD runs Windows 11 Pro out of the box. The fanless aluminium chassis operates silently from zero to fifty degrees Celsius.

Upgrade from Legacy Panel PCs

This unit replaces older 4:3 ratio industrial displays that lack multi-touch or modern I/O. The jump is worth it when an application needs HDMI and VGA video outputs, dual gigabit LAN ports, two serial COM ports and four USB sockets in a single sealed enclosure. Support for mSATA, M.2 2280 NVME or SATA and a 2.5 inch drive bay lets storage grow without external boxes. A Mini PCIe slot with a SIM holder adds cellular or Wi-Fi connectivity later.

Embedded Mounting with Buckle Kit

Installation uses the supplied embedded buckle kits that clamp the unit into a 301 by 229 millimetre cut-out. The 12 V DC input accepts 100 to 240 V AC via the bundled adapter and includes a power-switch header for remote start. Auto power-on after power failure restores operation without manual intervention. The only common issue is ensuring the mounting surface is flat enough to maintain the IP65 seal.

商品特色

  • IP65 front panel resists dust and water jets in harsh environments
  • 10-point capacitive touch handles multi-finger input on 12.1" display
  • Fanless aluminium alloy chassis runs silently with passive cooling
  • Intel Core i7-8565U with 16GB DDR4 and 512GB SSD delivers responsive performance
  • HDMI, VGA, dual LAN, dual COM and four USB ports connect industrial peripherals

商品規格

ModelA1-PA-121TPC-CE6B(I78)-16G512G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 8th Gen
CPU NameIntel Core i7-8565U
GPU/VGA TypeIntel UHD Graphics
Memory Capacity16GB DDR4
Memory Slots (Available/Total)2 total
Maximum Memory Supported64 GB
SSD512GB
HDDNo
Screen Size12.1"
TouchscreenYes

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What are the cut-out dimensions for the embedded mounting of the 12.1 inch panel?

The embedded mounting requires an opening hole of 301 x 229 mm. The overall unit measures 306.8 x 235.12 x 54.5 mm and weighs 3.1 kg, so verify the panel thickness matches the buckle kit range.

How is the operating system installed and what is the first configuration step?

Windows 11 Pro 64-bit comes pre-installed. On first boot, complete the Windows out-of-box experience — region, keyboard, network, and account — then check for updates before deploying any industrial software.

Which storage drives can be added later and what are the limits?

You can add one mSATA SSD, one M.2 2280 NVME or SATA SSD, and one 2.5 inch SATA SSD or HDD. System memory uses two SODIMM DDR4-2400 slots supporting up to 64 GB total.
