Silver 21.5 inch all-in-one panel PC with flat touchscreen and fanless aluminum chassis

partaker

Partaker A16-PA-215TPC-CE6A(I53) 21.5" all-in-one PC Intel Core i5 3rd Gen 1.70GHz 4GB DDR3 128GB SSD

SKU CH-3X8X-0CS1M

A 21.5 inch IP65-rated industrial all-in-one with 10-point capacitive touch, Intel Core i5 3rd Gen at 1.70GHz, 4GB DDR3, 128GB SSD, fanless aluminium cooling, HDMI, VGA, four USB 2.0, LAN.

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU Name1.70GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 4GB DDR3

SSD

HDD None

  • None
  • 1TB

被劃上刪除線的選項確實存在，但本站並無供貨。

  • IP65 front-panel protection for dust and water resistance
  • 10-point projected capacitive touch for precise multi-touch control
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5 3rd Gen 1.70GHz with 4GB DDR3 and 128GB SSD
  • Extensive I/O including HDMI, VGA, 4×USB 2.0, LAN, 2×COM, audio

Industrial 21.5-inch all-in-one

This fanless panel PC integrates an Intel Core i5 third-generation processor at 1.70 GHz with 4 GB of DDR3L memory and a 128 GB mSATA SSD inside an IP65-rated front bezel. The 10-point projected capacitive touchscreen delivers 1920 x 1080 resolution for machine interfaces, kiosks or process visualisation. Aluminium alloy construction enables silent 7 × 24 operation in 0 – 50 °C environments.

Upgrade from legacy panel PCs

It replaces older all-in-one units that rely on active cooling, lower IP ratings or single-touch resistive screens. The jump is worthwhile when an application demands fanless reliability, multi-touch input and a modern I/O set including HDMI, VGA, four USB 2.0 ports, dual COM ports and Gigabit LAN. Systems that already meet those requirements will not gain from migration.

Build integration

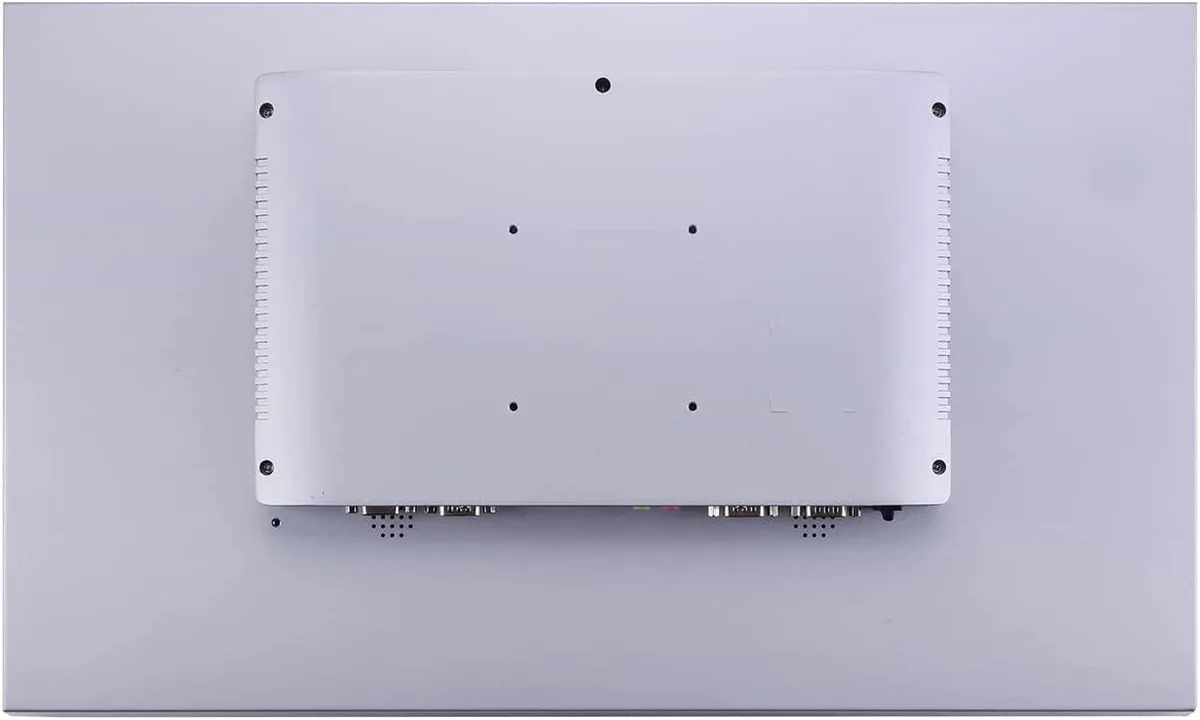

The 527.8 x 321 x 54.5 mm chassis mounts via embedded buckles in a 522 x 315 mm cut-out for panel, wall, desktop or cantilever installation. A 12 V DC supply (100 – 240 V AC adapter included) powers the board, while a Mini PCIe slot with SIM holder accepts Wi-Fi or 4G modules. One 2.5-inch SATA bay and the mSATA slot allow storage expansion up to the board limits. The watchdog timer and auto power-on after failure simplify remote site management.

商品特色

  • IP65 front-panel protection for dust and water resistance
  • 10-point projected capacitive touch for precise multi-touch control
  • Fanless aluminium alloy cooling runs silently 24/7
  • Intel Core i5 3rd Gen 1.70GHz with 4GB DDR3 and 128GB SSD
  • Extensive I/O including HDMI, VGA, 4×USB 2.0, LAN, 2×COM, audio

商品規格

ModelA16-PA-215TPC-CE6A(I53)-4G128G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU Name1.70GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity4GB DDR3
HDDNo
Screen Size21.5"
TouchscreenYes

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What is the opening hole size for embedding the 21.5" panel?

The cut-out required is 522 x 315 mm. The unit includes embedded buckle kits that secure it from the front.

How do I connect the 12 V DC supply, and which step is often missed?

Plug the supplied AC-to-DC adapter into 100-240 V mains, then insert the 12 V barrel jack into the panel. The step often missed is enabling the auto-power-on jumper so the PC restarts after a power loss.

Which memory module do I need if I expand the 4 GB DDR3 later?

Use a single DDR3L SODIMM running at 1333 or 1600 MT/s. The slot supports up to 8 GB total.
