Silver 21.5 inch all-in-one panel PC with flat capacitive touchscreen and fanless aluminium chassis

partaker

Partaker A16-PA-215TPC-CE6A(J19) 21.5" IP65 Industrial Panel PC Celeron J1900 8GB DDR3 256GB SSD

SKU CH-EBCC-XGW2Q

Fanless IP65 panel PC with 21.5" 10-point capacitive touchscreen, Celeron J1900, 8GB DDR3L and 256GB SSD

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeCeleron
  • CPU Name2.00GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

HDD None

被劃上刪除線的選項確實存在，但本站並無供貨。

  • IP65 front-panel protection resists dust and water jets
  • 10-point projected capacitive touch screen enables precise multi-touch control
  • Fanless aluminium alloy cooling runs silently with no moving parts
  • Intel Celeron J1900 quad-core processor delivers reliable performance for industrial tasks
  • 8GB DDR3L memory and 256GB SSD provide responsive operation and fast storage

Industrial Panel PC for Harsh Environments

This 21.5 inch all-in-one computer combines an Intel Celeron J1900 processor with 8GB DDR3L memory and a 256GB SSD. It is built for factory floors, kiosks and automation cabinets where a sealed front face and fanless operation are required. The IP65-rated panel resists dust and water jets during wash-down cycles.

Fanless Aluminium Chassis with Embedded Mounting

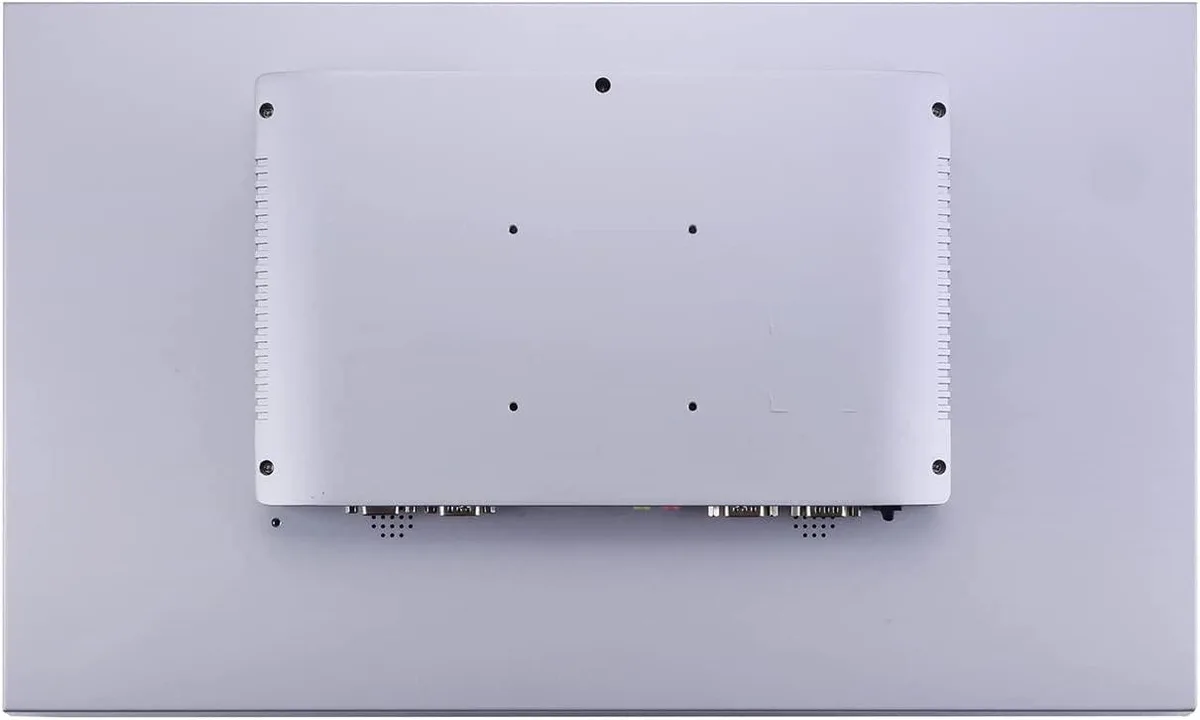

Passive cooling eliminates moving parts, allowing silent 7 x 24 hour operation between 0 and 50 °C. The front bezel carries a 10-point projected capacitive touch layer rated for 200 million touches. Rear I/O includes VGA, three COM ports, USB 3.0, three USB 2.0, LAN, audio and a 12 V DC jack. Embedded buckle kits secure the unit into a 522 x 315 mm cut-out.

Quad-Core Celeron J1900 Decides the Workload Fit

The CPU runs at 2.00 GHz base with a 2.42 GHz burst and 2 MB cache, driving the 1920 x 1080 TFT LED at 250 cd/m² brightness. This performance tier suits HMI screens, data loggers and lightweight SCADA clients. It will not handle heavy multi-threaded analytics or modern GPU-accelerated workloads.

商品特色

  • IP65 front-panel protection resists dust and water jets
  • 10-point projected capacitive touch screen enables precise multi-touch control
  • Fanless aluminium alloy cooling runs silently with no moving parts
  • Intel Celeron J1900 quad-core processor delivers reliable performance for industrial tasks
  • 8GB DDR3L memory and 256GB SSD provide responsive operation and fast storage

商品規格

ModelA16-PA-215TPC-CE6A(J19)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeCeleron
CPU Name2.00GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size21.5"
TouchscreenYes

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What resolution does the VGA output support on this panel PC?

The VGA port can drive up to 1920 x 1080 resolution, matching the built-in 21.5" panel's native 1080p display.

What are the exact cut-out dimensions needed for embedded mounting?

The embedded installation requires an opening hole of 522 x 315 mm to fit the 527.8 x 321 mm chassis.

How is the mSATA SSD installed and what common step is missed?

Insert the mSATA drive into the Mini PCIe slot at a 30-degree angle, press down, and secure it with the retention screw; the step often missed is fastening that screw, which leaves the drive unseated.
