Silver 12.1 inch industrial all-in-one panel PC with resistive touchscreen

partaker

Partaker A2 12.1" Industrial Panel PC i5-3rd 8GB 256GB

SKU CH-03AN-VJJJ7

A 12.1" industrial panel PC with an IP65 front panel, Intel Core i5 3rd Gen CPU, 8GB DDR3 RAM, 256GB SSD, and a high-temperature 5-wire resistive touchscreen

  • Form FactorAll-in-One
  • ColorSilver
  • Operating SystemWindows 10 Pro
  • CPU TypeIntel Core i5 3rd Gen
  • CPU Name1.70GHz
  • GPU/VGA TypeIntel HD Graphics

GPU Intel HD Graphics

Memory 8GB DDR3

  • 4GB DDR3
  • 8GB DDR3

SSD 256GB

HDD None

被劃上刪除線的選項確實存在，但本站並無供貨。

  • IP65 front panel resists dust and water ingress in harsh environments
  • 1 inch TFT LED display with 1024 x 768 resolution for clear industrial viewing
  • Fanless aluminium cooling operates silently from 0 to 50 °C with SSD installed
  • Intel Core i5 third generation with 8 GB DDR3L and 256 GB SSD delivers reliable embedded performance
  • Multiple I/O including HDMI, VGA, 4 USB 2.0, LAN, 2 COM and Mini PCIe expansion

Industrial Panel PC with IP65 Front

The Partaker A2 is a 12.1-inch all-in-one computer built for industrial environments. An Intel Core i5 third-generation processor at 1.70 GHz and 8 GB of DDR3L memory run Windows 10 Pro from a 256 GB mSATA SSD. The fanless aluminium chassis carries an IP65-rated front panel and a high-temperature five-wire resistive touchscreen rated for 200 million touches.

Check Power and Mounting Before Ordering

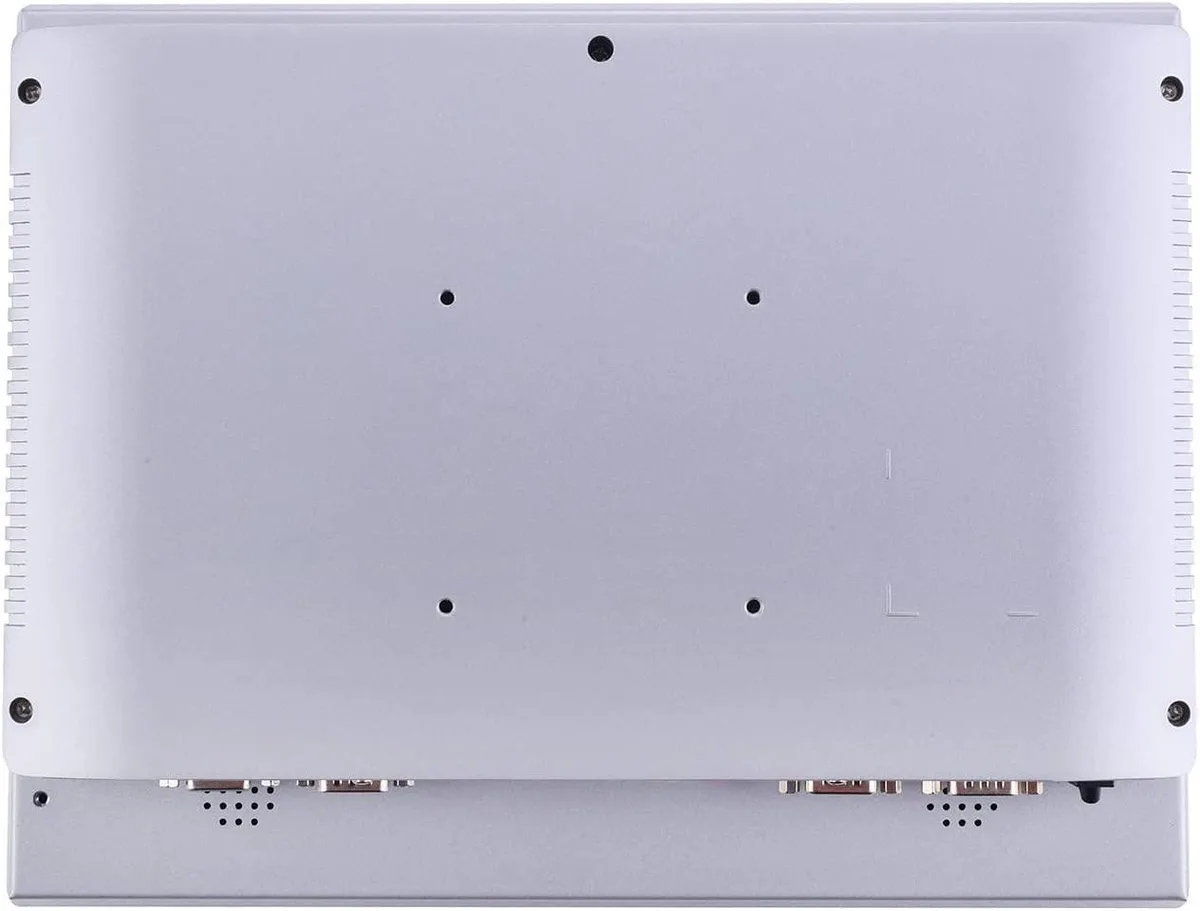

Verify that your site can supply DC 12 V or the included 100–240 V AC adapter, and confirm the 301 mm by 229 mm cut-out for embedded mounting. The unit provides VGA, HDMI, four USB 2.0 ports, one LAN port, two COM ports and audio in/out. A full-size Mini PCIe slot with SIM holder allows optional wireless expansion.

Fanless Cooling Handles Continuous Operation

Passive aluminium cooling keeps the system silent while maintaining an operating range of 0–50 °C with the fitted SSD. The 350 cd/m² TFT LED panel with 1024 x 768 resolution and 1000:1 contrast remains readable across 80° viewing angles. Backlight life is rated at 30 000 hours minimum, and the watchdog timer supports 255 levels for unattended reliability.

商品特色

  • IP65 front panel resists dust and water ingress in harsh environments
  • 1 inch TFT LED display with 1024 x 768 resolution for clear industrial viewing
  • Fanless aluminium cooling operates silently from 0 to 50 °C with SSD installed
  • Intel Core i5 third generation with 8 GB DDR3L and 256 GB SSD delivers reliable embedded performance
  • Multiple I/O including HDMI, VGA, 4 USB 2.0, LAN, 2 COM and Mini PCIe expansion

商品規格

ModelA2-PA-121TPC-CE5B(I53)-8G256G
Form FactorAll-in-One
ColorSilver
Operating SystemWindows 10 Pro
CPU TypeIntel Core i5 3rd Gen
CPU Name1.70GHz
GPU/VGA TypeIntel HD Graphics
Memory Capacity8GB DDR3
SSD256GB
HDDNo
Screen Size12.1"
TouchscreenYes

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Does the Partaker A2 ship with the 256 GB mSATA SSD already installed, or must I buy and fit a drive myself?

The 256 GB SSD comes pre-installed in the mSATA slot, and Windows 10 Pro is already configured, so the system is ready to run without extra storage purchases.

The spec sheet lists DDR3L 1333/1600 with a maximum of 8 GB — since this unit already has 8 GB, can it be upgraded further?

The single SODIMM slot is already populated to its 8 GB ceiling, so no further RAM upgrade is possible on this configuration.

What does the 350 cd/m² brightness and 1024 × 768 resolution mean for visibility on a factory floor?

At 350 cd/m² and 1024 × 768 the 12.1″ panel remains readable in typical indoor industrial lighting, while the 5-wire resistive touch works with gloves.
