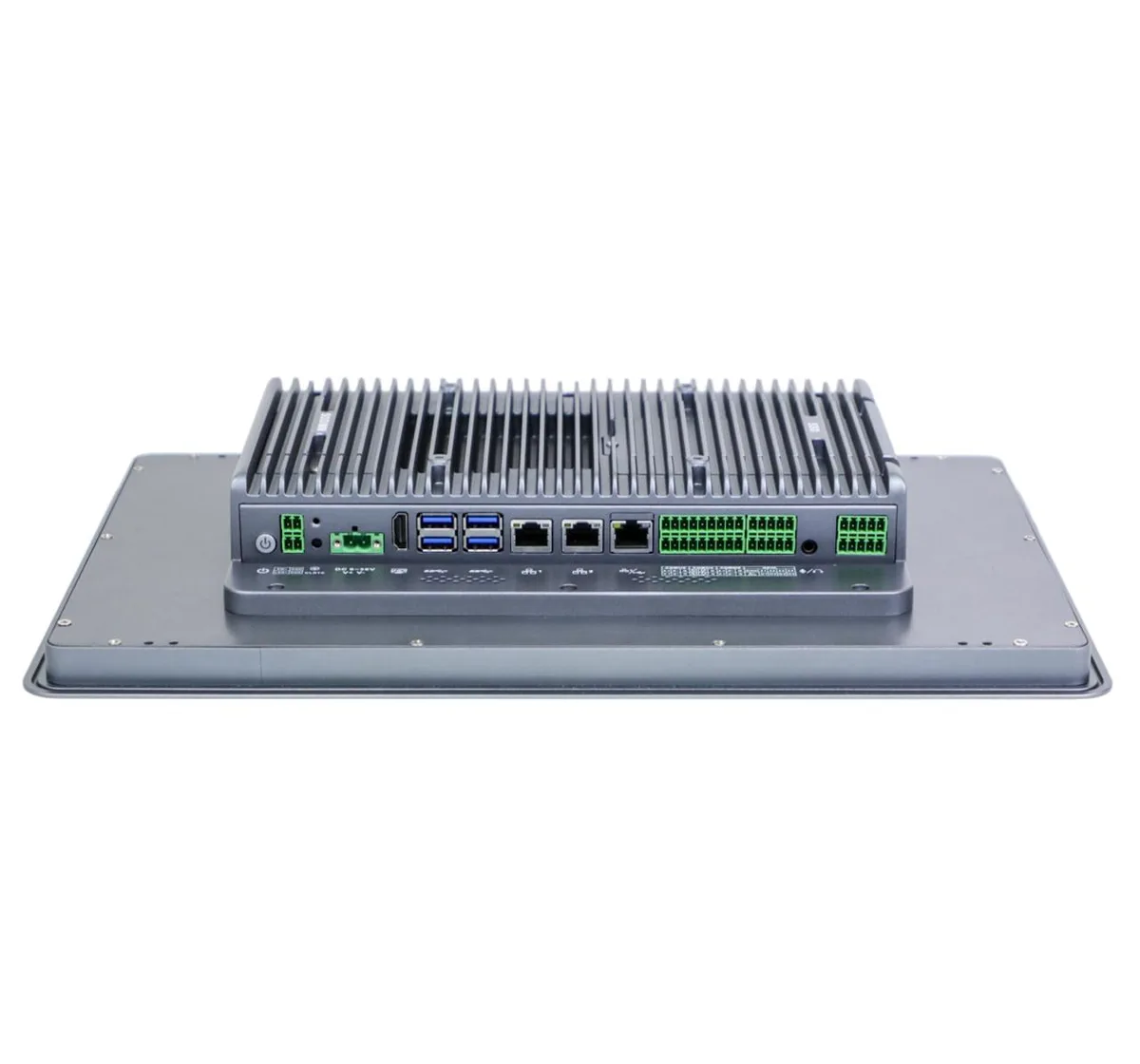

Gray 15-inch industrial all-in-one panel PC with flat resistive touchscreen and fanless aluminum-steel chassis

partaker

partaker A20 15" All-in-One PC i5-1235U 32GB 512GB SSD

SKU CH-VBVX-V4C2V

Fanless 15-inch industrial panel PC with resistive touchscreen, Intel Core i5-1235U, 32GB DDR5, 512GB NVMe, six COM ports, three LAN, HDMI, GPIO and 9–36V DC input

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i5 12th Gen
  • Screen Size15"

Option 32GB RAM / 512GB SSD

  • Fanless cooling ensures silent, dust-free operation in harsh environments
  • IP65 front panel resists water and dust ingress for industrial reliability
  • Intel Core i5-1235U with 10 cores and 12 threads delivers responsive multi-tasking performance
  • 32 GB DDR5 memory and 512 GB NVMe storage provide fast, ample capacity out of the box
  • 9–36 V DC input with reverse polarity protection suits unstable power supplies

Industrial panel PC for harsh environments

The Partaker A20 is a 15 inch all-in-one computer with a 4:3 resistive touchscreen rated IP65 on the front panel. It runs on an Intel Core i5-1235U processor with 10 cores and 12 threads reaching 4.40 GHz. The system ships with Windows 11 Pro, 32GB DDR5 memory and a 512GB NVMe SSD installed.

Fanless cooling limits sustained performance

The aluminum chassis dissipates heat without fans, so continuous heavy workloads will throttle to stay within thermal limits. The 9-36V DC input accepts wide voltage but draws more current at the low end, so the supply must deliver sufficient amperage. Three independent displays are supported via HDMI and internal connectors, yet the panel itself is fixed at 1024×768 resolution.

Verify mounting cutout and legacy I/O needs

The embedded installation cutout measures 355×279mm, so confirm your enclosure matches before ordering. Six COM ports include two configurable for RS232 or RS485, and the 4-in/4-out GPIO uses isolated signalling. Expansion relies on a Mini PCIe slot with SIM holder and an M.2 E-Key slot; the additional USB, GPIO and HDMI functions listed require a custom order.

商品特色

  • Fanless cooling ensures silent, dust-free operation in harsh environments
  • IP65 front panel resists water and dust ingress for industrial reliability
  • Intel Core i5-1235U with 10 cores and 12 threads delivers responsive multi-tasking performance
  • 32 GB DDR5 memory and 512 GB NVMe storage provide fast, ample capacity out of the box
  • 9–36 V DC input with reverse polarity protection suits unstable power supplies

商品規格

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i5 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Should I pick the 32GB RAM and 512GB SSD version or plan to add more storage myself?

The unit ships with 32GB DDR5 in its single SODIMM slot and a 512GB NVMe drive; two M.2 2280 slots and a 2.5-inch bay remain free for extra NVMe, SATA or hard-disk storage.

What does the i5-1235U 10-core 12-thread CPU at up to 4.40 GHz deliver in this fanless chassis?

The 12th-gen i5-1235U runs at up to 4.40 GHz with 12 MB cache, cooled passively by the aluminium-steel frame for silent, sustained industrial workloads.

How do the three LAN ports (two 1000M, one 2.5G) limit real-world network throughput?

Two gigabit ports cap at 1 Gbps each; the 2.5G port caps at 2.5 Gbps, so aggregate wired bandwidth is limited to those link speeds.
