Gray 15 inch industrial all-in-one with flat IP65 capacitive touchscreen and fanless aluminum steel chassis

partaker

Partaker A20 i7-1255U 15" IP65 all-in-one PC 8GB 256GB

SKU CH-6M7E-XNHE0

Industrial 15-inch 4:3 all-in-one with IP65 front panel, Intel Core i7-1255U, 8GB DDR5, 256GB NVMe, six COM ports, triple LAN, 4-in/4-out GPIO and 9-36V DC input

  • TypeAll-in-One PC
  • Form FactorAll-in-One
  • ColorGray
  • Operating SystemWindows 11 Pro
  • CPU TypeIntel Core i7 12th Gen
  • Screen Size15"

Option 8GB RAM / 256GB SSD

  • IP65 front panel resists dust and water jets
  • Fanless aluminium-steel chassis runs silently in harsh conditions
  • Intel Core i7-1255U with 10 cores and 12 threads up to 4.70 GHz
  • 6 COM ports plus 4-in 4-out GPIO for industrial device integration
  • 9-36 V DC input with reverse polarity protection and TPM 2.0 security

Industrial panel PC for harsh environments

The Partaker A20 is a 15-inch all-in-one computer with an IP65-rated front panel and fanless aluminum-steel chassis. It runs Windows 11 Pro on an Intel Core i7-1255U processor with 10 cores and 12 threads. The 4:3 capacitive touch screen delivers 1024×768 resolution at 350 cd/m² brightness. Supplied with 8GB DDR5 memory and a 256GB NVMe SSD, it targets automation, kiosk and field-service deployments.

Verify power, mounting and I/O requirements

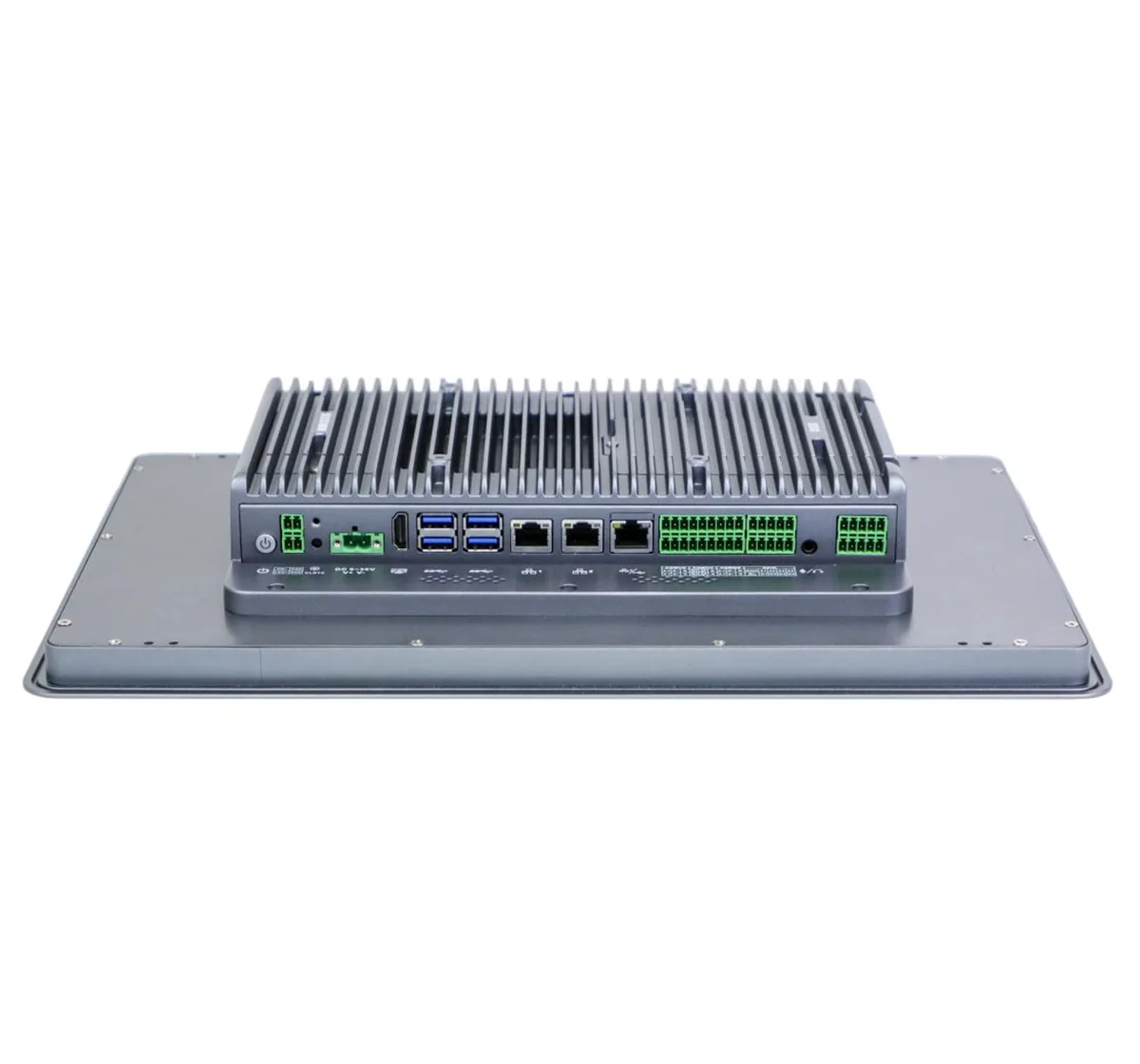

The unit accepts 9-36V DC through a 2×2-pin Phoenix connector with reverse-polarity protection. Panel-mount cutout measures 355×279 mm and overall dimensions are 366×290×66 mm. Confirm that your enclosure provides the cutout and that 3.8 kg weight is supported. Check whether the six COM ports (two configurable for RS232/485), dual Gigabit LAN, single 2.5G LAN, HDMI, four USB 3.0, audio and 4-in/4-out isolated GPIO match your peripheral plan.

Fanless cooling sustains performance without

Passive aluminum-alloy cooling dissipates heat continuously, so the i7-1255U maintains its 4.70 GHz turbo under prolonged industrial workloads. No moving parts means zero fan failure risk and silent operation in dusty or wet conditions. Dual M.2 2280 slots (one NVMe/SATA, one NVMe) plus a 2.5-inch bay allow storage expansion without adding heat sources. TPM 2.0, watchdog timer, Wake-on-LAN, PXE boot and auto power-on ensure unattended reliability over long shifts.

商品特色

  • IP65 front panel resists dust and water jets
  • Fanless aluminium-steel chassis runs silently in harsh conditions
  • Intel Core i7-1255U with 10 cores and 12 threads up to 4.70 GHz
  • 6 COM ports plus 4-in 4-out GPIO for industrial device integration
  • 9-36 V DC input with reverse polarity protection and TPM 2.0 security

商品規格

TypeAll-in-One PC
Form FactorAll-in-One
ColorGray
Operating SystemWindows 11 Pro
CPU TypeIntel Core i7 12th Gen
Screen Size15"
Screen TypeMulti-Touch Screen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What comes in the box and what must I source separately?

The unit ships with the A20 panel PC, a 15" IP65 capacitive touch display, 8GB DDR5 RAM, 256GB NVMe SSD and Windows 11 Pro installed. Mounting hardware, additional storage drives, Wi-Fi/4G modules and expansion cables are not included.

Which memory and storage configuration should I choose for this A20?

The board has one DDR5 SODIMM slot supporting up to 32GB at 4800MHz, two M.2 2280 slots (one NVMe/SATA, one NVMe) and a 2.5" bay. Start with the fitted 8GB/256GB and add a second NVMe drive or 2.5" SSD for more capacity.

What does the IP65 rating mean once the A20 is mounted in a cabinet?

The front panel is sealed against dust and low-pressure water jets from any direction, so the 15" touchscreen survives wash-downs and airborne particulates while the rear I/O stays protected inside the enclosure.
