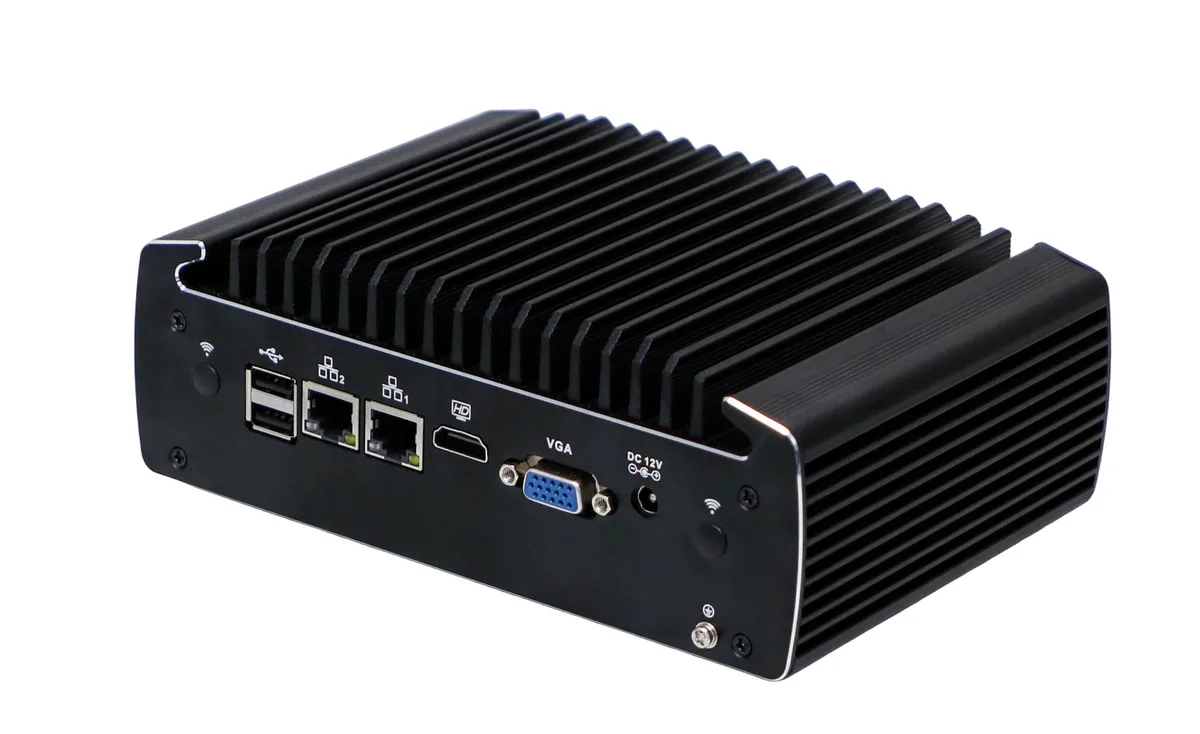

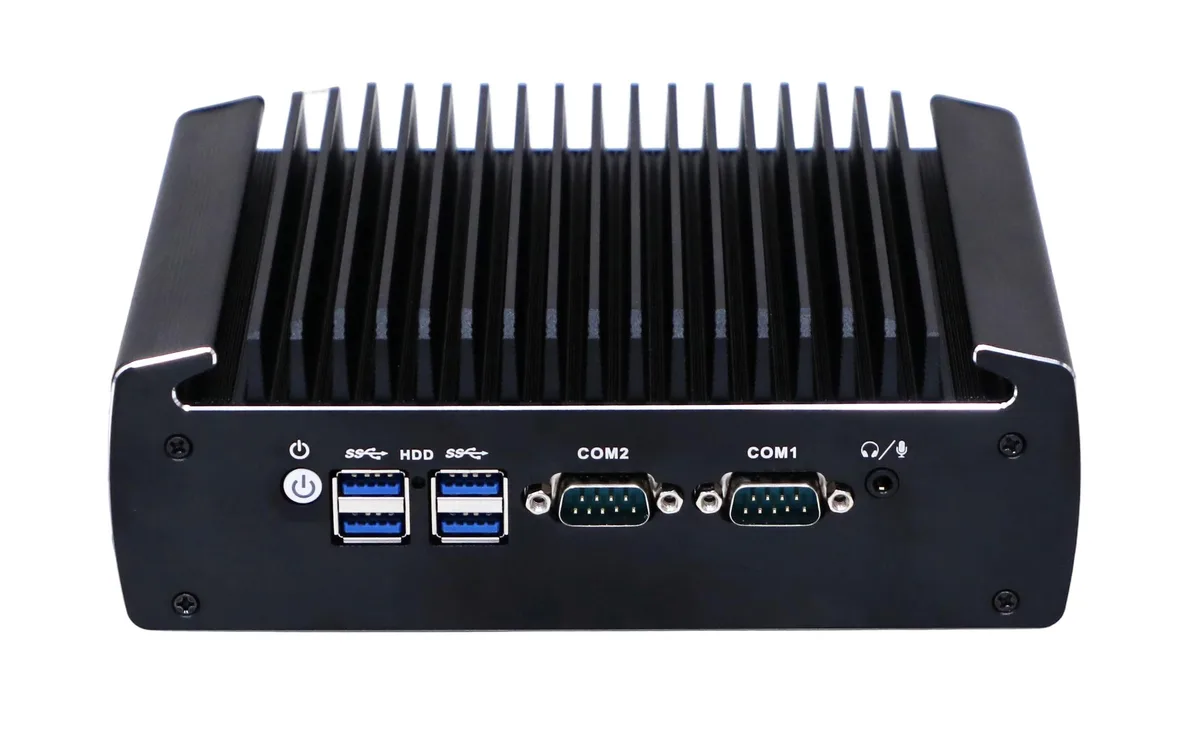

Black fanless mini PC, compact aluminum chassis with front ports and rear I/O

partaker

partaker B6 Fanless Mini PC i5-6300U 8GB 256GB barebone mini PC

SKU CH-QQP1-PQAXZ

Fanless mini PC with an Intel Core i5-6300U, 8 GB DDR3L memory, 256 GB M.2 storage, dual LAN, VGA and HDMI outputs, six USB ports, two COM ports, and a 12 V DC input

  • ColorBlack
  • CPU TypeIntel Core i5 6th Gen

B6 CPU I5 6300U DDR3L 8GB RAM / 256GB SSD

  • Silent operation from fanless aluminium chassis
  • Dual-core i5-6300U reaches 3.0 GHz turbo
  • Dual display via VGA and HDMI ports
  • Six USB ports plus two COM interfaces
  • Operates up to 50°C with industrial SSD

Silent industrial computer

The Partaker B6 is a fanless mini PC built around an Intel Core i5-6300U processor with two cores and four threads reaching 3.0 GHz turbo. It ships with 8 GB of DDR3L memory and a 256 GB M.2 SSD installed. The aluminium chassis operates without moving parts, making it suitable for dusty factories, kiosks or digital-signage deployments where silence and reliability matter.

Passive cooling and low power

The fanless aluminium structure dissipates heat passively, so the system runs completely silent during normal workloads. It accepts a DC 12 V input and is rated for continuous operation from 0 °C to 40 °C with a commercial drive, or -20 °C to 50 °C when an industrial SSD is fitted. Intel HD Graphics 520 drives dual displays via HDMI at up to 3280x2000 at 60 Hz and VGA without adding audible noise.

Expansion-ready I/O and management

Six USB ports (four 3.0, two 2.0), two RS232/485 COM ports and dual Gigabit Ethernet give plenty of connectivity for industrial peripherals. An M.2 2280 slot supports both SATA and NVMe drives, while a Mini PCIe slot with a SIM holder allows optional 3G or 4G modules. Built-in TPM 2.0, Wake-on-LAN, PXE boot and auto power-on simplify remote deployment and security.

商品特色

  • Silent operation from fanless aluminium chassis
  • Dual-core i5-6300U reaches 3.0 GHz turbo
  • Dual display via VGA and HDMI ports
  • Six USB ports plus two COM interfaces
  • Operates up to 50°C with industrial SSD

商品規格

ColorBlack
CPU TypeIntel Core i5 6th Gen

其他版本

同系列還有 2 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I install the M.2 2280 drive and which screw length avoids damaging the board?

Insert the drive at an angle into the M.2 2280 slot, press it flat, and secure it with the single mounting screw; the slot supports both SATA and NVMe PCIe 3.0 x1 drives.

What maintenance will the fanless chassis and the pre-installed 256 GB SSD need over time?

Clean dust from the aluminum fins periodically to maintain passive cooling; the SSD has no moving parts and requires no service, but keep firmware updated for longevity.

At what temperature does the i5-6300U throttle during continuous industrial workloads?

The CPU turbo reaches 3.0 GHz, but sustained loads in a 0°C to +50°C ambient range will trigger thermal throttling once the fanless heatsink saturates.
