Compact black aluminium mini PC with vertical stand and fanless design

partaker

Partaker B7 barebone mini PC i7-1255U 32GB 512GB

SKU CH-E3B1-XNKKK

Fanless aluminium mini desktop with a 10-core i7-1255U, 32 GB DDR4, 512 GB storage and dual 4K video outputs

  • ColorBlack
  • CPU TypeIntel Core i7 12th Gen
  • M.2 Slot1 x M.2
  • Integrated GraphicsIntel Iris Xe Graphics
  • DisplayPort1 x DisplayPort

Group 32G RAM / 512G SSD

  • Silent operation with fanless aluminium chassis
  • 10-core i7-1255U reaches 4.70 GHz for responsive multitasking
  • 32 GB DDR4-3200 and 512 GB NVME storage ready to work
  • Dual 4K output via HDMI and DisplayPort
  • Intel I219-V LAN plus 802.11 ac Wi-Fi for stable connectivity

Ready-to-run compact desktop

The Partaker B7 arrives with Windows 10 Pro installed and an Intel Core i7-1255U processor, 32 GB of DDR4 memory and a 512 GB NVME drive. It targets office workers, digital-signage installers and home-lab enthusiasts who need a silent, small-footprint machine that works straight out of the box.

Fanless installation notes

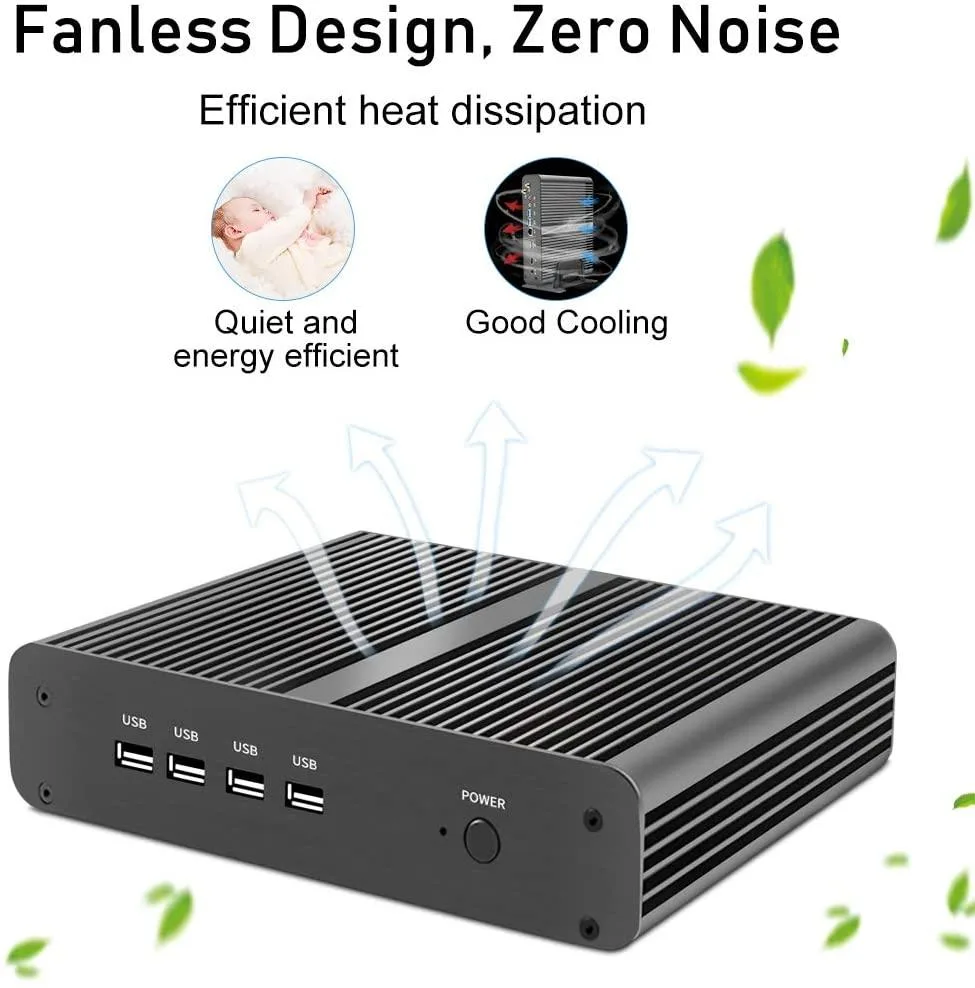

Mount the optional VESA bracket or use the supplied vertical stand, connect the 19 V DC adapter and attach the two Wi-Fi antennas. The aluminium chassis doubles as a heatsink, so keep the ventilation surfaces unobstructed; the only common issue is thermal throttling if the unit is sealed inside a cabinet without airflow.

Memory and storage headroom

Two SODIMM slots support up to 64 GB of DDR4-3200, while the M.2 2280 NVME slot, an mSATA socket and a 2.5-inch SATA bay give three independent drive locations. The integrated Iris Xe graphics drive one DisplayPort at 7680 x 4320 @ 60 Hz and one HDMI at 4096 x 2304 @ 60 Hz, so dual 4K displays are comfortable; heavier 3D workloads or more than two monitors will exceed the graphics capability.

商品特色

  • Silent operation with fanless aluminium chassis
  • 10-core i7-1255U reaches 4.70 GHz for responsive multitasking
  • 32 GB DDR4-3200 and 512 GB NVME storage ready to work
  • Dual 4K output via HDMI and DisplayPort
  • Intel I219-V LAN plus 802.11 ac Wi-Fi for stable connectivity

商品規格

ColorBlack
CPU TypeIntel Core i7 12th Gen
M.2 Slot1 x M.2
Integrated GraphicsIntel Iris Xe Graphics
DisplayPort1 x DisplayPort

其他版本

同系列還有 4 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I verify the i7-1255U is running at its 4.70 GHz boost clock under load?

Open Task Manager's Performance tab or a tool like HWMonitor while running a demanding task; the CPU frequency should reach 4.70 GHz on the 10-core 12-thread processor if thermals allow.

Which accessories are included and what must I purchase separately for a complete setup?

The box contains the B7 mini PC, 19V 5A power supply, power cord, vertical stand, Wi-Fi antennas and warranty card; you only need to add a monitor, keyboard and mouse.

Should I choose the mSATA, M.2 2280 NVME or 2.5-inch SATA slot for the 512 GB boot drive?

Use the M.2 2280 NVME slot for the 512 GB boot drive to get the fastest speeds; the mSATA and 2.5-inch SATA bays remain free for extra storage.
