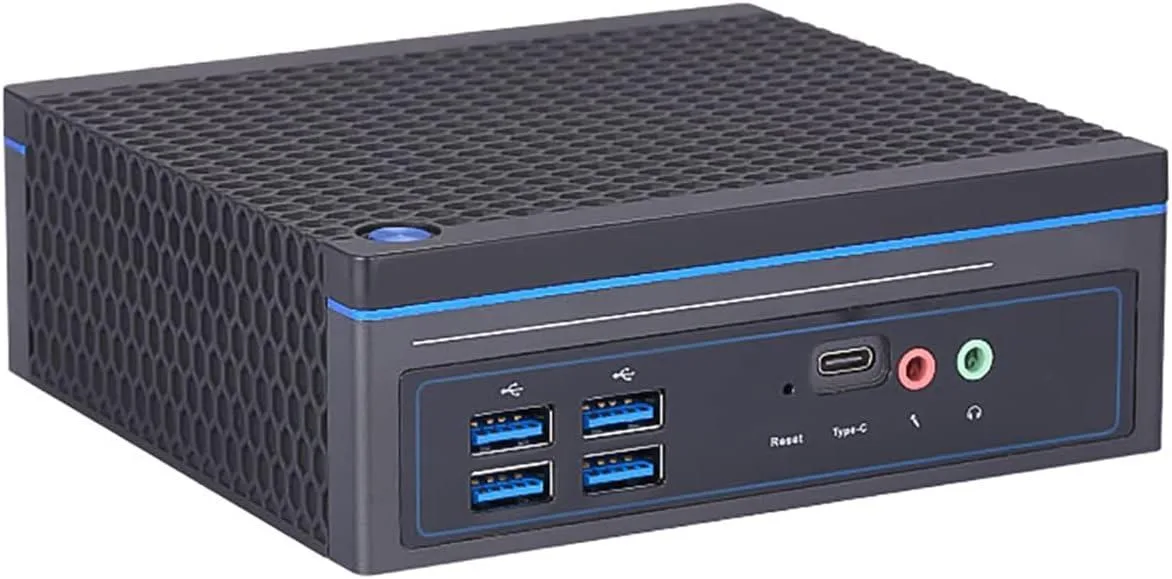

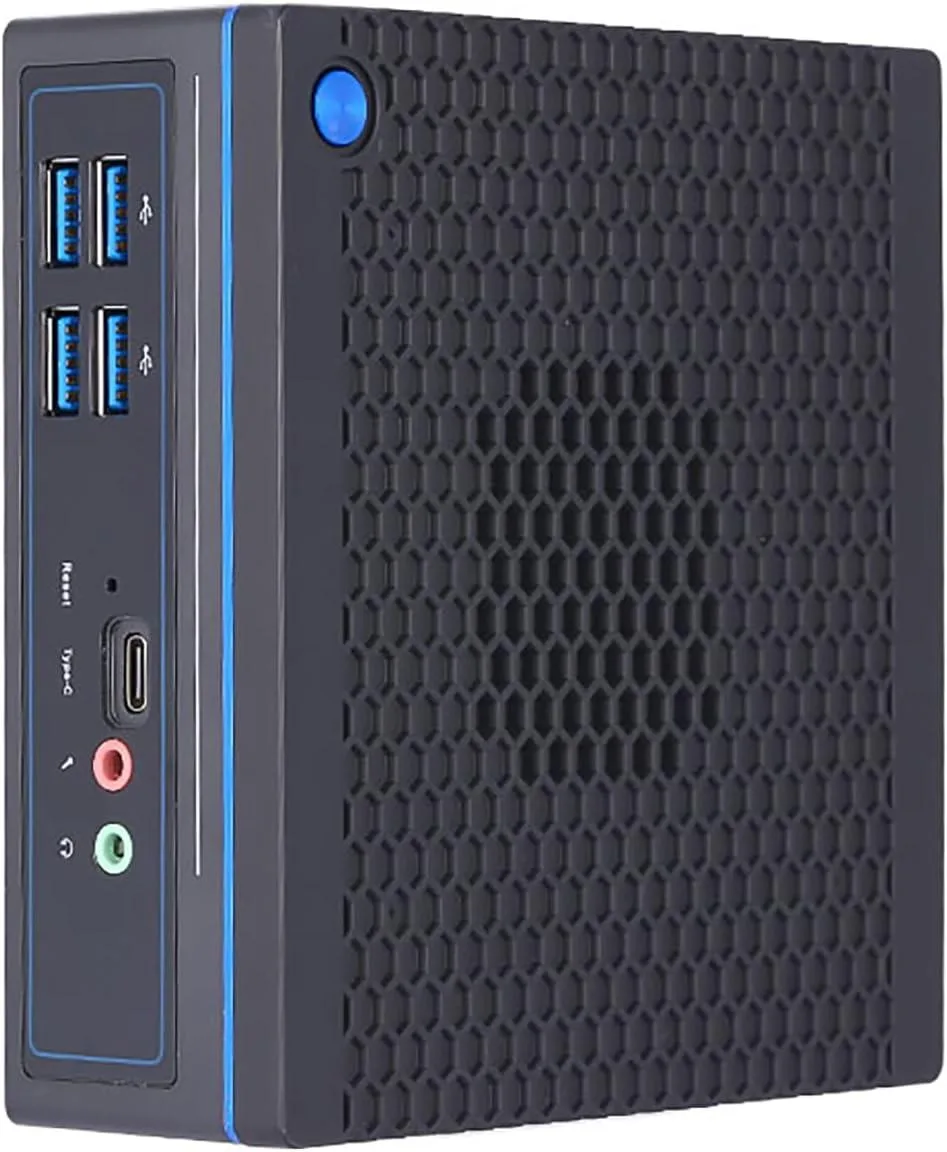

Compact black mini PC with aluminium top, square footprint and VESA mount visible

partaker

Partaker GF1 barebone mini PC i5-5200U/5300U 16GB 512GB

SKU CH-1NCG-379WC

Compact fan-cooled mini desktop with dual LAN, triple-display support and pre-installed Windows 11 Pro

  • ColorBlack
  • CPU TypeIntel Core i5 5th Gen

CPU Type Intel Core i5-5200U

Group 16GB RAM / 512GB SSD

  • Desktop power in a 133.8 x 126.6 x 47 mm chassis
  • Windows 11 Pro pre-installed for immediate productivity
  • 15 W TDP with fan cooling for reliable 24/7 operation
  • Triple-display support via 2 x HDMI 1.4 and VGA
  • 16 GB DDR3L and 512 GB SATA storage ready to work

Compact desktop for commercial use

The Partaker GF1 barebone mini PC fits a 15 W Intel Core i5 5200U or 5300U processor into a 133.8 x 126.6 x 47 mm chassis weighing 0.65 kgs. It ships with 16 GB of DDR3L memory and a 512 GB sata SSD, plus Windows 11 Pro 64-bit ready for immediate deployment. VESA mounting and a lock slot suit office, kiosk or industrial installations.

Sustained-load behaviour

A dedicated cooling fan keeps the 15 W CPU within its thermal envelope during continuous operation across a -10 °C to 60 °C working range. The aluminium-and-ABS housing dissipates heat without throttling, supporting 24/7 workloads such as digital signage, thin-client terminals or light server duties. VT-D and VT-X virtualisation extensions remain available under prolonged use.

Interface practical limits

Dual HDMI 1.4 outputs drive up to 2560 x 1600 at 60 Hz each, while VGA reaches 1920 x 1080 at 60 Hz; triple-display duplicate or extend modes are supported within those ceilings. Two Realtek RTL8168/8111E LAN ports provide wired connectivity, and the M.2 PCIe slot accepts Wi-Fi or Bluetooth modules. Four USB 3.0 and two USB 2.0 ports handle peripherals, with a Type-C port for additional devices.

商品特色

  • Desktop power in a 133.8 x 126.6 x 47 mm chassis
  • Windows 11 Pro pre-installed for immediate productivity
  • 15 W TDP with fan cooling for reliable 24/7 operation
  • Triple-display support via 2 x HDMI 1.4 and VGA
  • 16 GB DDR3L and 512 GB SATA storage ready to work

商品規格

ColorBlack
CPU TypeIntel Core i5 5th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How much heat and noise does the 15W TDP fan-cooled GF1 produce when it runs 24/7?

The 15W TDP and included silent fan keep heat low and noise minimal during continuous operation; the unit is rated for -10°C to 60°C ambient.

Which display cables and monitors do I need to use the two HDMI 1.4 ports and VGA output?

You supply HDMI cables for up to 2560 x 1600@60Hz per port and a VGA cable for up to 1920 x 1080@60Hz; triple-display duplicate or extend modes are supported.

Will my existing DDR3L-1333/1600 SO-DIMM sticks and mSATA or 2.5-inch SATA drives work inside this GF1?

Yes — the board accepts two DDR3L SO-DIMMs up to 16GB total, one mSATA SSD, and one 2.5-inch SATA SSD or HDD.
