Compact fanless mini PC in dark grey aluminium with multiple ports visible

partaker

Partaker I20 barebone mini PC i3-6100T 8GB 128GB

SKU CH-3DGM-3ZSKR

Fanless industrial mini PC with an Intel Core i3 6100T, 8 GB DDR4 RAM, 128 GB storage, dual LAN, six COM ports, ten USB ports, HDMI, VGA and CAN bus for rugged automation deployments

  • ColorBlack
  • CPU TypeIntel Core i3 6th Gen

CPU Type Intel Core i3

Group 8GB / 128GB SSD

  • Fanless aluminium chassis runs silently in industrial settings
  • Intel Core i3 6100T dual-core processor at 3.2 GHz
  • 8 GB DDR4 memory installed with room to reach 16 GB
  • 128 GB SSD plus multiple bays for extra storage
  • Ten USB ports and six COM ports connect legacy and modern gear

Industrial fanless barebone for edge deployments

The Partaker I20 is a new fanless mini PC barebone built around an Intel Core i3 6100T dual-core processor at 3.2 GHz. It ships with 8 GB of DDR4 memory and a 128 GB SSD pre-installed. The all-aluminium chassis acts as a heatsink for silent operation in industrial and commercial environments.

Expansion slots and I/O define integration scope

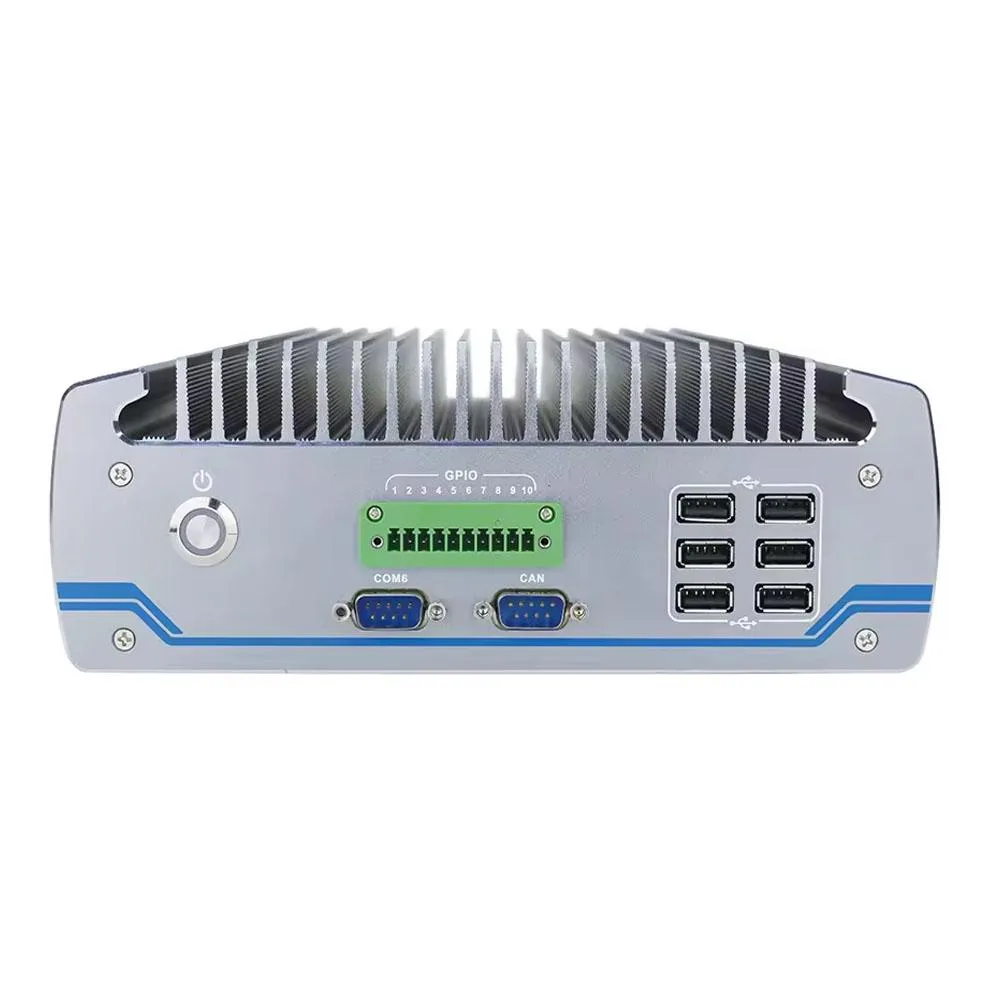

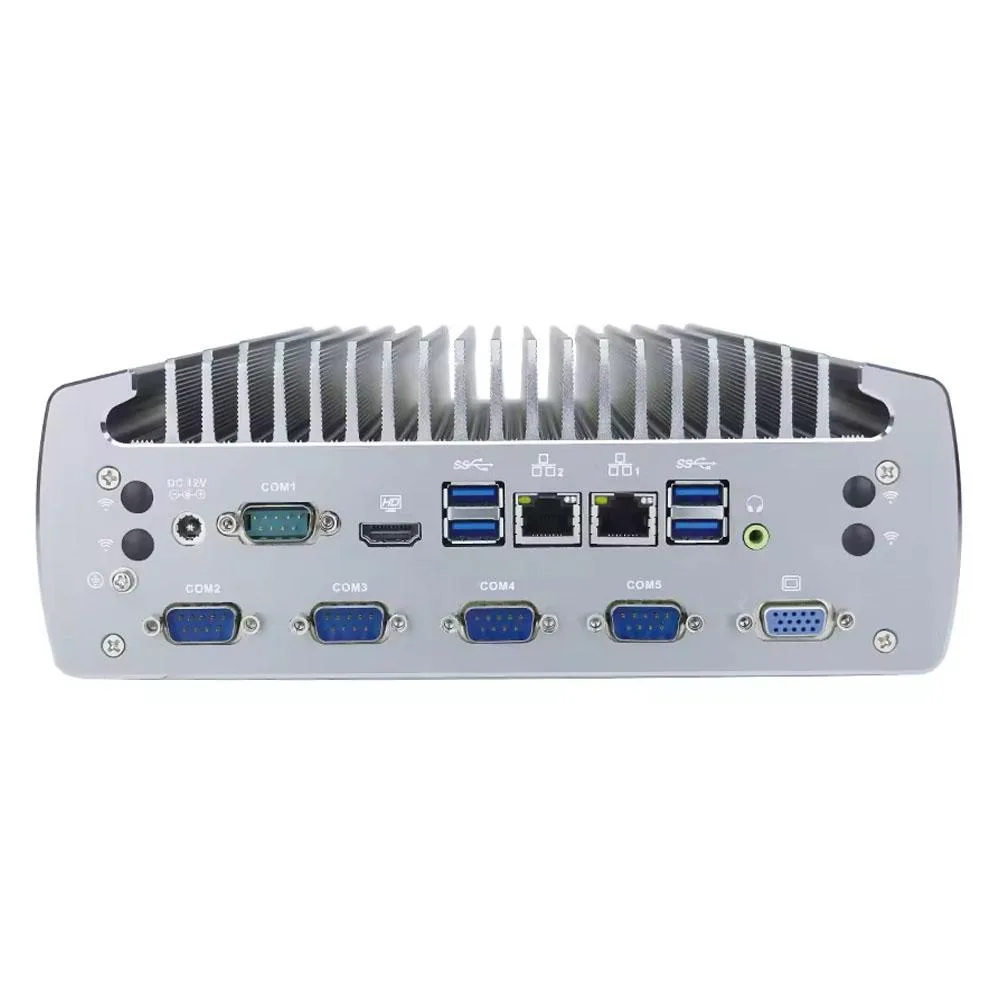

One DDR4 SO-DIMM slot supports up to 16 GB at 2133 or 2400 MHz. Storage can be added via one mSATA slot, one 2.5-inch bay with an optional second bay, one M.2 slot and two mini PCIe slots — one wired for mSATA and the other for wireless modules with an external SIM tray. Six COM ports, two Intel 1000M LAN ports, ten USB ports, HDMI, VGA, GPIO, audio and a CAN bus interface provide extensive peripheral connectivity.

DC 12 V input with optional 9–36 V range

The unit requires a 12 V DC supply; an optional wide-range 9–36 V input is available for vehicle or unstable power environments. This power constraint is the primary factor when deciding whether the I20 fits a given deployment.

商品特色

  • Fanless aluminium chassis runs silently in industrial settings
  • Intel Core i3 6100T dual-core processor at 3.2 GHz
  • 8 GB DDR4 memory installed with room to reach 16 GB
  • 128 GB SSD plus multiple bays for extra storage
  • Ten USB ports and six COM ports connect legacy and modern gear

商品規格

ColorBlack
CPU TypeIntel Core i3 6th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Will the 128 GB storage need replacing if I add a second 2.5 inch drive later?

The unit supports one standard 2.5 inch drive and an optional second 2.5 inch drive, so you can expand without removing the existing 128 GB storage.

What thermal limit appears first when the i3 6100T runs at 3.2 GHz continuously in a sealed cabinet?

The case surface relies on air flow and is rated to 50 °C with a commercial drive or 60 °C with an industrial SSD, so the chassis temperature limit is reached before the CPU throttles.

How much power does the 12 V DC input draw when all ten USB ports and six COM ports are active all day?

The 12 V supply must feed the 3.2 GHz processor, up to 16 GB DDR4, both LAN controllers and every connected peripheral, so sustained load will approach the adapter's maximum rated current.
