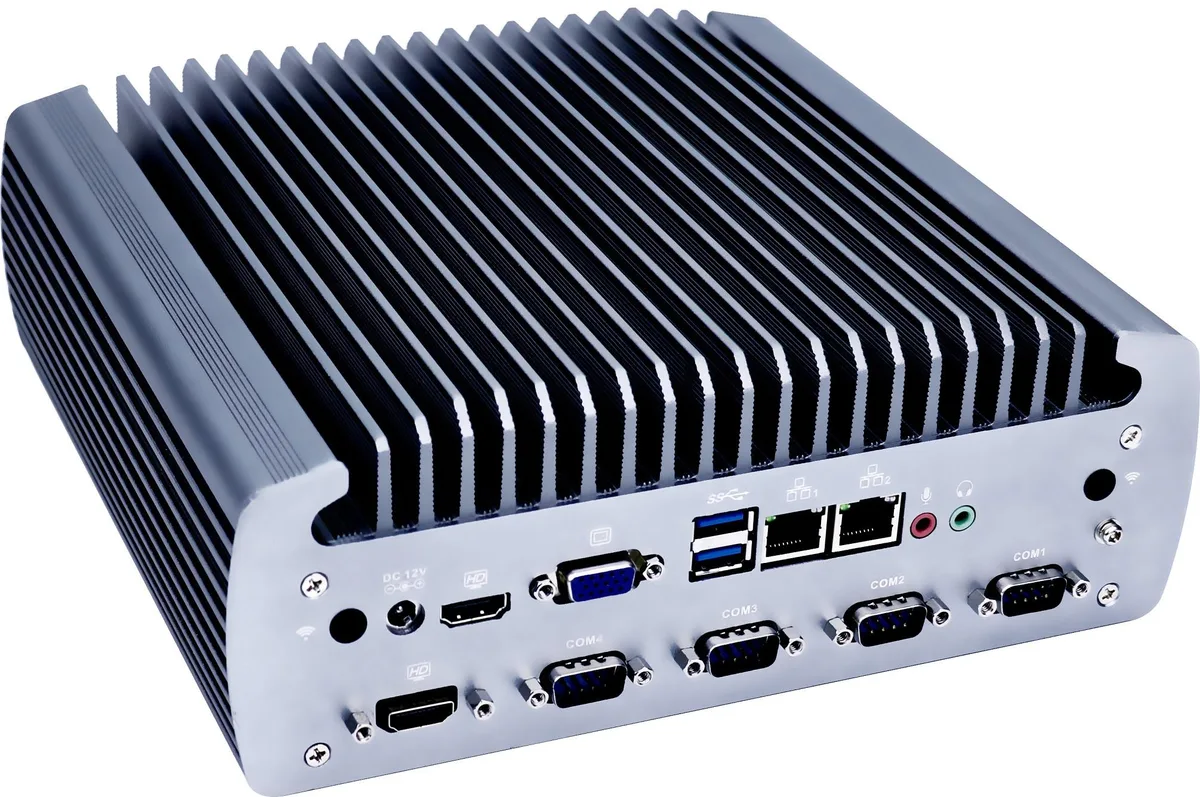

Titanium-grey aluminium fanless mini PC, compact box shape

partaker

partaker I21 barebone mini PC i3-8100T 8GB 128GB

SKU CH-Z1J6-Q2D47

Fanless barebone mini PC with Intel Core i3-8100T, 8 GB DDR4, 128 GB SSD, dual LAN, VGA, dual HDMI and six COM ports for industrial use

  • ColorGray
  • CPU TypeIntel Core i3 8th Gen

CPU Type Intel Core i3

Group 8GB / 128GB SSD

  • Fanless aluminium chassis runs silently in dusty environments
  • Core i3-8100T quad-core at 3.1 GHz handles multi-thread workloads
  • Dual Intel 1000M LAN ports enable redundant network links
  • Six COM ports with RS232/RS422/RS485 connect legacy industrial gear
  • Supports 32 GB DDR4 plus M.2 2280 and 2.5-inch storage

Industrial fanless mini PC

The Partaker I21 is a compact barebone system built around an onboard Intel Core i3-8100T processor with four cores and four threads at 3.1 GHz. It ships with 8 GB of DDR4 memory and a 128 GB SSD, ready for embedded, industrial or edge deployments that need silent operation. The all-aluminium chassis acts as a heatsink, eliminating moving parts for continuous reliability.

Memory and storage headroom

Two SODIMM slots support up to 32 GB of DDR4 at 2133 or 2400 MT/s, giving ample room for multitasking beyond the factory 8 GB. An M.2 2280 slot accepts both PCIe and SATA drives, while an optional 2.5-inch bay adds a second drive for bulk data or redundancy. The current 128 GB SSD covers the OS and core apps; heavier workloads will need the extra bays populated.

Thermals and power in normal use

Fanless convection cooling keeps the system silent across a 0 to 50 °C range with commercial drives, or -20 to 60 °C with industrial SSDs. The DC input accepts 12 to 19 V as standard, with an optional 9 to 36 V wide-range mode for unstable supplies. Typical idle draw stays low, and the aluminium body stays warm but safe to touch under sustained loads.

商品特色

  • Fanless aluminium chassis runs silently in dusty environments
  • Core i3-8100T quad-core at 3.1 GHz handles multi-thread workloads
  • Dual Intel 1000M LAN ports enable redundant network links
  • Six COM ports with RS232/RS422/RS485 connect legacy industrial gear
  • Supports 32 GB DDR4 plus M.2 2280 and 2.5-inch storage

商品規格

ColorGray
CPU TypeIntel Core i3 8th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Will the 2×HDMI and VGA outputs drive the same monitors I use with an older VGA-only PC?

Yes — the rear I/O provides one VGA and two HDMI ports, so existing VGA cables connect directly while newer displays can use HDMI without adapters.

How can I verify the i3-8100T is running at its rated 3.1 GHz after first boot?

Enter the AMI EFI BIOS or open Task Manager in Windows 10 Pro; the CPU frequency will show 3.1 GHz on all four cores when the processor is under load.

Does the box include the 2.5″ drive bracket and the DC power adapter, or must I order them separately?

The barebone ships with the aluminium chassis, motherboard, 8 GB DDR4 and 128 GB M.2 SSD installed; the optional 2.5″ bracket and 12–19 V DC adapter are sold separately.
