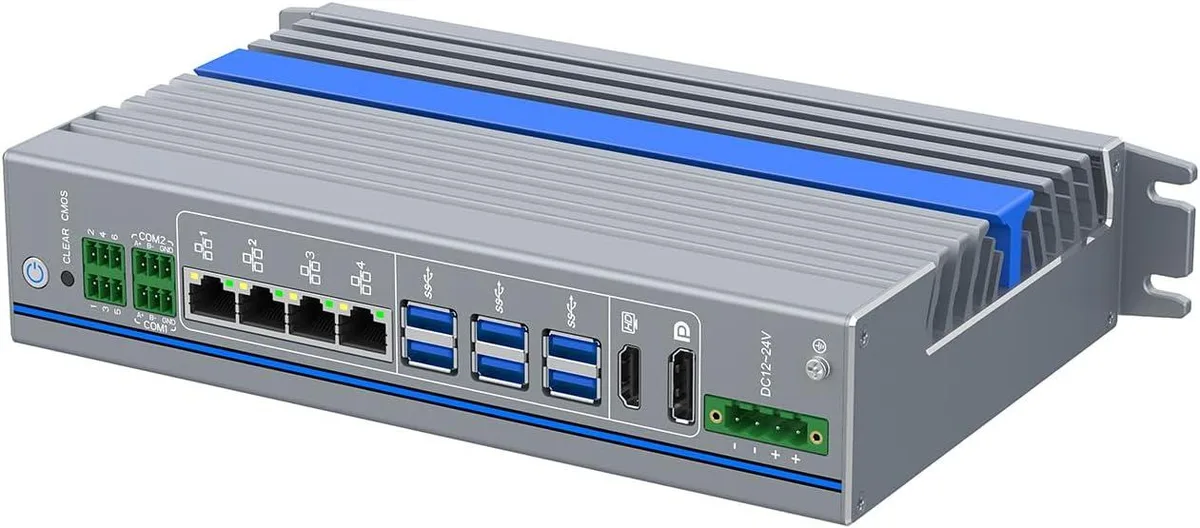

Gray fanless aluminium mini PC, book-style, 265 x 146 x 50 mm

partaker

partaker I24 barebone mini PC i5 12500T 16G 256G

SKU CH-E0GW-2NPRV

Fanless aluminium mini-PC with a 12th-generation Core i5, 16 GB DDR5, 256 GB storage, four Gigabit LAN ports and dual 4K video outputs for industrial use

  • ColorGray
  • CPU TypeIntel Core i5 12th Gen

I24 Q670 I5 12500T 16GB RAM / 256GB SSD

  • Fanless aluminium chassis operates from -20°C to 50°C
  • Intel Core i5 12500T with 6 cores and 12 threads up to 4.40GHz
  • Dual DDR5 4800 SODIMM slots support up to 64GB memory
  • Four Gigabit LAN ports plus dual 4K 3840x2160 @60Hz outputs
  • DC 12V~24V Phoenix input with TPM 2.0 and watchdog timer

Industrial barebone for automation

The Partaker I24 is a fanless mini PC built around an Intel Core i5 12500T processor with six cores and twelve threads. It ships with 16 GB of DDR5 4800 memory and a 256 GB M.2 SSD. The aluminium chassis operates from minus 20 to 50 °C and tolerates up to 95 % humidity, making it suited for continuous industrial, medical or logistics deployments.

Passive cooling and wide power range

A fanless all-aluminium body eliminates moving parts and dust ingress while dissipating a 35 to 69 W TDP across the case surface. The unit accepts 12 to 24 V DC through a four-pin Phoenix terminal and includes an external 100 to 240 V AC adapter rated at 12 V 10 A. Silent operation and broad voltage tolerance suit harsh electrical environments.

Q670 chipset with dual 4K video

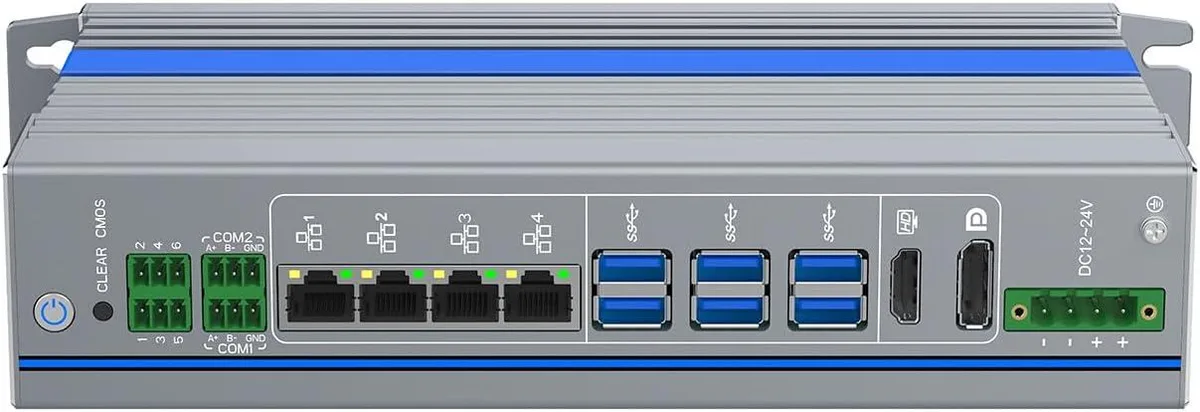

The Q670 platform provides three I210-AT and one I219-LM Gigabit LAN ports, six USB 3.0 ports, two optically isolated RS485 ports, HDMI and DisplayPort outputs both capable of 3840 by 2160 at 60 Hz. Expansion includes a full-length Mini PCIe slot with Nano SIM and an M.2 2280 slot supporting SATA or NVMe x1 SSDs.

商品特色

  • Fanless aluminium chassis operates from -20°C to 50°C
  • Intel Core i5 12500T with 6 cores and 12 threads up to 4.40GHz
  • Dual DDR5 4800 SODIMM slots support up to 64GB memory
  • Four Gigabit LAN ports plus dual 4K 3840x2160 @60Hz outputs
  • DC 12V~24V Phoenix input with TPM 2.0 and watchdog timer

商品規格

ColorGray
CPU TypeIntel Core i5 12th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I mount the I24 on a DIN rail and which step is often missed?

Use the included book-style bracket for vertical wall mounting or attach a DIN-rail clip to the chassis; the step often missed is tightening the four Phoenix-terminal screws to secure 12-24 V DC power before first boot.

Which memory slots and SSD interfaces will need attention for future upgrades?

Two SODIMM slots accept DDR5 4800 modules up to 64 GB total; storage uses one M.2 2280 M-key slot supporting NVMe or SATA plus an internal mSATA socket.

At what operating temperature does the fanless aluminium chassis hit its thermal limit under continuous load?

The rated ceiling is 50 °C ambient with surface airflow; sustained loads at 35-69 W TDP stay within spec up to that temperature.
