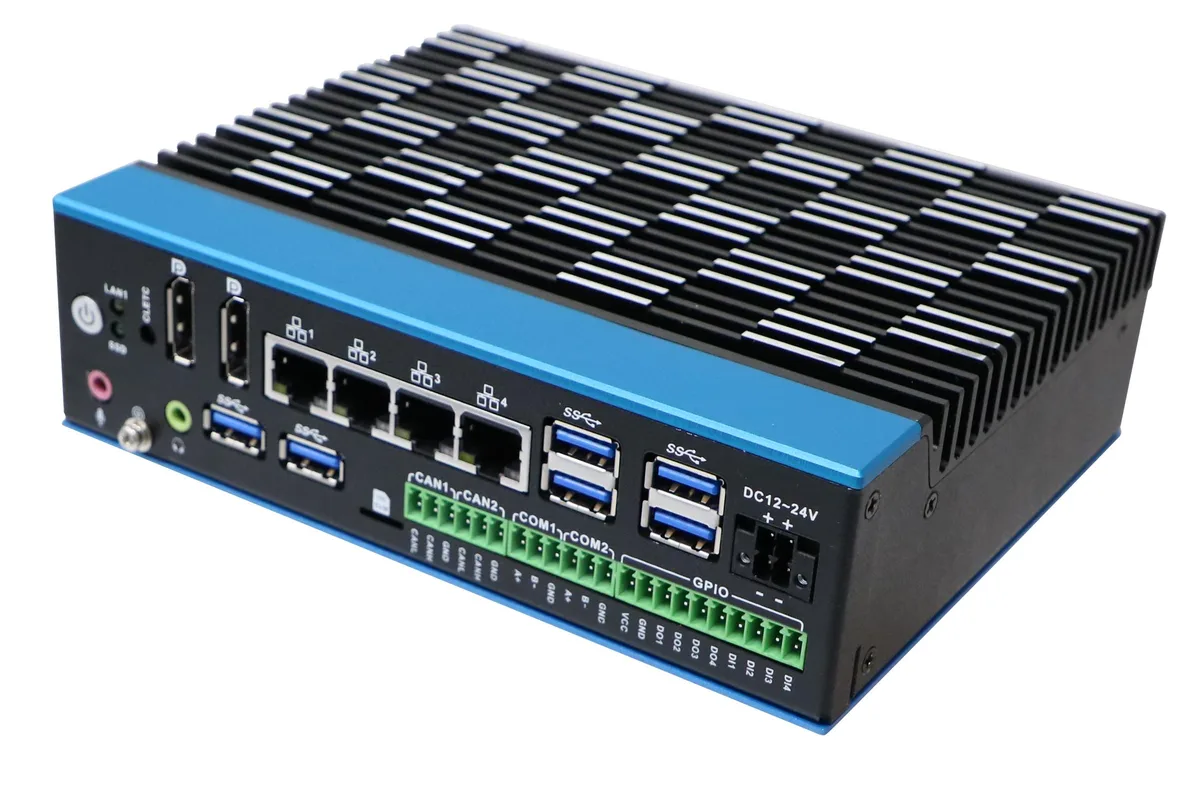

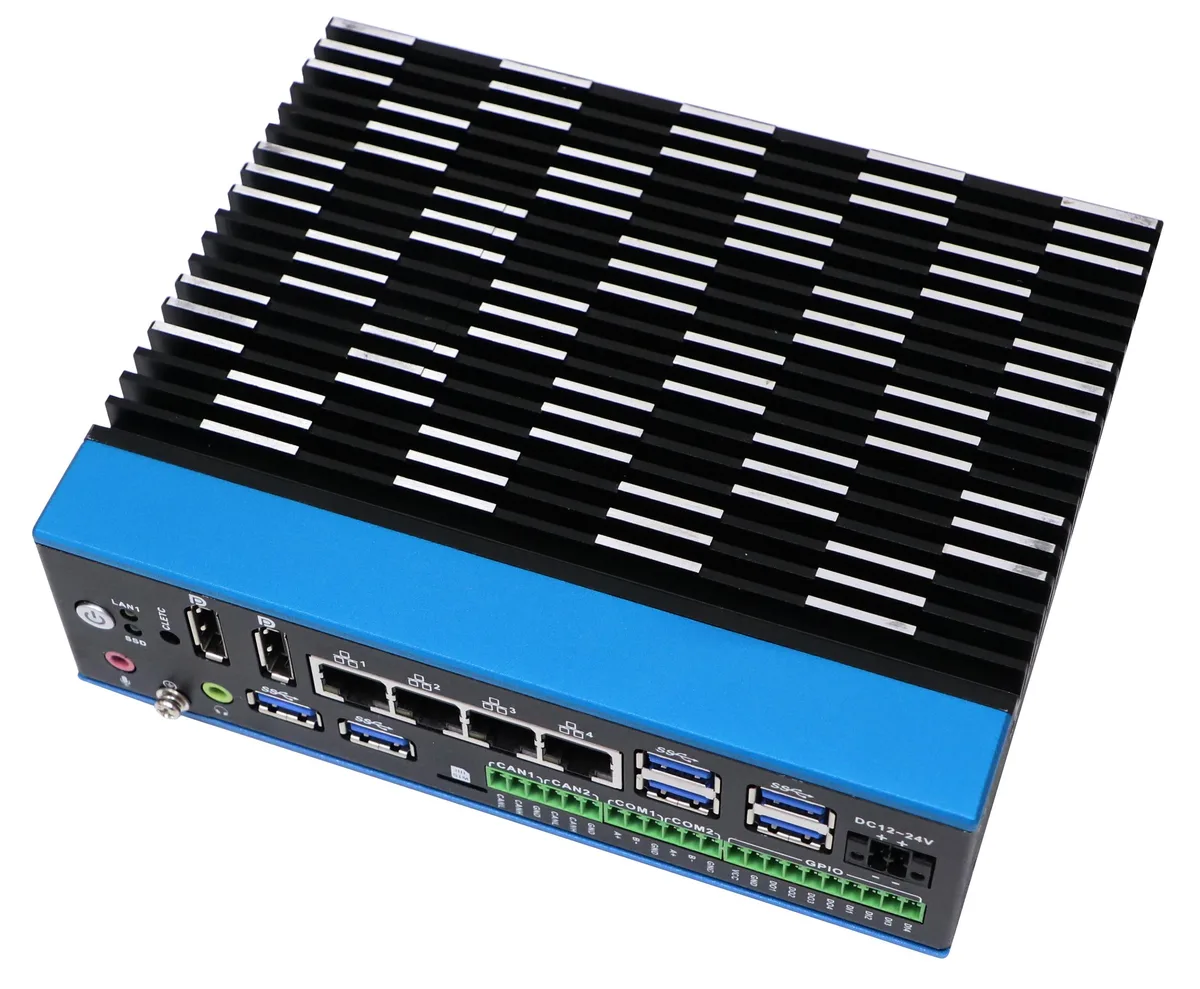

Compact black-grey aluminium mini PC with single-side ports

partaker

Partaker I37 i5-1235U 32GB 512GB barebone mini PC

SKU CH-DPPH-VS8HB

Industrial mini PC with Core i5-1235U, 32 GB DDR5, 512 GB storage, four Gigabit LAN ports, dual DisplayPort, six USB 3.0, isolated RS485 and GPIO, 12-24 V DC input, -20 °C to 60 °C operation

  • ColorBlack gray
  • CPU TypeIntel Core i5 12th Gen

I37 CPU I5 1235U 32GB RAM / 512GB SSD

  • Industrial-grade aluminium chassis fits tight spaces with single-side I/O
  • 10-core i5-1235U reaches 4.4 GHz for demanding workloads
  • 32 GB DDR5 4800 MHz and 512 GB SSD ready to deploy
  • Four Gigabit LAN plus six USB 3.0, isolated RS485 and GPIO
  • 12-24 V DC input runs -20 °C to 60 °C for 24/7 reliability

Industrial barebone for edge deployments

The Partaker I37 ships as a new, fan-cooled mini PC with an Intel Core i5-1235U processor, 32 GB of DDR5 memory and a 512 GB SSD already installed. Its aluminium chassis measures 172 by 136 by 50 mm and weighs 1.45 kg, designed for wall mounting in cabinets or on machinery frames. The platform targets integrators building compact gateways, industrial HMIs or edge-compute nodes that must run continuously in harsh environments.

Wide-range 12-24 V DC input

A four-pin Phoenix connector accepts any voltage between 12 V and 24 V DC, letting the unit run directly from common industrial power buses without an external adapter. This single electrical characteristic decides whether the I37 fits the target installation; sites wired for 48 V or AC mains will need a different supply solution.

Pre-fitted memory and storage remove staging steps

The 32 GB DDR5 kit and 512 GB drive arrive installed, so the system boots to an OS installer immediately. Two spare SODIMM slots and an additional M.2 2280 slot remain open for capacity upgrades, while three Mini PCIe sockets and an M.2 3052 bay accept 4G, 5G or Wi-Fi modules for wireless backhaul.

商品特色

  • Industrial-grade aluminium chassis fits tight spaces with single-side I/O
  • 10-core i5-1235U reaches 4.4 GHz for demanding workloads
  • 32 GB DDR5 4800 MHz and 512 GB SSD ready to deploy
  • Four Gigabit LAN plus six USB 3.0, isolated RS485 and GPIO
  • 12-24 V DC input runs -20 °C to 60 °C for 24/7 reliability

商品規格

ColorBlack gray
CPU TypeIntel Core i5 12th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

What does the i5-1235U's 4.4 GHz boost clock mean for everyday workloads on this unit?

The processor reaches 4.4 GHz on up to 10 cores and 12 threads, so multi-threaded tasks such as data logging or light virtualization run at full speed without thermal throttling thanks to the active aluminium heatsink.

What does the 12-24 V DC Phoenix input actually power in a cabinet?

The wide-range 4-pin Phoenix connector accepts 12 V to 24 V DC directly from industrial power supplies, eliminating an external adapter and keeping the unit running during voltage dips common on factory floors.

How do the 172 x 136 x 50 mm dimensions and included bracket affect mounting choices?

The compact aluminium chassis fits the supplied wall-mount bracket and also supports DIN-rail or desktop installation, leaving the single-side I/O panel accessible for cable routing in tight enclosures.
