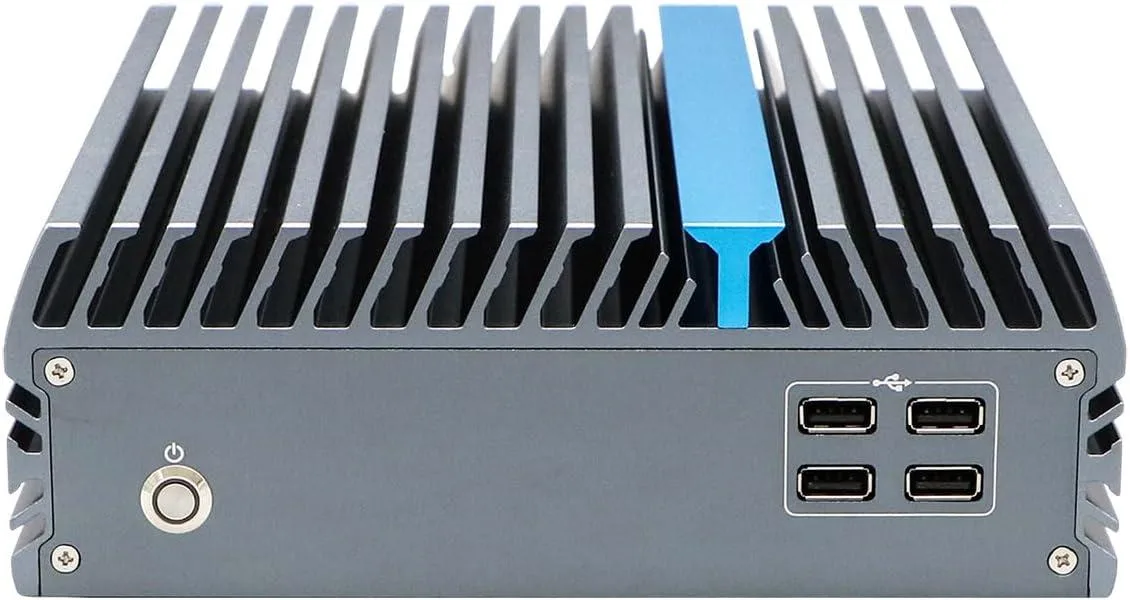

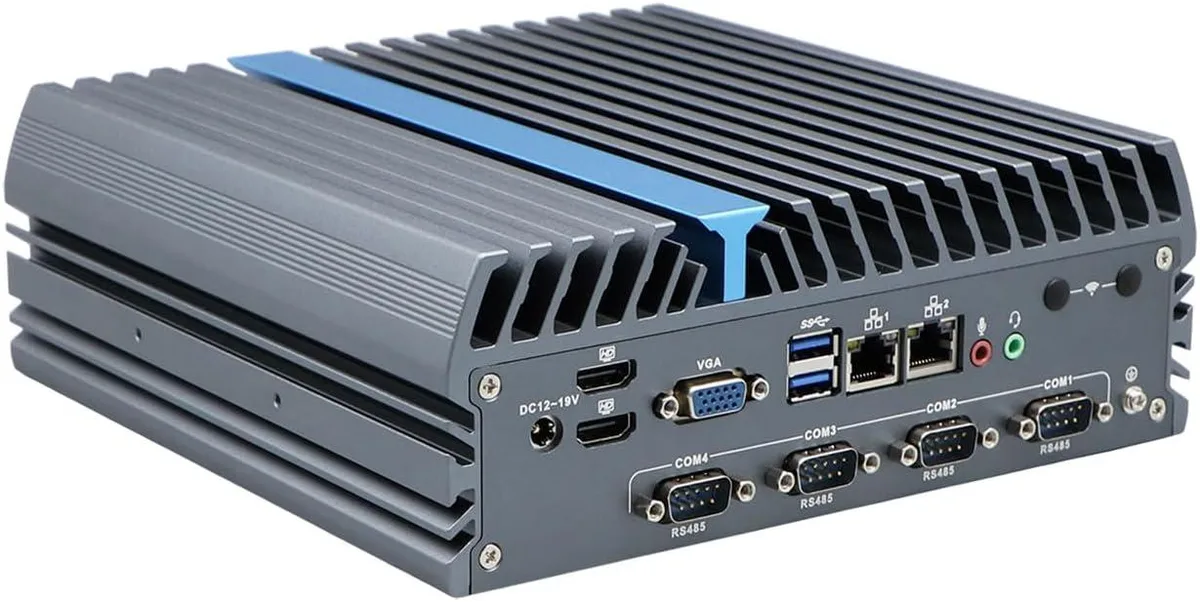

Gray fanless aluminum mini PC with wall-mount brackets, compact rectangular chassis, front and rear industrial ports visible

partaker

partaker I8 i7-12700T 16GB 512GB barebone mini PC

SKU CH-H5RB-GNQRE

Fanless aluminium mini PC with a 12-core i7-12700T, 16 GB DDR4, 512 GB NVMe, dual HDMI, VGA, dual LAN, four RS485 COM ports, GPIO, CAN expansion and -20 °C to 60 °C operation

  • ColorGray
  • CPU TypeIntel Core i7 12th Gen

I8 H610 I7 12700T 16GB RAM / 512GB SSD

  • Fanless aluminium chassis operates silently from -20°C to 60°C
  • 12-core i7-12700T with 20 threads reaches 4.70 GHz for heavy edge workloads
  • 16 GB DDR4 3200 MHz and 512 GB NVMe SSD handle multitasking instantly
  • Triple 4K output via dual HDMI plus VGA drives surveillance or HMI walls
  • Wide 12 V-19 V DC input with wake-on-LAN, PXE and TPM 2.0 ensures 24/7 uptime

Fanless industrial barebone with 12-core i7

The Partaker I8 is a fanless mini PC built around a 12-core Intel Core i7-12700T desktop processor. Its all-aluminium chassis operates silently from -20 °C to 60 °C and includes 16 GB of DDR4 memory plus a 512 GB NVMe SSD. Designed for continuous duty in automation, medical, logistics and transport settings, it supports Windows 11 or Linux out of the box.

Buyers needing four RS485 serial ports

This unit suits integrators who require four RS485 COM ports, dual Gigabit LAN, six USB ports and triple independent 4K display outputs. The wide 12 V–19 V DC input, watchdog timer and TPM 2.0 simplify deployment in harsh electrical environments. Systems that demand active cooling, additional PCIe slots or internal 2.5-inch drive bays beyond the single SATA bay should consider other form factors.

12-core i7-12700T with passive cooling

The defining specification is the 12-core, 20-thread i7-12700T running up to 4.70 GHz inside a completely fanless enclosure. This combination delivers desktop-class compute without moving parts, making the I8 viable for 24/7 edge workloads where dust, vibration or temperature extremes rule out conventional cooled PCs.

商品特色

  • Fanless aluminium chassis operates silently from -20°C to 60°C
  • 12-core i7-12700T with 20 threads reaches 4.70 GHz for heavy edge workloads
  • 16 GB DDR4 3200 MHz and 512 GB NVMe SSD handle multitasking instantly
  • Triple 4K output via dual HDMI plus VGA drives surveillance or HMI walls
  • Wide 12 V-19 V DC input with wake-on-LAN, PXE and TPM 2.0 ensures 24/7 uptime

商品規格

ColorGray
CPU TypeIntel Core i7 12th Gen

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Will the 35-69 W TDP of the i7-12700T throttle under continuous 24/7 load inside the sealed aluminium chassis?

The fanless aluminium body is rated for -20 °C to 60 °C ambient and designed for sustained industrial workloads; the 35-69 W TDP is managed entirely by passive conduction to the case.

How much heat does the passively cooled i7-12700T add to a closed cabinet running all day?

At full load the CPU package draws up to 69 W, all of which becomes case heat; with no fans the exterior reaches steady state within the declared 60 °C operating ceiling.

Which display cables and DC supply must I provide to use the three video outputs and wide-range power input?

You need two HDMI cables for 4K@60 Hz, one VGA cable for 1080p@60 Hz, and a 12-19 V DC source capable of 10 A (the bundled 100-240 V AC adapter satisfies this).
