Black rectangular adapter with matte aluminum housing and USB Type-E header

RIITOP

RIITOP NV2E-20GH NVMe to USB Type-E Adapter 20Gbps

SKU CH-H64K-V6M8B

Adds a 20 Gbps front-panel USB-C port using a spare M.2 NVMe slot with an ASMedia ASM3242 controller and heatsink

  • ColorBlack
  • SpecificationsNV2E-20GH, 1, Matte, RIITOP, Desktop
  • Connector PlatingMatte
  • FeaturesMatte, Desktop, 1, RIITOP, NV2E-20GH
  • Package Quantity1
  • Adds a 20 Gbps front-panel USB-C port using a spare M.2 NVMe slot
  • ASMedia ASM3242 controller delivers the full 20 Gbps bandwidth
  • Integrated aluminium heatsink keeps the controller cool during heavy transfers
  • Dedicated 4-pin power connector provides stable power for large file moves
  • Driver-free on Windows 11, 10, 8.x and Server 2012 through 2022

M.2 NVMe to USB Type-E Adapter

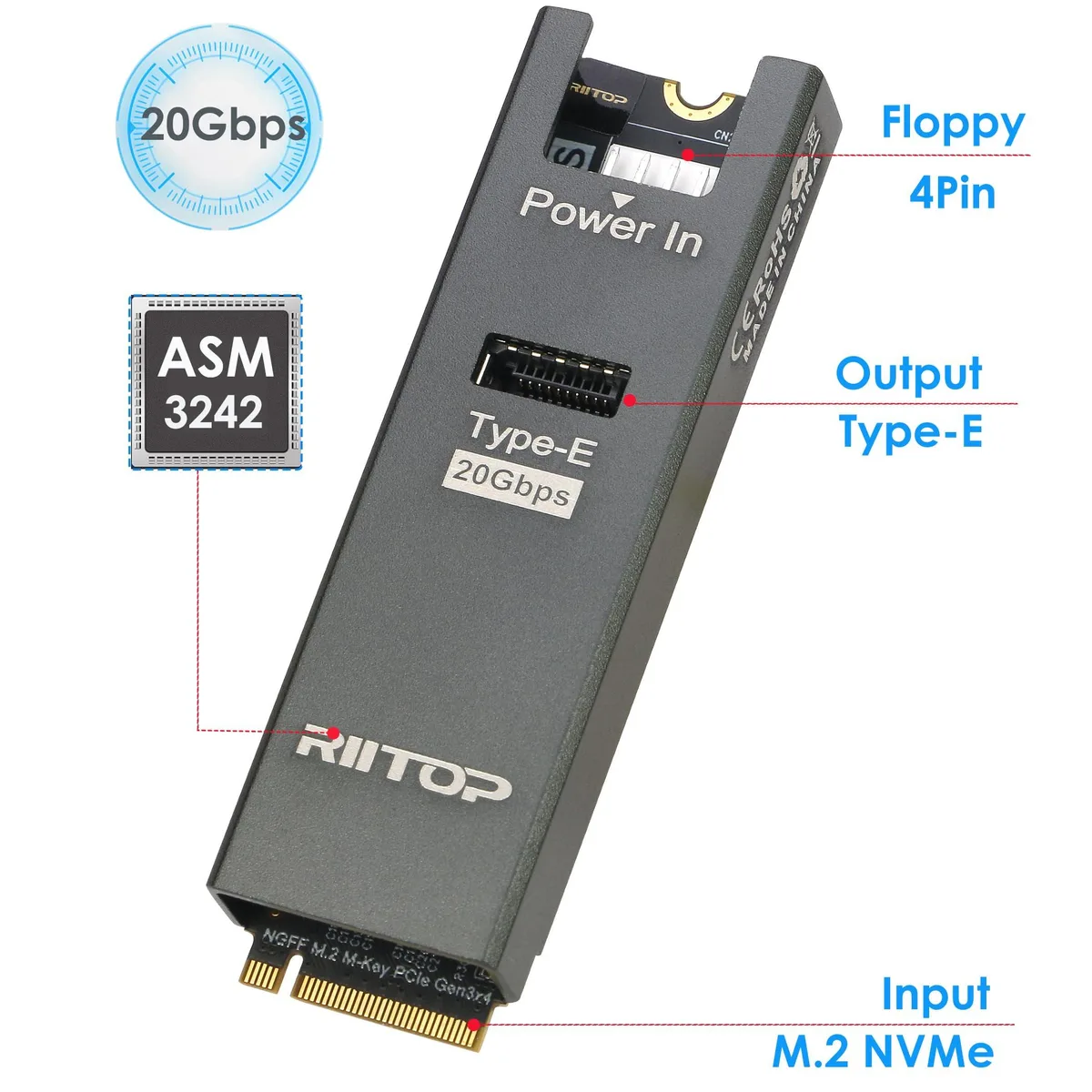

The RIITOP NV2E-20GH converts a spare M.2 M-key slot into an internal USB 3.2 Gen 2x2 Type-E header. It uses an ASMedia ASM3242 controller to provide 20Gbps bandwidth to a front-panel USB-C port. An aluminium heatsink keeps the controller cool during sustained transfers. A 4-pin floppy power connector supplies stable power for the adapter.

Ideal for Compact Builds

This adapter suits builders who have a free M.2 slot but no spare PCIe slot in a small chassis. It adds high-speed front-panel USB-C without using expansion slots. It is not for users who lack an M.2 M-key slot or who need to charge devices from the front port. The USB Type-E header supports data transfer only, not charging.

ASMedia ASM3242 Controller

The ASM3242 chipset delivers the full 20Gbps link speed over USB 3.2 Gen 2x2. Driver installation is required on Windows XP, Vista, 7 and Server 2003, 2003R2, 2008, 2008R2. Windows 8.x, 10, 11 and Server 2012, 2012R2, 2016, 2019, 2022 support plug-and-play operation.

商品特色

  • Adds a 20 Gbps front-panel USB-C port using a spare M.2 NVMe slot
  • ASMedia ASM3242 controller delivers the full 20 Gbps bandwidth
  • Integrated aluminium heatsink keeps the controller cool during heavy transfers
  • Dedicated 4-pin power connector provides stable power for large file moves
  • Driver-free on Windows 11, 10, 8.x and Server 2012 through 2022

商品規格

BrandSoNNeT
SeriesNV2E-20GH
ModelNV2E-20GH
Part NumberNV2E-20GH
ColorBlack
SpecificationsNV2E-20GH, 1, Matte, RIITOP, Desktop
Connector PlatingMatte
FeaturesMatte, Desktop, 1, RIITOP, NV2E-20GH
Package Quantity1

商品問答

What is the maximum sustained throughput of the ASMedia ASM3242 controller on this adapter?

The ASMedia ASM3242 controller provides a total bandwidth of 20Gbps for sustained data transfers.

How does the included heatsink manage thermal performance during all-day operation?

The advanced heatsink keeps the chipset at a lower temperature to avoid reliability issues caused by overheating during continuous use.

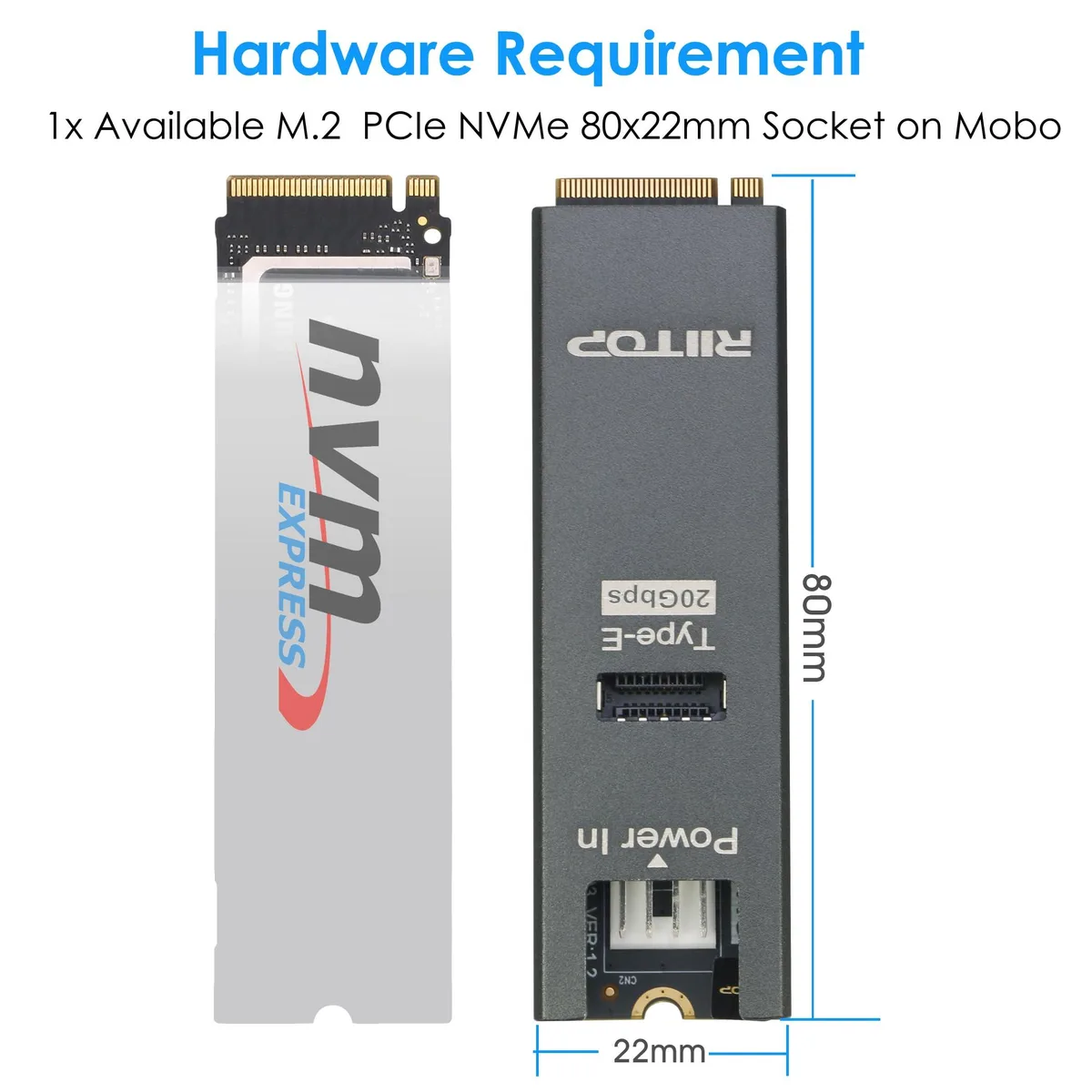

Which spare motherboard slot and header must be present for this adapter to function?

You need a spare M.2 Key M slot for the adapter and a USB 3.2 Gen 2×2 Type-E header on the motherboard for the front-panel USB-C port.
