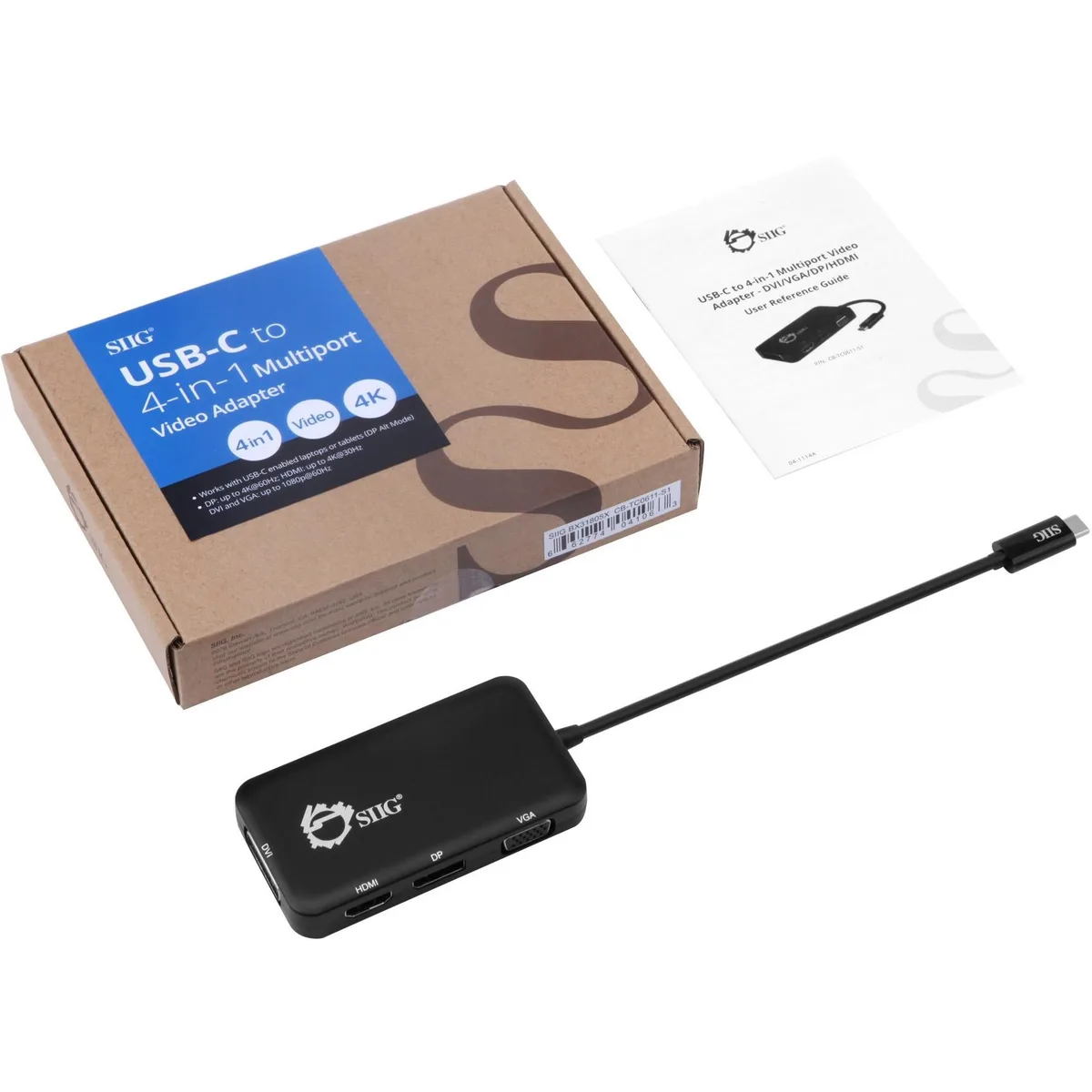

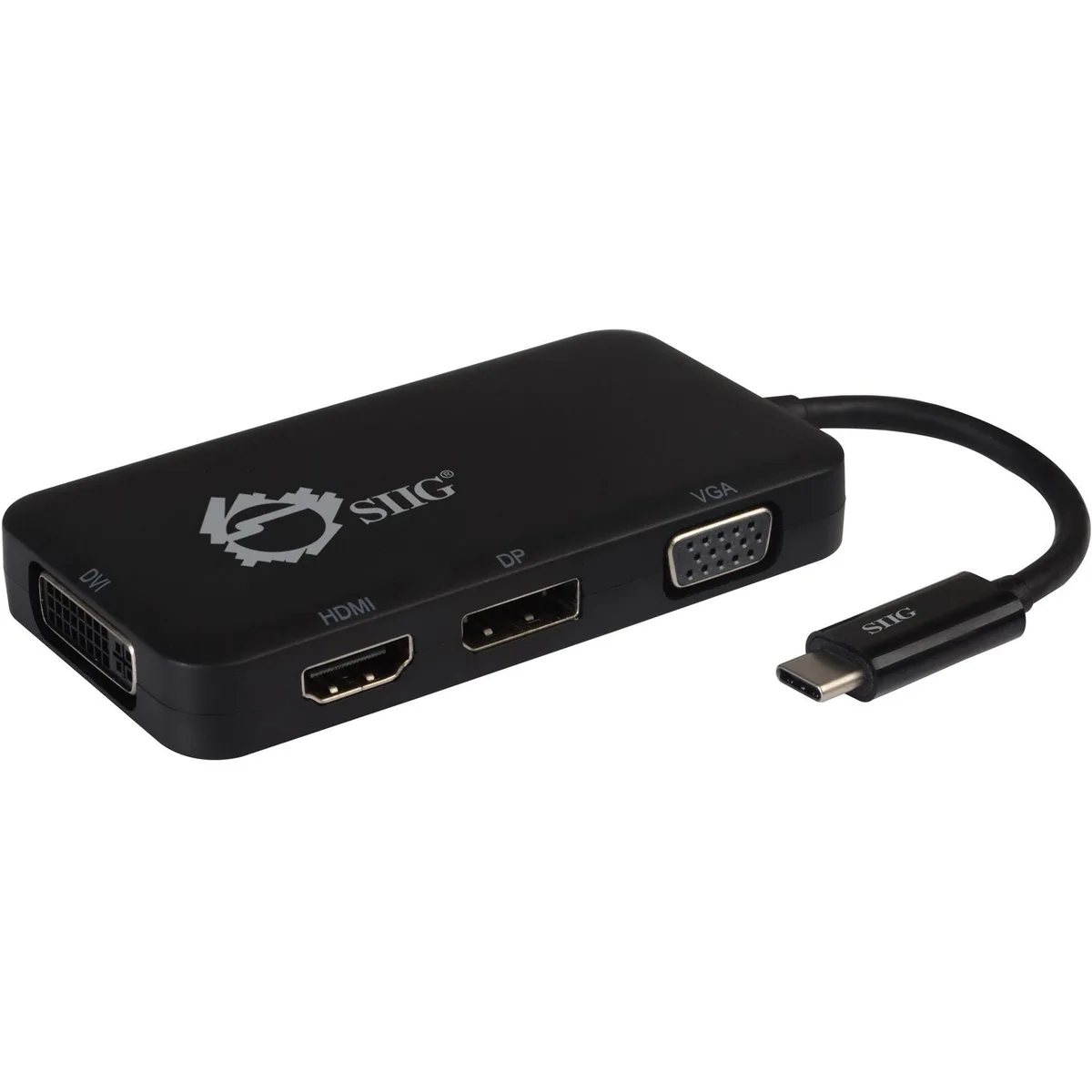

Black USB-C adapter with DisplayPort HDMI DVI and VGA ports on a short cable

SIIG, Inc

SIIG, Inc CB-TC0611-S1 USB-C 4-in-1 Display Adapter DVI VGA DP HDMI

SKU CH-1F8W-QKGGF MPN CB-TC0611-S1

Connects a USB-C port to DisplayPort, HDMI, DVI or VGA monitors at up to 4K 60 Hz on a single display

  • TypeUSB-C Multiport Video Adapter
  • Changer TypeUSB-C to DVI / VGA / DP / HDMI
  • ColorBlack

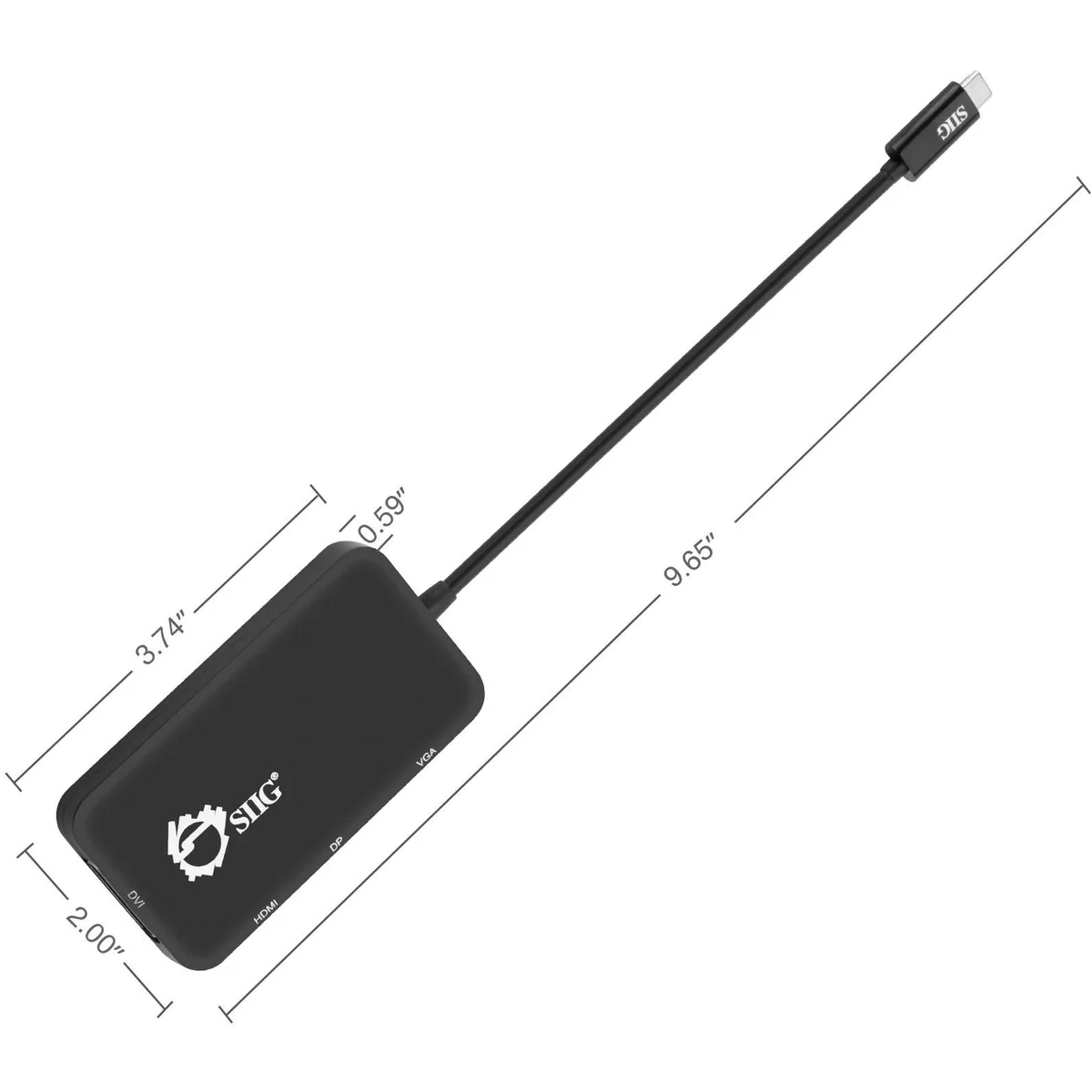

  • Cable Length5.9"
  • SpecificationsChipset: VL100+PS171+PS8348B+IT6516+IT6561 Supports DisplayP
  • Output Connector1 x 20-pin DisplayPort, Female, Output 1 x 19-pin HDMI, Fema
  • Connects four display types via one USB-C port
  • Drives 4K at 60 Hz through DisplayPort output

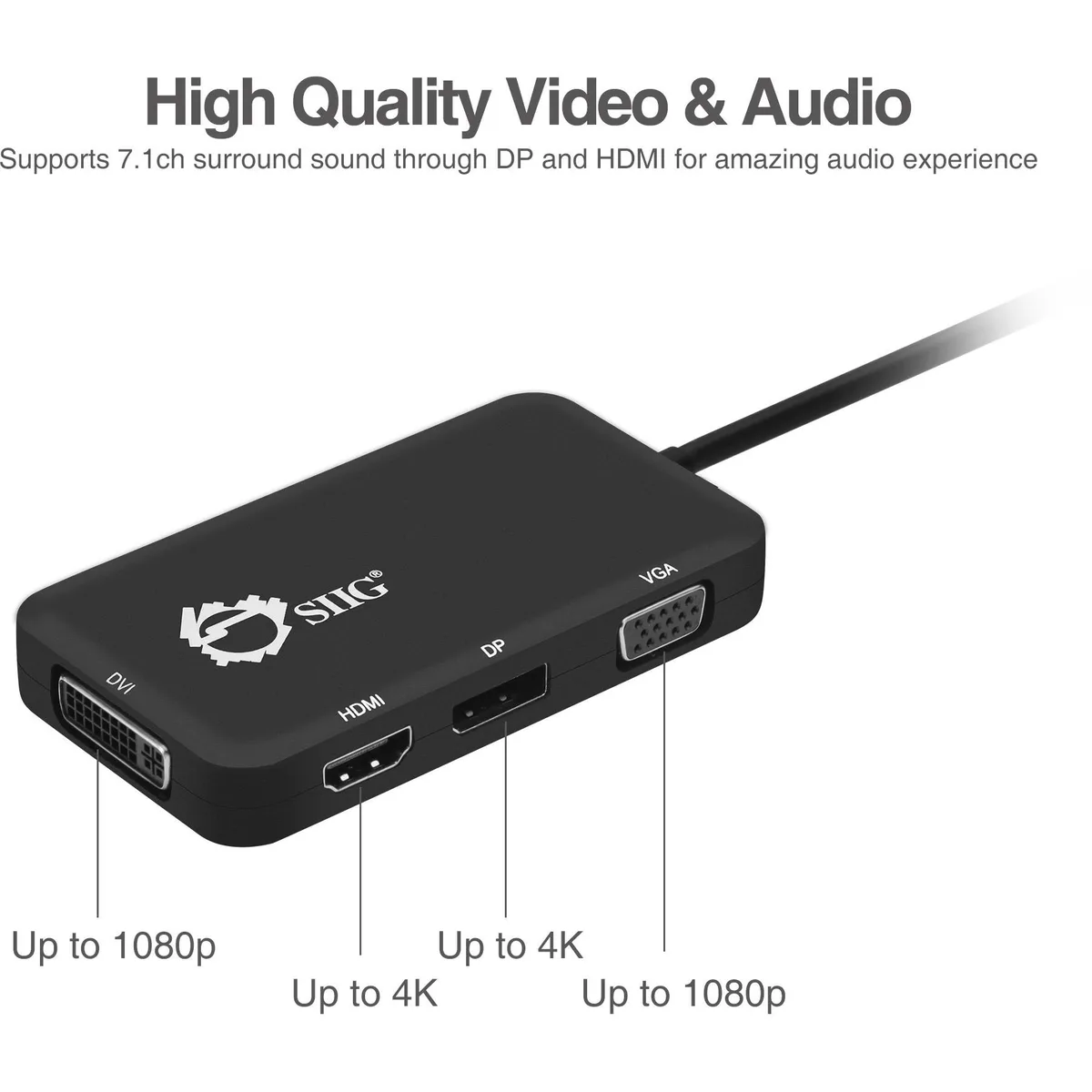

  • Delivers 7.1-channel audio over DisplayPort or HDMI
  • Works instantly with no driver installation needed
  • Weighs only 0.3 units for easy travel

USB-C 4-in-1 Display Adapter

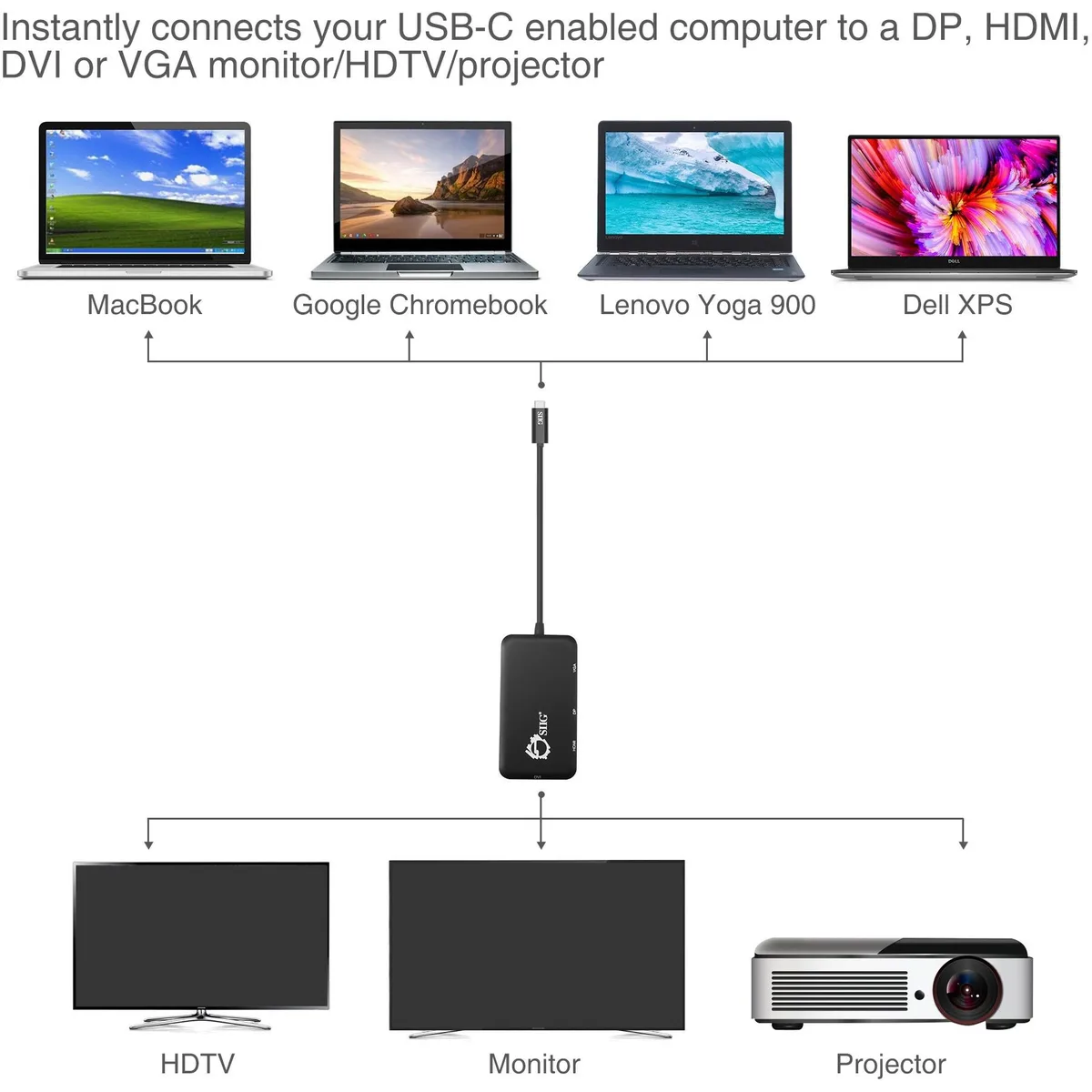

This adapter connects a single DisplayPort HDMI DVI or VGA monitor to a USB-C or Thunderbolt 3 port that supports DisplayPort Alternate Mode. It is built for ultrabook laptop or desktop users who need an extra screen for presentations conferences or travel. The bus-powered design keeps the kit light at .3 weight units with a 5.9 cable.

Thermals noise and power draw

Passive cooling means zero fan noise during operation. The unit draws all power from the host USB-C port so no external supply is required. Typical load stays within standard bus limits leaving the host thermal envelope unchanged. Silent performance suits quiet offices and meeting rooms.

Single-display output constraint

Video streams to only one connected display at a time regardless of how many ports are populated. Choose the output that matches your monitor and cable the rest stay inactive. This limitation decides whether the adapter fits a multi-monitor workflow or a single-screen setup.

商品特色

  • Connects four display types via one USB-C port
  • Drives 4K at 60 Hz through DisplayPort output
  • Delivers 7.1-channel audio over DisplayPort or HDMI
  • Works instantly with no driver installation needed
  • Weighs only 0.3 units for easy travel

商品規格

BrandSIIG
ModelCB-TC0611-S1
Part NumberCB-TC0611-S1
TypeUSB-C Multiport Video Adapter
Changer TypeUSB-C to DVI / VGA / DP / HDMI
ColorBlack
Cable Length5.9"
SpecificationsChipset: VL100+PS171+PS8348B+IT6516+IT6561
Supports DisplayPort 1.2, 1.62 Gbps, 2.7 Gbps, 5.4 Gbps link rates
Resolution:
DisplayPort: Up to 3840x2160@60Hz
HDMI: Up to 3840x2160@30Hz
DVI: Up to 1920x1080@60Hz
VGA: Up to 1920x1080@60Hz
Note: Supports one connected display at a time
Output Connector1 x 20-pin DisplayPort, Female, Output
1 x 19-pin HDMI, Female, Output
1 x 25-pin DVI-D, Female, Output
1 x 15-pin D-Sub VGA, Female, Output
FeaturesEasily adds a 4K display to your Thunderbolt 3 and USB-C DisplayPort Alt enabled Ultrabook, laptop or desktop.
Supports UHD 4K@60Hz (DisplayPort) & 4K@30Hz (HDMI) and HD 1080p@60Hz (DVI & VGA) resolutions.
Supports high quality 7.1ch audio through DisplayPort or HDMI connection
Supports Thunderbolt 3 technology and USB-C with DisplayPort Alternate mode (DisplayPort Alt)
Compact and lightweight designed to quickly add an additional display convenient to use at home, office or travel makes this the perfect add-on to your workstation
Bus-powered for extra portability, no need to take an
Weight0.3
DisclaimerThe USB-C source connection must support DisplayPort Alternate Mode transmission in order for the adapter's video connectors to pass video and audio
Supports video output to one connected display at a time
出貨重量0.11 kg
包裝尺寸185 × 137 × 33 mm

商品問答

How do I install the CB-TC0611-S1 and what step is often missed?

Plug the USB-C connector into a port that supports DisplayPort Alternate Mode; the adapter will not pass video or audio if the host port lacks this mode.

What maintenance or replacement will the adapter need later?

The bus-powered design has no internal battery or fan, so no scheduled maintenance is required; replace only if the cable or connectors become physically damaged.

What limit appears first during sustained use?

Only one connected display can be active at a time, so multi-monitor expansion is the immediate constraint regardless of resolution or port choice.
