White desktop firewall appliance with front port array

SonicWall

SonicWall TZ570 firewall appliance 03-SSC-3018 3Y APSS 1Y CSE

SKU CH-7YMQ-KX0TX MPN 03-SSC-3018

Desktop firewall with 8×1 GbE and 2×5 GbE ports, supporting 1 250 000 sessions and 2 500 users, bundled with three years of advanced threat protection and one year of Cloud Secure Edge

  • TypeWired
  • Form FactorDesktop
  • StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHC
  • ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
  • SecuritySecurity Services Deep Packet Inspection services: Gateway A
  • Ports8x1GbE, 2x5GbE, 2 USB 3.0

Hardware TZ 570

Option Secure Upgrade Plus (Appliance + 3Y APSS) +1Y CSE

  • 3-year Advanced Protection Security Suite includes threat prevention and cloud management
  • 1-year Cloud Secure Edge enables secure remote access from any device
  • 8 Gigabit and 2 5GbE ports provide high-speed wired connectivity
  • 200 site-to-site VPN tunnels link distributed locations
  • FIPS 140-2 Level 2 certification validates cryptographic security

Desktop firewall with 3-year security suite

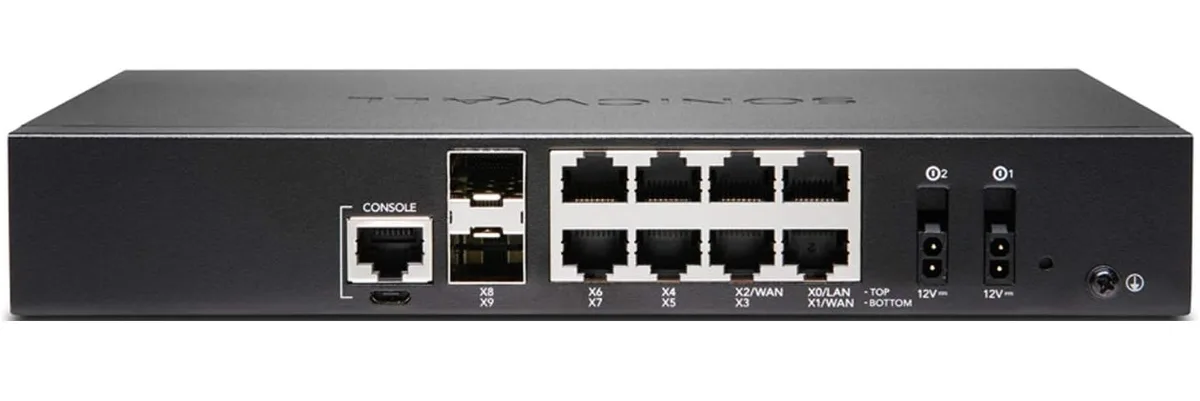

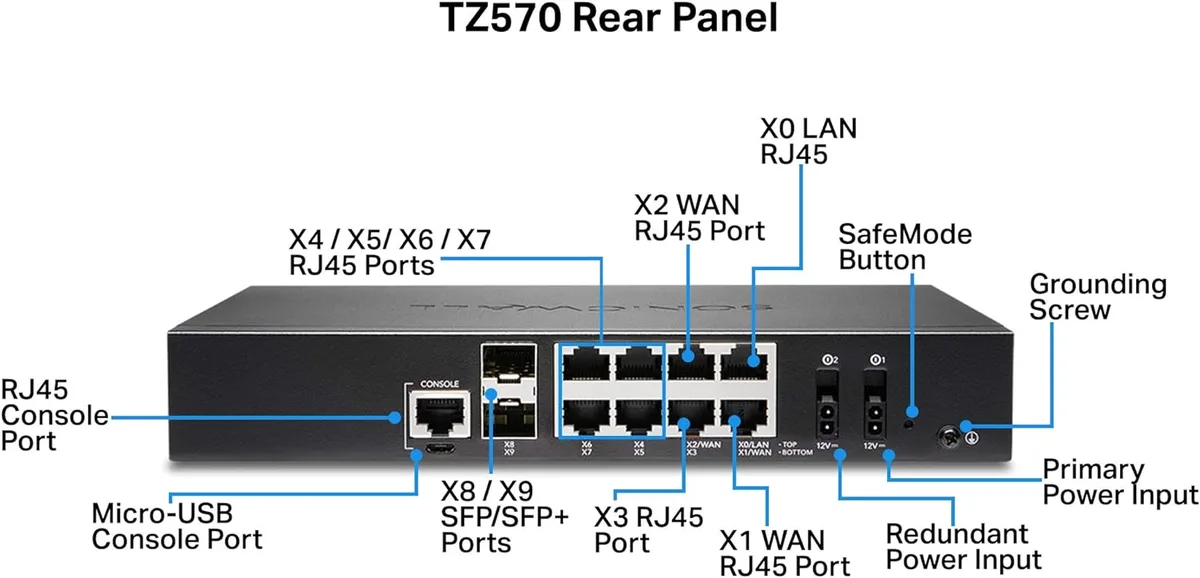

The SonicWall TZ570 is a desktop-form-factor network security appliance that bundles the Gen 7 firewall hardware with three years of Advanced Protection Security Suite and one year of Cloud Secure Edge. It delivers deep packet inspection, intrusion prevention, application control and content filtering for small to mid-sized organisations and distributed SD-Branch sites. The unit provides wired connectivity through eight 1 GbE ports, two 5 GbE SFP+ ports and two USB 3.0 interfaces. Power consumption peaks at 13.4 W from a 100-240 VAC supply.

Suits sites needing integrated threat services

Organisations that want a single appliance combining firewall, VPN, SSL inspection and cloud-based reporting for up to seven days will match this bundle. The included licences cover gateway anti-virus, anti-spyware, Capture Advanced Threat Protection and comprehensive anti-spam. Buyers who need wireless LAN integration, higher multi-gigabit port density or a rackmount chassis should evaluate other form factors. The desktop footprint and fixed port count also limit expansion for large data-centre deployments.

200 site-to-site VPN tunnels maximum

The hardware supports a maximum of 200 concurrent site-to-site VPN tunnels alongside 2500 users and 1 250 000 simultaneous sessions. IPsec client capacity reaches 10 with an extended limit of 500, while SSL VPN licences allow 2 concurrent users up to 200. Encryption options include DES, 3DES and AES at 128, 192 and 256 bits with Suite B cryptography. This tunnel ceiling is the decisive figure when sizing the appliance for branch-office connectivity.

商品特色

  • 3-year Advanced Protection Security Suite includes threat prevention and cloud management
  • 1-year Cloud Secure Edge enables secure remote access from any device
  • 8 Gigabit and 2 5GbE ports provide high-speed wired connectivity
  • 200 site-to-site VPN tunnels link distributed locations
  • FIPS 140-2 Level 2 certification validates cryptographic security

商品規格

BrandSONICWALL
SeriesTZ 570
ModelTZ 570 - 3& Free (3Y APSS + 1Y CSE)
Part Number03-SSC-3018
TypeWired
Form FactorDesktop
StandardsTCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
ProtocolsBGP, OSPF, RIPv1/v2, static routes, policy-based routing
SecuritySecurity Services
Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
Ports8x1GbE, 2x5GbE, 2 USB 3.0
Simultaneous Sessions1250000
Maximum Users2500
VPNSite-to-site VPN tunnels: 200
IPSec VPN clients (maximum:) 10 (500)
SSL VPN licenses (maximum): 2 (200)
Encryption/authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange: Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN: RIP, OSPF, BGP
Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported: Microsoft®, Windows 10
NetExtender: M
CertificationsFIPS 140-2 Level 2 (with Suite B), IPv6/USGv6, ICSA Network Firewall, ICSA Firewall Enterprise, ISCA Network Antivirus / AntiMalware
ComplianceFCC Class B, FCC, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Power Input100-240 VAC,
50-60 Hz
Max Power Consumption13.4W
Features3 years of Advanced Protection Services Suite (APSS): This bundle includes essential bundle services along with cloud management and cloud-based reporting for 7 days.
1 year of Cloud Secure Edge (CSE): Delivers simple, secure zero-trust access to private and internet resources for all your employees and third parties, regardless of their network location.
出貨重量1.91 kg
包裝尺寸363 × 221 × 69 mm

其他版本

同系列還有 5 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

Do I need an existing internet connection and a VLAN-capable switch to use the 8x1GbE and 2x5GbE ports on this TZ570?

Yes, the appliance requires a WAN link from your ISP and a LAN switch that can handle the 8x1GbE and 2x5GbE interfaces for full throughput.

Will my current Cat5e patch cables limit the 2x5GbE SFP+ ports on this unit?

Cat5e supports only 1GbE; to reach 5GbE you need Cat6 or better copper, or compatible SFP+ modules and fibre.

How can I confirm the 1,250,000 simultaneous-session capacity is active after deployment?

Log into the management console and check the real-time session counter on the dashboard; it will display the current count up to the 1,250,000 limit.
