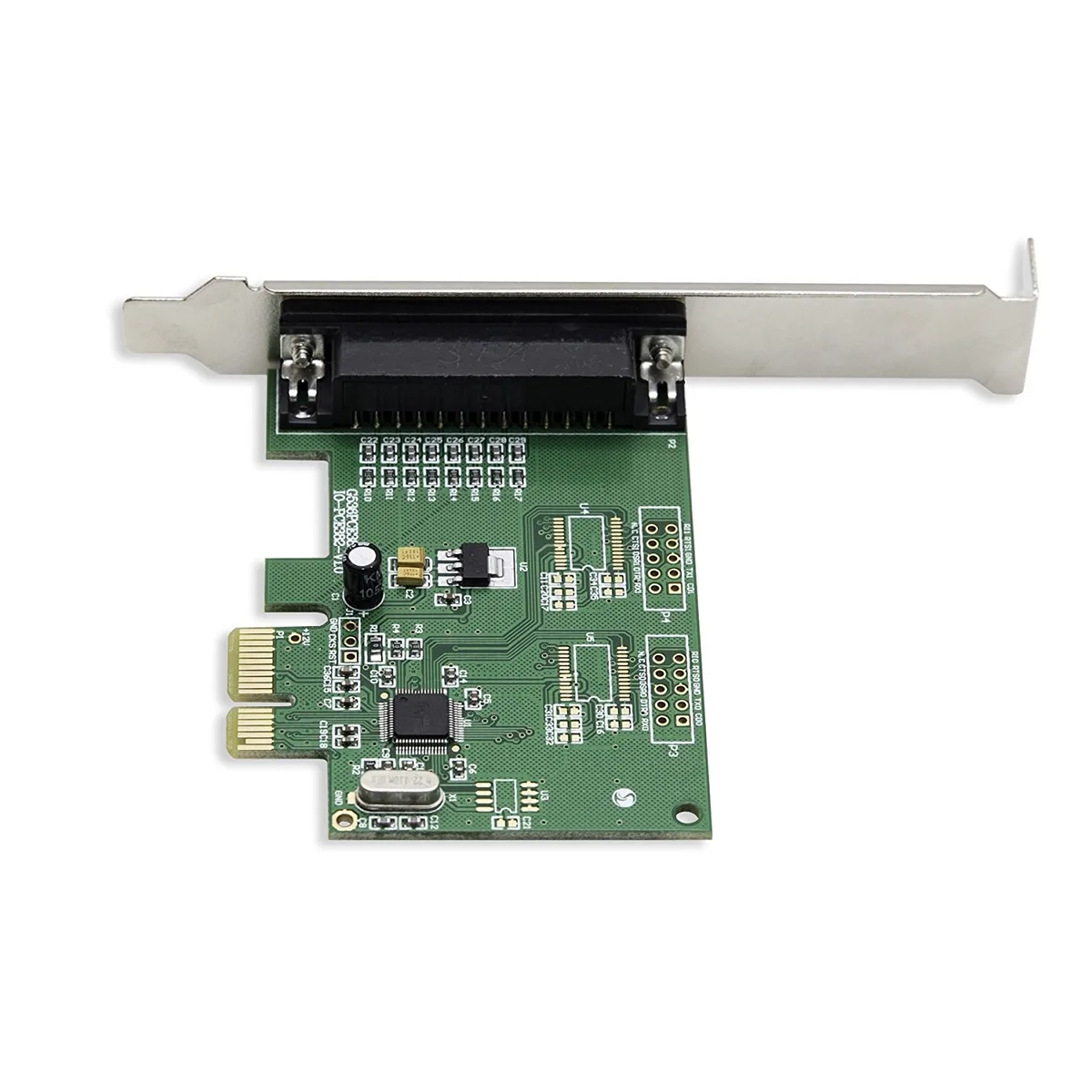

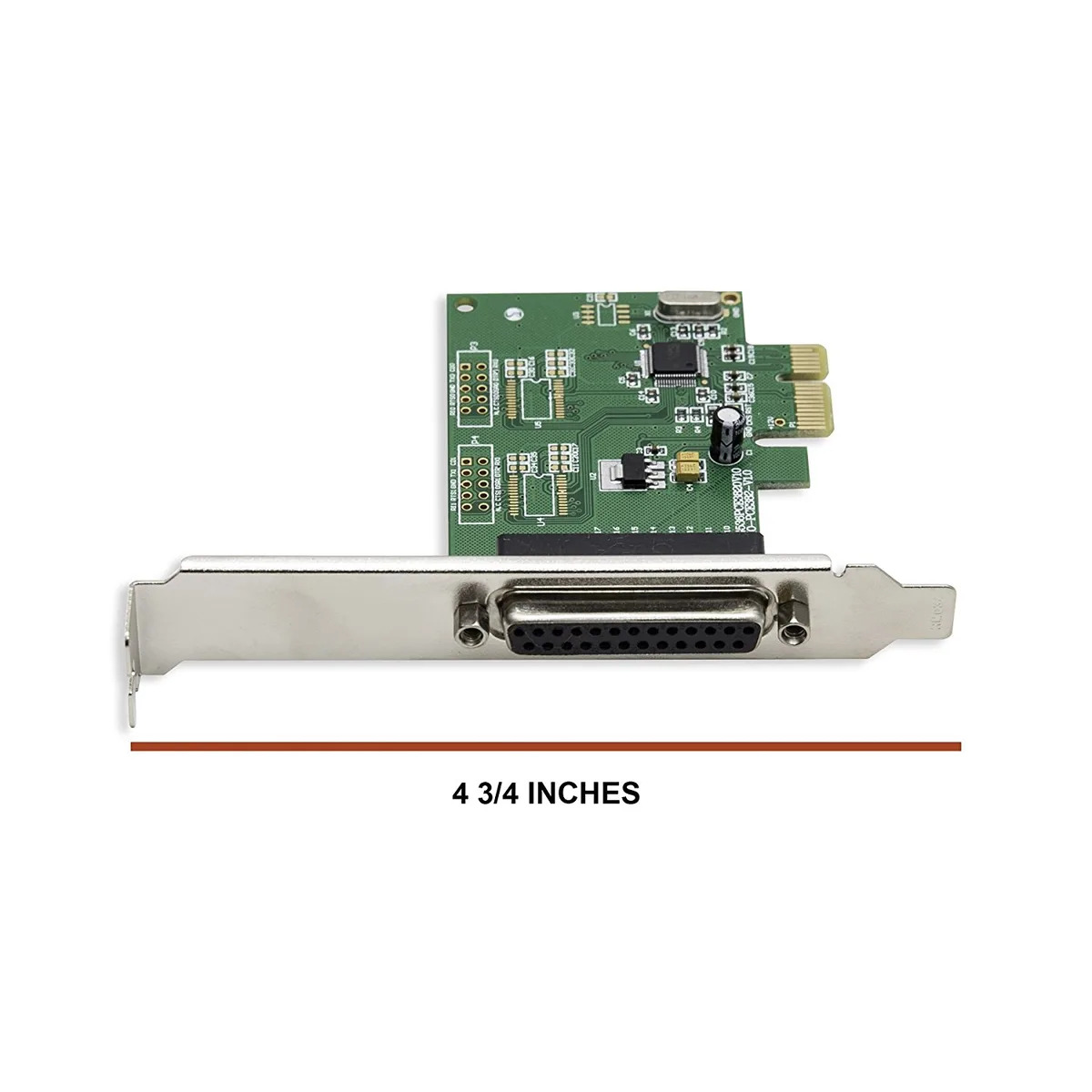

Green PCIe x1 card with a silver DB25 bracket

TeKit

TeKit IO-PCE382-1P Parallel PCIe x1 expansion card

SKU CH-2YMV-QRAVE MPN IO-PCE382-1P

Adds a DB25 parallel port via PCIe x1 with 1.5 MB/s transfer and 16-byte FIFO

  • TypeParallel Header Adapter
  • Standard1 Port DB25 Parallel PCIe X1 Controller Card, PCIE parallel
  • CompatibilityPCIE parallel card Industrial native parallel LPT pci-e card
  • Specifications1 Port DB25 Parallel PCIe X1 Controller Card
  • Features1 Port DB25 Parallel PCIe X1 Controller Card
  • Weight100g
  • Adds a DB25 parallel port via PCIe x1 slot
  • Native PCIe 1.0a controller with WCH382L chip
  • 5 MB/s peak throughput with 16-byte FIFO
  • Supports SPP, PS2, EPP and ECP modes
  • Driver support for 32-bit and 64-bit Windows and Linux

PCIe x1 parallel controller

This PCIe x1 expansion card adds a single DB25 parallel port to a desktop system. It uses the WCH382L chip and complies with the PCI Express 1.0a specification at 2.5 GT/s. The board provides a native LPT interface for legacy peripherals.

Industrial and legacy I/O users

The card suits engineers maintaining ARM JTAG cables, Altera or Xilinx FPGA download tools, or industrial printers that still require a parallel port. It is not for builds that need multiple parallel ports or a low-profile bracket, as only one DB25 connector is fitted.

1.5 MB/s maximum throughput

The single parallel port transfers data at up to 1.5 MB/s and supports SPP, PS2, EPP and ECP modes under IEEE 1284. Driver support covers 32-bit and 64-bit Windows from 98 SE through Windows 8 and Server 2012, plus Linux.

商品特色

  • Adds a DB25 parallel port via PCIe x1 slot
  • Native PCIe 1.0a controller with WCH382L chip
  • 5 MB/s peak throughput with 16-byte FIFO
  • Supports SPP, PS2, EPP and ECP modes
  • Driver support for 32-bit and 64-bit Windows and Linux

商品規格

BrandTeKit
Series1 Port DB25 Parallel PCIe X1 Controller Card
ModelNTRAC100099W
TypeParallel Header Adapter
Standard1 Port DB25 Parallel PCIe X1 Controller Card, PCIE parallel card Industrial native parallel LPT pci-e card printing to Parallel DB25 Interface
CompatibilityPCIE parallel card Industrial native parallel LPT pci-e card printing to Parallel DB25 Interface
Specifications1 Port DB25 Parallel PCIe X1 Controller Card
Features1 Port DB25 Parallel PCIe X1 Controller Card
Weight100g
Package Contents1 Port DB25 Parallel PCIe X1 Controller Card

商品問答

Will the TeKit IO-PCE382-1P work in a PCIe 2.0 or 3.0 x1 slot alongside older cards?

Yes, the card uses a PCI Express x1 lane interface compliant with the 1.0a specification and is backward compatible with newer PCIe slots.

How can I verify the WCH382L controller is operating at the correct 2.5 GT/s link speed after installation?

Check the device properties in your OS; the link should report PCIe 1.0a x1 at 2.5 GT/s and the parallel port should show a 1.5 MB/s transfer rate.

Does the package include a low-profile bracket or only the standard bracket shown?

The box contains the PCIe parallel card, an English manual and a driver CD-ROM; no low-profile bracket is listed.
