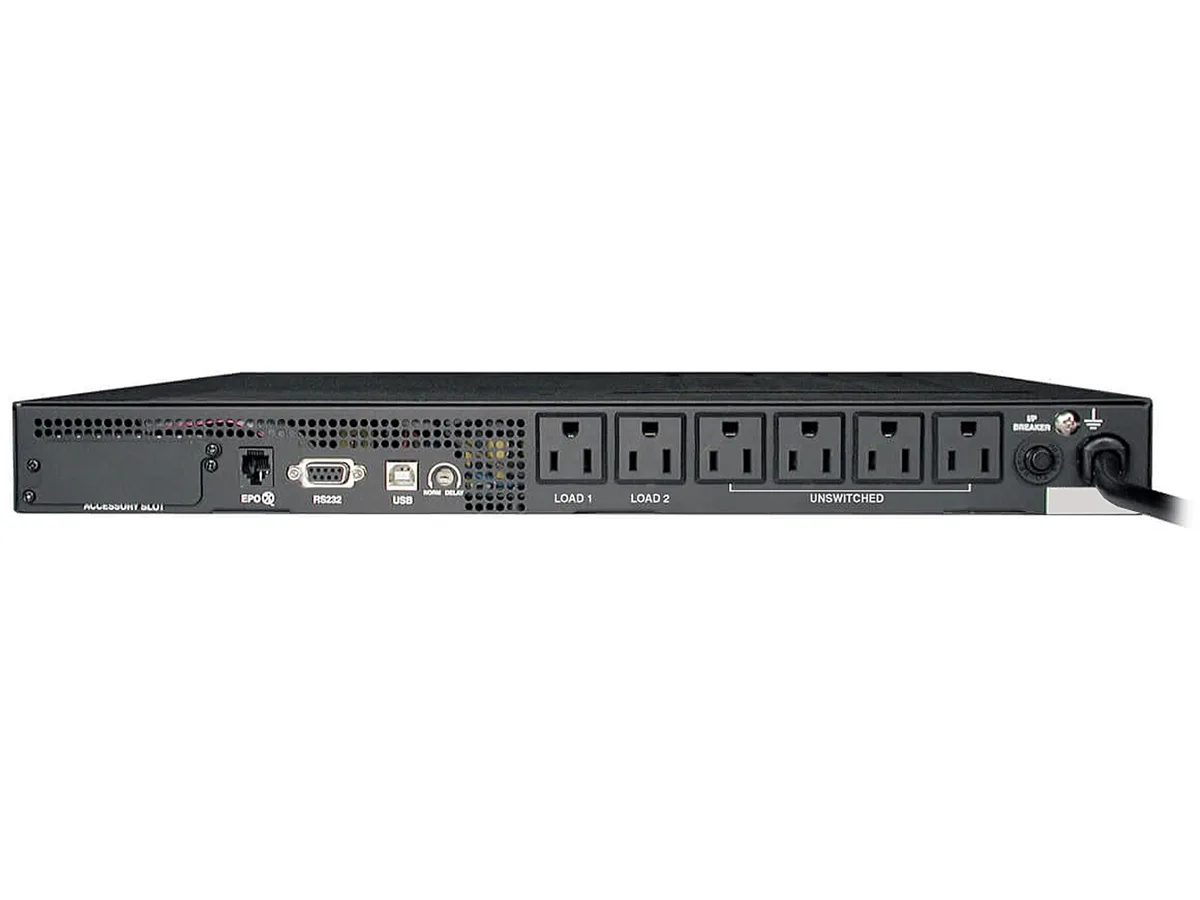

Black 1U rackmount UPS with front status LEDs and six rear outlets

Tripp Lite

Tripp Lite SMART750RM1UN 750 VA 600 W 1U Rackmount UPS

SKU CH-GSKT-A78HD MPN SMART750RM1UN

A 750 VA 600 W line-interactive UPS with sine-wave output corrects brownouts from 83 V to 147 V and includes a pre-installed WEBCARDLX network card for remote management

  • Input Voltage Range120V AC
  • Input ConnectionNEMA 5-15P
  • VA Rating750 VA
  • Watts600 W
  • Output Voltage120V
  • Output Frequency60 Hz

VA 750 VA w/ WEBCARDLX

  • Sine-wave output protects sensitive equipment with clean 120V power
  • Automatic voltage regulation corrects brownouts and overvoltages from 83V to 147V
  • Pre-installed WEBCARDLX enables secure remote monitoring via web browser, SNMP, telnet or SSH
  • Six NEMA 5-15R outlets deliver 600W backup for critical rackmount devices
  • 8 minutes runtime at full 600W load ensures safe shutdown time

750 VA 1U Rackmount UPS

The Tripp Lite SMART750RM1UN is a line-interactive uninterruptible power supply rated at 750 VA and 600 W. It delivers pure sine wave output at 120 V and corrects brownouts and overvoltages from 83 V to 147 V without using battery power. The 1U form factor fits standard server racks and includes mounting brackets. A pre-installed WEBCARDLX network interface provides remote monitoring and control via web browser, SNMP, telnet or SSH.

Thermals, Noise and Power Draw

The unit operates on 120 V AC input through a NEMA 5-15P plug and supplies six NEMA 5-15R outlets. An audible alarm signals power failure, overload or low-battery conditions. The valve-regulated lead-acid battery is user-replaceable using the RBC64-1U cartridge. Surge protection is rated at 450 joules. PowerAlert software is included for local or network-based management and graceful shutdowns.

Upgrade Context

This UPS replaces basic standby units that cannot correct voltage fluctuations or provide sine wave output. The jump is worth it when connected equipment requires clean power during brownouts or when remote management via the pre-installed network card is needed. It is not suited for loads exceeding 600 W or for installations needing extended runtime beyond 16.2 minutes at half load.

商品特色

  • Sine-wave output protects sensitive equipment with clean 120V power
  • Automatic voltage regulation corrects brownouts and overvoltages from 83V to 147V
  • Pre-installed WEBCARDLX enables secure remote monitoring via web browser, SNMP, telnet or SSH
  • Six NEMA 5-15R outlets deliver 600W backup for critical rackmount devices
  • 8 minutes runtime at full 600W load ensures safe shutdown time

商品規格

BrandTRIPP LITE
ModelSMART750RM1UN
Input Voltage Range120V AC
Input ConnectionNEMA 5-15P
VA Rating750 VA
Watts600 W
Output Voltage120V
Output Frequency60 Hz
Outlets6
Outlet Type5-15R
Battery TypeValve Regulated Lead Acid (VRLA)
Battery Run TimeFull Load Runtime (min.): 4.8 min. (600w)
Half Load Runtime (min.): 16.2 min. (300w)
Battery ReplaceableRBC64-1U
AlarmsAudible alarm indicates power-failure, overload and low-battery conditions
Interface PortDB9 Serial; EPO (emergency power off); Pre-installed network card; USB
Management SoftwarePowerAlert Software
ApprovalsTested to UL1778 (USA); Tested to CSA (Canada); Tested to NOM (Mexico); Meets FCC Part 15 Category A (EMI)
Rackmountable1U
Surge Energy Rating450 joules
Features.75kVA / 750VA / 600W line interactive 1U rackmount UPS, Sine wave output
120V output, Corrects brownouts and overvoltages from 83V to 147V

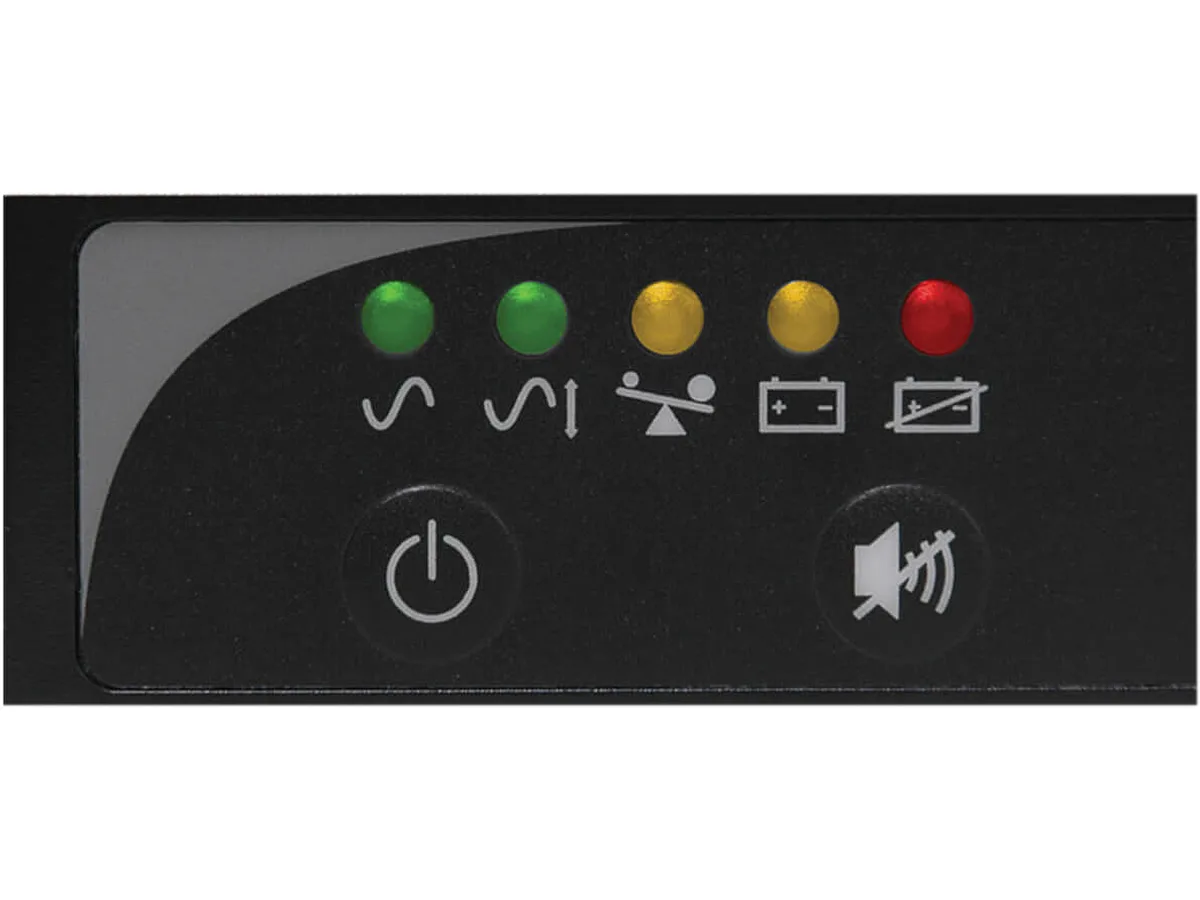

0.8 Power Factor, Front panel status LEDs
Mounting brackets support 2 and 4 post installation
99% line-mode efficiency, 2 switched load banks
USB, RS232, EPO and PRE-INSTALLED SNMPWEBCARD
120V NEMA 5-15P input, 6 NEMA 5-15R outlets
Dimensions1.70" x 17.50" x 16.80"
Weight30.00 lbs.
出貨重量15.42 kg
包裝尺寸597 × 546 × 140 mm

其他版本

同系列還有 4 款

同系列產品，記憶體、散熱器或時脈不同 — 下單前請先比較。

商品問答

How do I install the 1U rackmount UPS and what step is often missed?

Mount the unit using the included brackets for two-post or four-post racks, connect the NEMA 5-15P plug to a 120V circuit, attach loads to the six NEMA 5-15R outlets, then configure the pre-installed WEBCARDLX network card with an IP address — the step most often skipped.

What maintenance will this UPS need and which part is replaced?

The valve-regulated lead-acid battery is user-replaceable; order part RBC64-1U when runtime drops below the rated 4.8 minutes at 600 W or 16.2 minutes at 300 W.

What limit appears first during a long outage at full load?

At 600 W the battery provides only 4.8 minutes of runtime, so the runtime limit is reached well before the 450-joule surge rating or the 83 V to 147 V correction range become factors.
