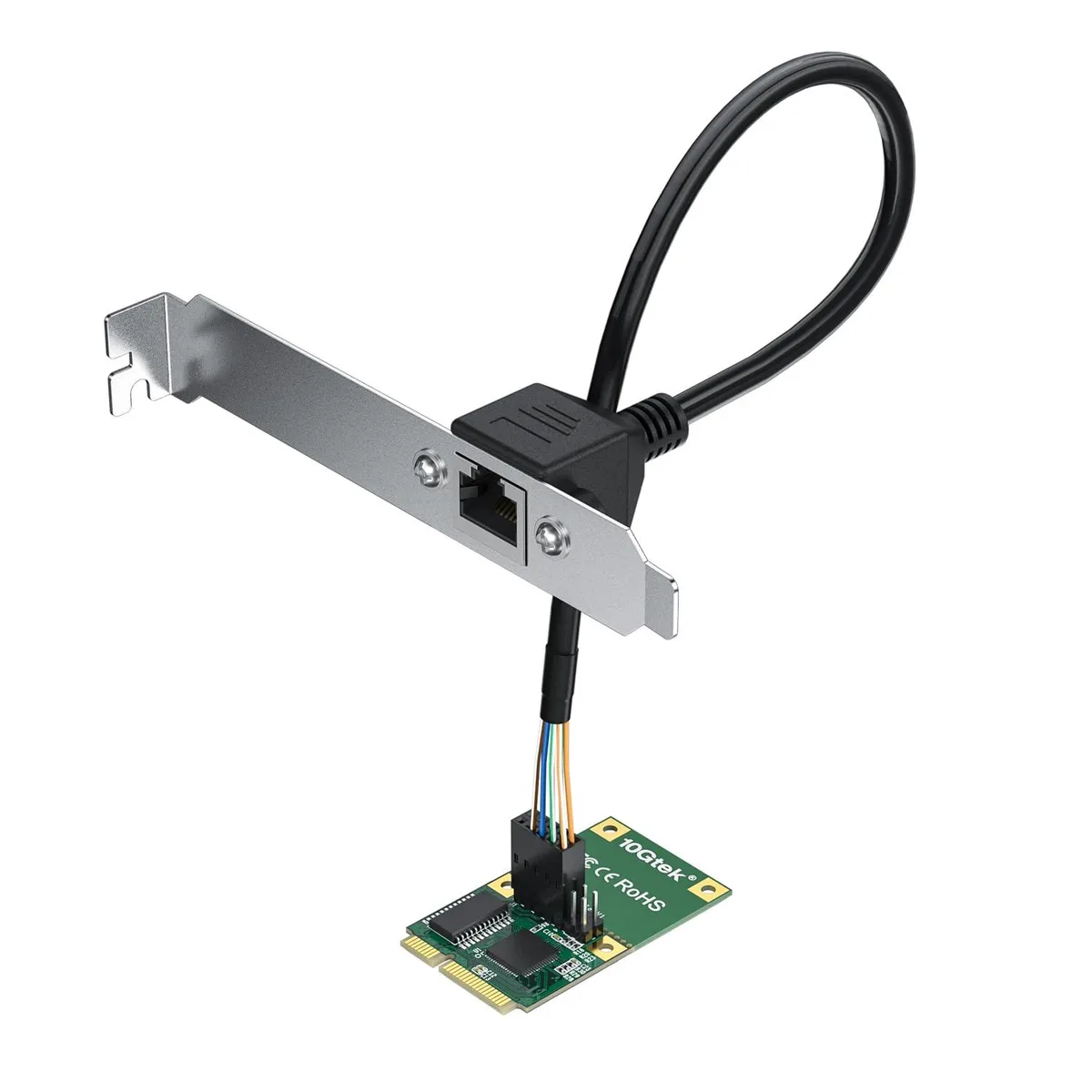

Mini PCIe network card with short cable and two brackets

Vszerda

Vszerda Mini PCIe Gigabit Network Card, 30 cm Cable, Dual Bracket

SKU CH-76VG-DP5F9

Adds a single Gigabit Ethernet port via Mini PCIe with a 30 cm cable and both low-profile and full-height brackets included

  • StandardsEthernet
  • Speed1000 megabits_per_second
  • ConnectorsEthernet
  • Interfaceethernet
  • BUSethernet
  • FeaturesComputer, Server
  • Gigabit Ethernet for fast wired connectivity up to 100 metres
  • Intel I210AT controller for reliable server-grade stability
  • Broad OS support including Windows, Linux, FreeBSD and VMware ESXi
  • Advanced features such as PXE, DPDK, WOL, iSCSI, Jumbo Frames and Windows teaming
  • Dual brackets supplied for standard and low-profile chassis compatibility

Mini PCIe Gigabit Ethernet card for servers

This Vszerda network adapter adds a single RJ45 port running at 10/100/1000 Mbps over Cat5, Cat6 or Cat7 cable up to 100 metres. It uses the Intel I210AT controller for reliable throughput in server and workstation roles.

Fits a Mini PCIe slot with a 30 cm cable

The card plugs into a Mini PCIe slot — not M.2 — and includes both a low-profile and a full-height bracket so it fits standard and slim chassis. A 30 cm cable routes the RJ45 port to the rear panel without occupying an expansion slot.

Low thermal load and broad OS support

The Intel I210AT controller draws minimal power and runs cool without active cooling, keeping noise at zero. Supported operating systems include Windows 7 through 11, Windows Server 2008 R2 through 2022, major Linux distributions, FreeBSD 11 through 13 and VMware ESXi 5 through 7.

商品特色

  • Gigabit Ethernet for fast wired connectivity up to 100 metres
  • Intel I210AT controller for reliable server-grade stability
  • Broad OS support including Windows, Linux, FreeBSD and VMware ESXi
  • Advanced features such as PXE, DPDK, WOL, iSCSI, Jumbo Frames and Windows teaming
  • Dual brackets supplied for standard and low-profile chassis compatibility

商品規格

BrandH!Fiber.com
StandardsEthernet
Speed1000 megabits_per_second
ConnectorsEthernet
Interfaceethernet
BUSethernet
FeaturesComputer, Server

商品問答

What throughput ceiling appears first when the Intel I210AT controller runs at full line rate all day?

The controller tops out at 1000 megabits per second on the single RJ45 port, so sustained gigabit traffic is the hard limit.

How much extra heat or noise does the card add inside a server chassis under continuous load?

The board is a passive Mini PCIe NIC with no fan; it draws minimal power from the slot and adds negligible heat or acoustic load.

Which slot and bracket style must the host already provide for this card to fit and work?

The system needs a free Mini PCIe slot (not M.2) and the package includes both low-profile and full-height brackets for standard or slim chassis.
