Green circuit board with one Type-C and two Type-A ports plus flat metal bracket

Vszerda

Vszerda PCI-E to USB 3.0 Expansion Card 1 Type-C 2 Type-A Flat Bracket

SKU CH-Q8XY-3W5Y5

Adds two USB 3.0 Type-A ports and one Type-C port plus an M.2 B-key SATA SSD slot via PCIe x1, delivering up to 5 Gbit/s

  • Add three USB 3.0 ports with one Type-C and two Type-A connectors
  • SuperSpeed USB 3.0 up to 5 Gbit/s, backwards compatible with USB 2.0 and 1.1
  • Supports M.2 B-key SATA SSDs, does not support NVME drives
  • Works with PCIe 3.0, 2.0 and 1.0 slots using x1 lane
  • Drivers included for Windows XP, Vista, 7, 8.1, 10 and Linux

Add Three USB 3.0 Ports to a Desktop

This PCI Express card adds two USB 3.0 Type-A ports and one Type-C port to a standard desktop PC. It connects most USB peripherals for file transfers between devices and the computer. The card fits any PCI Express x1 slot and works with Windows XP, Vista, Server, 7, 8, 10 and Linux.

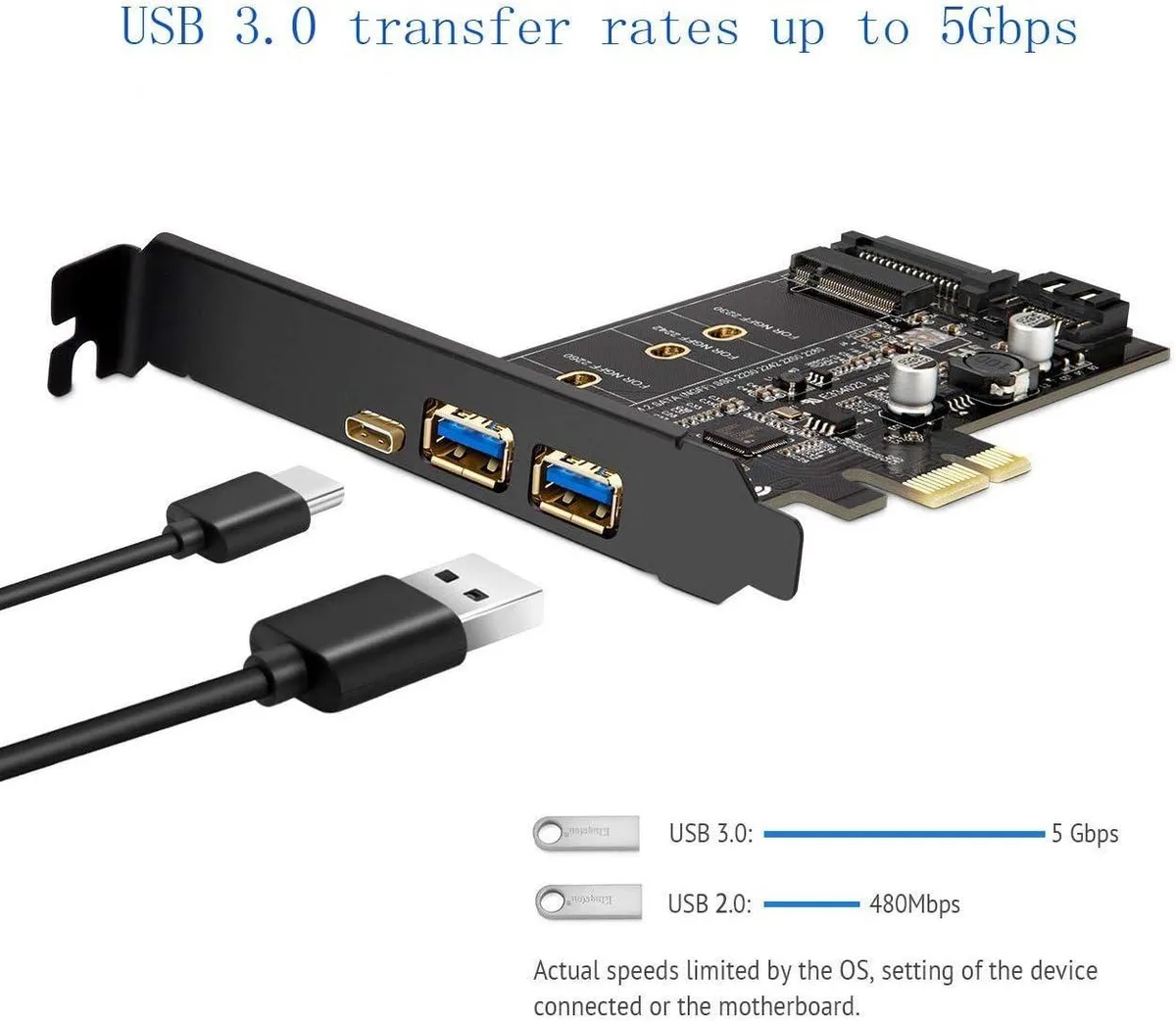

5 Gbit/s Peak Speed with Legacy Support

SuperSpeed USB 3.0 delivers up to 5 Gbit/s transfer rates while remaining backward compatible with USB 2.0 and 1.1 devices. Actual throughput depends on the operating system, the connected device and the motherboard configuration.

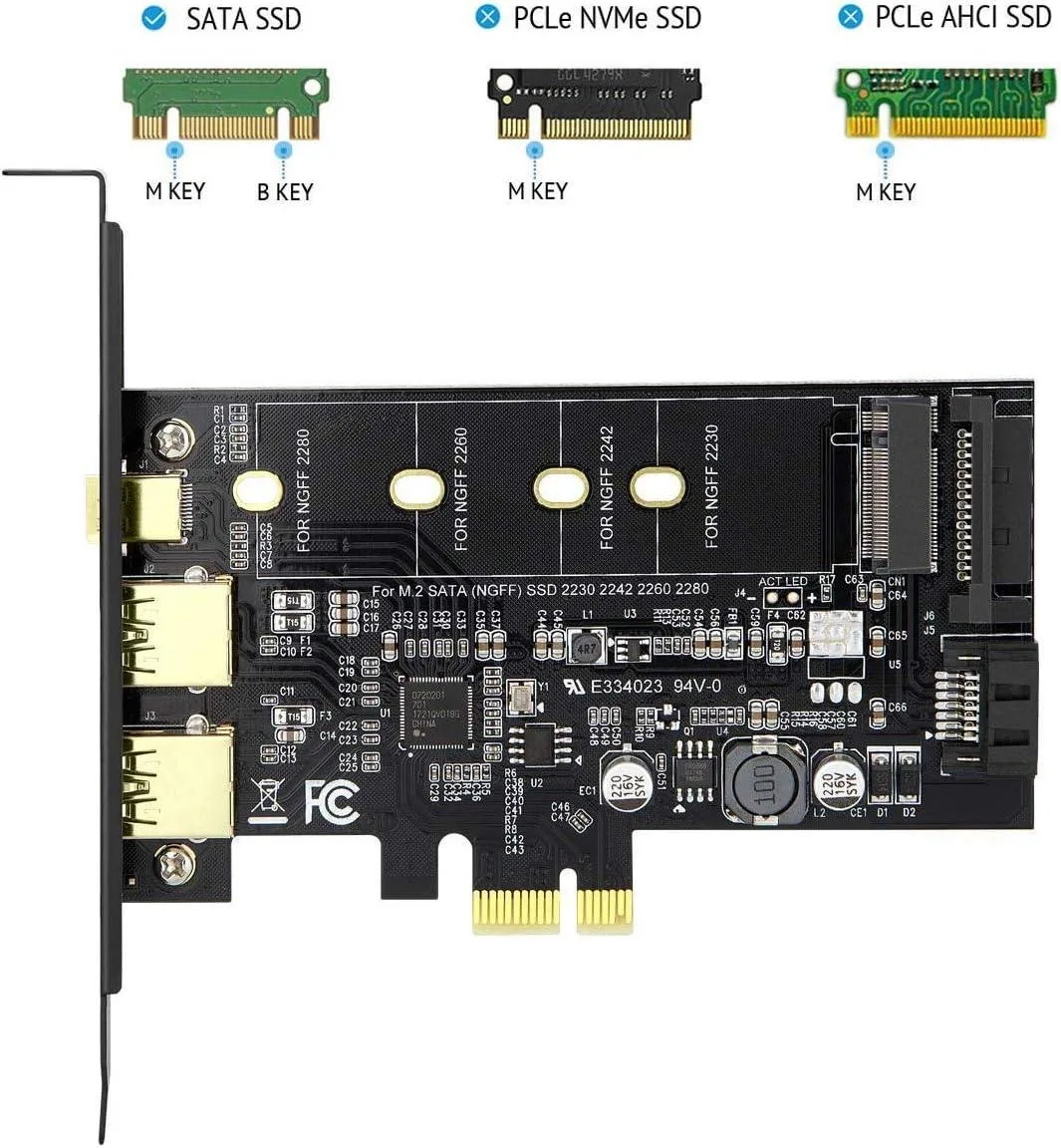

M.2 B-Key SATA Only — No NVMe Support

The on-board M.2 slot accepts B-Key SATA III solid-state drives such as the Samsung 850 EVO, 860 EVO, WD Blue 3D NAND and Crucial MX500. It does not support M-Key interfaces or PCIe NVMe and AHCI drives.

商品特色

  • Add three USB 3.0 ports with one Type-C and two Type-A connectors
  • SuperSpeed USB 3.0 up to 5 Gbit/s, backwards compatible with USB 2.0 and 1.1
  • Supports M.2 B-key SATA SSDs, does not support NVME drives
  • Works with PCIe 3.0, 2.0 and 1.0 slots using x1 lane
  • Drivers included for Windows XP, Vista, 7, 8.1, 10 and Linux

商品規格

本商品目前尚未公佈規格。

商品問答

Will the card fit in my older motherboard that only has PCIe 2.0 slots?

The card is backward compatible with PCIe 2.0 and 1.0 slots, so it will install and operate in those older motherboards.

How can I verify the USB 3.0 ports are running at 5 Gbit/s after installation?

Check the device manager or system information to confirm the controller enumerates as USB 3.0 and run a file transfer to a USB 3.0 flash drive to observe SuperSpeed throughput.

Does the package include the SATA power cable needed for the M.2 B-key SSD slot?

The card provides a SATA input for powering an M.2 B-key SATA SSD; a standard SATA power cable from your power supply must be connected separately.
