Small blue PICkit 3.5 programmer with USB connector and ICSP header

Vszerda

Vszerda PICkit 3.5 Programmer Debugger ICSP MPLAB

SKU CH-50KW-314F7

PIC microcontroller programmer and in-circuit debugger supporting PIC16, PIC18, PIC24 and dsPIC series with USB connectivity and MPLAB IDE compatibility

  • Programs almost all PIC microcontrollers with ICSP interface
  • Firmware self-recovery protects against corruption during upgrades
  • USB connection for convenient PC control
  • Supports PIC16, PIC18, PIC24 and dsPIC series
  • Operates from 1.8 to 5 volts for low-voltage targets

PICkit 3.5 Programmer Debugger

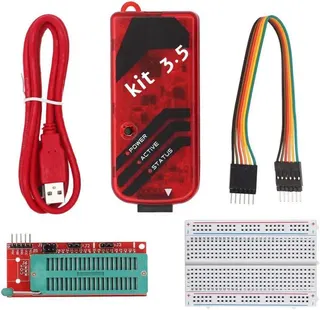

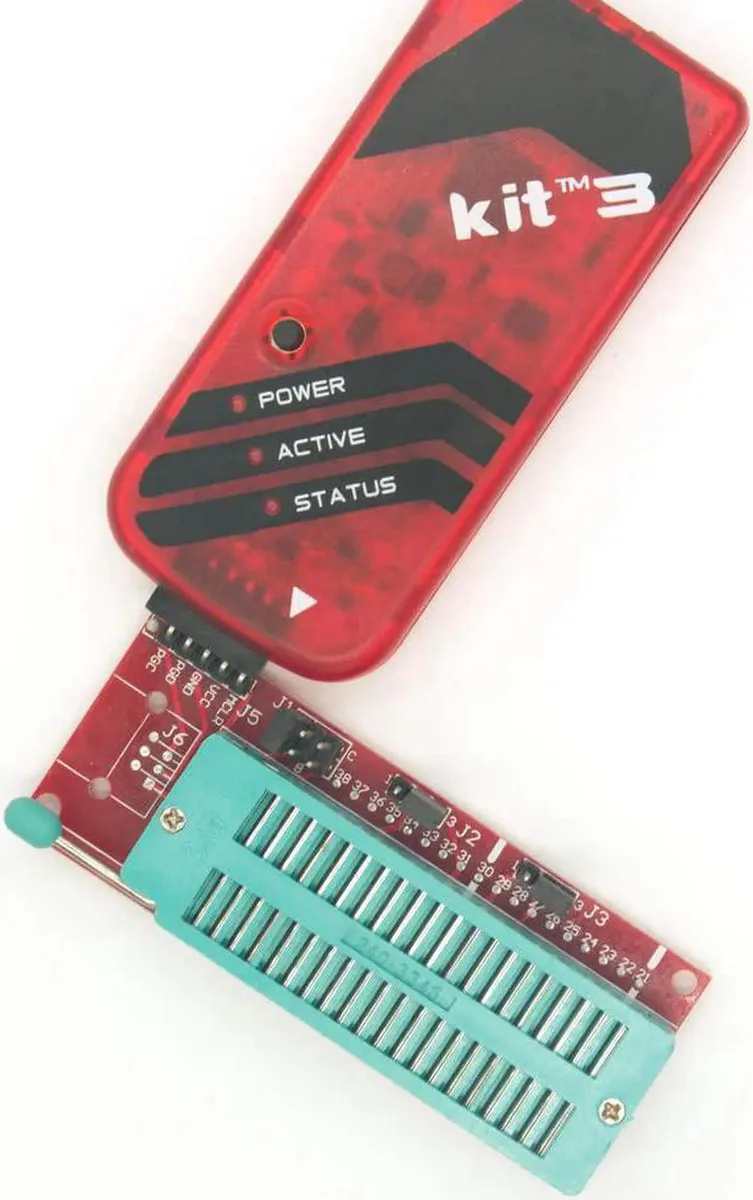

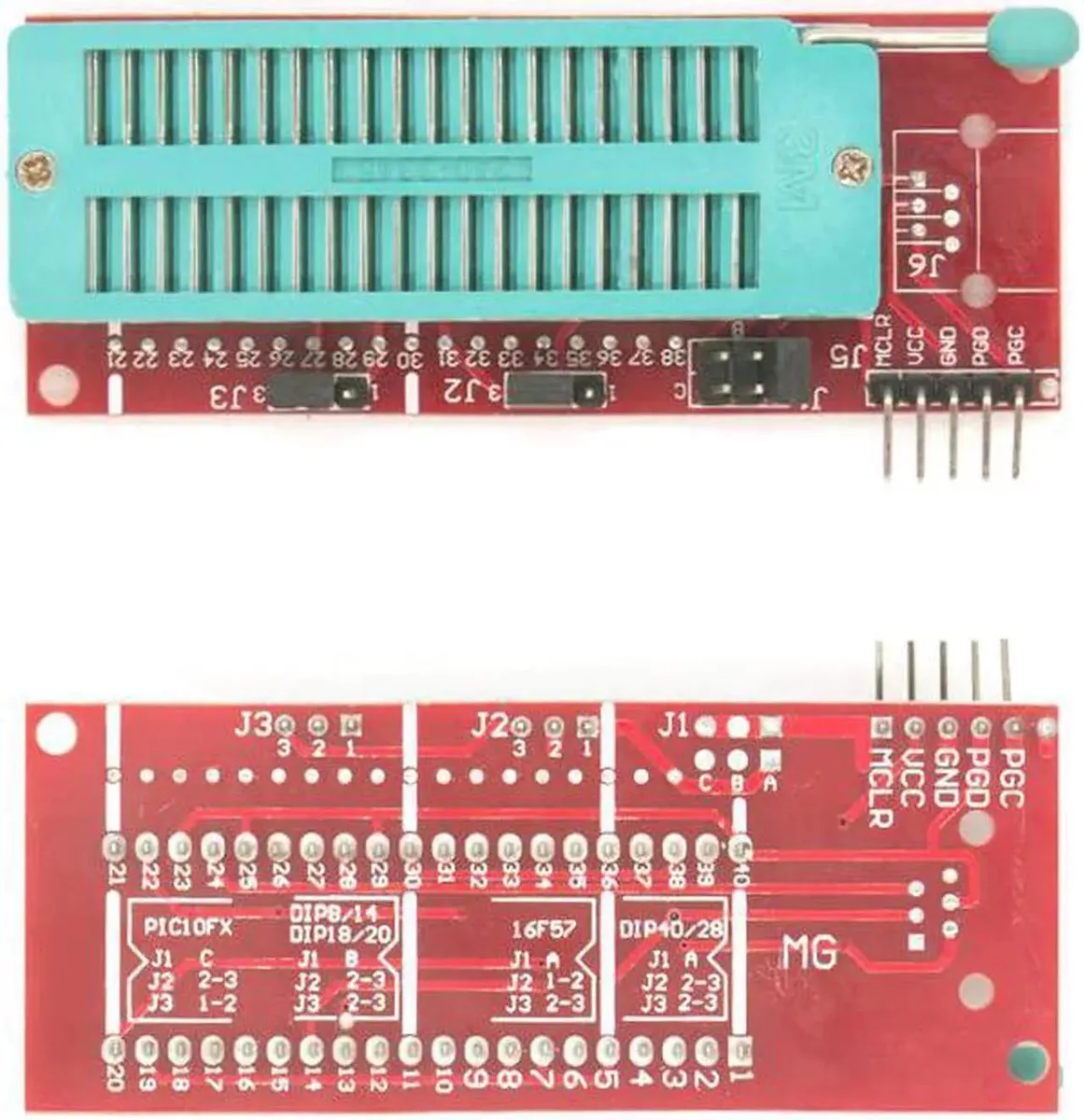

The Vszerda PICkit 3.5 is a USB programmer and in-circuit debugger for PIC microcontrollers. It supports MPLAB X IDE on Windows and works with PIC16, PIC18, PIC24 and dsPIC series devices. The kit includes adapter boards for ICSP connection. It is suited to students and engineers learning or developing PIC firmware.

Thermals Noise Power Draw

The tool draws power from the USB port and operates at target voltages between 1.8 and 5 V. Built-in over-voltage and short-circuit monitoring protects both the debugger and the target board. Diagnostic LEDs show power, activity and status during operation. No external supply or cooling is required for normal use.

ICSP Interface Support

The single specification that decides fit is the ICSP programming interface on the target microcontroller. If the chip uses a different programming protocol the debugger cannot connect. Buyers whose parts require JTAG, SWD or proprietary headers need a different tool.

商品特色

  • Programs almost all PIC microcontrollers with ICSP interface
  • Firmware self-recovery protects against corruption during upgrades
  • USB connection for convenient PC control
  • Supports PIC16, PIC18, PIC24 and dsPIC series
  • Operates from 1.8 to 5 volts for low-voltage targets

商品規格

本商品目前尚未公佈規格。

商品問答

How do I connect the PICkit 3.5 to the target board for ICSP programming?

Connect the ICSP header on the PICkit 3.5 to the matching pins on your target board, then plug the programmer into a USB port; the computer uses standard Windows drivers.

What part of the PICkit 3.5 is most likely to need replacement after heavy use?

The ICSP connector and cable endure repeated insertion cycles, so the header pins or ribbon cable typically wear out first.

What voltage limit stops a debug session when the target draws too much current?

The built-in over-voltage and short-circuit monitor trips if the target exceeds the 1.8 to 5 V operating range.
