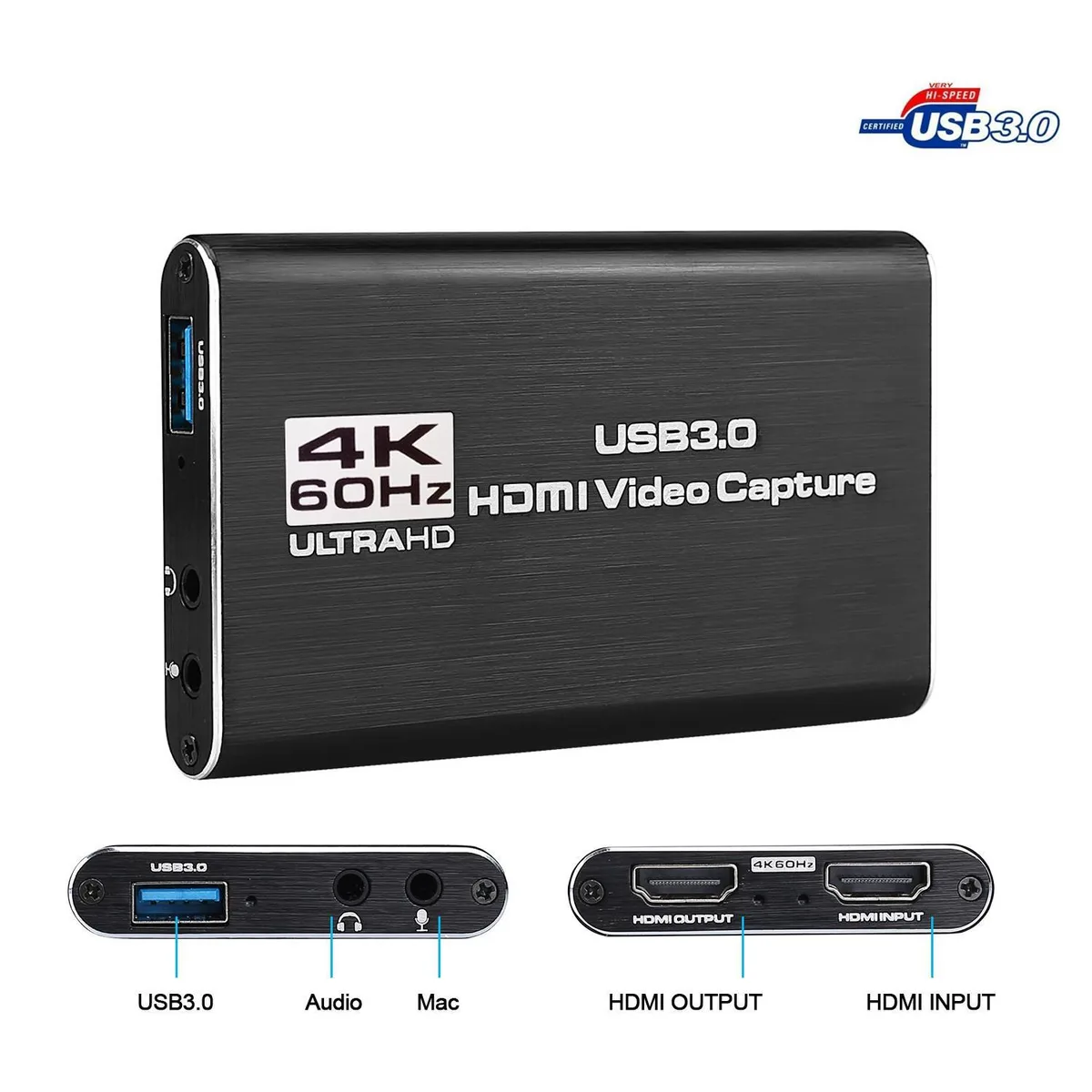

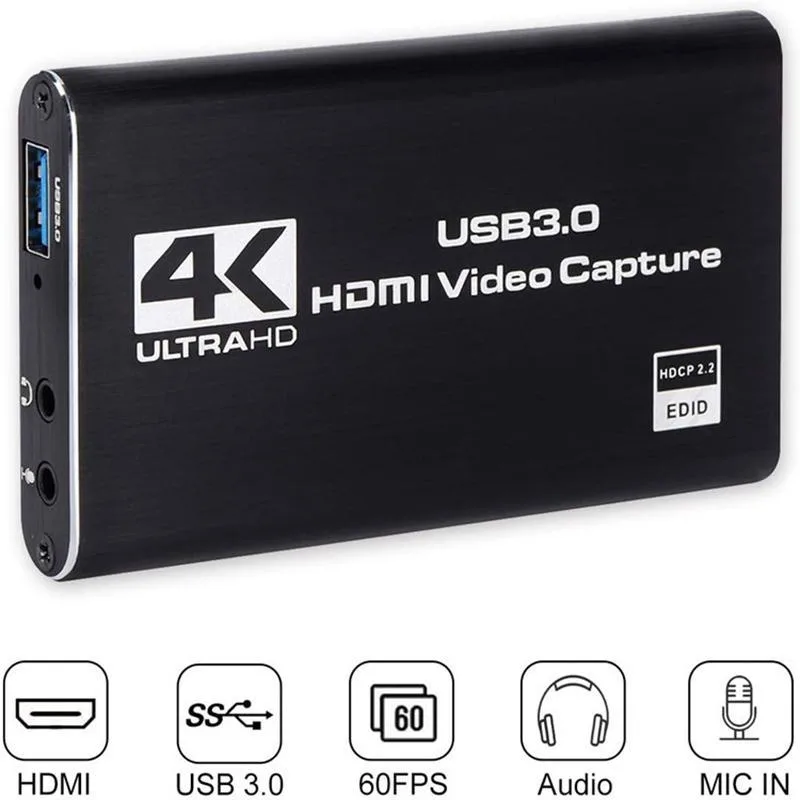

Small black rectangular USB 3.0 HDMI capture dongle with HDMI port, USB connector, microphone input and LED indicator

WRIARICH

WRIARICH YCY-2353 USB 3.0 HDMI capture card 1080P 60fps with MIC input

SKU CH-WYQF-QHFG7

Captures 1080P 60fps HDMI video with 48 KHz audio via USB 3.0, supports 4K 30Hz input and MIC input, no external power needed

  • InterfaceUSB 3.0
  • Specification1. Input interface: 1 HDMI interface; 2. Output interface: U
  • Resolution Support1080P
  • FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
  • ColorBlack
  • VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input
  • Capture 1080p at 60fps for smooth streaming
  • Record 4K sources at 30Hz via HDMI input
  • Built-in MIC input adds live commentary easily
  • USB 3.0 delivers 300-350MB/s throughput for low latency
  • Works on Windows, MacOS, Linux and Android

WRIARICH YCY-2353 USB 3.0 Capture Card

The WRIARICH YCY-2353 captures a single HDMI source at up to 1080p 60 fps and passes the signal through an HDMI output to a display. It is built for streamers, educators and meeting hosts who need a compact, bus-powered device that works with Windows, macOS, Linux and Android without driver installation.

Plug-and-play setup with UVC and UAC

Connect the HDMI source to the input and the USB 3.0 plug to the host; the card draws no more than 2.5 W and requires no external adapter. Most issues arise when the host port negotiates USB 2.0 speeds, which limits throughput below the 300–350 MB/s needed for full-quality capture, or when the source outputs copy-protected HDCP content that the device cannot record.

1080p 60 capture with 4K 30 passthrough

The encoder records at 1080p 60 Hz in MJPEG or YUY2 while accepting HDMI input up to 4K 30 Hz for loop-through to a monitor. Audio is captured at 48 KHz PCM alongside the video. Headroom ends at 1080p 60; higher refresh rates, HDR metadata or multi-channel audio beyond stereo PCM are not supported.

商品特色

  • Capture 1080p at 60fps for smooth streaming
  • Record 4K sources at 30Hz via HDMI input
  • Built-in MIC input adds live commentary easily
  • USB 3.0 delivers 300-350MB/s throughput for low latency
  • Works on Windows, MacOS, Linux and Android

商品規格

BrandWRIARICH
SeriesYCY-2353
ModelYCY-2353
InterfaceUSB 3.0
Specification1. Input interface: 1 HDMI interface;
2. Output interface: USB3.0, 300 ~ 350MB / s throughput;
3. HDMI input: 4K / 30Hz, 1080P / 60, 59.94, 50, 30, 29.97, 25, 24, 23.98, 1080i 50/60, 720P 50 / 60,480P, 576P1280x1024, 1280x960, 1024x768, 800x600, 640x480
4. HDMI sound input: LPCM sound signal;
5. HDMI input format: compatible with HDMI1.4 standard, maximum bandwidth support 225MHz 4K / 30Hz, 12bit deep color;
6. Output format Resolutions: 640x480 / 720x480 / 720x576 / 800x600 / 1024x768 / 1280x720 /
1280x960 / 1280x1024 / 1366x768 / 1360x768 / 1440x900 / 1400x900 / 1680x1050 / 1920x10
Resolution Support1080P
FormatOutput Video Formats: vif,mp4,mov,mkv,ts,m3u8 and more
ColorBlack
VideoThe recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
Audiosupport 48 KHz PCM audio sampling rate
HDMI1 Input/1 Output
LED IndicatorYes
DisplayHDMI Output : apply for all TV, Monitor, Projector, LCD and other displays which equipped with HDMI output port;It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.
CompatibilityThe HDMI video capture card is a good helper for high-definition capture, live broadcast,video recording, conference room, teaching recording and gameplay. Can be connected to source HDMI interface devices (such as: PS3, PS4, NS switch, XBOX, computer, laptop, DVD, HD player, etc.) Real-time game capture card for switch streaming on Twitch/Youtube/OBS/XSplit/Potplayer/Tiktok.
System RequirementsWindows / Android / MacOS/ Linux ect.
Power SupplyNO need external power supply
Power Consumption<= 2.5W
Feature1. It can capture single HD HDMI video signal;
2. The recorded video signal can reach 1080p / 60Hz, HDMI input supports 4K / 30Hz;
3. Support MJPEG and YUY2;
4.Support UAC & UVC agreement, support 48 KHz PCM audio sampling rate;
5. Some win7 need to install the driver;
6. Compatible with Windows 7, 8, 8.1, 10 or later, Linux OS, Mac OS operating systems;
7. USB3.0, 300 ~ 350MB / s bandwidth, compatible with USB 2.0 (40MB / s bandwidth);
8. Can automatically detect the input video format, and automatically adjust to the set output size and frame rate;
9. Can automatically detect t
Dimensions4.88 x 4.65 x 2.52 inches
Weight0.035 ounces
Package Content1 x4K USB3.0 HDMI Audio Video Capture Card;
1 x HDMI Cable;
1xUSB 3.0 Cable;
1 x User Manual;

商品問答

How can I confirm the WRIARICH YCY-2353 is capturing correctly after connecting it?

The LED indicator lights up when a signal is detected; open OBS or any UVC-compatible app and verify the preview shows 1080p at 60fps with 48 KHz PCM audio.

What comes in the box with the YCY-2353 and what must I provide separately?

The capture card itself is included; you must supply an HDMI cable for the source device and a USB 3.0 cable to connect to your computer.

Which resolution and frame-rate setting should I choose for game streaming with this card?

For gameplay, select 1080p at 60fps — the maximum recording capability — while the HDMI input can also accept 4K at 30Hz if your source outputs that.
