Black rectangular server motherboard with dual LGA 2011 sockets, two CPUs installed, and a switch cable attached

YINGHUA

YINGHUA X99 Dual LGA 2011 Server Motherboard 2×E5-2620 V3 CPU Switch Cable

SKU CH-CW2P-CZ0X4

Dual-socket LGA 2011 board with two E5-2620 V3 CPUs, eight DDR4 slots up to 32 GB each, six SATA 3.0 ports and one M.2 slot

  • CPU TypeIntel Atom
  • Dual LGA 2011 sockets take two E5-2620 V3 CPUs
  • X99 chipset handles DDR4 ECC modules up to 32 GB each
  • Six SATA 3.0 ports plus two M.2 slots for storage
  • Four USB 3.0 and four USB 2.0 ports for peripherals
  • Onboard Realtek 8106E 100 M and 8111H network controllers

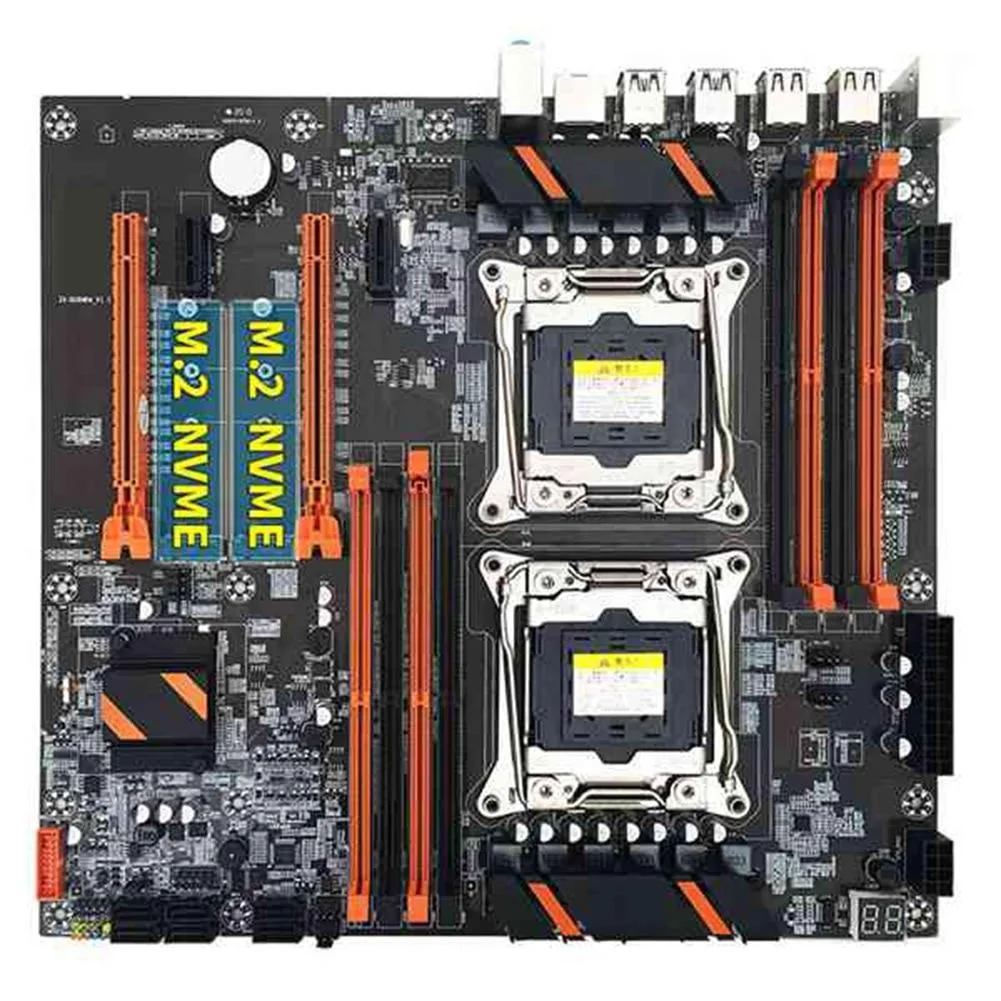

Dual LGA 2011 Server Board

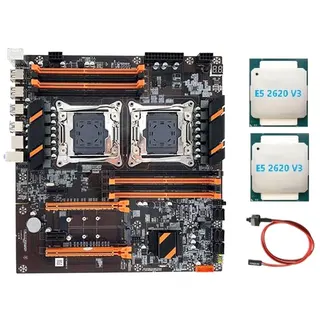

This YINGHUA X99 motherboard is a dual-socket server platform that arrives with two Intel E5-2620 V3 processors and a switch cable. It uses the Intel X99 chipset and supports DDR4 ECC memory across eight slots.

Memory And Storage Capacity

The board accepts up to eight DDR4 modules at 2133, 2400 or 2800 MT/s with a single-module limit of 32 GB. Storage connects through six SATA 3.0 ports and two M.2 interfaces that support PCIe or SATA signalling.

Expansion Slot Layout

Two PCIe 16X slots and two additional PCIe interfaces provide room for add-in cards such as network adapters or storage controllers. A single COM header and PS/2 mouse port handle legacy peripherals.

商品特色

  • Dual LGA 2011 sockets take two E5-2620 V3 CPUs
  • X99 chipset handles DDR4 ECC modules up to 32 GB each
  • Six SATA 3.0 ports plus two M.2 slots for storage
  • Four USB 3.0 and four USB 2.0 ports for peripherals
  • Onboard Realtek 8106E 100 M and 8111H network controllers

商品規格

CPU TypeIntel Atom

商品問答

What is the maximum memory capacity per DDR4 slot on this motherboard?

Each of the eight DDR4 slots supports up to 32 GB modules, so the total installed memory depends on the modules you choose.

How loud or hot does the board get when the dual E5-2620 V3 CPUs run continuously?

The board integrates a Realtek 8106E 100 Mbit or 8111H network controller and uses standard PCB material; sustained thermal and acoustic performance depends on your chassis airflow and CPU cooler choice.

Which power connectors must my PSU provide for this dual-socket X99 board to start?

The motherboard uses an LGA 2011 socket pair and requires standard ATX 24-pin plus dual EPS 8-pin CPU power connectors, which are not included in the package.
