An 11.26 inch portable monitor with a slim rectangular IPS panel, narrow bezels

52Pi

52Pi 11.26" Portable Monitor 1920x440 Capacitive Touch

SKU CH-QXCE-G8NY9 MPN 52Pi

An 11.26-inch portable IPS monitor with 1920x440 resolution, 10-point capacitive touch, HDMI input, 350 cd/m² brightness and 178° viewing angles

  • Monitor TypePortable Monitor
  • Touchscreen TypeCapacitive 10-point multi-touch
  • PanelIPS
  • Screen Size11.26“
  • Display TypeHD
  • Viewing Angle178° (H) / 178° (V)
  • Crisp 1920 x 440 resolution on an 11.26" IPS panel
  • 10-point capacitive multi-touch for precise gesture control
  • 178° wide viewing angles keep colours consistent
  • HDMI input connects Raspberry Pi 5, 4B, 3B+ and 3B
  • 350 cd/m² brightness with 600:1 contrast for clear visuals

11.26" 1920x440 Portable Touch Monitor

The 52Pi 11.26-inch portable monitor delivers a 1920x440 resolution on an IPS panel with 178-degree viewing angles. Capacitive 10-point multi-touch supports precise gesture control. HDMI connectivity allows use with Raspberry Pi 5, 4B, 3B+ and 3B boards as well as other HDMI sources. Brightness reaches 350 cd/m2 with a 600:1 contrast ratio.

Installation and Common Issues

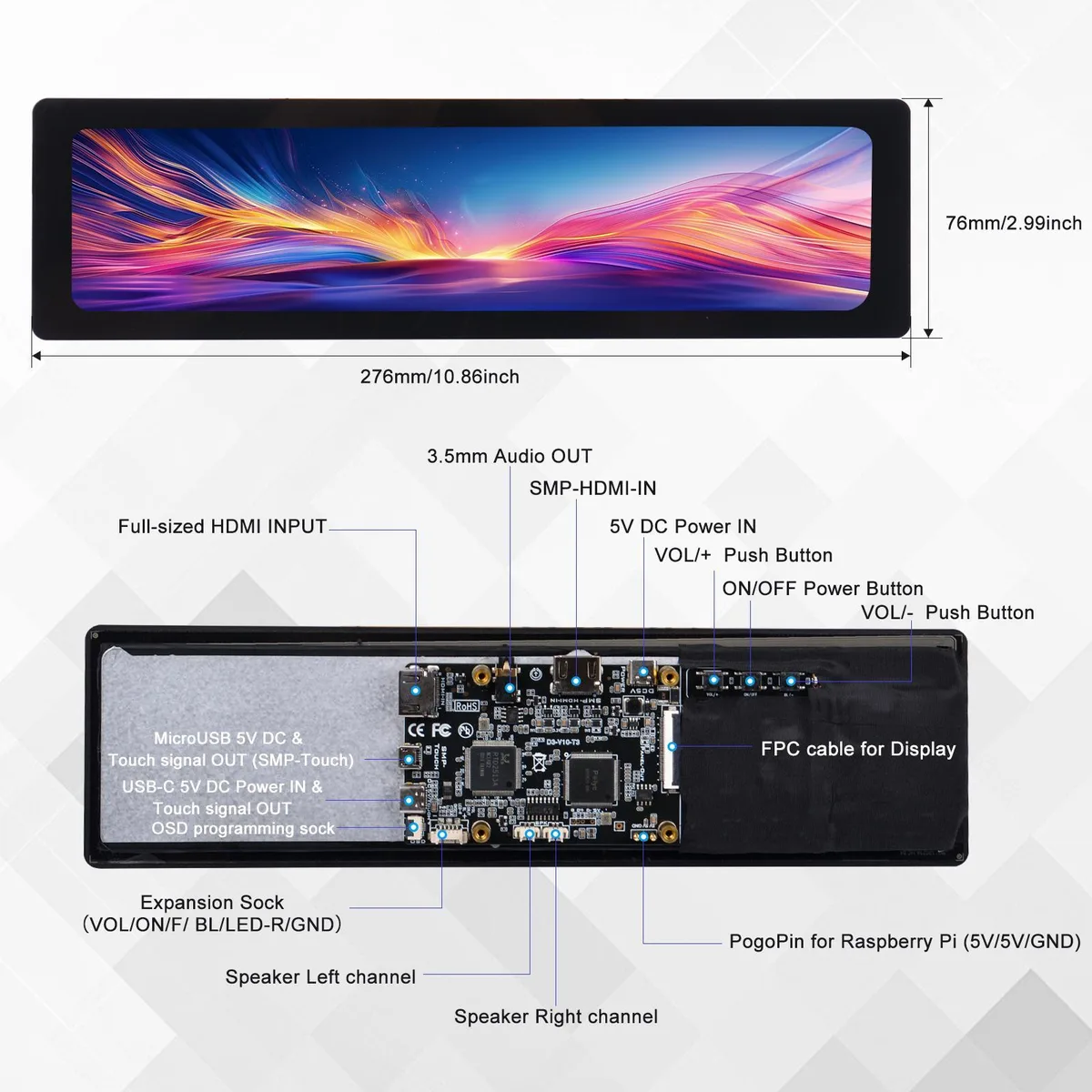

Mounting holes on the rear accept a Raspberry Pi board directly for a compact stack. HDMI carries both video and touch data so only one cable is required for most hosts. The 30ms response time and 60 Hz refresh rate suit desktop and media use but not fast gaming. Touch calibration may be needed on first boot depending on the operating system.

Check Your Setup Before Ordering

Verify that your source device provides a standard HDMI output and can drive a 1920x440 resolution at 60 Hz. Ensure the board or computer supplies enough USB power for the touch controller if a separate USB link is required. Confirm that the 11.26-inch form factor fits your intended enclosure or mounting location. Buyers needing a taller aspect ratio or higher refresh rate should consider other models.

Puntos fuertes

  • Crisp 1920 x 440 resolution on an 11.26" IPS panel
  • 10-point capacitive multi-touch for precise gesture control
  • 178° wide viewing angles keep colours consistent
  • HDMI input connects Raspberry Pi 5, 4B, 3B+ and 3B
  • 350 cd/m² brightness with 600:1 contrast for clear visuals

Especificaciones

Brand52Pi
Model52Pi 11.26 Inch Capacitive Touch Screen
Part NumberEP-0189
Monitor TypePortable Monitor
Touchscreen TypeCapacitive 10-point multi-touch
PanelIPS
Screen Size11.26“
Display TypeHD
Viewing Angle178° (H) / 178° (V)
Display Colors16.7 Million
Aspect Ratio16:9
Brightness350 cd/m2
Contrast Ratio600:1
Response Time30ms
Horizontal Refresh Rate60 Hz
HDMIYes
3D Glasses IncludedNo

Preguntas sobre este artículo

How do I verify the 11.26" display is operating correctly after connecting it via HDMI?

The panel should show a 1920x440 image at 60 Hz with 350 cd/m² brightness and 178° viewing angles; touch response must register up to 10 simultaneous points across the capacitive surface.

What comes in the box with the EP-0189 monitor and what must I source separately?

The monitor includes an HDMI interface for video and touch data; a separate HDMI cable, a 5 V power supply for the display, and a Raspberry Pi board (5, 4B, 3B+ or 3B) are not included and must be purchased separately.

Which version of the 52Pi portable monitor should I choose for my Raspberry Pi 5 project?

The single 11.26" model with 1920x440 resolution, IPS panel, 10-point capacitive touch and mounting holes for Pi boards is the only version listed; select it when you need that exact screen size and touch capability.
