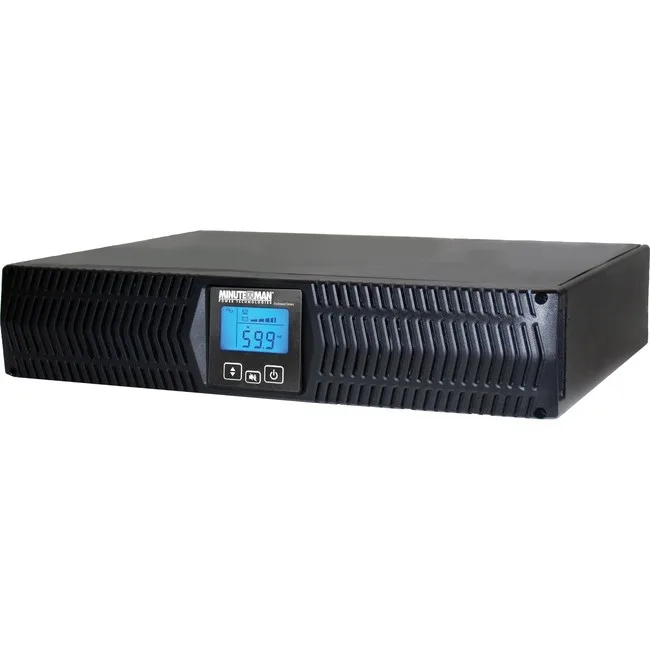

Black 2U rackmount UPS with front LCD panel and eight rear NEMA 5-15R outlets

MINUTEMAN

MINUTEMAN ED1000RTXL2UNC 1000VA 900W 2U UPS

SKU CH-JY0S-XMQ3X MPN ED1000RTXL2UNC

Rack-mountable 2U on-line UPS delivers 1000VA/900W with eight NEMA 5-15R outlets and three-minute full-load runtime

  • International Version120V
  • Input Voltage Range0-160VAC
  • Input Frequency50/60Hz +/- 6Hz Auto-sensing
  • Input ConnectionNEMA 5-15P
  • VA Rating1000VA
  • Watts900W

Model ED1000RTXL2UNC

Ver 16 configuraciones más

Las versiones tachadas existen, pero no están disponibles aquí.

  • True on-line double conversion delivers clean 120 V output
  • 9 power factor provides 900 W from 1000 VA rating
  • 2U rack height fits high-density server cabinets
  • Eight NEMA 5-15R outlets with three load banks
  • LCD display shows status at a glance

True On-Line Double-Conversion UPS

The Minuteman Endeavor ED1000RTXL2UNC is a 1000VA 900W on-line double-conversion UPS designed for servers and network equipment that require continuous power conditioning. It supplies 120VAC output with a user-selectable 110VAC option and a 0.9 output power factor. The unit operates from a 120VAC input with a 0-160VAC range and auto-sensing 50/60Hz frequency.

Rack Tower Wall Mount 2U Form Factor

This 2U high unit fits standard 19-inch racks and includes attached rackmount ears for immediate installation. It can also be used as a tower or wall-mounted with an optional kit. Eight NEMA 5-15R receptacles are arranged in three controllable load banks. The input connects via a NEMA 5-15P plug. An LCD display provides status information.

Sealed Lead Acid Battery 3 Minute Full Load Runtime

The sealed lead acid battery delivers 3 minutes of runtime at full 900W load and 11 minutes at half load. Recharge to 90 percent capacity takes 8 hours from total discharge. The battery is user-replaceable using the BM0035 module. Surge protection is rated at 1000 joules. Operating temperature spans 32 to 104°F with 95 percent non-condensing humidity tolerance. Approvals include cTUVus UL1778, FCC Class B, CE, Energy Star and RoHS2.

Puntos fuertes

  • True on-line double conversion delivers clean 120 V output
  • 9 power factor provides 900 W from 1000 VA rating
  • 2U rack height fits high-density server cabinets
  • Eight NEMA 5-15R outlets with three load banks
  • LCD display shows status at a glance

Especificaciones

BrandMINUTEMAN
ModelED1000RTXL2UNC
International Version120V
Input Voltage Range0-160VAC
Input Frequency50/60Hz +/- 6Hz Auto-sensing
Input ConnectionNEMA 5-15P
VA Rating1000VA
Watts900W
Output Voltage120VAC, User selectable: 110VAC
Output Frequency50/60Hz +/- 0.5Hz unless synchronized to line
Outlets8
Outlet Type(8) NEMA 5-15R
Battery TypeSealed Lead Acid
Battery Run TimeHalf Load: 11 min
Full Load: 3 min
Battery Recharge Time8 hours to 90% from total discharge
Battery ReplaceableBM0035
ApprovalscTUVus (Conforms to UL1778 5th Edition & CSA 22.2 no. 107.3-14 / R: 2014), FCC Class B (1K & 1.5K), FCC Class A (2K & 3K), CE certified, Energy Star certified, RoHS2 (EU Directive 2011/65/EU)
Surge Energy Rating1000 Joules
TemperatureOperating Temperature: +32 to +104°F (0 to 40°C)
Storage Temperature: +5 to +113°F (-15 to +45°C)
Humidity95% non-condensing
Dimensions13.3" x 3.5" x 19"
Weight29.3 lbs.
Peso de envío17.24 kg
Dimensiones del paquete599 × 508 × 224 mm

Otras versiones de este modelo

5 más en esta gama

Misma familia, con memoria, disipador o frecuencia diferentes — compare antes de decidirse.

Preguntas sobre este artículo

What is the battery run time at full 900 W load?

The UPS provides 3 minutes of runtime when the connected equipment draws the full 900 W.

What are the operating temperature limits for continuous use?

The unit is rated for continuous operation from 0 to 40 °C (32 to 104 °F) with up to 95 % non-condensing humidity.

Which input plug and circuit are required to power this UPS?

It connects via a NEMA 5-15P plug and requires a 120 V AC circuit capable of supplying the 1000 VA rating.
