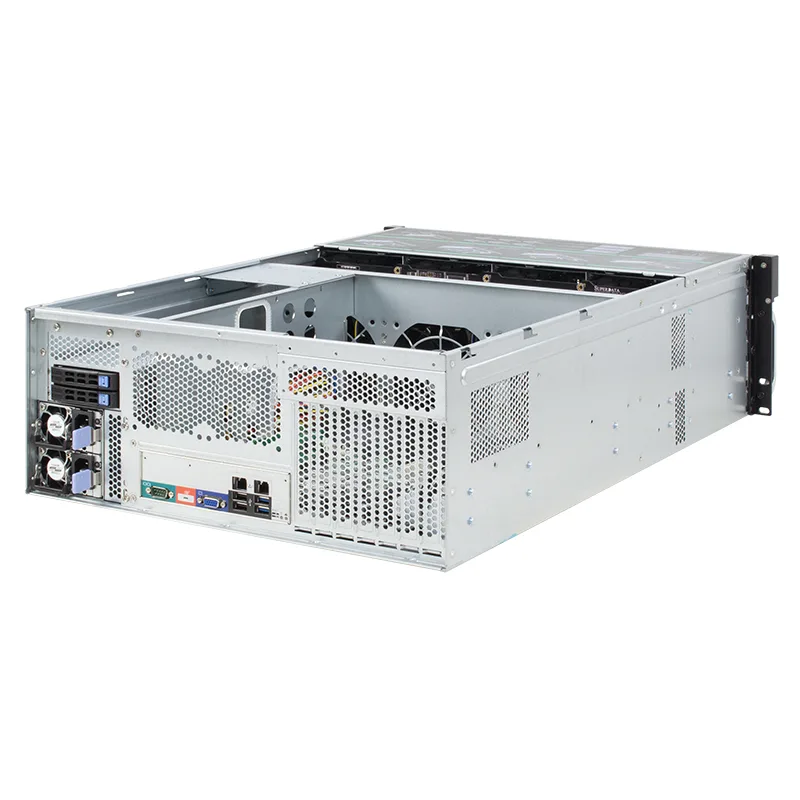

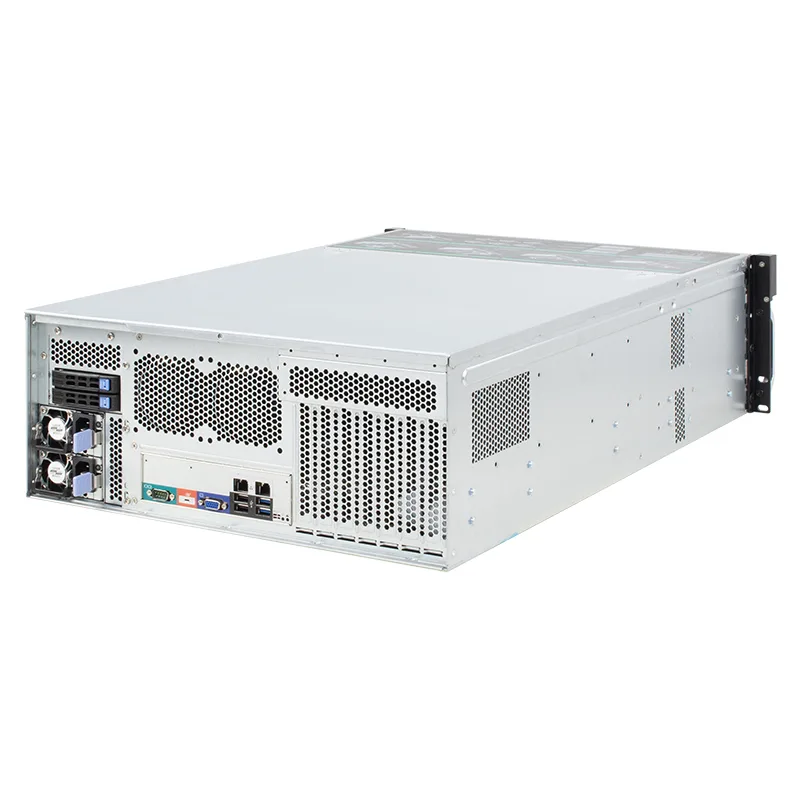

Silver 4U rackmount server chassis with twenty-four front 3.5-inch hot-swap drive bays and three 120mm fans

Shenzhen Junxiangcheng Technology Co.,

Shenzhen Junxiangcheng Technology Co., 24-Bay 6Gb/s miniSAS 4U Server Chassis

SKU CH-V1CJ-E9172

Holds 24 hot-swap 3.5-inch drives plus four 2.5-inch bays in a 4U rackmount chassis with 6Gb/s miniSAS backplane, three 12038 fans and seven full-height expansion slots

  • Chassis TypeRackmount
  • Form Factor4U
  • 120mm Fans3
  • 24 hot-swappable 3.5-inch drive bays plus four 2.5-inch bays for massive storage density
  • 6 Gb/s miniSAS backplane supports Sata and SAS drives with expander capability
  • Three 12038 fans with PWM speed control deliver targeted airflow across all drives
  • Seven full-height PCI/PCIe slots plus motherboard support up to 12 × 10.5 inches for flexible build options
  • Compatible with standard 2U, PS2 and CRPS redundant power supplies for enterprise reliability

24-Bay 4U Storage Server Chassis

This 4U rackmount chassis provides 24 hot-swappable 3.5-inch drive bays plus four 2.5-inch bays. It targets builders deploying high-density storage servers for IPFS nodes, backup targets or media libraries. The 6Gb/s miniSAS backplane supports both Sata and SAS drives. Three 12038 fans deliver front-to-rear airflow.

Capacity and Headroom

Twenty-four 3.5-inch bays allow raw capacities into the hundreds of terabytes with current drives. Two internal and two rear 2.5-inch bays host OS or cache SSDs. The backplane includes time-sharing spin-up to limit inrush current. Seven full-height PCIe slots accommodate HBA or RAID controllers. Maximum motherboard size is 12 by 10.5 inches.

6Gb/s miniSAS Backplane Limits

The standard backplane runs at 6Gb/s per lane, capping sequential throughput per drive at that rate. An optional 12Gb/s version lifts the ceiling for SAS SSDs. Expander support lets one HBA address all bays, but total bandwidth remains bound by the HBA link width. PWM fan control and SGPIO status LEDs are integrated.

Puntos fuertes

  • 24 hot-swappable 3.5-inch drive bays plus four 2.5-inch bays for massive storage density
  • 6 Gb/s miniSAS backplane supports Sata and SAS drives with expander capability
  • Three 12038 fans with PWM speed control deliver targeted airflow across all drives
  • Seven full-height PCI/PCIe slots plus motherboard support up to 12 × 10.5 inches for flexible build options
  • Compatible with standard 2U, PS2 and CRPS redundant power supplies for enterprise reliability

Especificaciones

Chassis TypeRackmount
Form Factor4U
120mm Fans3

Preguntas sobre este artículo

Will this 4U chassis with 24 hot-swappable 3.5-inch bays fit my existing 12-inch deep motherboard and standard 2U power supply?

Yes, the chassis accepts motherboards up to 12 by 10.5 inches and supports standard 2U, PS2 and CRPS redundant power supplies.

How can I verify the 6Gb/s miniSAS backplane and drive status LEDs are functioning after installation?

The backplane provides SGPIO signalling so drive activity and fault LEDs on the front panel light automatically when drives are accessed.

Which drives, rails and fans are included with the empty chassis and what must I source separately?

The unit ships with three 12038 fans installed; you must supply all 3.5-inch or 2.5-inch drives, mounting rails and a compatible power supply.
