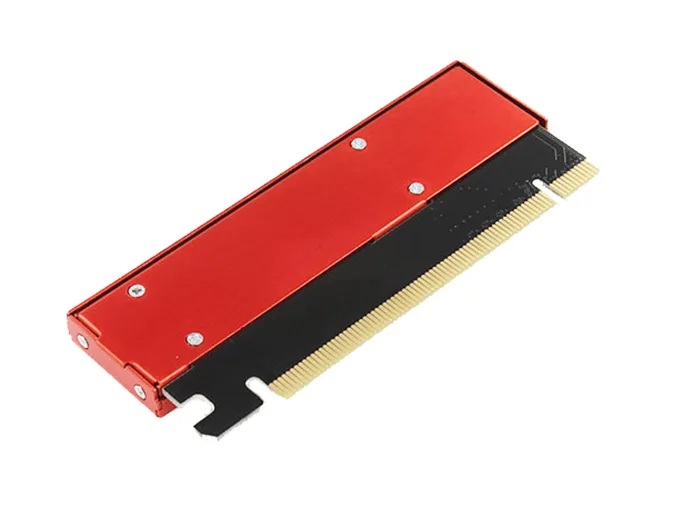

PCIe x16 adapter card with copper heatsink, aluminum cover, red LED

Wadermoon

Wadermoon JEYI Swift PCIe 3.0 x16 M.2 NVMe Heatsink Adapter 2230-2280 Copper Aluminum Red LED

SKU CH-EJWH-WDJRN

Converts an M.2 NVMe SSD to a PCIe 3.0 x16 slot with copper-aluminium heatsinks that lower temperatures by 25 degrees Celsius and a red LED indicator

  • TypeHeatsinks only
  • RPMVariable
  • Air FlowVariable
  • Noise Level1-5 dBA
  • LEDRed
  • Heatsink MaterialCopper
  • Converts M.2 NVMe to PCIe 3.0 x16 slot
  • Copper and aluminium heatsinks drop temperature by 25 degrees Celsius
  • PCB with 68 copper holes maximises airflow for sustained speeds
  • Red LED shows power and data activity at a glance
  • Supports 2230, 2242, 2260 and 2280 NVMe drives

PCIe 3.0 x16 M.2 NVMe Adapter

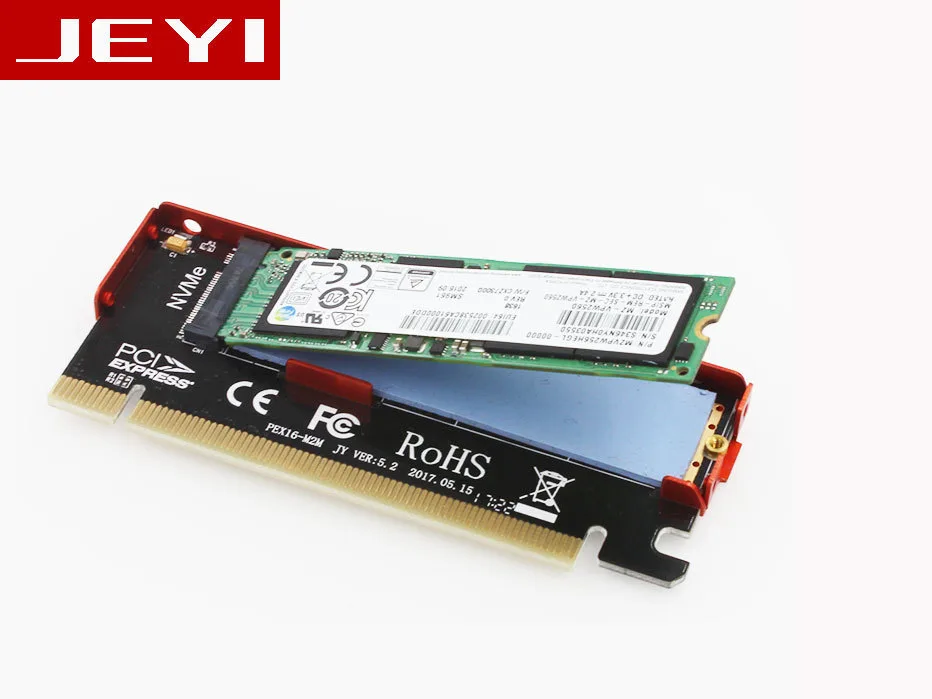

The Wadermoon JEYI Swift adapter converts a single M.2 M-key NVMe SSD into a PCIe 3.0 x16 expansion card. It accepts drive lengths of 2230, 2242, 2260 and 2280 mm. The board includes two heatsinks made from copper and aluminium with 68 copper ventilation holes. A red LED indicates power and data activity. No driver installation is required for Windows, Mac or Linux systems.

Builders adding NVMe storage via a full-length slot

This card suits builders who have a free PCIe x16 slot and want to add an NVMe drive without using an M.2 socket on the motherboard. It does not support M.2 SATA (NGFF) SSDs, so buyers with SATA-based M.2 drives must look elsewhere. It also requires a physical x16 slot; it will not work in x1, x4 or x8 slots. Systems without a spare x16 lane cannot use this adapter.

Dual heatsinks and thermal pads manage drive

The package supplies an aluminium heatsink, a copper heatsink and three thermal pads to cool the installed SSD. The manufacturer states the solution can lower drive temperature by 25 degrees Celsius. The card draws power directly from the PCIe slot, so no extra cables are needed. By moving the NVMe drive to a PCIe x16 slot, the adapter frees up the motherboard M.2 socket for another drive or leaves it open for better airflow.

Puntos fuertes

  • Converts M.2 NVMe to PCIe 3.0 x16 slot
  • Copper and aluminium heatsinks drop temperature by 25 degrees Celsius
  • PCB with 68 copper holes maximises airflow for sustained speeds
  • Red LED shows power and data activity at a glance
  • Supports 2230, 2242, 2260 and 2280 NVMe drives

Especificaciones

BrandJEYI
SeriesJEYI Swift
ModelPCIE 3.0 x 16
TypeHeatsinks only
RPMVariable
Air FlowVariable
Noise Level1-5 dBA
LEDRed
Heatsink MaterialCopper
FeaturesOnly Supports M.2 SSD PCIE interface. Aluminum Sheet Thermal Conductivity Silicon Wafer Cooling, Strong heat dissipation, the temperature drops 25 degrees Celsius. Converts one M.2 (M Key) interface to PCIE 3.0 x16 interface . With advanced heat sink solution,PCB 68 copper hole effective ventilation heat dissipation,Including 2 heat sinks. Supports M.2 Nvme PCIE SSD size 2230, 2242, 2260, 2280mm. LED power and data transfer status. No driver installation required. The design adopts GEN3 mode, which guarantees full-speed transportation in principle.
OptionAluminum, Black

Preguntas sobre este artículo

My motherboard only has a PCIe 3.0 x16 slot — will this adapter fit and run at full speed?

Yes, it is designed for a PCIe 3.0 x16 slot and the manufacturer states the GEN3 mode guarantees full-speed transportation in principle.

I plan to keep my existing M.2 2280 NVMe drive — does the heatsink cover that length?

The adapter supports M.2 NVMe sizes 2230, 2242, 2260 and 2280 mm, and includes two heatsinks plus three thermal pads for those lengths.

After installing the card, how can I confirm the SSD is being cooled properly?

The red LED indicates power and data-transfer status, and the supplier claims the cooling solution drops the drive temperature by 25 degrees Celsius under load.
