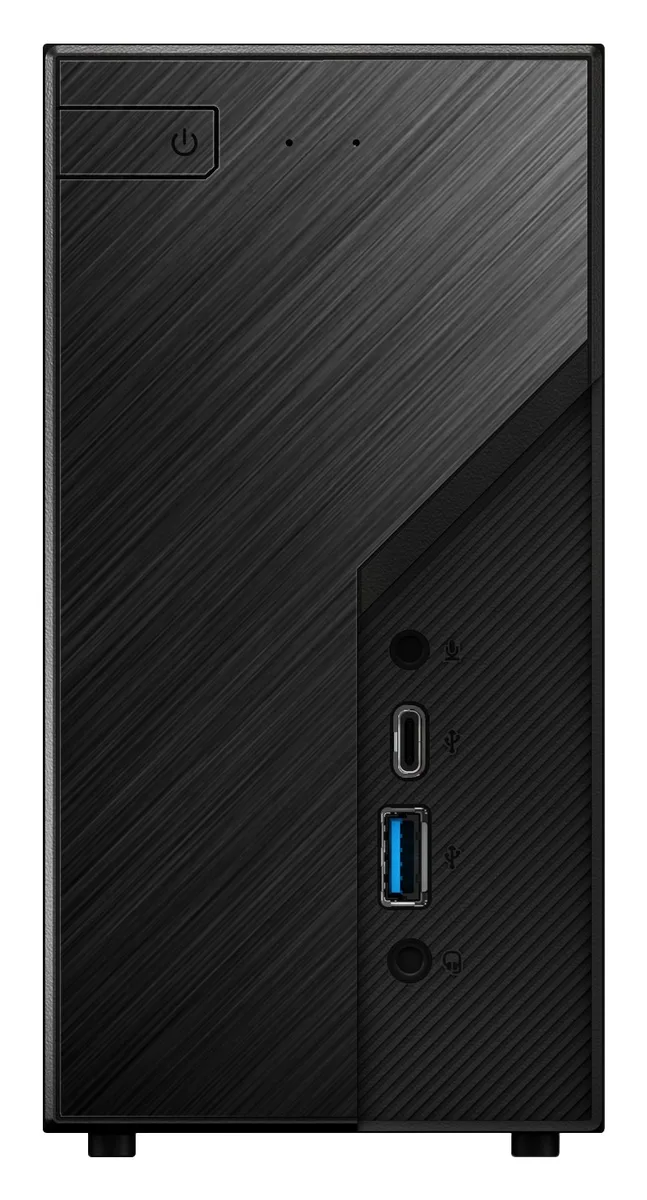

Compact black 1.92L barebone mini PC with front USB-C and audio ports

ASRock

ASRock DESKMINI B860W barebone mini PC

SKU CH-4H07-0C98Z MPN DESKMINI B860W

A 1.92 L barebone that takes Intel Core Ultra Series 2 CPUs up to 65 W, dual-channel DDR5 SO-DIMM up to 128 GB, quad display via HDMI 2.1, two DisplayPort and Thunderbolt 4.

  • ColorBlack
  • CPU TypeSupports Intel Core Ultra Processors (Series 2)
  • CPU SocketIntel Socket LGA1851
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedSupports DDR5 SODIMM up to 5600 MHz and CSODIMM up to 6400 M

Support CPU Supports Intel Core Ultra Processors (Series 2)

Les versions barrées existent, mais ne sont pas disponibles ici.

Support Memory Type

  • DIMM DDR5
  • DIMM DDR4
  • SO-DIMM DDR5
  • SO-DIMM DDR4

Les versions barrées existent, mais ne sont pas disponibles ici.

Support Max Memory 128GB

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Supports Intel Core Ultra Series 2 processors up to 65W TDP
  • 92L ultra-compact chassis fits behind monitors or under desks
  • Quad video outputs: HDMI 2.1, dual DisplayPort, Thunderbolt 4
  • Dual M.2 2280 slots for PCIe Gen5x4 and Gen4x4 SSDs
  • 5Gbps LAN plus Wi-Fi 6 kit for fast wired and wireless networking

Compact barebone for Intel Core Ultra Series 2

The ASRock Deskmini B860W is a 1.92L barebone that accepts Intel Core Ultra Series 2 processors in the LGA1851 socket up to 65W. It ships without memory or storage, giving builders a clean slate for a small-form-factor desktop. Integrated Intel Graphics drive up to four displays through HDMI 2.1, two DisplayPort outputs and Thunderbolt 4. A Wi-Fi 6 module is included in the M.2 2230 slot.

Suited for multi-display offices and edge AI

This platform fits smart offices, digital signage, edge AI gateways and hybrid workspaces that need quad video output and 2.5Gbps LAN in a minimal footprint. It is not for buyers who want discrete graphics performance, more than two SO-DIMM slots, or a chassis that accepts full-size expansion cards. The 65W CPU ceiling also rules out high-wattage workstation processors.

Straightforward assembly with laptop-style parts

Installation uses standard SO-DIMM modules and M.2 2280 SSDs secured by screws; the CPU cooler mounts with the supplied bracket. The tight interior makes cable routing the main challenge — SATA cables for 2.5-inch drives must be folded carefully. Builders should verify DDR5 SO-DIMM or CSODIMM compatibility before purchase, as the board does not support older memory types.

Points forts

  • Supports Intel Core Ultra Series 2 processors up to 65W TDP
  • 92L ultra-compact chassis fits behind monitors or under desks
  • Quad video outputs: HDMI 2.1, dual DisplayPort, Thunderbolt 4
  • Dual M.2 2280 slots for PCIe Gen5x4 and Gen4x4 SSDs
  • 5Gbps LAN plus Wi-Fi 6 kit for fast wired and wireless networking

Caractéristiques

BrandASRock
ModelDeskmini B860W
ColorBlack
CPU TypeSupports Intel Core Ultra Processors (Series 2)
CPU SocketIntel Socket LGA1851
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedSupports DDR5 SODIMM up to 5600 MHz and CSODIMM up to 6400 MHz (OC up to 7200 MHz).
Max Memory Supported128GB
Dual Channel Memory SupportedYes
Other1 x M.2 2230 slot for Wi-Fi/BT module and Intel CNVi
Storage InstalledNo Hard Drive
Serial ATA2 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 Slot for PCIe Gen5x4 SSD
1 x M.2 2280 Slot for PCIe Gen4x4 SSD
Integrated GraphicsIntel Graphics
LANRealtek RTL5581BE
Max LAN Speed2.5Gbps
WiFi GenerationWi-Fi 6
Front USB1 x USB 3.2 Gen2x2 Type-C
1 x USB 3.2 Gen2 Type-A Port
Front Audio Ports1 x MIC-in
1 x Headphone/Headset Jack
HDMI1 x HDMI 2.1
DisplayPort2 x DisplayPort 1.4
Thunderbolt1 x Thunderbolt 4

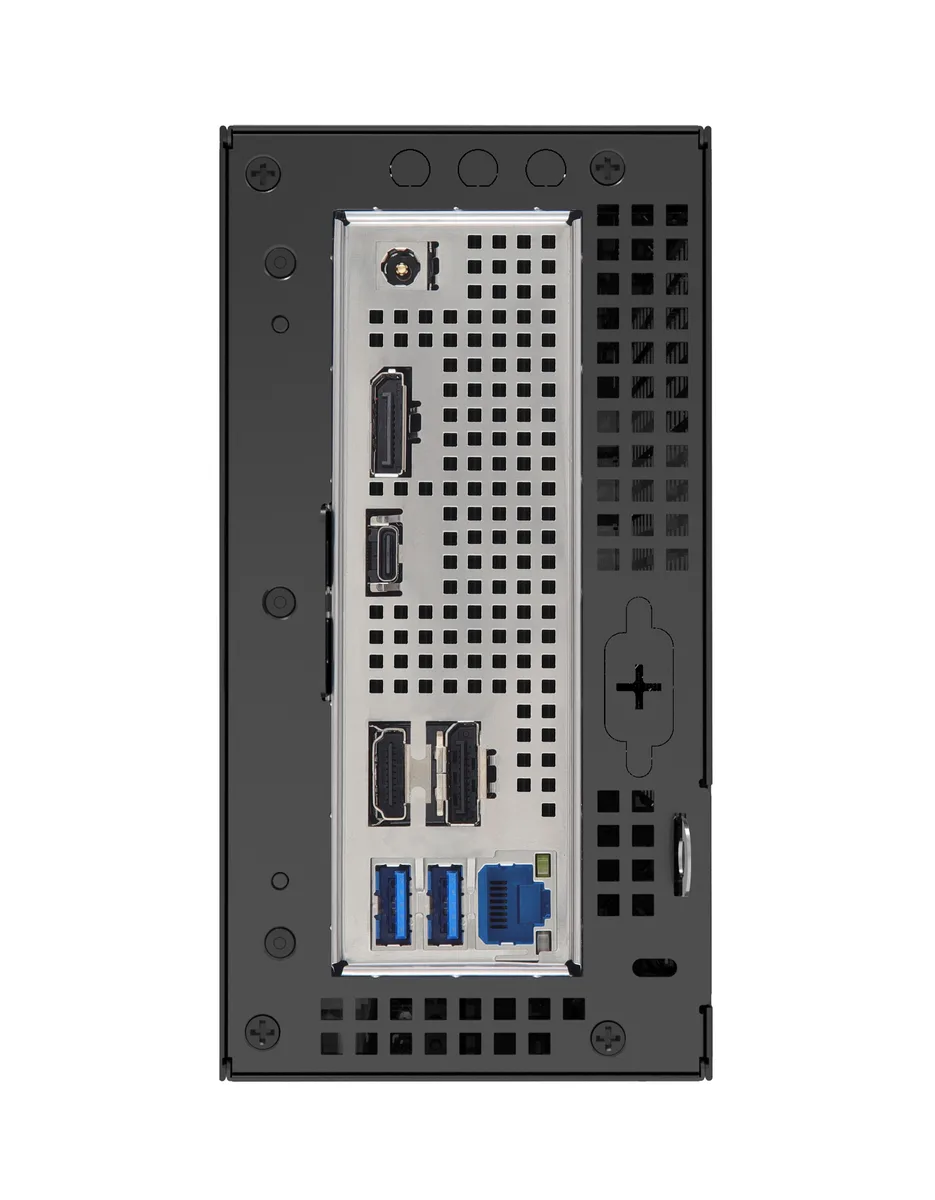

Rear USB1 x USB 3.2 Gen2 Type-A Port
1 x USB 3.2 Gen1 Type-A Port
Other Rear Ports1 x DC-In Jack
Dimensions6.1" x 6.1" x 3.15" (1.92L)
Packaging2 x SATA DATA with Power Cable
1 x 120W/19V adapter
1 x Screws Pack
1 x Wi-Fi6 Kit (Realtek RTL5581BE(AW-XB611NF))
Poids d’expédition1.72 kg
Dimensions du colis216 × 210 × 178 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What DDR5 SO-DIMM modules and maximum capacity do I need to install for this DeskMini B860W to work?

You must supply two DDR5 SO-DIMM modules, up to 128 GB total, running at 5600 MHz or CSODIMM at 6400 MHz with overclocking up to 7200 MHz.

Can I keep my existing SATA 6.0 Gb/s drives and Wi-Fi 6 module when building this barebone?

Yes, the board provides two SATA 6.0 Gb/s ports and an M.2 2230 slot that accepts a Wi-Fi 6 and Intel CNVi module.

How do I confirm the quad video outputs and Thunderbolt 4 port are active after assembly?

Connect displays to the HDMI 2.1 and two DisplayPort connectors, plus a Thunderbolt 4 device; all four should signal simultaneously if the installed Core Ultra processor supports them.
