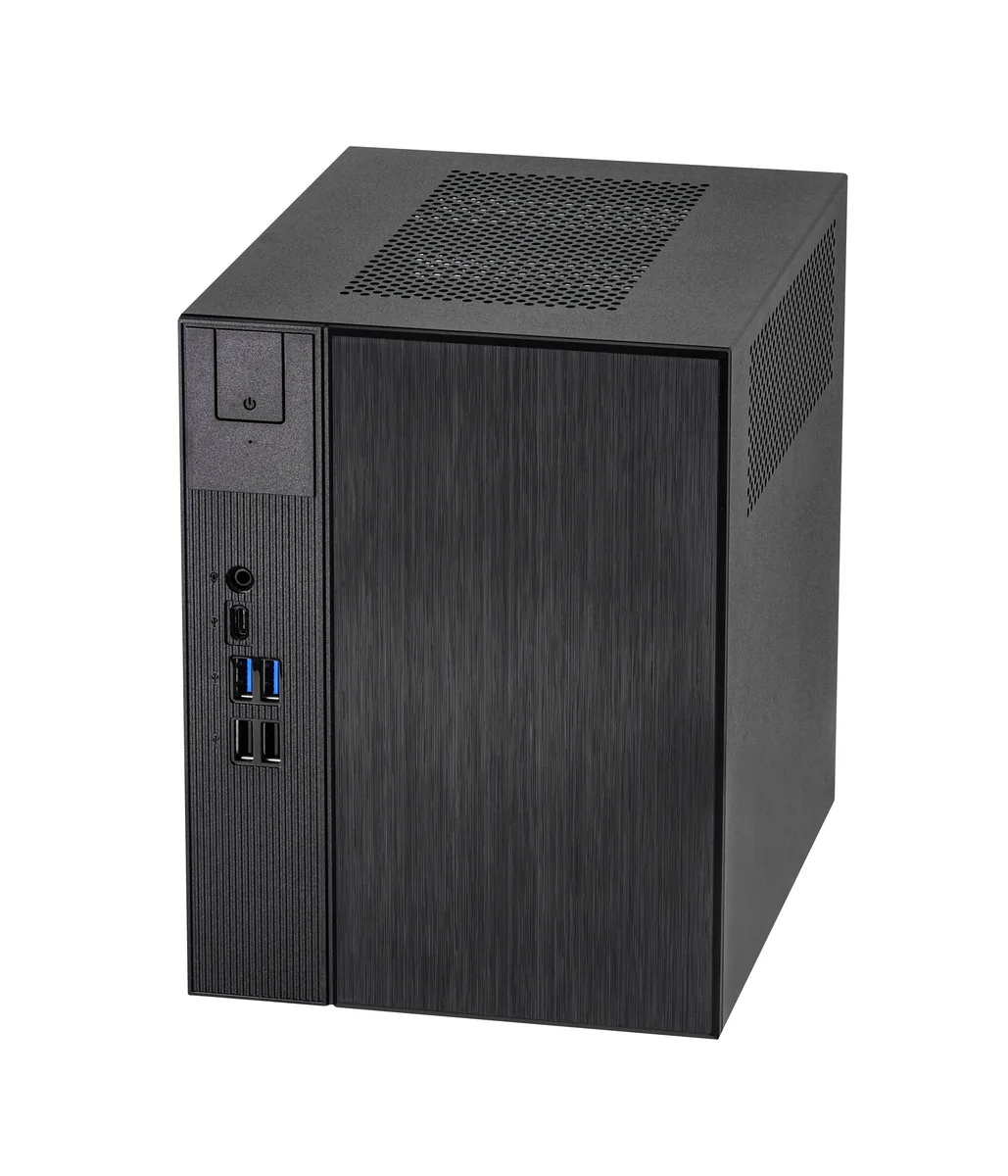

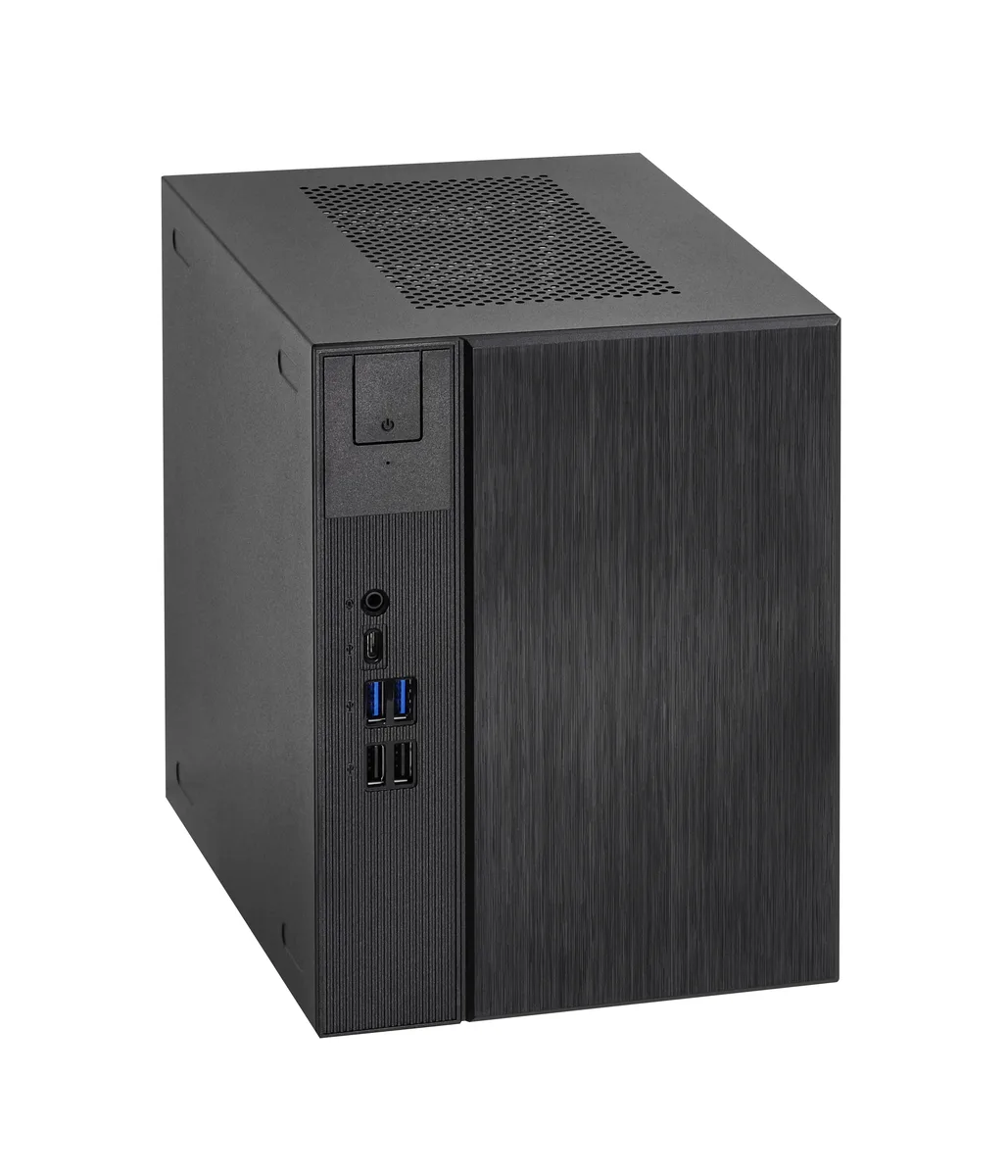

Compact 8-litre barebone mini PC chassis, matte black finish, vertical or horizontal orientation

ASRock

ASRock DESKMEET B660W/B/BB/BOX/US barebone mini PC 8 L DDR4 128 GB

SKU CH-S53A-2QK9M MPN DESKMEET B660W/B/BB/BOX/US

An 8-litre barebone chassis that takes a 14th, 13th or 12th Gen Intel LGA1700 processor, up to 128 GB of DDR4 across four DIMM slots and a dual-slot graphics card up to 20 cm long

  • CPU TypeSupports 14th /13th / 12th Gen Intel Core Processors, Intel
  • CPU SocketIntel Socket LGA1700
  • North BridgeIntel B660
  • Memory installedNo Memory
  • Memory slot4 x 288Pin DIMM
  • Memory Type SupportedSupports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133 * Supp

Support CPU Support 14/13/12th Gen Intel CPU

Support Memory Type DIMM DDR4

  • DIMM DDR5
  • DIMM DDR4
  • SO-DIMM DDR5
  • SO-DIMM DDR4

Les versions barrées existent, mais ne sont pas disponibles ici.

Support Max Memory 128GB

  • Supports 12th, 13th and 14th Gen Intel Core processors with LGA1700 socket
  • Four DDR4 DIMM slots accept up to 128 GB at 3200 MHz for fast multitasking
  • PCIe 4.0 x16 slot fits a dual-slot graphics card up to 20 cm long
  • Two M.2 sockets and three SATA 6.0 Gb/s ports give flexible storage options
  • Compact 8 L chassis stands vertically or horizontally to fit any workspace

Compact 8 L barebone for desktop CPUs

The DeskMeet B660 is an 8-litre barebone that accepts 12th, 13th or 14th generation Intel Core, Pentium Gold or Celeron processors in an LGA1700 socket. It is aimed at builders who want a small system that can still house a dual-slot graphics card up to 20 cm long.

Check CPU cooler height, memory type and power needs

Verify that your chosen CPU cooler is no taller than 54 mm. The board provides four 288-pin DDR4 DIMM slots supporting speeds up to 3200 MT/s and a maximum of 128 GB. A BIOS update may be required before a 14th generation processor will boot.

Two M.2 slots and three SATA ports for storage

One M.2 socket accepts 2280 PCIe Gen4 x4 or SATA drives, the second takes 2280 PCIe Gen4 x4 only. Three SATA 6.0 Gb/s ports add further drive options. Front I/O includes USB 3.2 Gen1 Type-C, two USB 3.2 Gen1 Type-A and two USB 2.0 Type-A ports.

Points forts

  • Supports 12th, 13th and 14th Gen Intel Core processors with LGA1700 socket
  • Four DDR4 DIMM slots accept up to 128 GB at 3200 MHz for fast multitasking
  • PCIe 4.0 x16 slot fits a dual-slot graphics card up to 20 cm long
  • Two M.2 sockets and three SATA 6.0 Gb/s ports give flexible storage options
  • Compact 8 L chassis stands vertically or horizontally to fit any workspace

Caractéristiques

BrandASRock
ModelDESKMEET B660W/B/BB/BOX/US
CPU TypeSupports 14th /13th / 12th Gen Intel Core Processors, Intel Pentium Gold, Celeron Processors
*May require a BIOS update to boot the 14th gen Intel® Core™ desktop processors.*
CPU SocketIntel Socket LGA1700
North BridgeIntel B660
Memory installedNo Memory
Memory slot4 x 288Pin DIMM
Memory Type SupportedSupports DDR4 3200 / 2933 / 2800 / 2666 / 2400 / 2133
* Supports DDR4 3200 natively.
Max Memory Supported128GB
Dual Channel Memory SupportedYes
PCI Express 4.0 x161
Other1 x M.2 Socket (Key E), supports type 2230 Wi-Fi/BT module and Intel CNVi (Integrated Wi-Fi/BT)
Storage InstalledNo Hard Drive
Serial ATA3 x SATA 6.0Gb/s
M.2 Slot1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
* Supports Intel Optane Technology.
* Supports NVMe SSD as boot disks.
SATA RAIDRAID 0, 1, 5, 10
Onboard AudioRealtek ALC897
LANIntel i219V
Max LAN Speed1Gbps

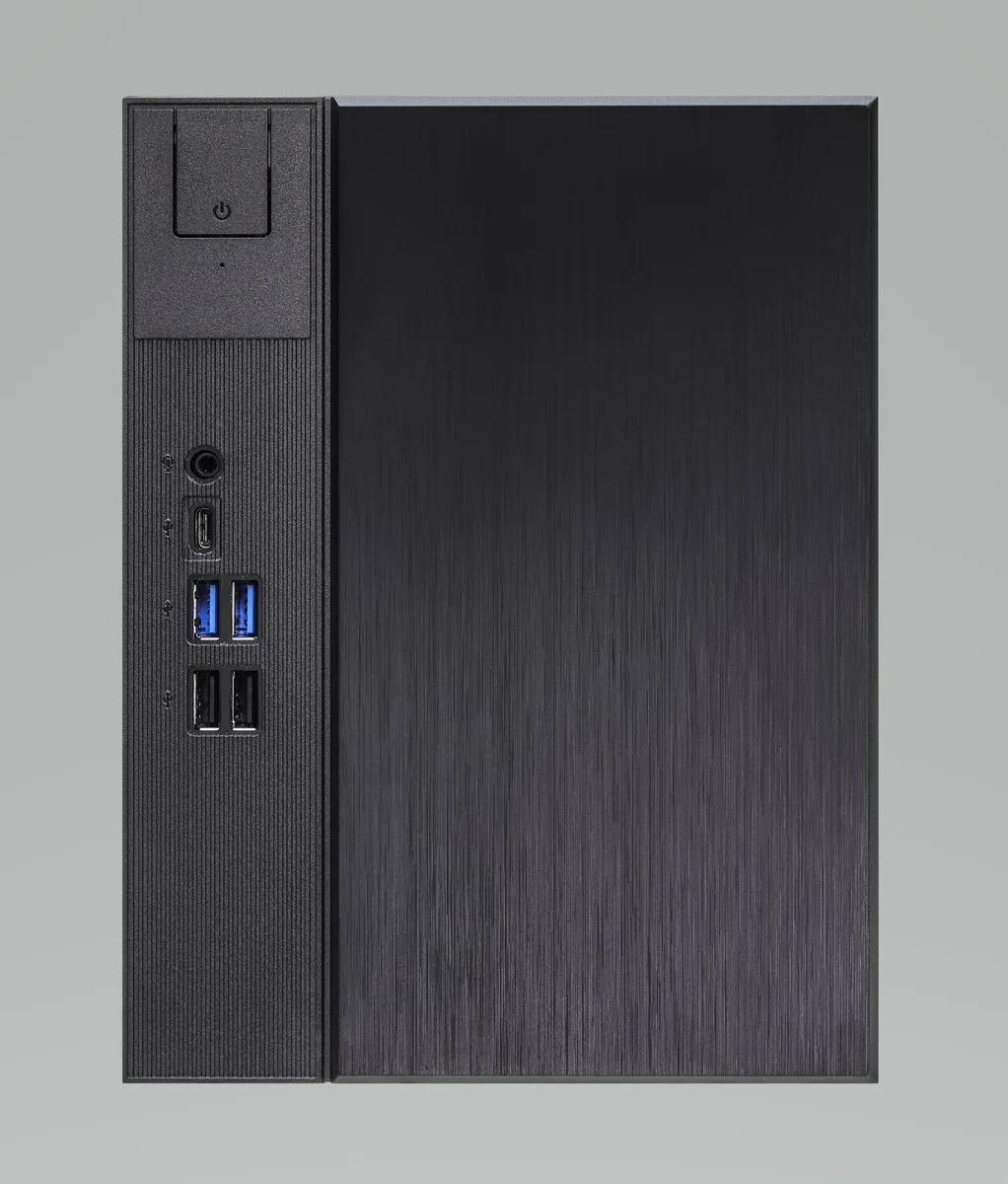

Front USB1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
Front Audio Ports1 x Headphone/Headset Jack

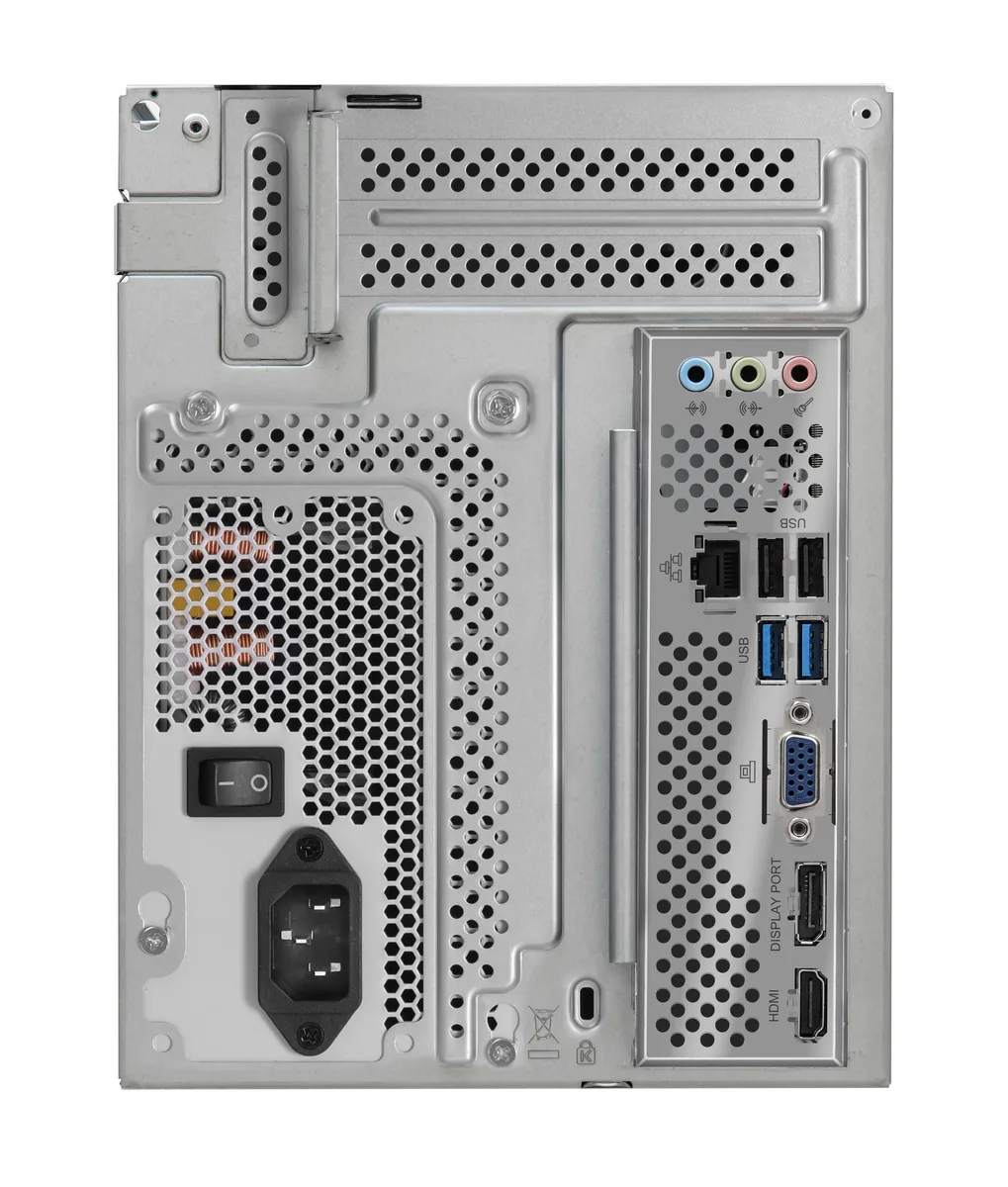

VGA1 x D-sub
HDMI1
DisplayPort1 x DisplayPort
Rear USB2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
RJ451
Rear Audio PortsHD Audio Jacks: Line in / Front Speaker / Microphone
Other Rear PortsConnectors:
1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
Power Supply500W power supply (80+ Bronze, peak 550W)
Dimensions8.59" x 6.61" x 6.61" (excl. Protrusions)
8.72" x 6.61" x 9.30" (incl. Protrusions)
PackagingAccessories:
Quick Installation Guide
2 x SATA Data Cables
1 x Screws Package
1 x Intel AC-3168 Wi-Fi Kit
Poids d’expédition3.74 kg
Dimensions du colis320 × 285 × 214 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Does the barebone include a CPU, RAM, storage or graphics card, or must I buy them separately?

The unit is a barebone: no CPU, no memory modules, no storage drives and no graphics card are included. You must supply a Socket LGA1700 processor, up to four DDR4 DIMMs, SATA or PCIe Gen4 M.2 SSDs, and an optional ITX graphics card up to 20 cm long.

Which DDR4 speeds and capacities does the board support, and how many modules can I install?

Four 288-pin DIMM slots accept DDR4 3200, 2933, 2800, 2666, 2400 or 2133 MT/s modules in dual-channel mode, with a maximum total capacity of 128 GB.

What does the 128 GB maximum memory figure mean for a real build?

You can populate all four slots with 32 GB DDR4 DIMMs to reach 128 GB, giving the system ample headroom for heavy multitasking, content creation or virtual machines.
