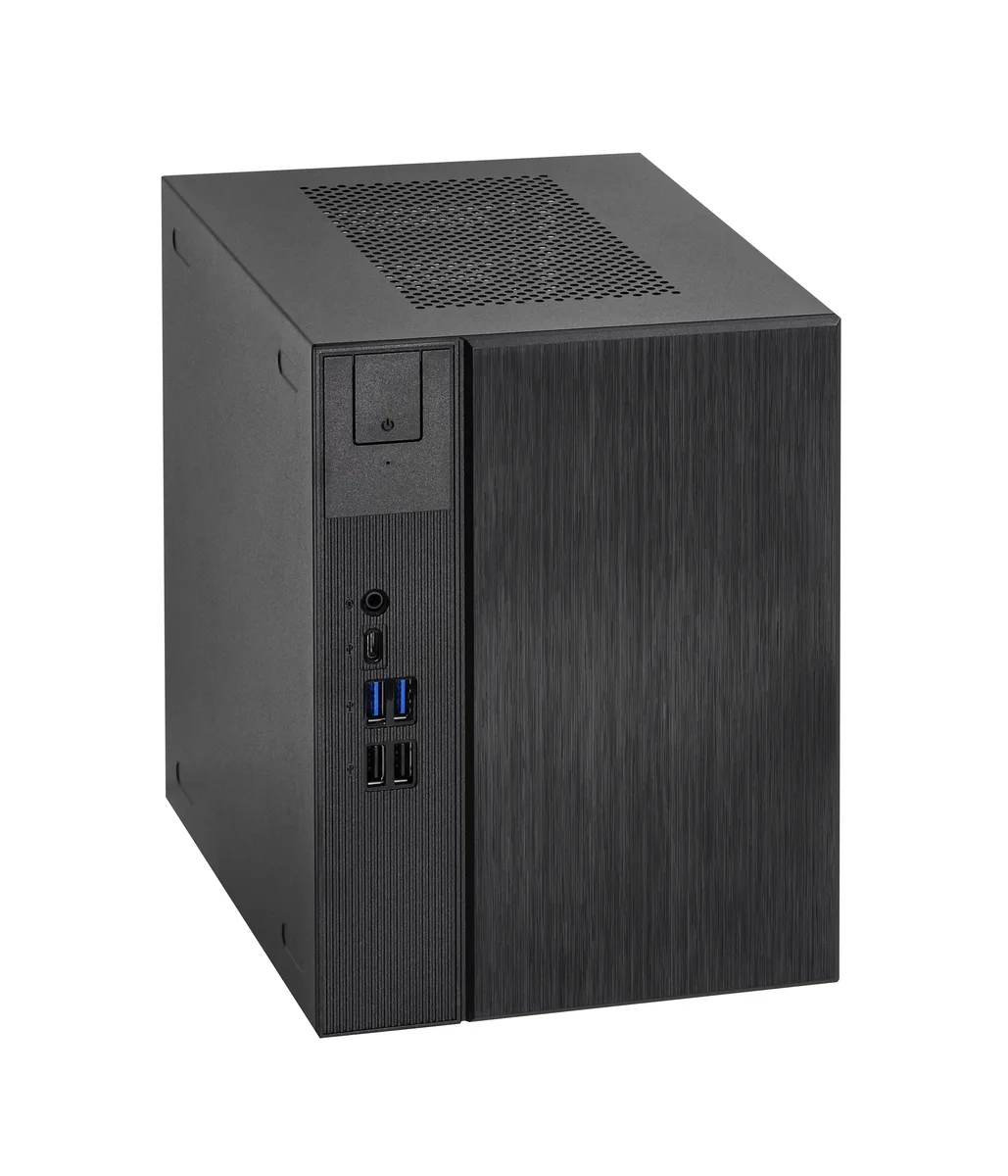

Compact 8 litre barebone chassis in black with front I/O panel

ASRock

ASRock DESKMEET X600W barebone mini PC

SKU CH-HDV6-WFV9S MPN DESKMEET X600W

Compact 8‑litre barebone takes AMD AM5 Ryzen 9000, 8000 and 7000 CPUs up to 65 W, four DDR5 DIMMs to 256 GB, a PCIe 4.0 x16 slot for cards up to 20 cm, one Gen5 and one Gen4 M.2 socket.

  • Form Factor8 Liter compact size
  • CPU SocketSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Pr
  • North BridgeAMD X600
  • Memory installedNo Memory
  • Memory slot4 x 288Pin DIMM
  • Memory Type Supported4 x DDR5 DIMM slots (Max. 256GB) Supports DDR5 ECC/non-ECC,

Support CPU Support AMD 9000/8000/7000 CPU (socket AM5))

Support Memory Type DIMM DDR5

  • DIMM DDR5
  • DIMM DDR4
  • SO-DIMM DDR5
  • SO-DIMM DDR4

Les versions barrées existent, mais ne sont pas disponibles ici.

Support Max Memory 256GB

  • Supports AMD Ryzen 9000, 8000 and 7000 series processors up to 65W
  • Four DDR5 DIMM slots accept up to 256GB at 7200+ MHz overclocked
  • PCIe 5.0 M.2 slot delivers 128 Gb/s NVMe storage speed
  • 5 Gigabit LAN provides fast wired network connectivity
  • 8 litre chassis fits graphics cards up to 20cm long

Compact 8-litre AM5 barebone

The DESKMEET X600W is an 8-litre barebone that accepts AMD Socket AM5 Ryzen 7000, 8000 and 9000 series processors rated up to 65 W. It ships without memory, storage or a graphics card, so system integrators and enthusiasts choose every component to match their workload.

Sustained load within the 65 W envelope

The X600 chipset and the included 600 W power supply keep the platform stable while the CPU runs at its rated 65 W continuously. Four DDR5 DIMM slots support up to 256 GB at 7200 MHz OC in dual-channel mode, and the PCIe 4.0 x16 slot feeds a full-length graphics card without throttling the lane width.

Straightforward build with two clearance limits

The CPU cooler must not exceed 54 mm in height, and the discrete graphics card must fit within 20 cm. Two SATA3 ports and two M.2 slots — one PCIe Gen5 x4 and one Gen4 x4 — accept NVMe boot drives, while the key-E 2230 slot adds Wi-Fi and Bluetooth. Builders who need a higher-wattage CPU or a taller cooler should look elsewhere.

Points forts

  • Supports AMD Ryzen 9000, 8000 and 7000 series processors up to 65W
  • Four DDR5 DIMM slots accept up to 256GB at 7200+ MHz overclocked
  • PCIe 5.0 M.2 slot delivers 128 Gb/s NVMe storage speed
  • 5 Gigabit LAN provides fast wired network connectivity
  • 8 litre chassis fits graphics cards up to 20cm long

Caractéristiques

BrandASRock
SeriesDeskMeet X600 Series
ModelDESKMEET X600W
Form Factor8 Liter compact size
CPU SocketSupports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors, up to 65W
Supports AMD AM4/AM5 CPU Cooler (Max. Height <= 54mm)
North BridgeAMD X600
Memory installedNo Memory
Memory slot4 x 288Pin DIMM
Memory Type Supported4 x DDR5 DIMM slots (Max. 256GB)
Supports DDR5 ECC/non-ECC, un-buffered memory up to 7200+(OC)*
*Please refer to Memory Support List on ASRock's website for more information.
Max Memory Supported256GB
Dual Channel Memory SupportedYes
PCI Express 4.0 x161 x PCIe 4.0 x 16
Other1 x M.2 (key E 2230) slot for Wi-Fi + BT Module
Storage InstalledNo Hard Drive
Serial ATA2 x SATA3 6.0Gb/s ports
M.2 Slot1 x Blazing M.2 Socket (M2_1), supports type 2280 PCIe Gen5x4 (128 Gb/s) modes*
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports NVMe SSD as boot disks
Discrete Graphic CardSupports a discrete Graphics card up to 20CM
Onboard AudioRealtek ALC897 Audio Codec
LAN2.5 Gigabit LAN (Dragon RTL8125BG)
Max LAN Speed2.5Gbps
Front USB1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
Front Audio Ports1 x Headphone/Headset Jack
HDMI1 x HDMI
DisplayPort2 x DisplayPort 1.4
Rear USB2 x USB 2.0 Type-A
2 x USB 3.2 Gen1 Type-A
RJ451 x RJ-45 LAN Port
Rear Audio PortsHD Audio Jacks: Line in / Front Speaker / Microphone
Other Rear PortsBIOS Flashback Switch
Internal Connectors1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connector (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Header (Support 2 USB 2.0 ports) (Supports ESD Protection)
Power Supply500W power supply (80+ Bronze, peak 550W)
Dimensions168 (W) x 219.3 (D) x 218.3(H) mm (excl. Protrusions)
168 (W) x 236.1 (D) x 221.6(H) mm (incl. Protrusions)
PackagingQuick Installation Guide
2 x SATA Data Cables
1 x Screws Package
Poids d’expédition3.81 kg
Dimensions du colis315 × 284 × 213 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How much heat does the 65W CPU limit produce during all-day use?

The barebone accepts AM5 Ryzen 7000, 8000 or 9000 series processors up to 65W TDP. A cooler no taller than 54mm must be fitted; sustained load temperatures will depend on the specific chip and cooler chosen.

Which DDR5 memory kit and CPU cooler do I need to supply myself?

You must provide four 288-pin DDR5 DIMMs (up to 256GB total, 7200+ MHz OC) and an AM4/AM5 cooler no taller than 54mm; no memory or cooler is included.

Will my existing PCIe 4.0 x16 graphics card fit and run at full speed?

The single PCIe 4.0 x16 slot supports cards up to 20cm long, so a PCIe 4.0 GPU will operate at its native link width.
