Compact barebone mini PC chassis, vertical or horizontal orientation

ASRock

ASRock DESKMEET B760W/B/BB/BOX/US barebone mini PC

SKU CH-686K-R6RDF MPN DESKMEET B760W/B/BB/BOX/US

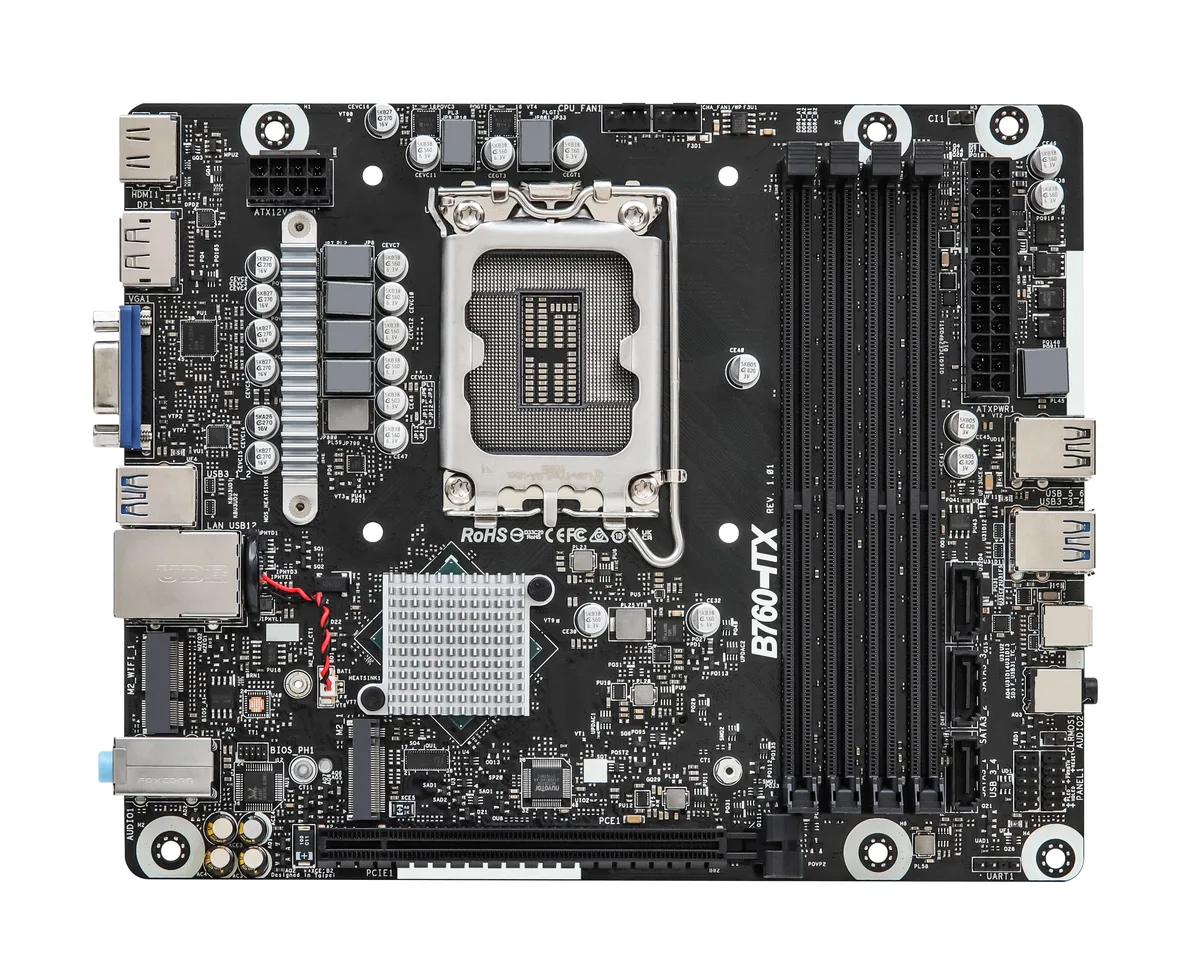

Compact barebone system supporting 12th, 13th and 14th Gen Intel Core i7 processors with four DDR4 DIMM slots, PCIe 4.0 x16 graphics support and dual M.2 storage

  • CPU TypeIntel Core i7 14/13/12th Gen
  • CPU SocketIntel Socket LGA1700
  • North BridgeIntel B760
  • Memory installedNo Memory
  • Memory slot4 x 288Pin DIMM
  • Memory Type SupportedDDR4 3200

Support CPU Support Intel 14/13/12 Gen CPU

Support Memory Type DIMM DDR4

  • DIMM DDR5
  • DIMM DDR4
  • SO-DIMM DDR5
  • SO-DIMM DDR4

Les versions barrées existent, mais ne sont pas disponibles ici.

Support Max Memory 128GB

  • Supports 14th, 13th, 12th Gen Intel Core processors via LGA1700 socket
  • Four DDR4 3200 DIMM slots allow up to 128 GB dual-channel memory
  • Two M.2 2280 slots with PCIe 4.0 x4 and SATA 6.0 Gb/s support
  • Intel i219-V 1 Gbps LAN plus Wi-Fi 5 wireless connectivity
  • Compact 8-litre chassis fits graphics cards up to 20 cm length

Compact barebone for desktop CPUs

The ASRock DESKMEET B760W is an 8-litre barebone that accepts 12th, 13th and 14th generation Intel Core i7 processors in the LGA1700 socket. It targets builders who want a small-footprint system for daily computing, gaming or content creation without committing to a full-size tower. The chassis can stand vertically or horizontally to suit the available desk space.

Upgrade path from locked small-form-factor PCs

This platform replaces proprietary small-form-factor boxes that restrict CPU choice and memory capacity. The jump is worth it when you need four DDR4 DIMM slots supporting up to 128 GB at 3200 MHz, a PCIe 4.0 x16 slot for a graphics card up to 20 cm long, and two M.2 2280 sockets with one wired for PCIe 4.0 x4. It also adds three SATA 6.0 Gb/s ports with RAID 0, 1, 5 and 10 support.

Straightforward assembly with a cooler-height limit

Installation follows standard barebone steps: seat the CPU, snap in up to four DDR4 modules, mount the graphics card and secure M.2 drives. The main constraint is the 54 mm CPU cooler clearance, so only low-profile coolers fit. Builders who need a taller tower cooler or a graphics card longer than 20 cm cannot use this chassis.

Points forts

  • Supports 14th, 13th, 12th Gen Intel Core processors via LGA1700 socket
  • Four DDR4 3200 DIMM slots allow up to 128 GB dual-channel memory
  • Two M.2 2280 slots with PCIe 4.0 x4 and SATA 6.0 Gb/s support
  • Intel i219-V 1 Gbps LAN plus Wi-Fi 5 wireless connectivity
  • Compact 8-litre chassis fits graphics cards up to 20 cm length

Caractéristiques

BrandASRock
ModelDESKMEET B760W/B/BB/BOX/US
CPU TypeIntel Core i7 14/13/12th Gen
CPU SocketIntel Socket LGA1700
North BridgeIntel B760
Memory installedNo Memory
Memory slot4 x 288Pin DIMM
Memory Type SupportedDDR4 3200
Max Memory Supported128GB
Dual Channel Memory SupportedYes
PCI Express 4.0 x161 x PCIe 4.0 x 16
Storage InstalledNo Hard Drive
Serial ATA3 x SATA 6.0Gb/s
M.2 Slot1 x Hyper M.2 Socket (M2_1), supports type 2280 SATA3 6.0Gb/s & PCIe Gen4x4 (64 Gb/s) modes*
1 x Hyper M.2 Socket (M2_2), supports type 2280 PCIe Gen4x4 (64 Gb/s) mode*
*Supports Intel Optane Technology
Supports NVMe SSD as boot disks
Supports Intel Volume Management Device (VMD)
SATA RAIDRAID 0, 1, 5, 10
Onboard AudioRealtek ALC897 Audio Codec
LANIntel i219V
Max LAN Speed1Gbps
Wireless LAN802.11ac
WiFi GenerationWi-Fi 5

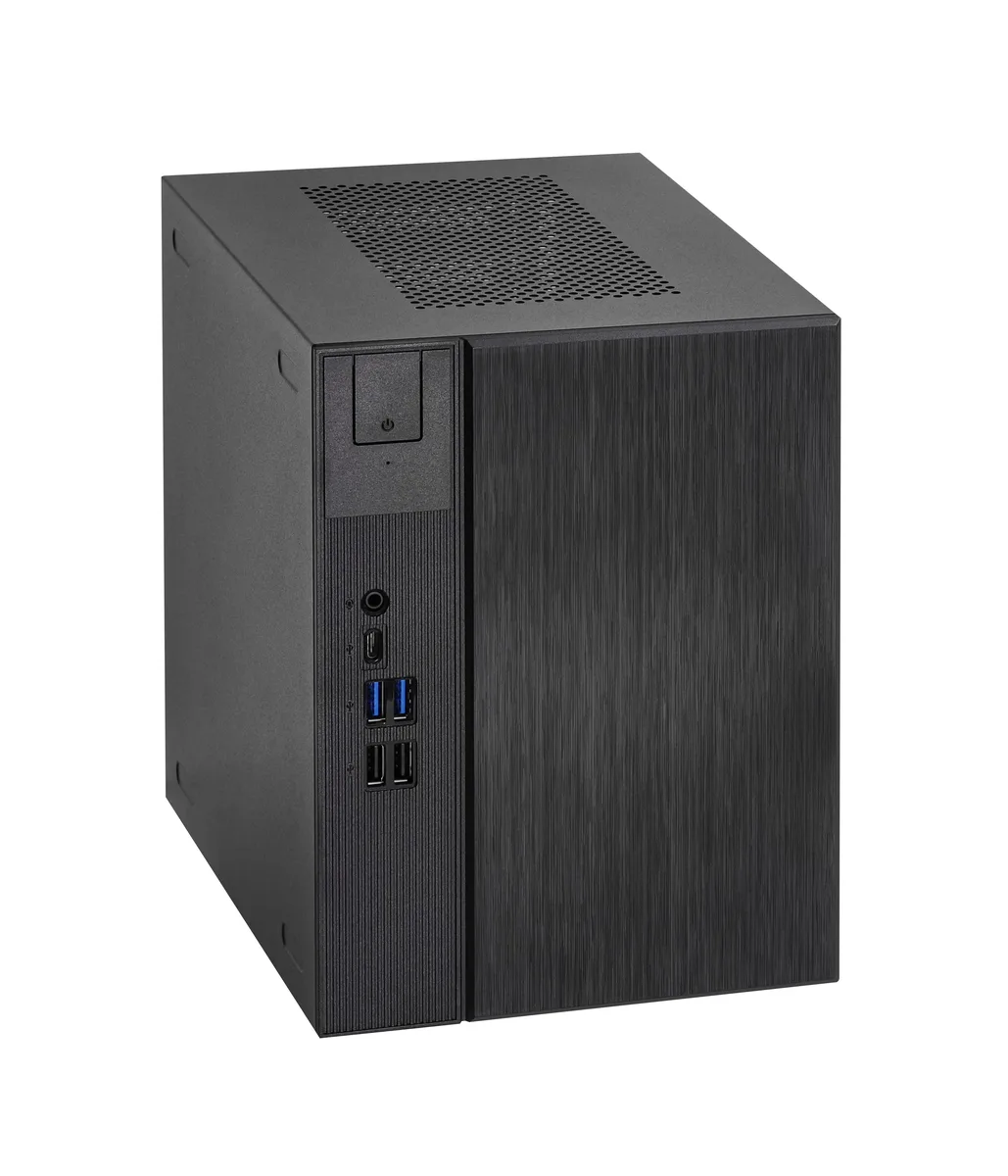

Front USB1 x USB 3.2 Gen1 Type-C
2 x USB 3.2 Gen1 Type-A
2 x USB 2.0 Type-A
Front Audio Ports1 x Headphone/Headset Jack

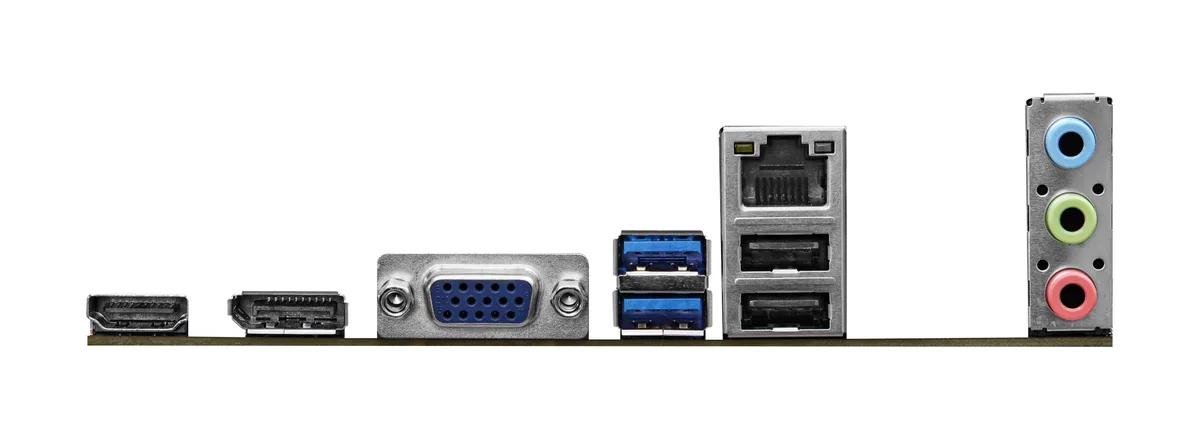

VGA1 x D-sub
HDMI1
DisplayPort1 x DisplayPort 1.4

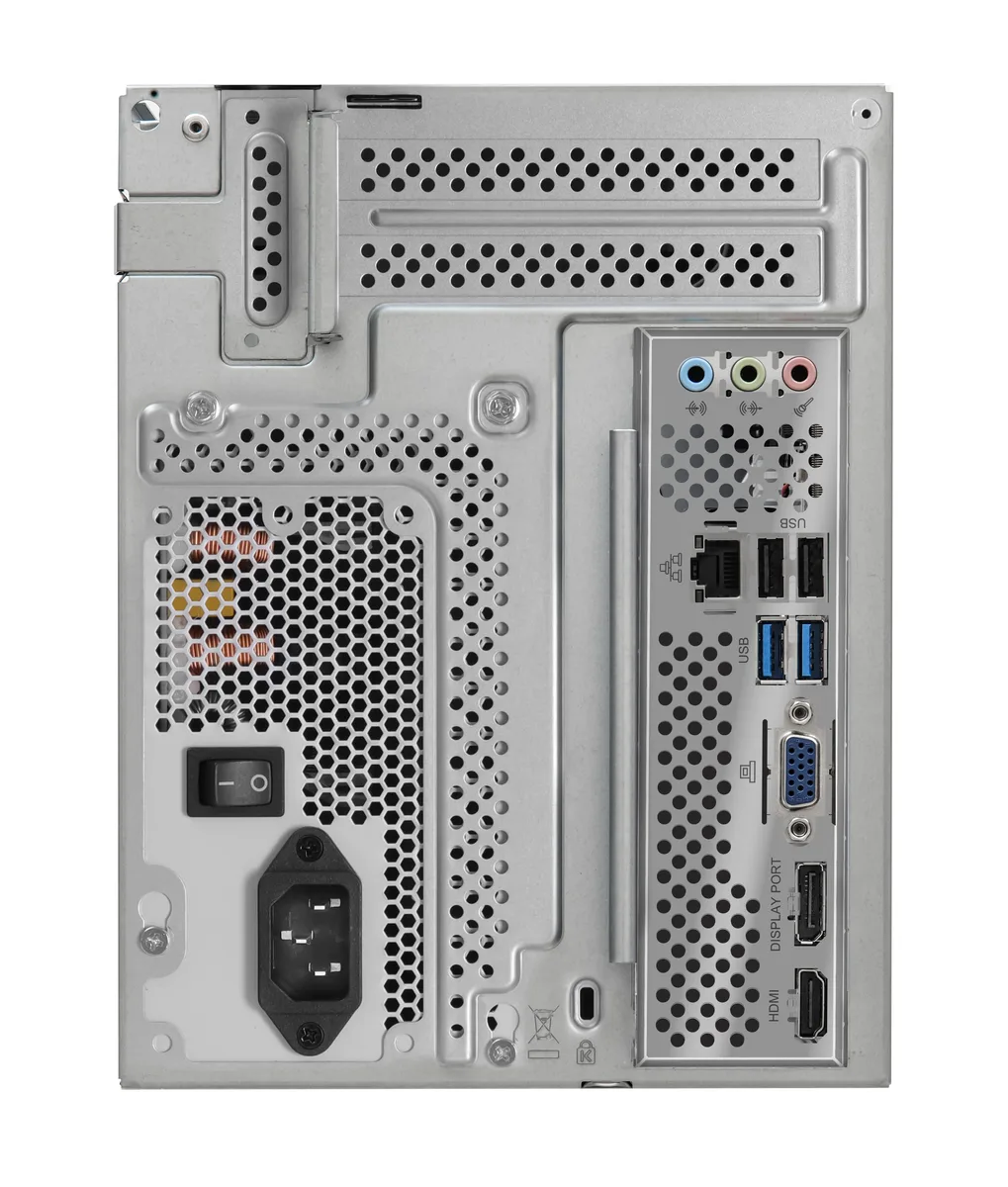

Rear USB2 x USB 2.0
2 x USB 3.2 Gen1 Type-A
RJ451
Rear Audio PortsHD Audio Jacks: Line in / Front Speaker / Microphone
Internal Connectors1 x Chassis Intrusion Header
1 x CPU Fan Connector (4-pin)
1 x Chassis/Water Pump Fan Connectors (4-pin)
1 x 24 pin ATX Power Connector
1 x 8 pin 12V Power Connector
1 x Front Panel Header
1 x USB 2.0 Headers (Support 2 USB 2.0 ports) (Supports ESD Protection)
Power Supply500W power supply (80+ Bronze, peak 550W)
Dimensions168 x 219.3 x 218.3 mm (excl. Protrusions)
168 x 236.1 x 221.6 mm (incl. Protrusions)
PackagingQuick Installation Guide
2 x SATA Data Cables
1 x Screws Package
1 x Intel AC-3168 Wi-Fi Kit
Poids d’expédition3.79 kg
Dimensions du colis328 × 292 × 216 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What CPU cooler height does the 8-litre chassis allow?

The cooler must be 54 mm tall or less to fit inside the DeskMeet B760 case.

How do I install a graphics card and which slot do I use?

Insert the card into the single PCIe 4.0 x16 slot; the card must be under 20 cm long to clear the side panel.

Which M.2 slot supports NVMe and what keying is required?

The M2_2 socket accepts type 2280 PCIe Gen4 x4 NVMe drives; M2_1 also takes SATA or NVMe 2280 modules.
