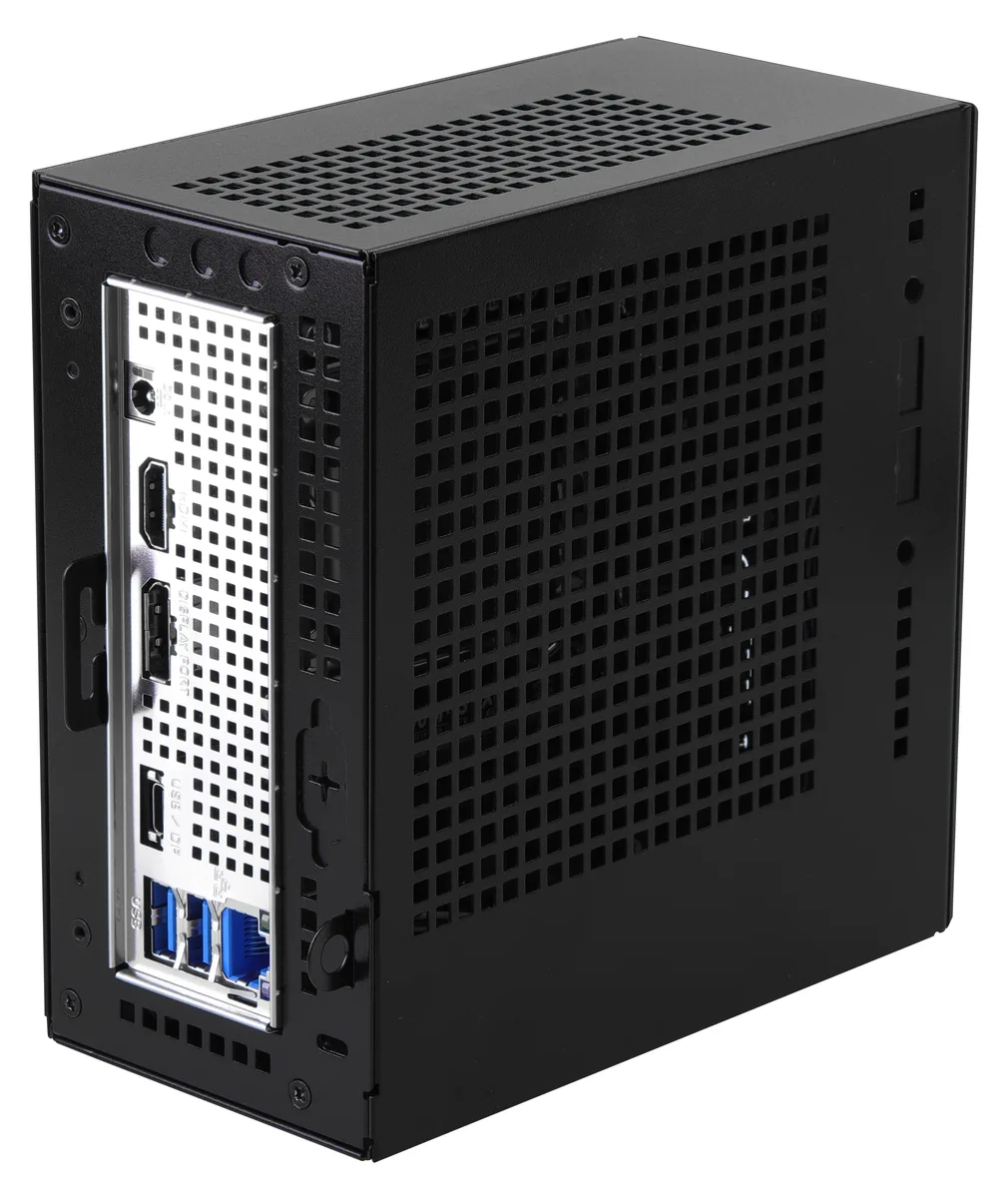

Black cube mini PC barebone, 6.1 by 6.1 by 3.15 inches

ASRock

ASRock DESKMINI X600/USB4/B/BB/BOX/US barebone mini PC

SKU CH-9BN0-PM5YG MPN DESKMINI X600/USB4/B/BB/BOX/US

A compact 1.92L barebone supporting AMD Ryzen AM5 processors up to 65W, DDR5 memory to 96GB, PCIe Gen5 storage, USB4, 2.5Gbps LAN and triple display outputs

  • ColorBlack
  • CPU TypeAMD Ryzen 9000/8000/7000 Series
  • CPU SocketAMD Socket AM5
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 6400

Support CPU Support AMD Ryzen 9000/8000/7000 CPU (socket AM5))

Support Memory Type

Les versions barrées existent, mais ne sont pas disponibles ici.

Support Max Memory 96GB

  • Supports AMD Ryzen 9000, 8000, 7000 series CPUs up to 65W TDP
  • Dual DDR5-6400 SO-DIMM slots expandable to 96GB capacity
  • PCIe Gen5 x4 M.2 slot plus PCIe Gen4 x4 M.2 slot for fast storage
  • 5Gbps LAN and USB4 40Gbps port with DisplayPort alt mode
  • Compact 1.92L chassis fits 47mm coolers and 500W power supply

Compact AM5 barebone for custom builds

The ASRock DeskMini X600 is a 1.92L barebone system that accepts AMD Ryzen 9000, 8000 and 7000 series processors up to 65W TDP. It targets builders who want a tiny footprint without sacrificing modern CPU performance and high-speed I/O.

Straightforward assembly with a cooler height limit

Installation follows the usual barebone steps: mount an AM5 CPU, add up to two DDR5 SO-DIMMs and secure the M.2 drives. The only constraint is the CPU cooler, which must not exceed 47mm in height; taller coolers will not fit the chassis.

Verify CPU, memory and storage before ordering

You must supply the processor, DDR5 memory and all storage devices yourself. Confirm the CPU is a 65W AM5 model and that your SO-DIMMs are DDR5 262-pin modules. The board provides one PCIe Gen5 x4 M.2 slot, one PCIe Gen4 x4 M.2 slot and two 2.5-inch SATA bays for drives.

Points forts

  • Supports AMD Ryzen 9000, 8000, 7000 series CPUs up to 65W TDP
  • Dual DDR5-6400 SO-DIMM slots expandable to 96GB capacity
  • PCIe Gen5 x4 M.2 slot plus PCIe Gen4 x4 M.2 slot for fast storage
  • 5Gbps LAN and USB4 40Gbps port with DisplayPort alt mode
  • Compact 1.92L chassis fits 47mm coolers and 500W power supply

Caractéristiques

BrandASRock
ModelDESKMINI X600
ColorBlack
CPU TypeAMD Ryzen 9000/8000/7000 Series
CPU SocketAMD Socket AM5
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 6400
Max Memory Supported96GB
Storage InstalledNo Hard Drive
Serial ATA2 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 Slot for PCIe Gen5x4 SSD
1 x M.2 2280 Slot for PCIe Gen4x4 SSD
LANDragon RTL8125BG
Max LAN Speed2.5Gbps

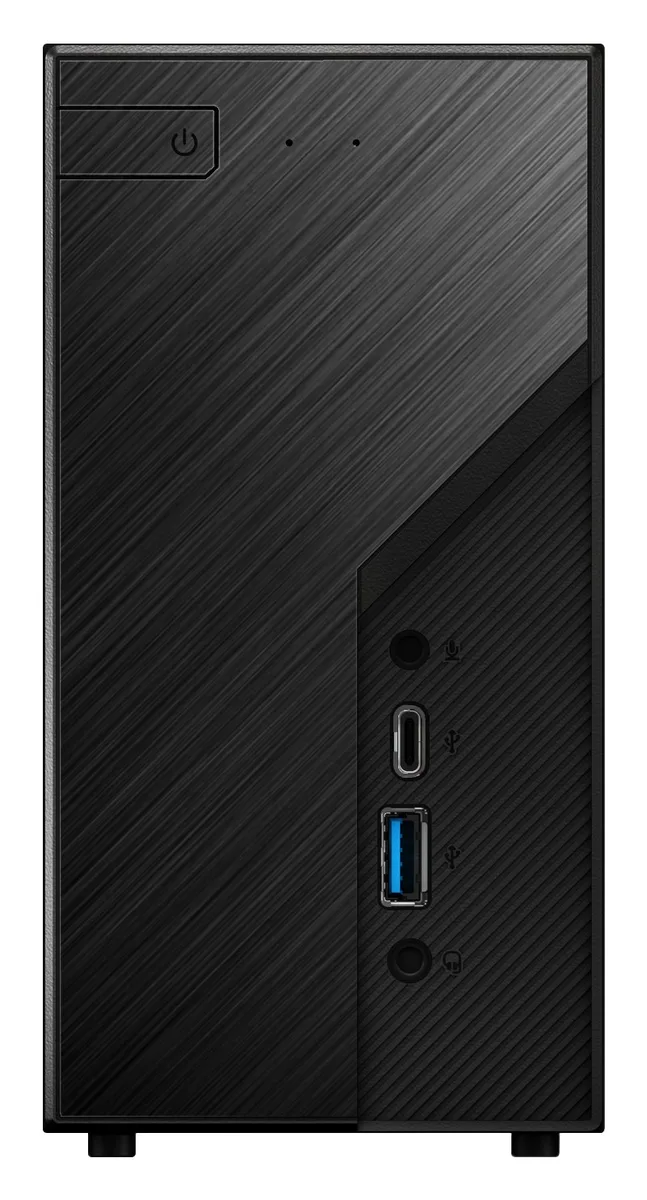

Front USB1 x USB 3.2 Gen 1 Type-C
1 x USB 3.2 Gen 1 Type-A
Front Audio Ports2 jacks

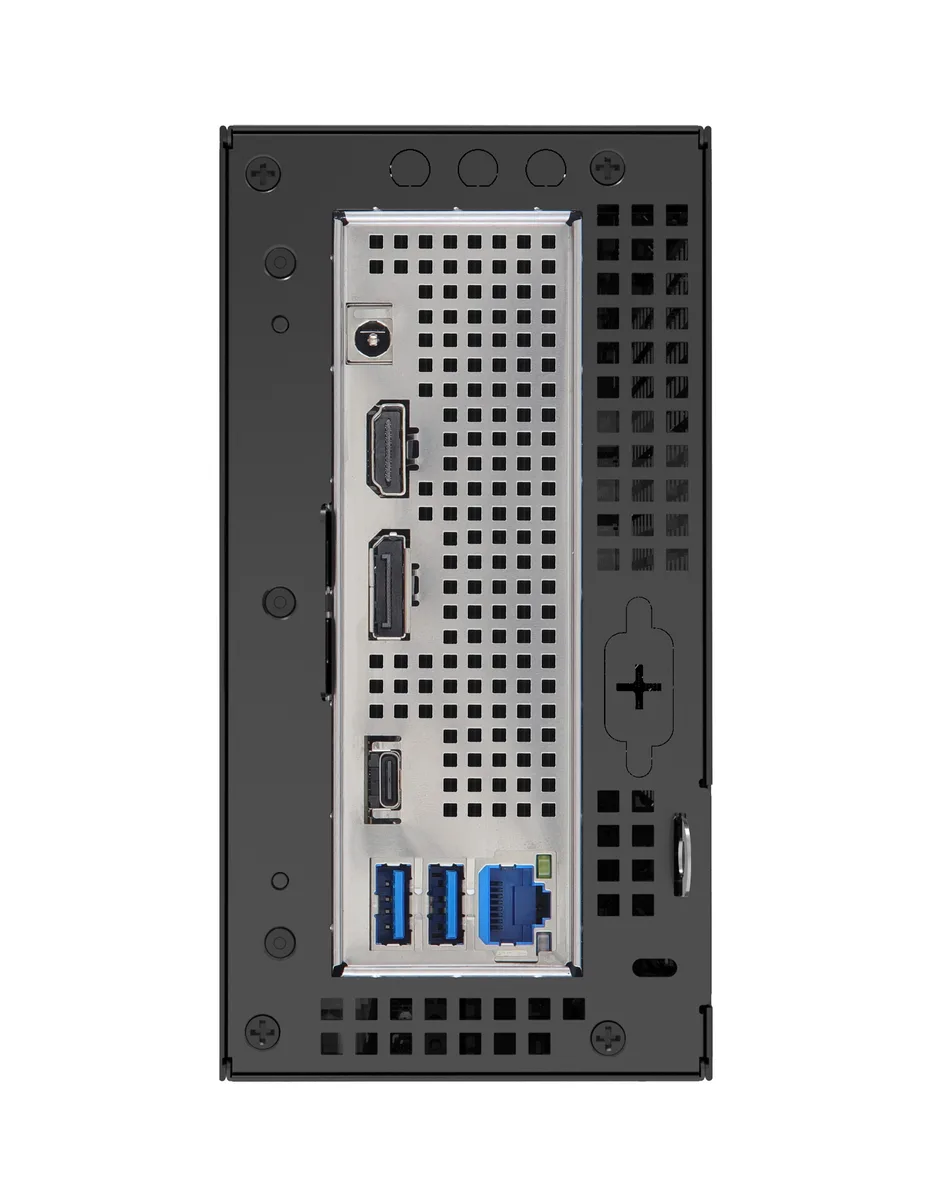

Rear USB1 x USB4**
2 x USB 3.2 Gen1 Type-A
**USB4 for Ryzen 8000G Series Processors; USB 3.2 Gen2 (supports DP Alt mode) for Ryzen 9000/7000 Series Processors
Power Supply500W
Dimensions6.1" x 6.1" x 3.15"
Packaging2 x SATA DATA with Power Cable
1 x 120W/19V adapter
1 x Screws Pack
Poids d’expédition1.86 kg
Dimensions du colis231 × 208 × 185 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

How do I confirm the system is running after I install a Ryzen CPU and DDR5 modules?

Connect a display to the HDMI, DisplayPort or D-Sub output and power on; the firmware screen will appear once the processor and memory are detected.

What comes in the box and what must I buy separately?

The box includes a 120W 19V adapter, two SATA data-with-power cables and a screw pack; you must purchase an AM5 Ryzen CPU up to 65W, up to 96GB of DDR5-6400 SO-DIMM memory, an M.2 2280 SSD and any 2.5-inch SATA drives.

Which M.2 slot should I use for the fastest PCIe Gen5 SSD?

Use the single M.2 2280 slot wired for PCIe Gen5 x4; the second M.2 2280 slot is wired for PCIe Gen4 x4.
