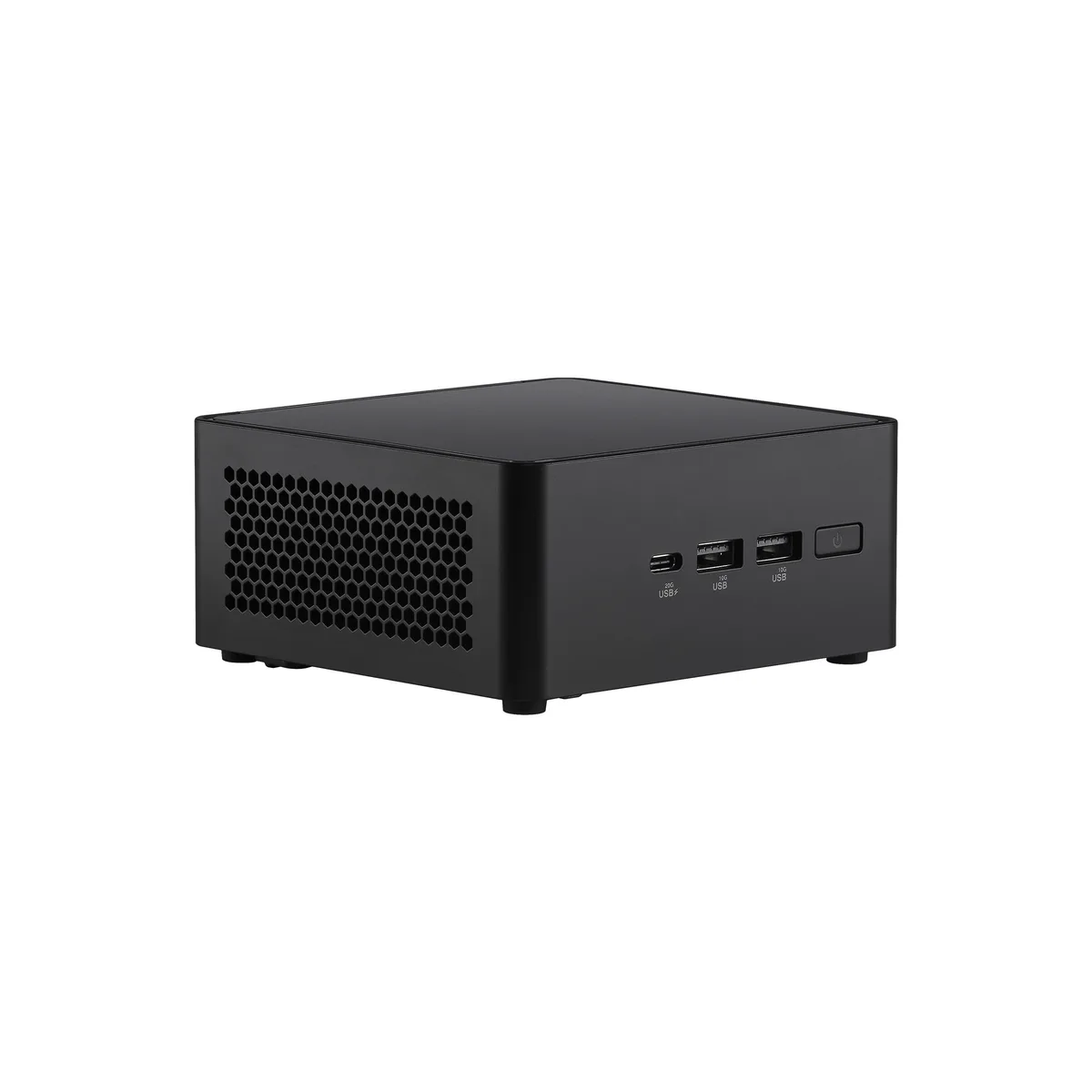

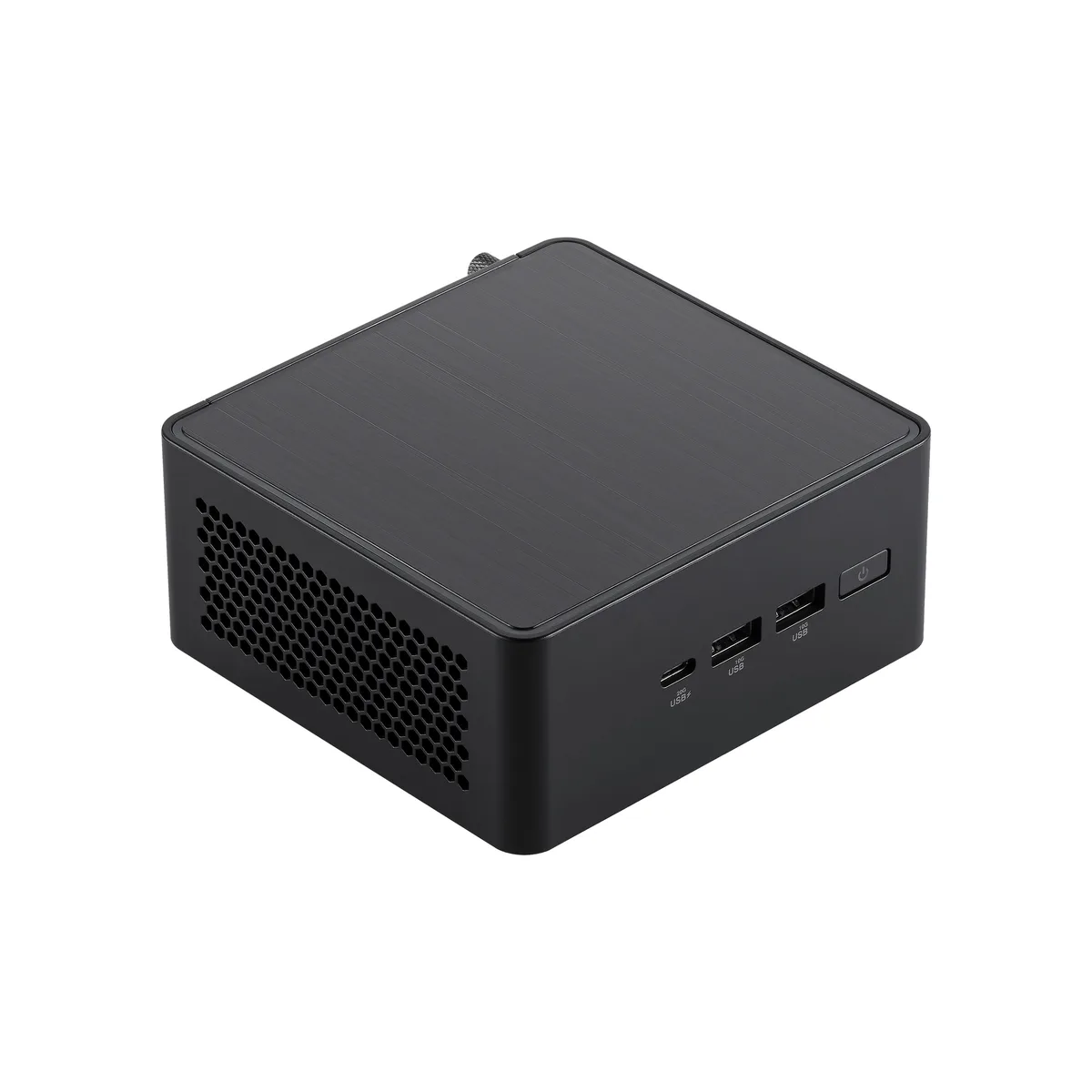

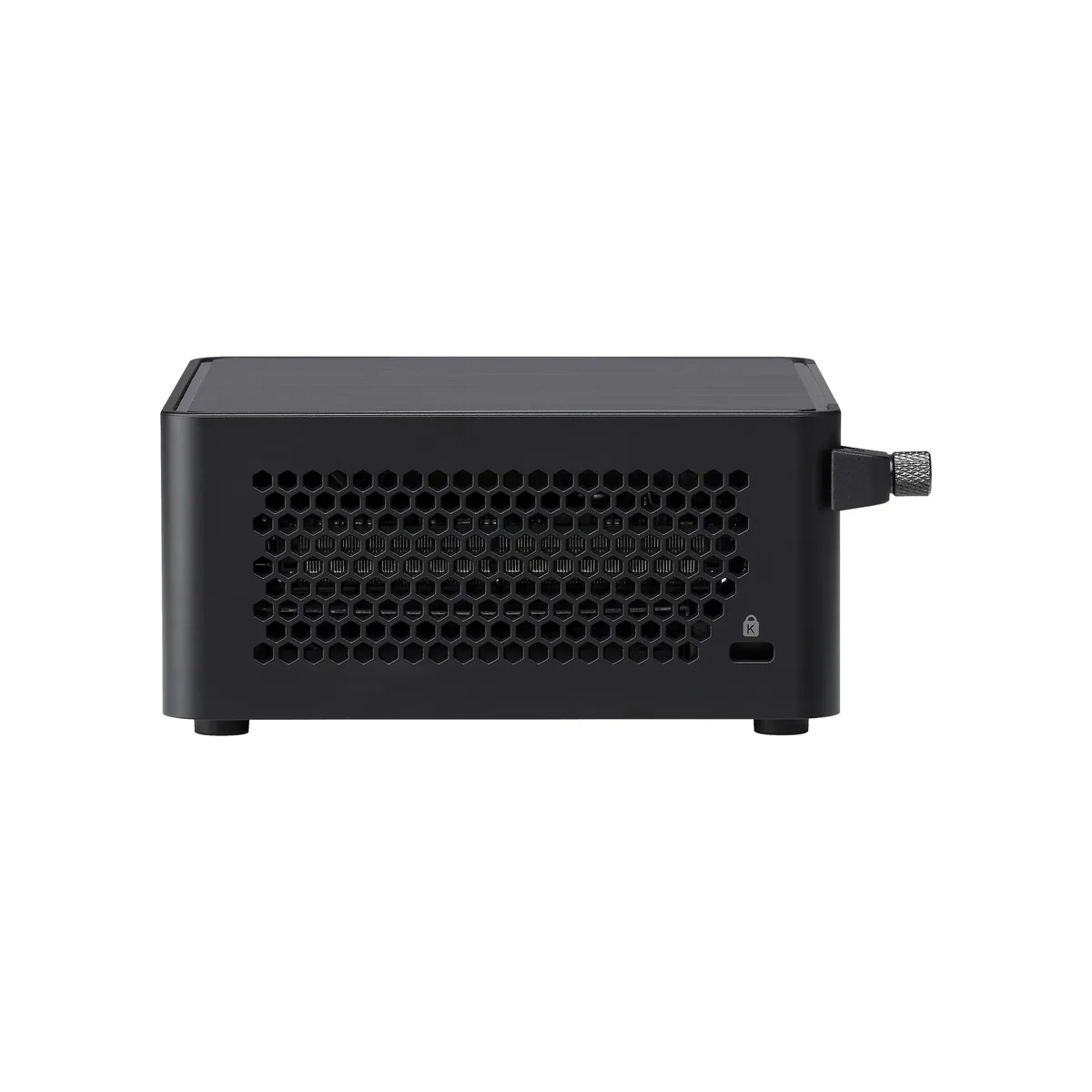

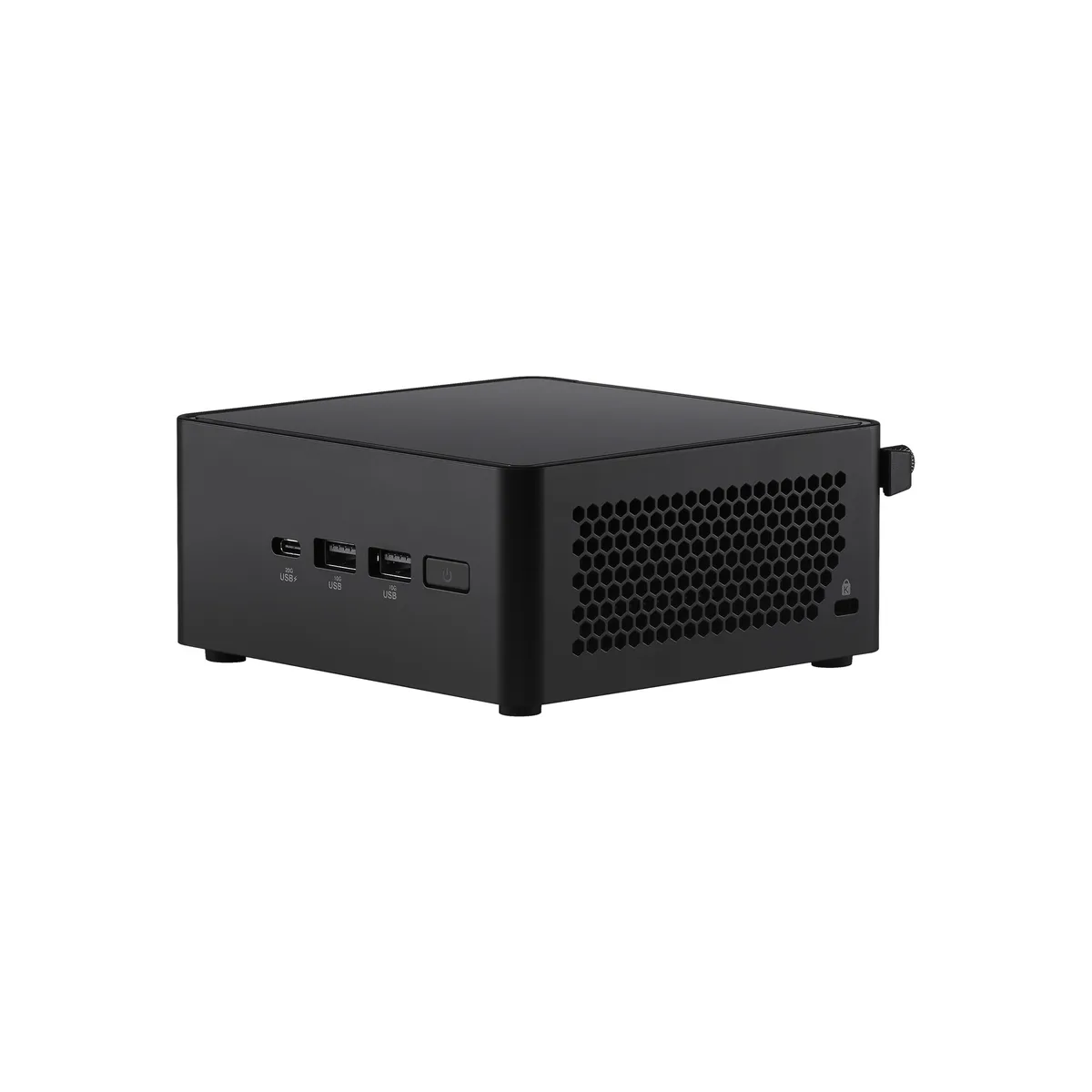

Black tall mini PC barebone with compact square chassis

ASUS

ASUS NUC 14 Pro RNUC14RVHU70000UI barebone mini PC Core Ultra 7 155H

SKU CH-N4QT-EJ3DQ MPN RNUC14RVHU70000UI

Barebone mini PC with Intel Core Ultra 7 155H, triple M.2 and SATA storage, Thunderbolt 4, Wi-Fi 6E and Bluetooth 5.3

  • ColorBlack
  • Form FactorTall
  • AI FeaturesHarnesses the prowess of Intel Core Ultra processors’ three
  • CPU TypeIntel Core Ultra 7 155H
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM

CPU Type Intel Core Ultra 7 155H

Options Tall

  • Intel Core Ultra 7 155H powers demanding workloads with three AI engines
  • Intel Arc Graphics delivers hardware-accelerated visual performance for creative tasks
  • Triple M.2 plus SATA design supports up to three fast NVMe drives and one 2.5 inch SATA drive
  • Wi-Fi 6E and Bluetooth 5.3 provide low-latency wireless connectivity with Wi-Fi Sensing
  • Thunderbolt 4 and 2.5Gbps LAN enable high-speed wired links for docks and networks

ASUS NUC 14 Pro Tall Barebone Kit

The ASUS NUC 14 Pro RNUC14RVHU70000UI is a tall barebone mini PC powered by an Intel Core Ultra 7 155H processor with integrated Intel Arc graphics. It arrives without memory or storage so system builders can choose their own DDR5 5600 SO-DIMMs and NVMe SSDs. The chassis measures 11.7 x 11.2 x 5.4 cm and weighs 0.62 kg.

Who this suits and who should look elsewhere

This unit suits builders who want a compact AI-ready platform with three Intel AI engines, 2.5 Gbps LAN, Wi-Fi 6E and Bluetooth 5.3. It also fits users needing dual HDMI 2.1 outputs and two Thunderbolt 4 ports. Buyers who want memory or storage pre-installed should look elsewhere. Builders requiring more than two SO-DIMM slots or additional 2.5-inch drive bays beyond the single SATA bay should consider a different chassis.

The specification that decides fit

The board provides one M.2 2280 PCIe Gen4x4 slot and one M.2 2242 PCIe x4 slot for NVMe SSDs plus a single SATA 6.0 Gb/s connector for a 2.5-inch drive. This triple-storage layout determines whether the platform matches your capacity and performance needs.

Points forts

  • Intel Core Ultra 7 155H powers demanding workloads with three AI engines
  • Intel Arc Graphics delivers hardware-accelerated visual performance for creative tasks
  • Triple M.2 plus SATA design supports up to three fast NVMe drives and one 2.5 inch SATA drive
  • Wi-Fi 6E and Bluetooth 5.3 provide low-latency wireless connectivity with Wi-Fi Sensing
  • Thunderbolt 4 and 2.5Gbps LAN enable high-speed wired links for docks and networks

Caractéristiques

BrandASUS
SeriesNUC 14 Pro
ModelRNUC14RVHU70000UI
Part Number90AR0072-M001M0
ColorBlack
Form FactorTall
AI FeaturesHarnesses the prowess of Intel Core Ultra processors’ three AI engines for high throughput, low power, and fast response
CPU TypeIntel Core Ultra 7 155H
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported(up to 48GB*2)
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot
1 x M.2 2242 PCIe x4 NVMe SSD Slot
Integrated GraphicsIntel Arc Graphics
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel AX211
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5" SATA
Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1
Rear USB2 x Thunderbolt 4 (DP2.1 & USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Cable Locking Arm
1 x DC-in
Power Supply120W AC Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.36 lbs.
PackagingUS Cord for USA
Poids d’expédition1.38 kg
Dimensions du colis198 × 173 × 112 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

What are the exact dimensions of the Tall chassis so I can confirm it fits my mounting bracket?

The Tall chassis measures 4.61" wide × 4.41" deep × 2.13" high (11.7 × 11.2 × 5.4 cm) and weighs 1.36 lbs (0.62 kg).

Which screws and steps are needed to install DDR5 SO-DIMMs and the M.2 drives, and what is the common mistake?

Remove the bottom cover, insert two 262-pin DDR5 5600 SO-DIMMs into the two slots, then secure one M.2 2280 and one M.2 2242 NVMe drive with the provided standoffs; the frequent error is forgetting to fit the 2.5" SATA drive into its internal bay before reassembly.

Which replaceable components will need attention after several years of operation?

The SO-DIMM memory modules, the two NVMe SSDs (2280 and 2242), the 2.5" SATA drive, and the internal cooling fan are all user-replaceable; the Intel Core Ultra 7 155H processor and Arc graphics are soldered and not serviceable.
