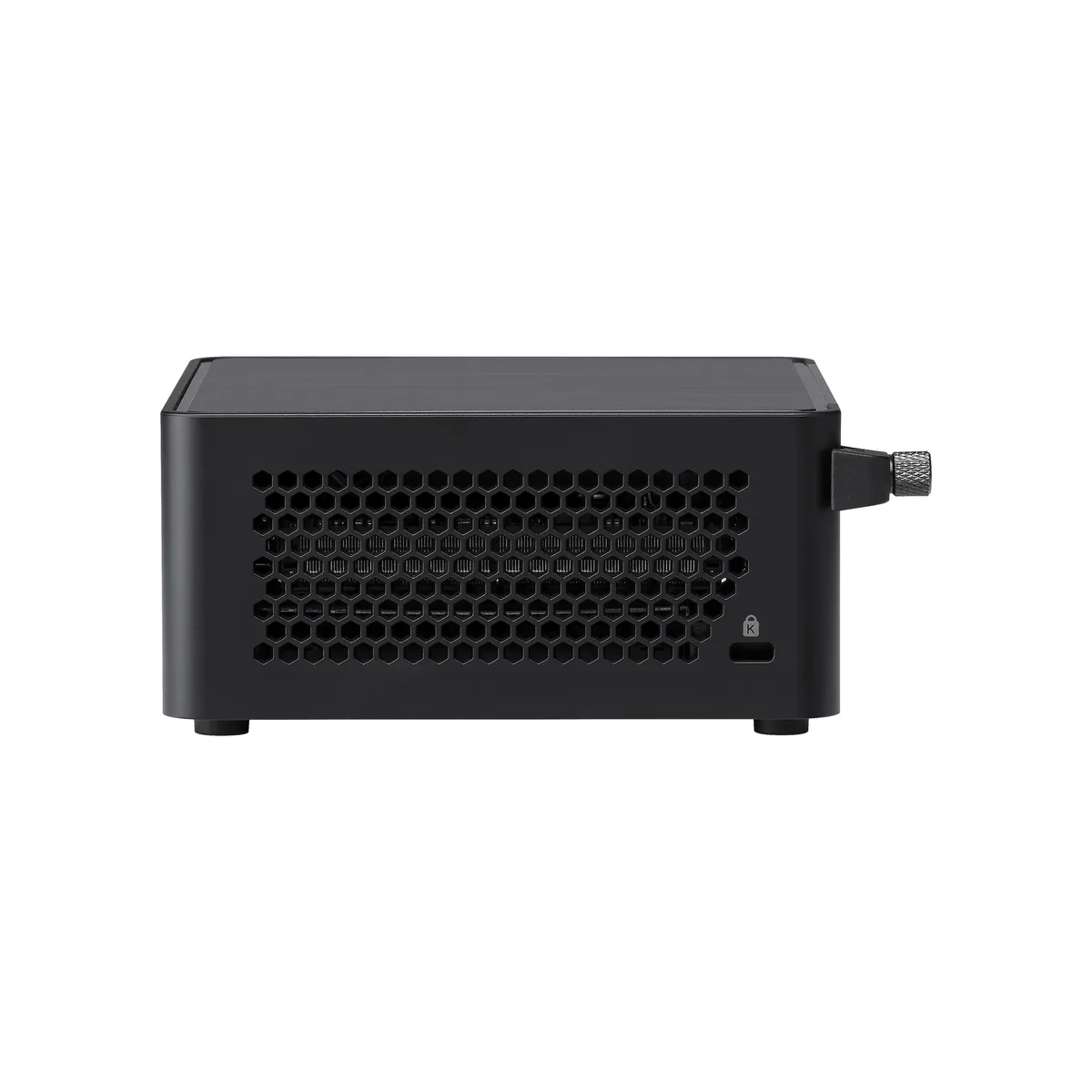

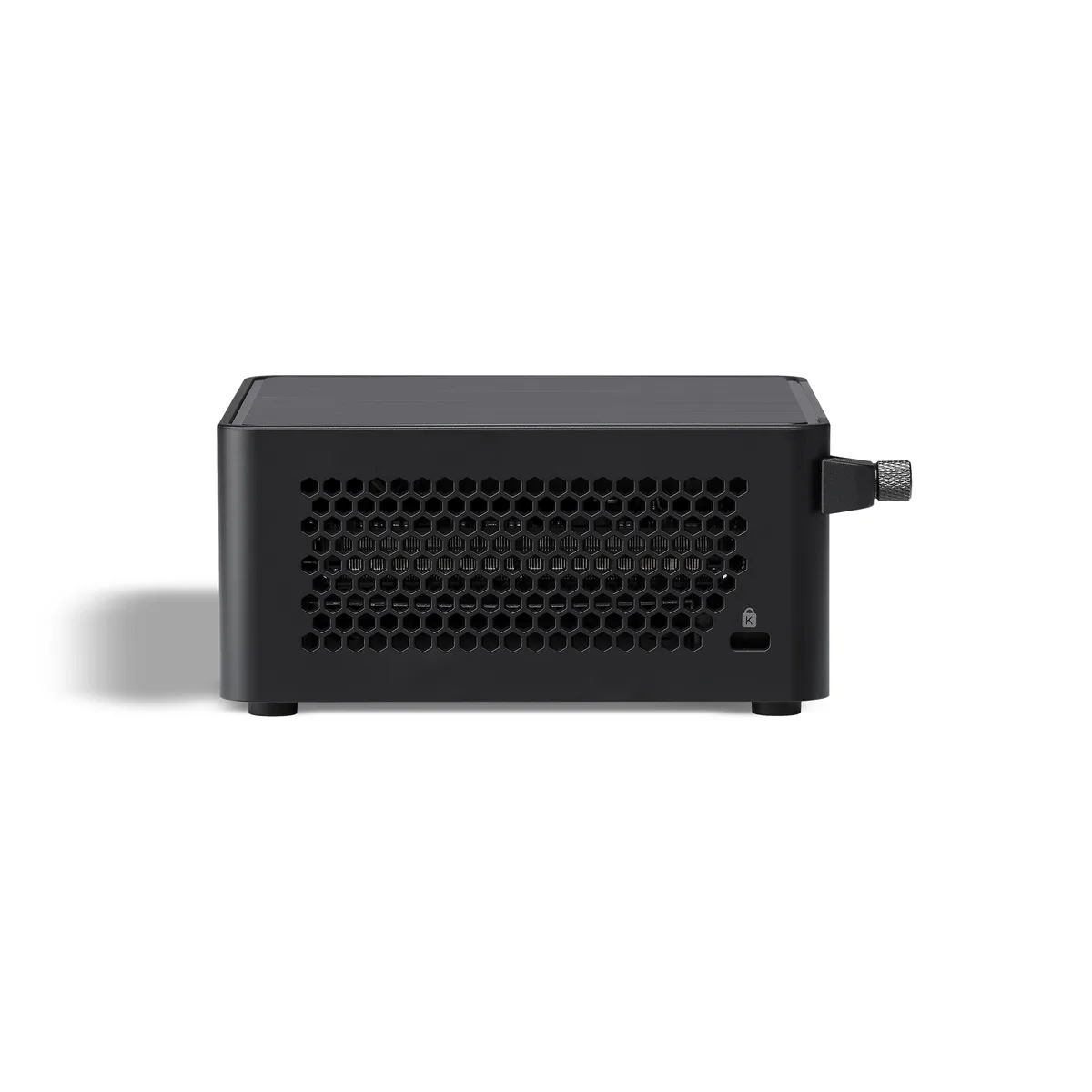

Black tall barebone mini PC with front USB-C and USB-A ports

ASUS

ASUS RNUC14RVHI30000UI barebone mini PC Core 3 100U DDR5 96GB

SKU CH-6V81-X5GQF MPN RNUC14RVHI30000UI

A barebone mini PC with an Intel Core 3 100U processor, supporting up to 96GB of DDR5-5600 memory and triple storage via two M.2 slots and a 2.5-inch SATA bay

  • ColorBlack
  • Form FactorTall
  • CPU TypeIntel Core 3 100U
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5600

CPU Type Intel Core 3 100U

Options Tall

  • Powered by 14th Gen Intel Core 3 100U processor with Intel Graphics
  • Supports up to 96GB DDR5-5600 memory across two SO-DIMM slots
  • Triple storage with M.2 2280 PCIe Gen4x4, M.2 2242 PCIe x4 and 2.5" SATA bays
  • Wi-Fi 6E and Bluetooth 5.3 via Intel AX211 for fast wireless connectivity
  • Two Thunderbolt 4 ports with DP2.1 and USB4 plus front USB 3.2 Gen2x2 Type-C

Core 3 100U barebone for compact builds

The ASUS NUC 14 Pro RNUC14RVHI30000UI is a tall mini-PC barebone built around an Intel Core 3 100U processor with integrated Intel Graphics. It ships without memory or storage so system integrators and home-lab users can choose their own DDR5-5600 SO-DIMMs and NVMe drives. The 90 W AC adapter powers the complete platform.

Triple storage and toolless access

Two SO-DIMM slots accept up to 96 GB of DDR5-5600 memory in 48 GB modules. Storage options include one M.2 2280 PCIe Gen4x4 slot, one M.2 2242 PCIe x4 slot and a 2.5-inch SATA 6.0 Gb/s bay for three simultaneous drives. A toolless chassis opens quickly for upgrades or maintenance without screws.

Thunderbolt 4 and Wi-Fi 6E connectivity

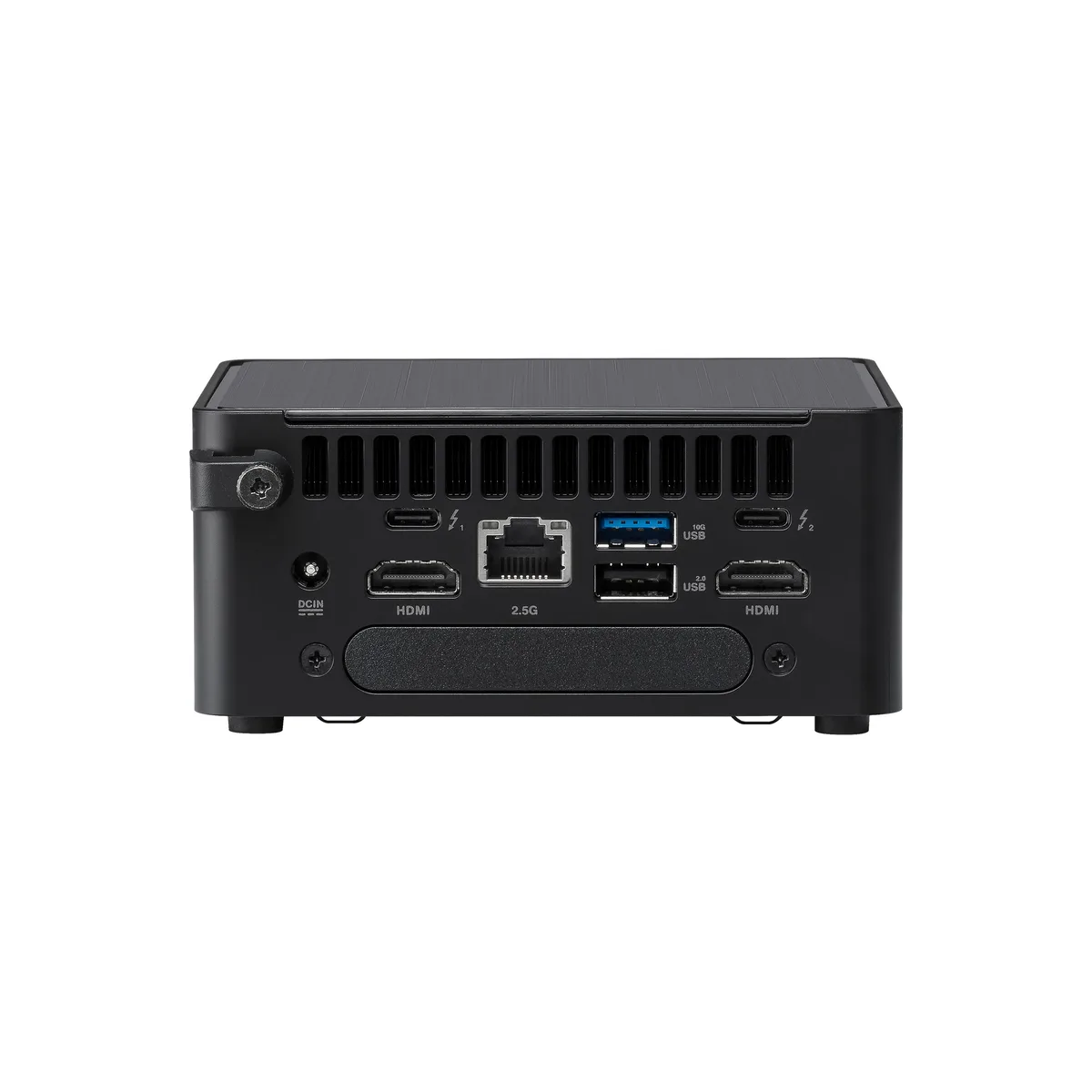

Dual Thunderbolt 4 ports deliver DisplayPort 2.1 and USB4 signalling for high-speed peripherals and external displays. Front I/O adds a USB 3.2 Gen2x2 Type-C port and two USB 3.2 Gen2 Type-A ports. Rear I/O includes two HDMI 2.1 outputs, 2.5 GbE LAN, Wi-Fi 6E and Bluetooth 5.3 for cable-free accessories.

Points forts

  • Powered by 14th Gen Intel Core 3 100U processor with Intel Graphics
  • Supports up to 96GB DDR5-5600 memory across two SO-DIMM slots
  • Triple storage with M.2 2280 PCIe Gen4x4, M.2 2242 PCIe x4 and 2.5" SATA bays
  • Wi-Fi 6E and Bluetooth 5.3 via Intel AX211 for fast wireless connectivity
  • Two Thunderbolt 4 ports with DP2.1 and USB4 plus front USB 3.2 Gen2x2 Type-C

Caractéristiques

BrandASUS
SeriesNUC 14 Pro
ModelRNUC14RVHI30000UI
Part Number90AR0072-M00020
ColorBlack
Form FactorTall
CPU TypeIntel Core 3 100U
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
Serial ATA1 x SATA 6.0Gb/s
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot
1 x M.2 2242 PCIe x4 NVMe SSD Slot
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel AX211
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
2.5" Internal Bays1 x 2.5" SATA
Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1
Rear USB2 x Thunderbolt 4 (DP2.1 & USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Cable Locking Arm
1 x DC-in
Power Supply90W AC Adapter
Dimensions4.61" x 4.41" x 2.13"
Weight1.36 lbs.
PackagingUS Cord for USA
Poids d’expédition0.73 kg
Dimensions du colis152 × 127 × 114 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 90W AC adapter limit the Core 3 100U during sustained workloads?

The system ships with a 90W AC adapter; the processor and graphics draw from this budget, so extended heavy loads may hit the adapter ceiling before the chip's own thermal limit.

How loud and hot does the tall chassis get when running all day?

The tall form factor uses a single internal fan; under continuous load the fan ramps up and the aluminium top surface becomes warm, but the 90W power envelope keeps noise and temperature in a range typical for a 1.36 lb mini PC.

Which DDR5 SO-DIMMs and M.2 drives must I already own to complete the build?

You need two 262-pin DDR5-5600 SO-DIMMs (up to 48 GB each for 96 GB total), one M.2 2280 PCIe Gen4 x4 NVMe SSD, one M.2 2242 PCIe x4 NVMe SSD, and optionally a 2.5" SATA drive.
