Small square black mini PC barebone with front USB-C and dual HDMI ports

ASUS

ASUS NUC 14 Pro RNUC14RVKI30000UI barebone mini PC Core 3 100U

SKU CH-DMKM-N915F MPN RNUC14RVKI30000UI

Barebone mini PC with Intel Core 3 100U, dual M.2 slots for NVMe storage, up to 96 GB DDR5 memory, 2.5 GbE LAN, Wi-Fi 6E, Bluetooth 5.3, and dual Thunderbolt 4 ports

  • ColorBlack
  • CPU TypeIntel Core 3 100U
  • Memory installedNo Memory
  • Memory slot2 x 262Pin SO-DIMM
  • Memory Type SupportedDDR5 5600
  • Max Memory Supported96GB

CPU Type Intel Core 3 100U

Options Slim

  • Ready for work or home-theatre use with Intel Core 3 100U
  • Expandable to 96 GB DDR5 5600 via two SO-DIMM slots
  • Dual M.2 slots for 2280 and 2242 NVMe storage
  • Two Thunderbolt 4 ports plus two HDMI 2.1 outputs
  • Wi-Fi 6E and Bluetooth 5.3 with 2.5 Gbps LAN

Compact barebone for custom builds

The ASUS NUC 14 Pro RNUC14RVKI30000UI is a slim barebone kit built around an Intel Core 3 100U processor. It arrives without memory or storage so system integrators and enthusiasts can choose DDR5 5600 SO-DIMMs up to 96 GB and two NVMe SSDs in 2280 and 2242 form factors. The compact chassis measures 11.7 x 11.2 x 3.7 cm and weighs 0.503 kg.

Dual Thunderbolt 4 and 2.5 GbE connectivity

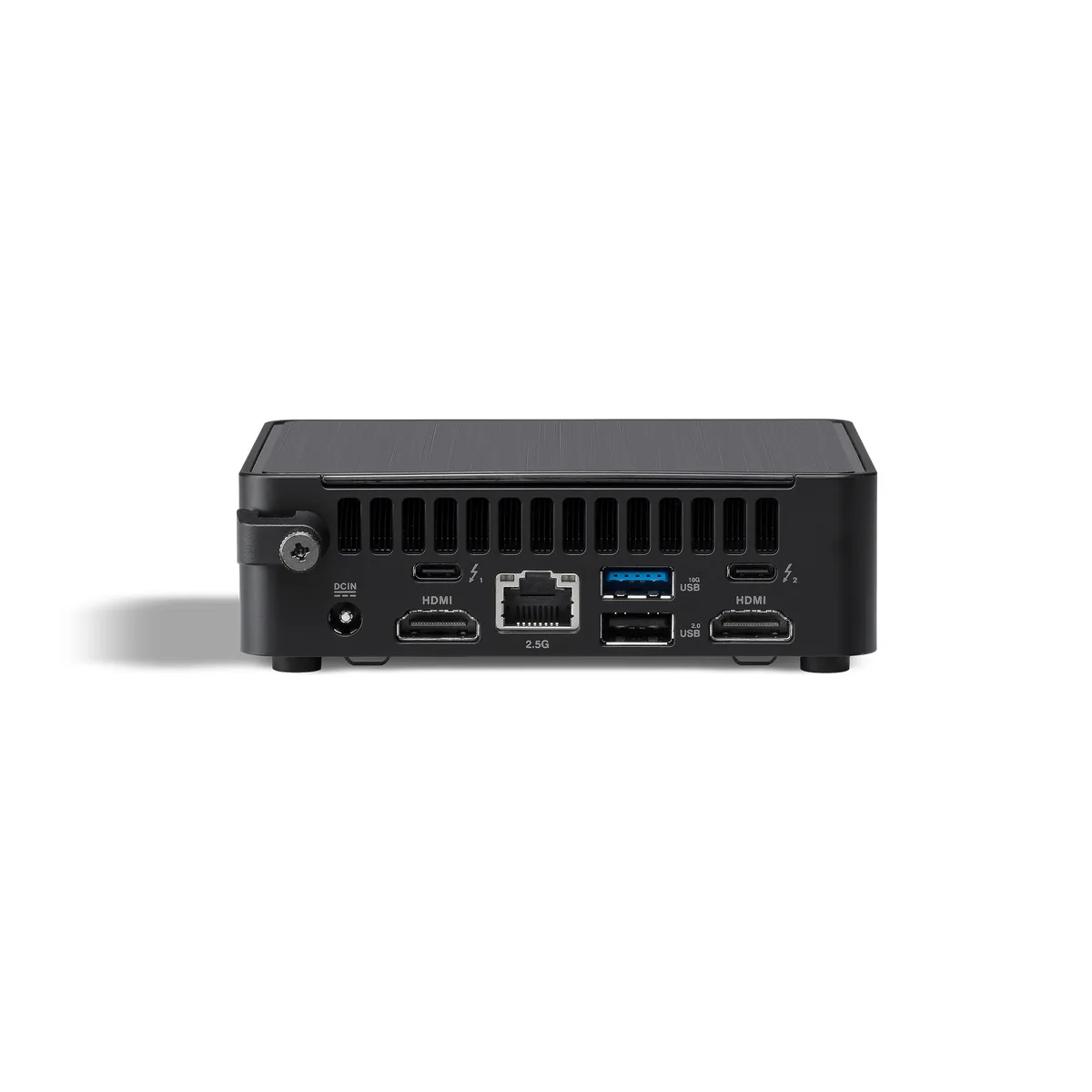

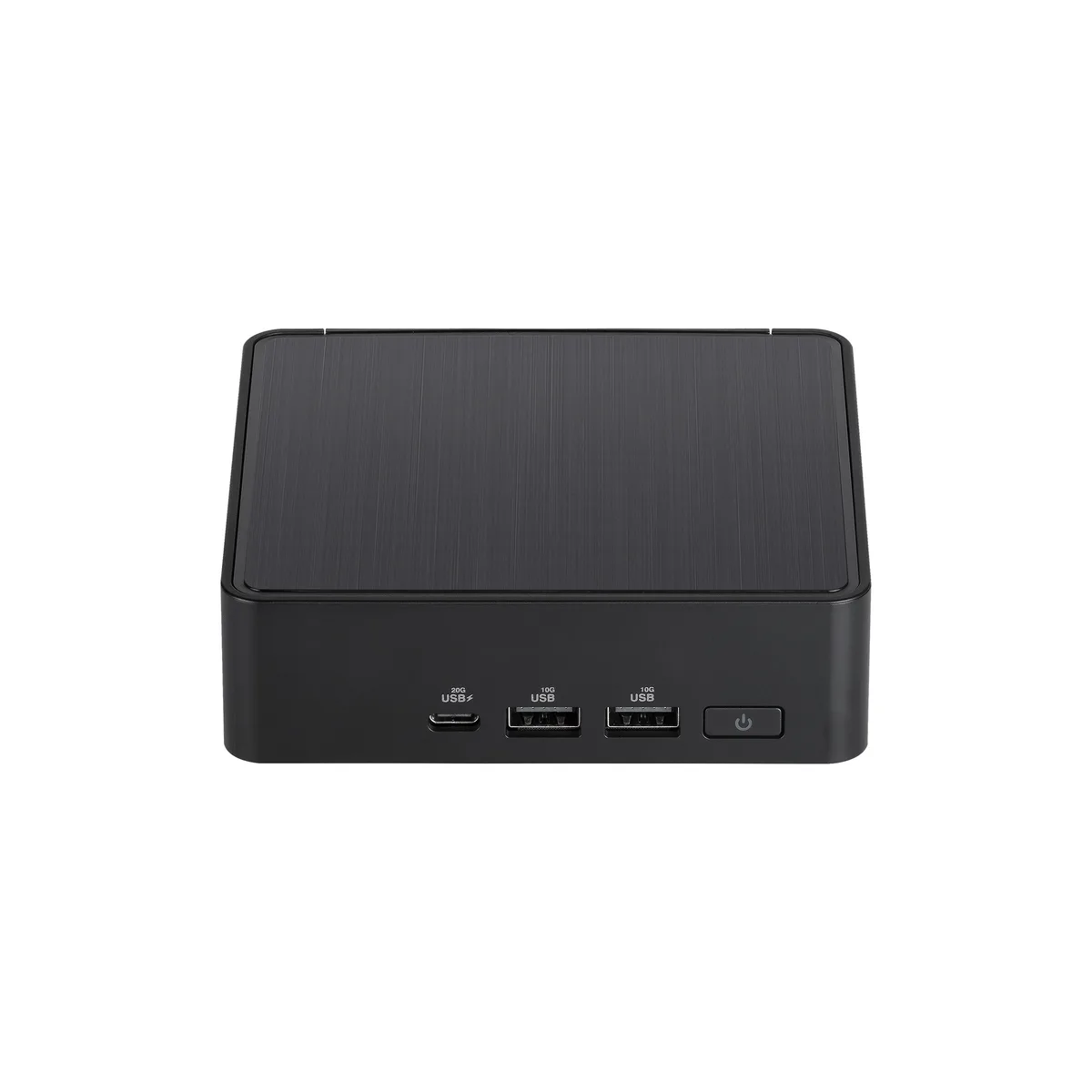

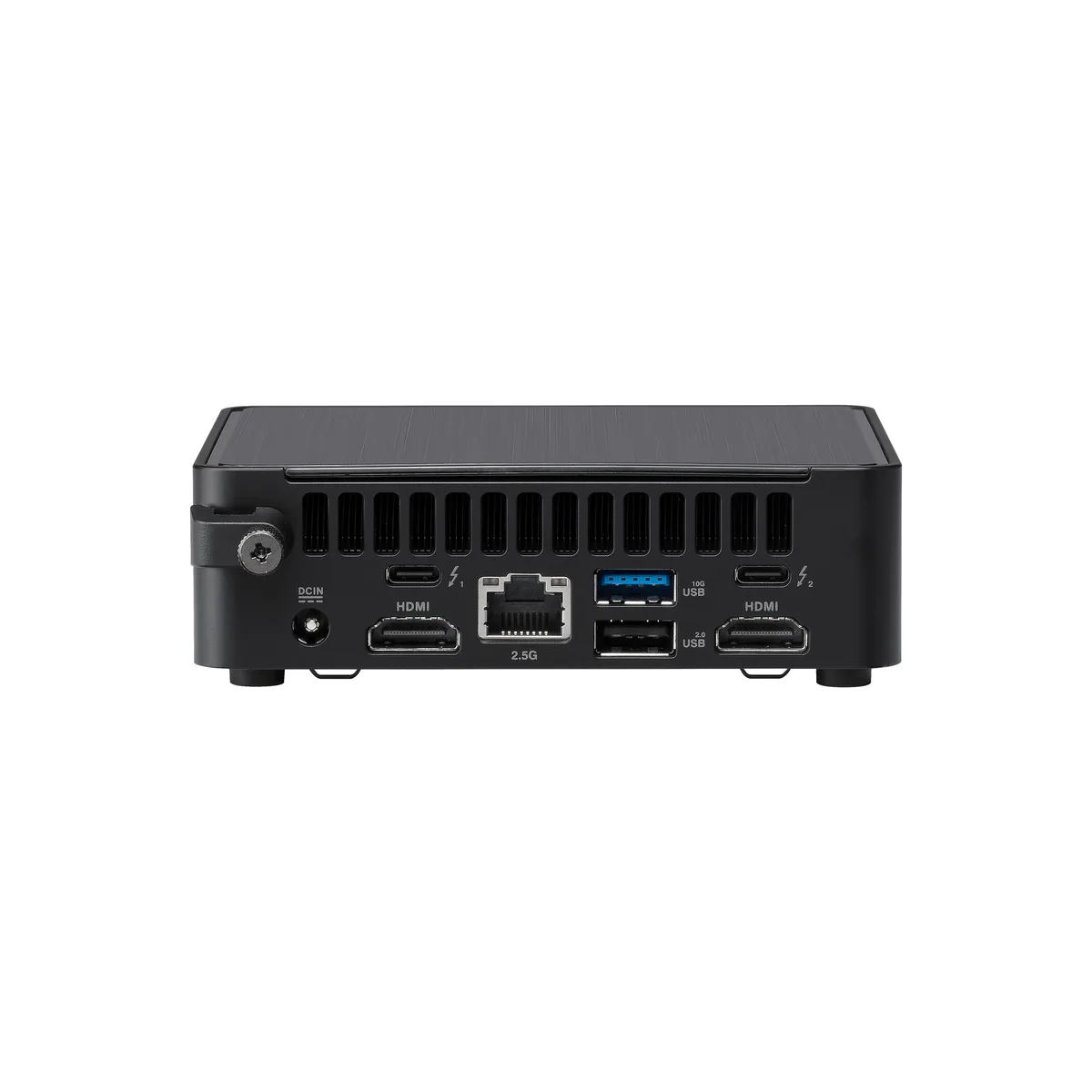

Two Thunderbolt 4 ports with DP2.1 and USB4 support sit alongside HDMI 2.1 outputs for multi-display setups. A 2.5 Gbps Intel i226V LAN port and Wi-Fi 6E with Bluetooth 5.3 handle wired and wireless networking. Front-panel USB 3.2 Gen2x2 Type-C and two Type-A ports add quick-access peripherals while the 90 W AC adapter powers the unit.

Memory and storage sold separately

No RAM or SSDs are included; builders must supply two 262-pin SO-DIMMs and both M.2 NVMe drives to complete the system. An operating system such as Windows, TrueNAS, Proxmox, CasaOS or a Linux server distribution must also be installed. The kit suits DIY workstations, home-theater PCs or lightweight NAS appliances but not buyers who need a ready-to-run device.

Points forts

  • Ready for work or home-theatre use with Intel Core 3 100U
  • Expandable to 96 GB DDR5 5600 via two SO-DIMM slots
  • Dual M.2 slots for 2280 and 2242 NVMe storage
  • Two Thunderbolt 4 ports plus two HDMI 2.1 outputs
  • Wi-Fi 6E and Bluetooth 5.3 with 2.5 Gbps LAN

Caractéristiques

BrandASUS
SeriesNUC 14 Pro
ModelRNUC14RVKI30000UI
Part Number90AR0062-M00020
ColorBlack
CPU TypeIntel Core 3 100U
Memory installedNo Memory
Memory slot2 x 262Pin SO-DIMM
Memory Type SupportedDDR5 5600
Max Memory Supported96GB
M.2 Slot1 x M.2 2280 PCIe Gen4x4 NVMe SSD Slot
1 x M.2 2242 PCIe x4 NVMe SSD Slot
LANIntel i226V
Max LAN Speed2.5Gbps
Wireless LANIntel AX211
WiFi GenerationWi-Fi 6E
BluetoothBluetooth 5.3
Front USB1 x USB 3.2 Gen2x2 Type-C
2 x USB 3.2 Gen2 Type-A
HDMI2 x HDMI 2.1
Rear USB2 x Thunderbolt 4 (DP2.1 & USB4)
1 x USB 3.2 Gen2 Type-A
1 x USB 2.0 Type-A
RJ451 x Intel 2.5G LAN (RJ45)
Other Rear Ports1 x Cable Locking Arm
1 x DC-in
Power Supply90W AC Adapter
Dimensions4.61" x 4.41" x 1.45"
Weight1.11 lbs.
PackagingUS Cord for USA
Poids d’expédition1.54 kg
Dimensions du colis178 × 152 × 127 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

At what temperature does the Core 3 100U throttle under sustained load?

The Intel Core 3 100U typically throttles at 100 °C junction temperature to protect itself during prolonged heavy workloads.

How loud is the cooling fan when the unit runs all day?

The slim chassis uses a small internal fan; under continuous load it spins up to an audible but moderate level, while idle noise stays low in a quiet room.

Which DDR5 SO-DIMM modules and M.2 NVMe SSDs must I supply to complete the build?

You need two 262-pin DDR5 5600 SO-DIMMs (up to 96 GB total) plus one M.2 2280 PCIe Gen4x4 NVMe SSD and one M.2 2242 PCIe x4 NVMe SSD.
