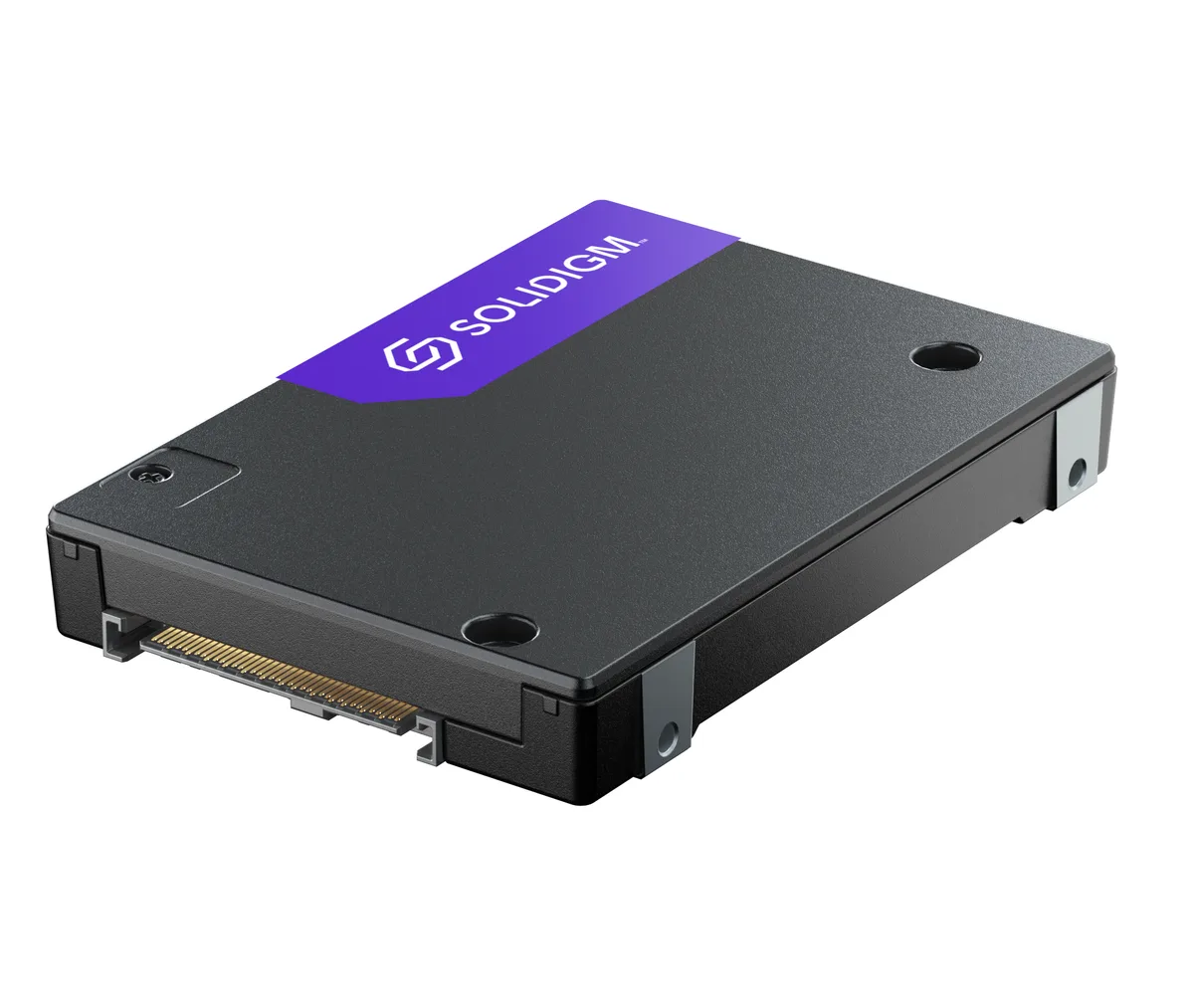

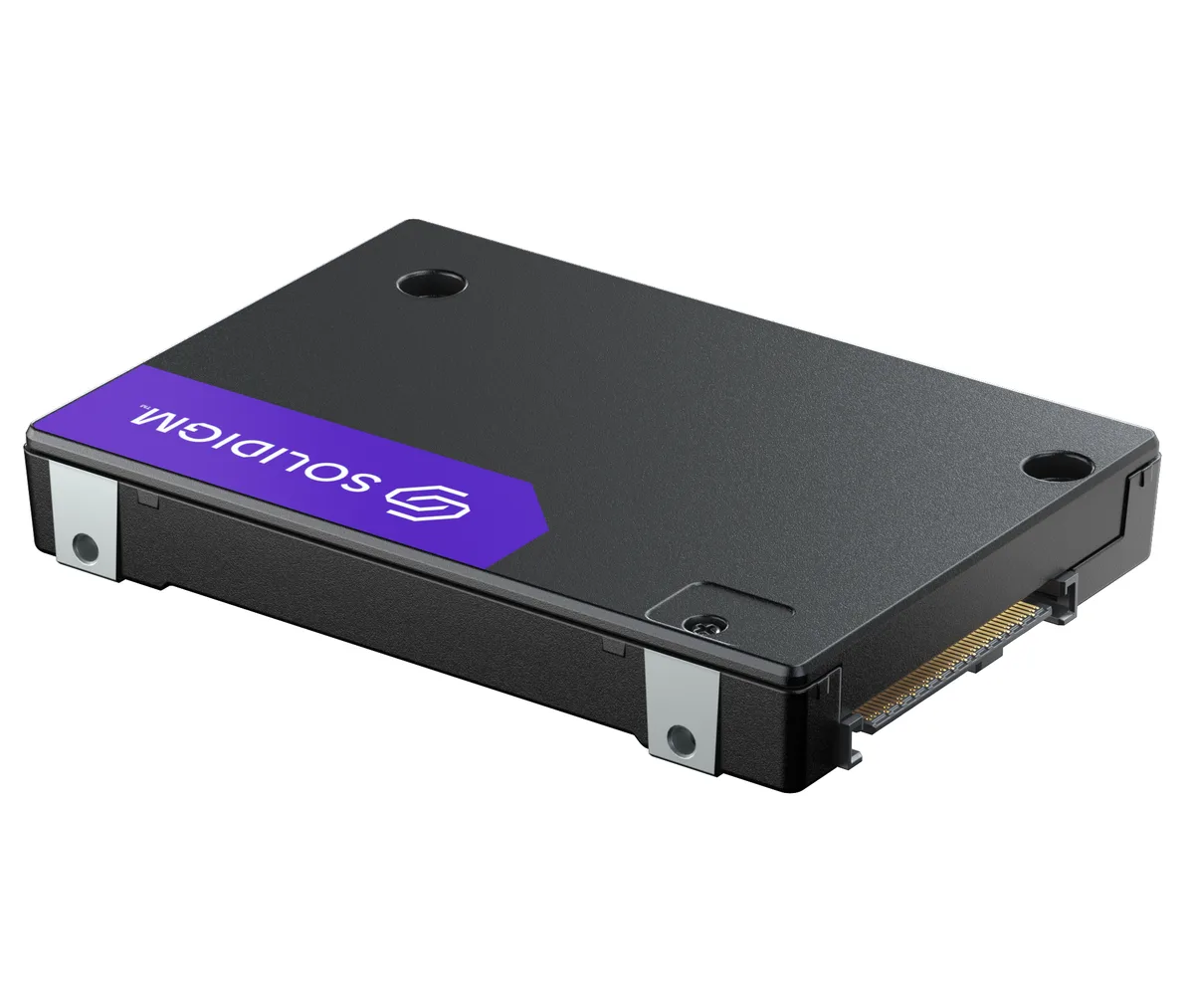

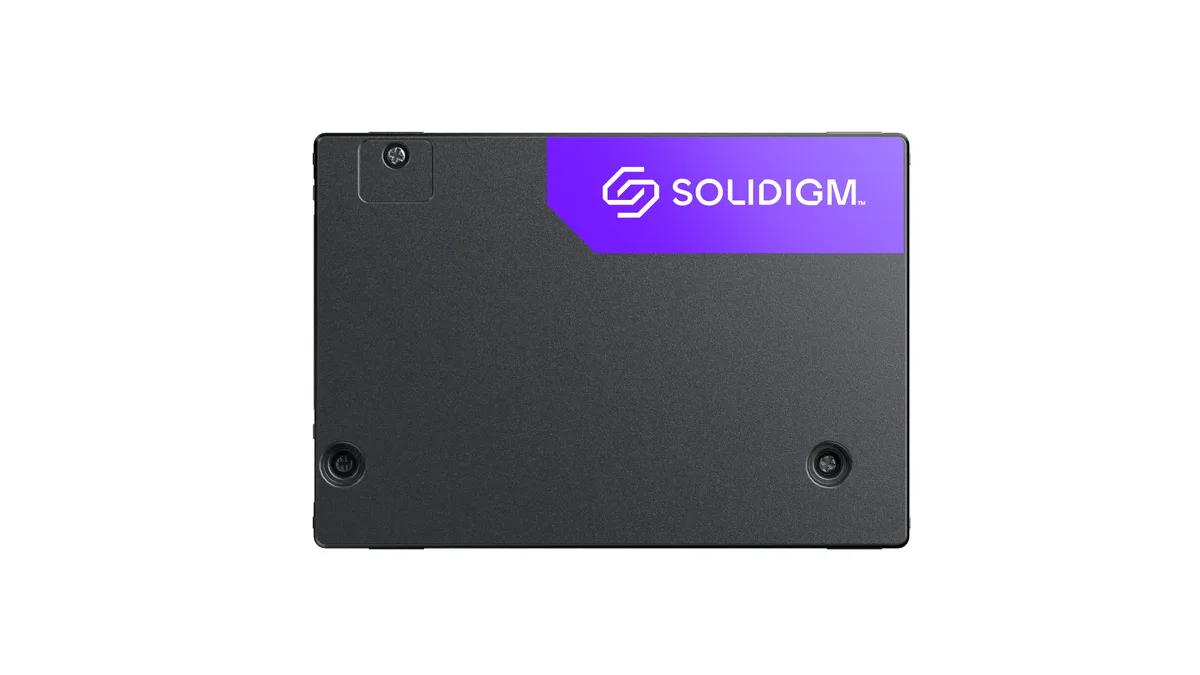

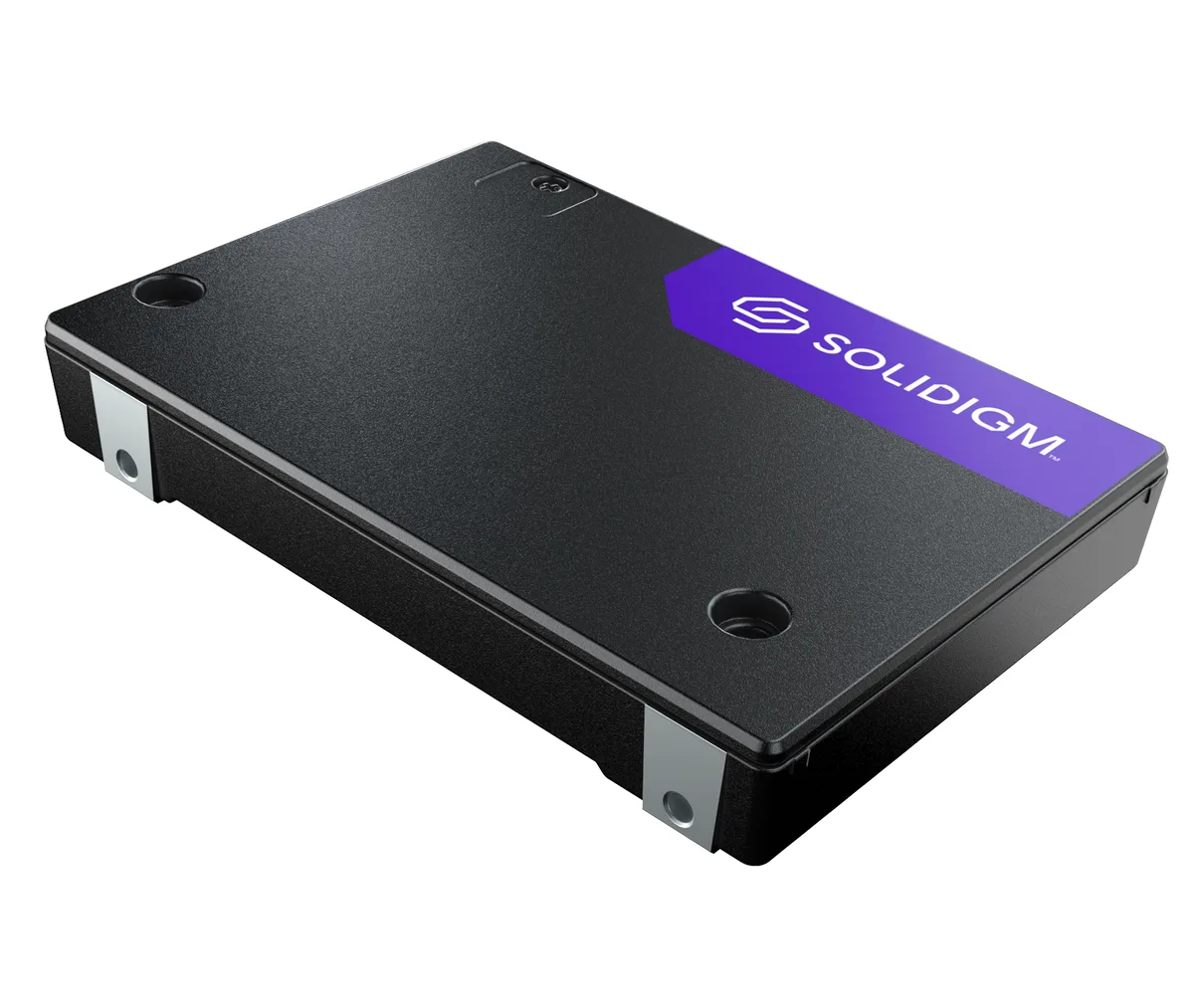

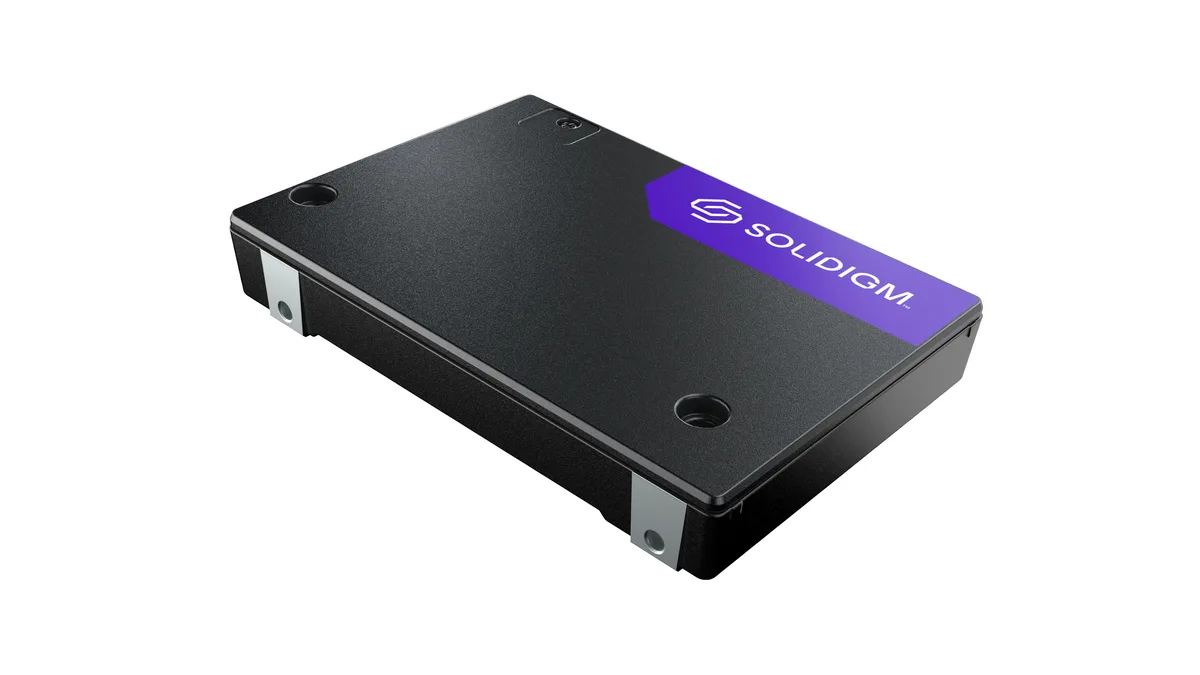

Rectangular metal U.2 15mm SSD with label showing Solidigm D7-PS1010 1.92TB

Solidigm

Solidigm SB5PH27X019TOF1 1.92TB U.2 15mm PCIe 5.0 enterprise SSD

SKU CH-WHDG-HSGCB MPN SB5PH27X019TOF1

Enterprise U.2 15mm SSD delivering 14500 MBps read and 4100 MBps write over PCIe 5.0 with 1 DWPD endurance and FIPS security

  • Form FactorU.2 15mm
  • Capacity1.92TB
  • Memory Components176L TLC 3D NAND
  • InterfacePCI-Express 5.0
  • Max Sequential ReadUp to 14500 MBps
  • Max Sequential WriteUp to 4100 MBps

Option 1.92TB U.2 FIPS

Les versions barrées existent, mais ne sont pas disponibles ici.

  • Up to 14500 MBps sequential read for rapid data access
  • 2750000 IOPS random read accelerates mixed workloads
  • PCI-Express 5.0 interface doubles bandwidth over previous standards
  • FIPS security validates encryption for regulated environments
  • 1 DWPD endurance with 28 PBW supports sustained enterprise writes

1.92TB U.2 enterprise SSD

The Solidigm D7-PS1010 is a 1.92TB U.2 15mm drive built on 176L TLC 3D NAND and a PCIe 5.0 x4 interface. It delivers up to 14500 MBps sequential read and 4100 MBps sequential write with 2750000 random read IOPS. Designed for data-centre workloads that demand consistent throughput and FIPS security.

Upgrade from PCIe 4.0 or lower-capacity U.2 drives

Replacing a PCIe 4.0 U.2 SSD or a smaller-capacity enterprise drive adds the bandwidth headroom of PCIe 5.0 and 1.92TB of usable space. The jump is worth it when mixed read and write queues regularly saturate the previous link or when endurance budgets require the 1 DWPD and 28 PBW rating.

Verify U.2 15mm bay and PCIe 5.0 host support

Confirm the server chassis provides a U.2 15mm bay with adequate airflow for the 23W active power envelope. The host backplane and CPU or chipset must expose a PCIe 5.0 x4 lane to the connector; otherwise the drive will negotiate a slower link and not reach rated performance.

Points forts

  • Up to 14500 MBps sequential read for rapid data access
  • 2750000 IOPS random read accelerates mixed workloads
  • PCI-Express 5.0 interface doubles bandwidth over previous standards
  • FIPS security validates encryption for regulated environments
  • 1 DWPD endurance with 28 PBW supports sustained enterprise writes

Caractéristiques

BrandSolidigm
ModelD7-PS1010
Part NumberSB5PH27X019TOF1
Form FactorU.2 15mm
Capacity1.92TB
Memory Components176L TLC 3D NAND
InterfacePCI-Express 5.0
Max Sequential ReadUp to 14500 MBps
Max Sequential WriteUp to 4100 MBps
4KB Random Read2750000 IOPS (4K Blocks)
4KB Random Write380000 IOPS (4K Blocks)
Endurance1 DWPD / 28 PBW
MTBF2,500,000 hours
SecurityFIPS
Power Consumption (Idle)5W
Power Consumption (Active)23W
Operating Temperature0°C to 77°C
Max Shock Resistance1,000 G (Max) at 0.5 msec
Max Vibration ResistanceOperating: 2.17 GRMS (5 - 700 Hz) Max
Non-Operating: 3.13 GRMS (5 - 800 Hz) Max
Weight120g +/- 10g
Poids d’expédition0.17 kg
Dimensions du colis140 × 110 × 17 mm

Autres versions de ce modèle

5 de plus dans cette gamme

Même famille, mémoire, ventirad ou fréquence différents — comparez avant de vous décider.

Questions sur cet article

Will the 15mm U.2 form factor fit my 2.5-inch drive bay?

The drive uses the standard U.2 15mm form factor. It fits any 2.5-inch bay that accepts 15mm height drives and provides a U.2 backplane connector.

What is the correct way to seat the PCIe 5.0 x4 edge connector during installation?

Align the drive with the U.2 backplane and press firmly until the connector clicks into place. The step often missed is verifying the retention latch engages fully to prevent PCIe 5.0 link errors.

How do I know when the 1.92TB TLC NAND is nearing its write endurance limit?

The drive is rated for 1 DWPD or 28 PBW total bytes written. Monitor the SMART attribute for percentage used or total host writes; replace before it reaches 100 percent.
