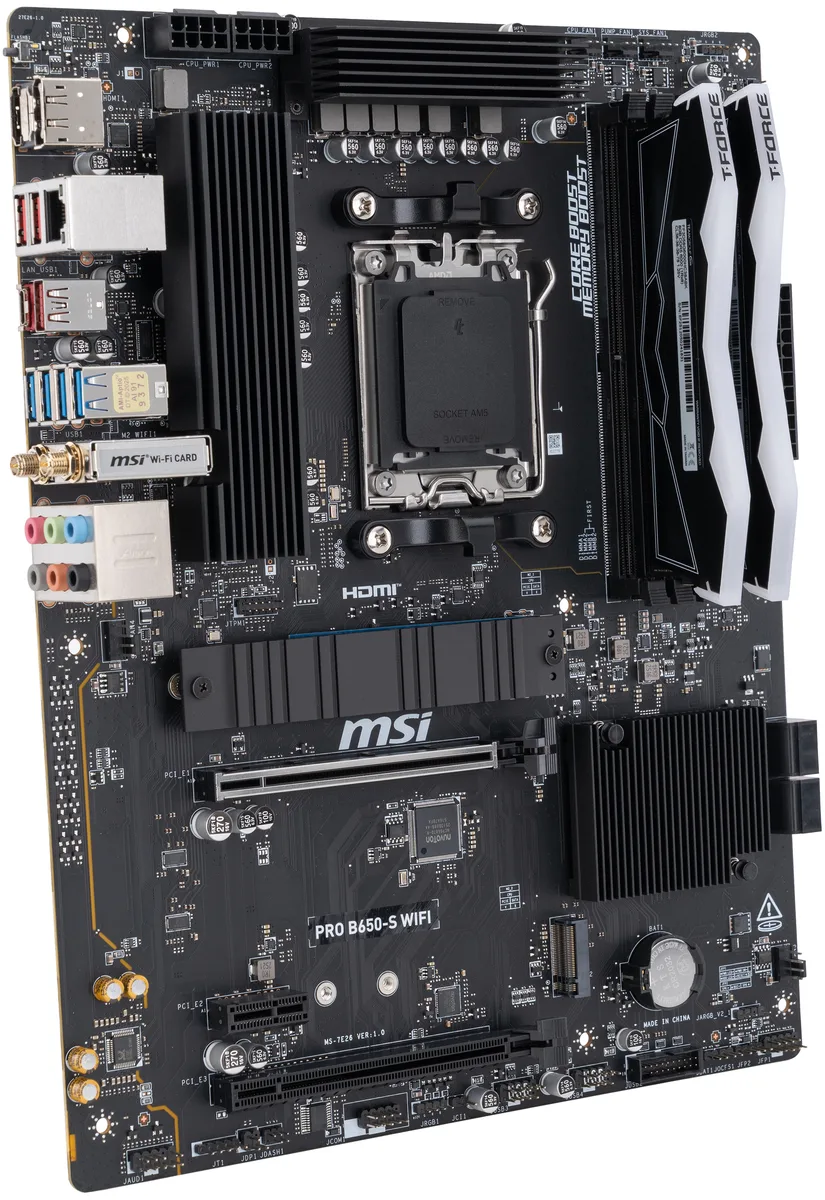

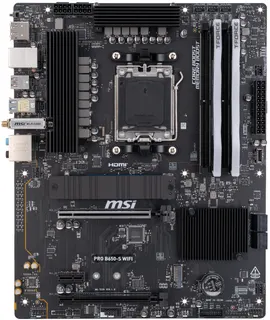

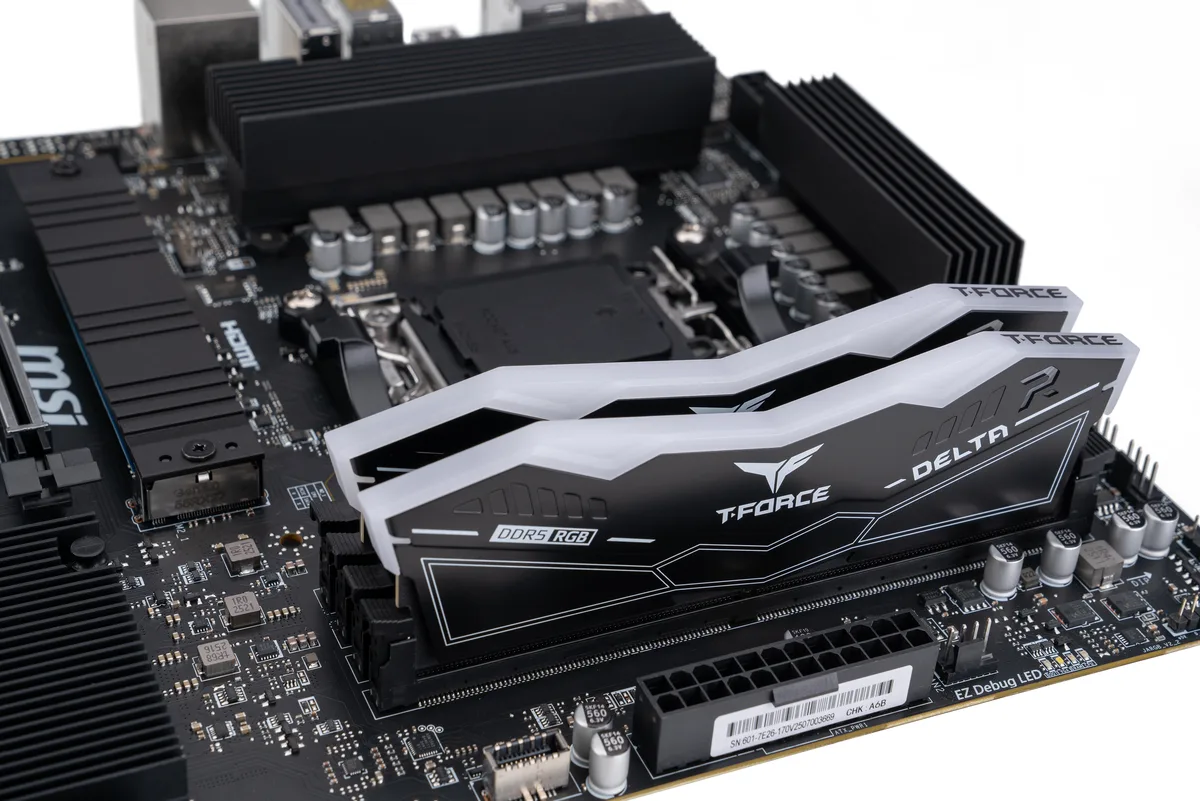

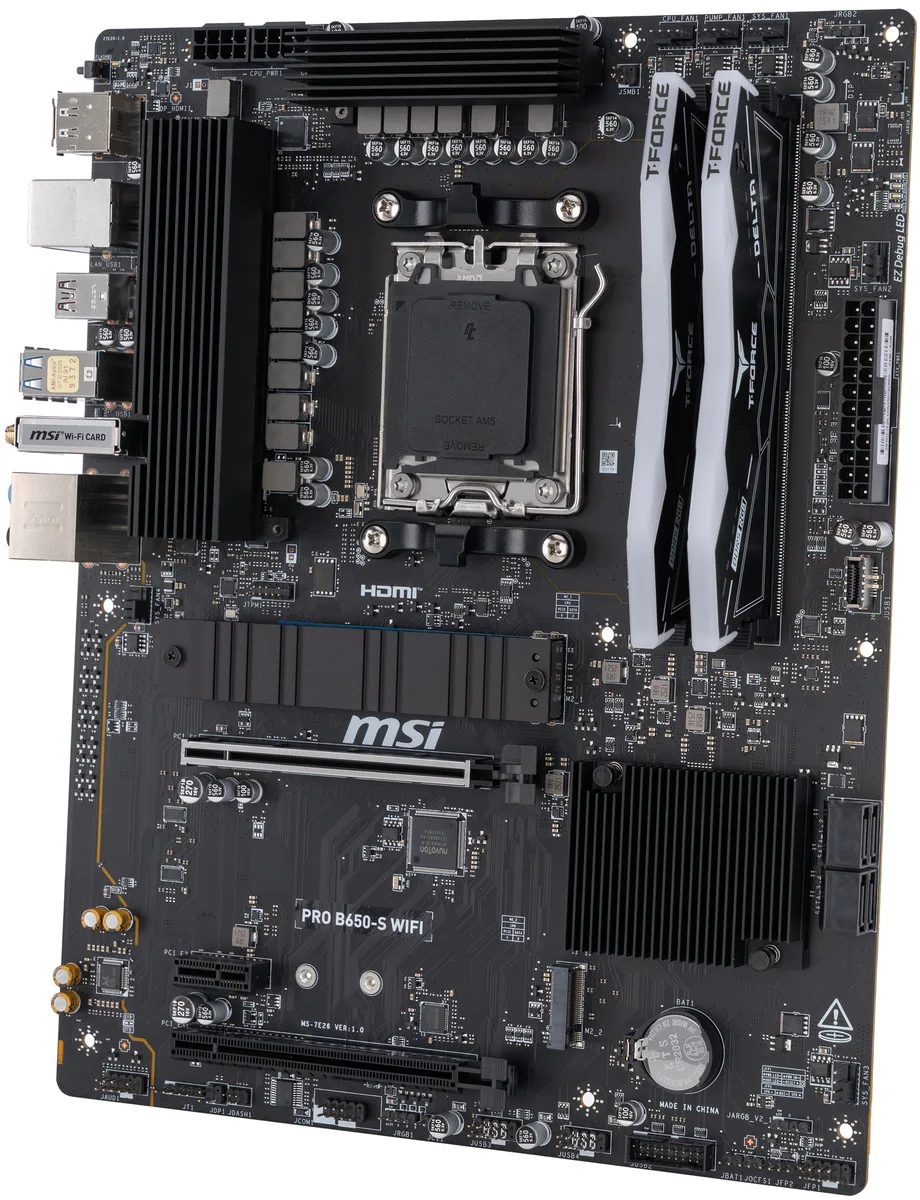

ATX motherboard with two black DDR5 modules and an M.2 SSD installed

ABS

ABS MOBO MEM SSD 001 embedded solution 16GB DDR5 500GB NVMe

SKU CH-5T9P-AVW6D MPN MOBO MEM SSD 001

Pre-installed 16 GB DDR5-6000 memory and 500 GB NVMe SSD on an AM5 motherboard supporting Ryzen 7000, 8000 and 9000 series processors

  • Combo TypeMotherboard / Memory / Storage Combo
  • MotherboardMSI PRO B650-S WIFI
  • MemoryTeam Group 16GB (2 x 8GB) DDR5 6000
  • StorageTeam Group MP44L M.2 2280 500GB SSD
  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processor

Option MSI PRO B650-S WiFi · TeamGroup 16GB DDR5 · Team Group M.2 SSD

  • Pre-installed memory and SSD reduce build steps
  • DDR5-6000 dual-channel kit delivers 16GB out of the box
  • PCIe 4.0 NVMe SSD provides 500GB fast storage
  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • Four DDR5 slots allow expansion up to 256GB

DIY Starter Kit with Pre-Installed Parts

This ABS Start Kit bundles an MSI PRO B650-S WiFi motherboard with 16GB of Team Group DDR5-6000 memory and a 500GB Team Group MP44L NVMe M.2 SSD. The components arrive already fitted to the board, reducing the number of steps during assembly. It targets builders who want a ready-to-go foundation for AMD Ryzen 9000, 8000 or 7000 series processors.

ATX Board with Dual M.2 and 2.5Gbps LAN

The motherboard uses the AM5 socket and provides four DDR5 slots supporting up to 256GB in dual-channel mode with AMD EXPO profiles. Two M.2 slots accept PCIe 4.0 x4 drives, while four SATA 6.0Gb/s ports handle additional storage. A Realtek ALC897 codec delivers 7.1-channel audio and onboard LAN runs at 2.5Gbps. Expansion includes one PCIe 4.0 x16 slot, one PCIe 4.0 x4 slot and one PCIe 3.0 x1 slot.

Replaces Separate Motherboard Memory

Buyers who would otherwise source a board, a DDR5 kit and an M.2 drive individually receive all three in one package with the memory and SSD pre-installed. The jump is worthwhile when starting a new AM5 build and wanting fewer components to fit. It is not suited for builders who need more than 500GB of primary NVMe storage or who require additional pre-installed memory beyond the included 16GB.

Highlights

  • Pre-installed memory and SSD reduce build steps
  • DDR5-6000 dual-channel kit delivers 16GB out of the box
  • PCIe 4.0 NVMe SSD provides 500GB fast storage
  • AM5 socket supports Ryzen 7000, 8000 and 9000 series CPUs
  • Four DDR5 slots allow expansion up to 256GB

Specifications

BrandABS
ModelStart Kit
Combo TypeMotherboard / Memory / Storage Combo
MotherboardMSI PRO B650-S WIFI
MemoryTeam Group 16GB (2 x 8GB) DDR5 6000
StorageTeam Group MP44L M.2 2280 500GB SSD
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200
Maximum Memory Supported256GB
Memory Performance ProfileAMD EXPO
Channel SupportedDual Channel
Memory FeatureSupports non-ECC, un-buffered memory
PCI Express x16PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI Express x4PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.22 x M.2 (Support PCIe 4.0 x4)
SATA4 x SATA 6.0Gb/s
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN Speed2.5Gbps
Max LAN Speed2.5Gbps
Back I/O Ports1 x DisplayPort
1 x 2.5G LAN
3 x USB 3.2 Gen 2 10Gbps (Type-A)
4 x USB 3.2 Gen 1 5Gbps (Type-A)
2 x Wi-Fi / Bluetooth
6 x Audio connectors
1 x Flash BIOS Button
1 x HDMI
1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
Other Connectors1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
4 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
2 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Shipping weight1.54 kg
Package size351 × 274 × 69 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the motherboard use PCIe 4.0 x4 for the M.2 slots?

Both M.2 slots support PCIe 4.0 x4, giving up to four lanes of Gen 4 bandwidth for each NVMe drive.

What clearance is needed for the pre-installed DDR5 modules and M.2 SSD?

The 288-pin DDR5 DIMMs sit in the four motherboard slots, and the MP44L uses the 2280 M.2 form factor, so a standard ATX case with CPU-cooler clearance is sufficient.

How do I enable the 6000 MT/s speed on the installed memory?

Enter the BIOS and enable the AMD EXPO profile; the kit will then run at its rated 6000 MT/s without manual timing changes.
