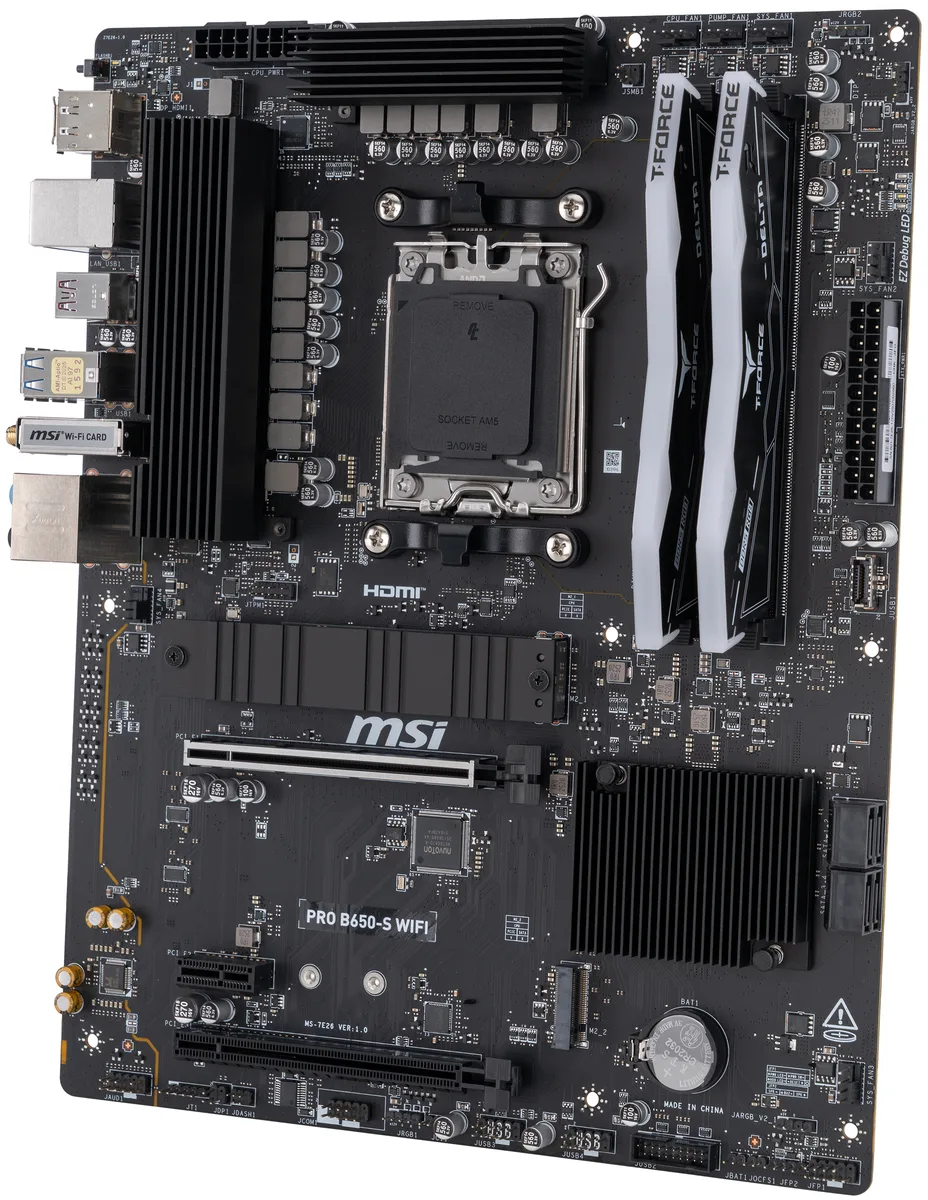

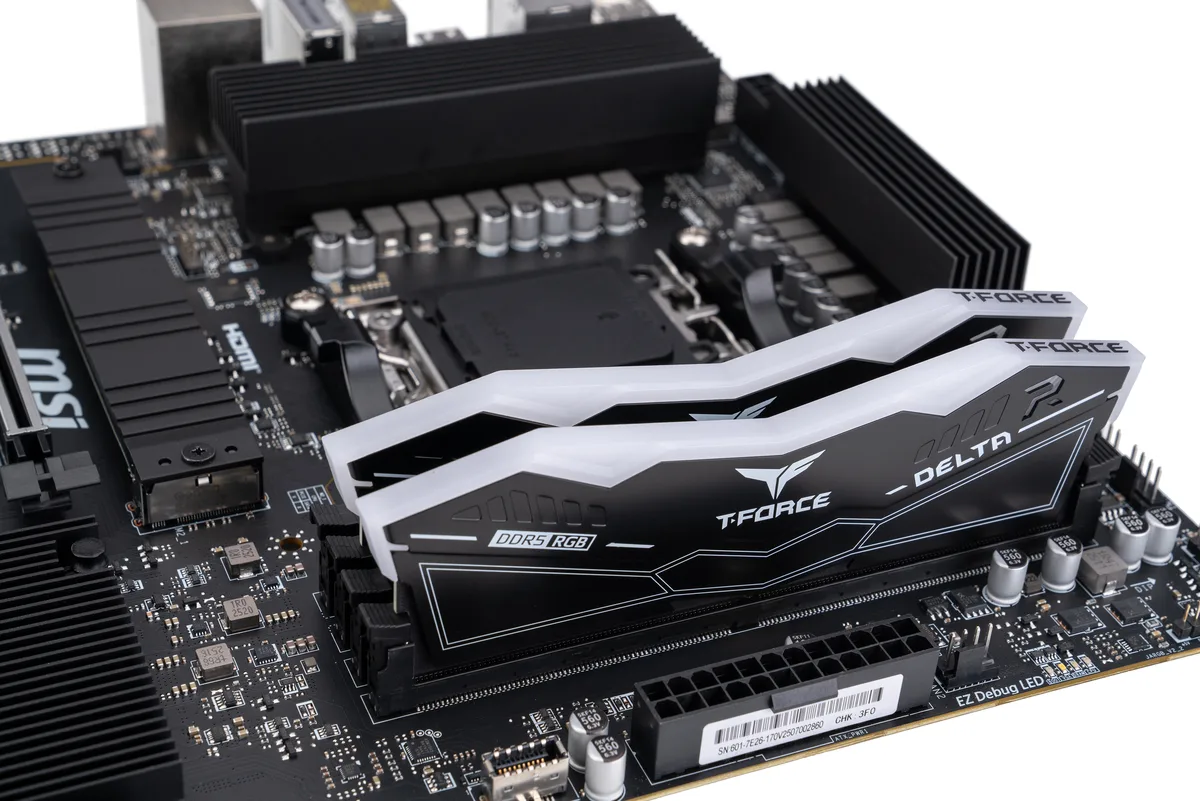

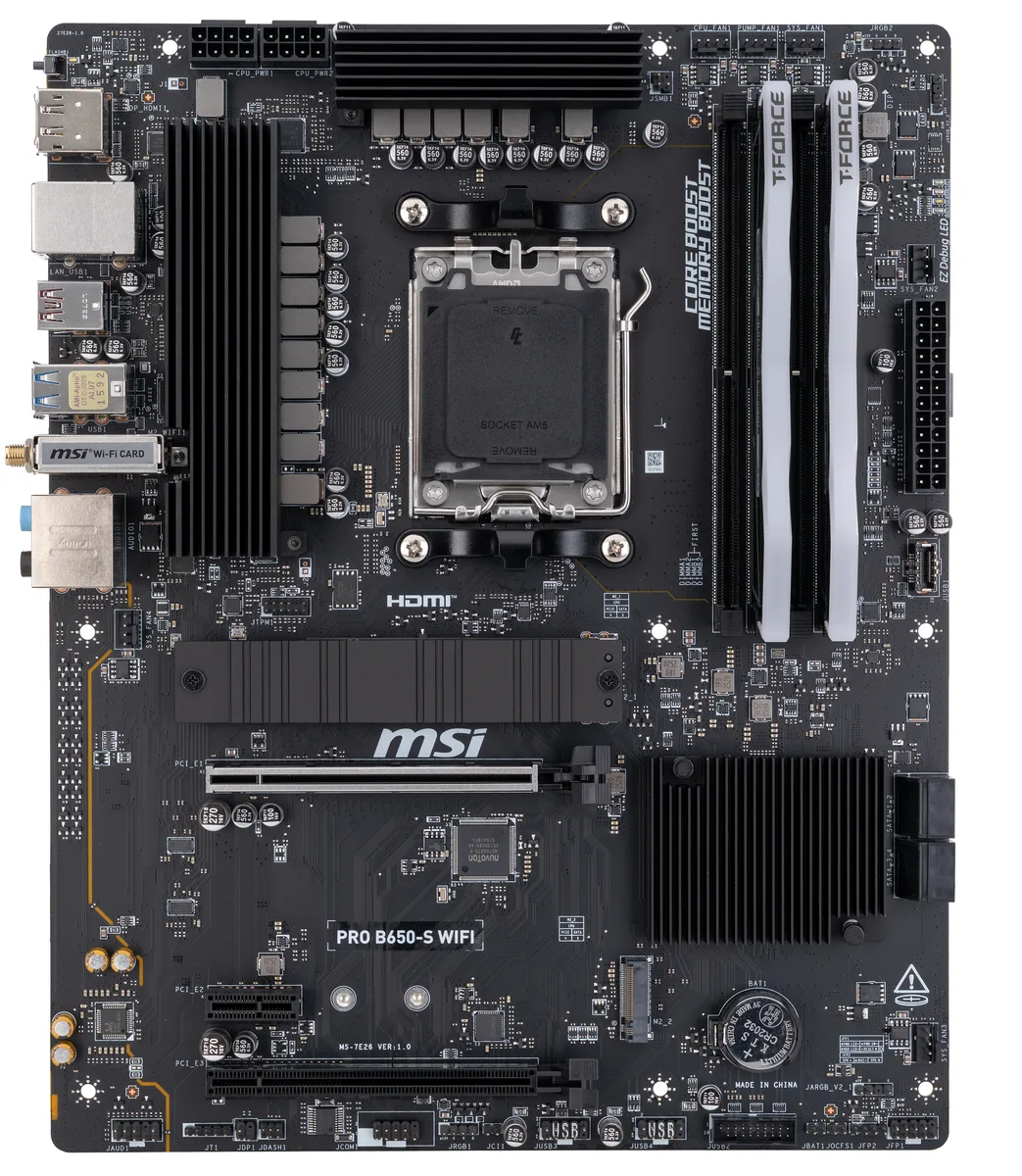

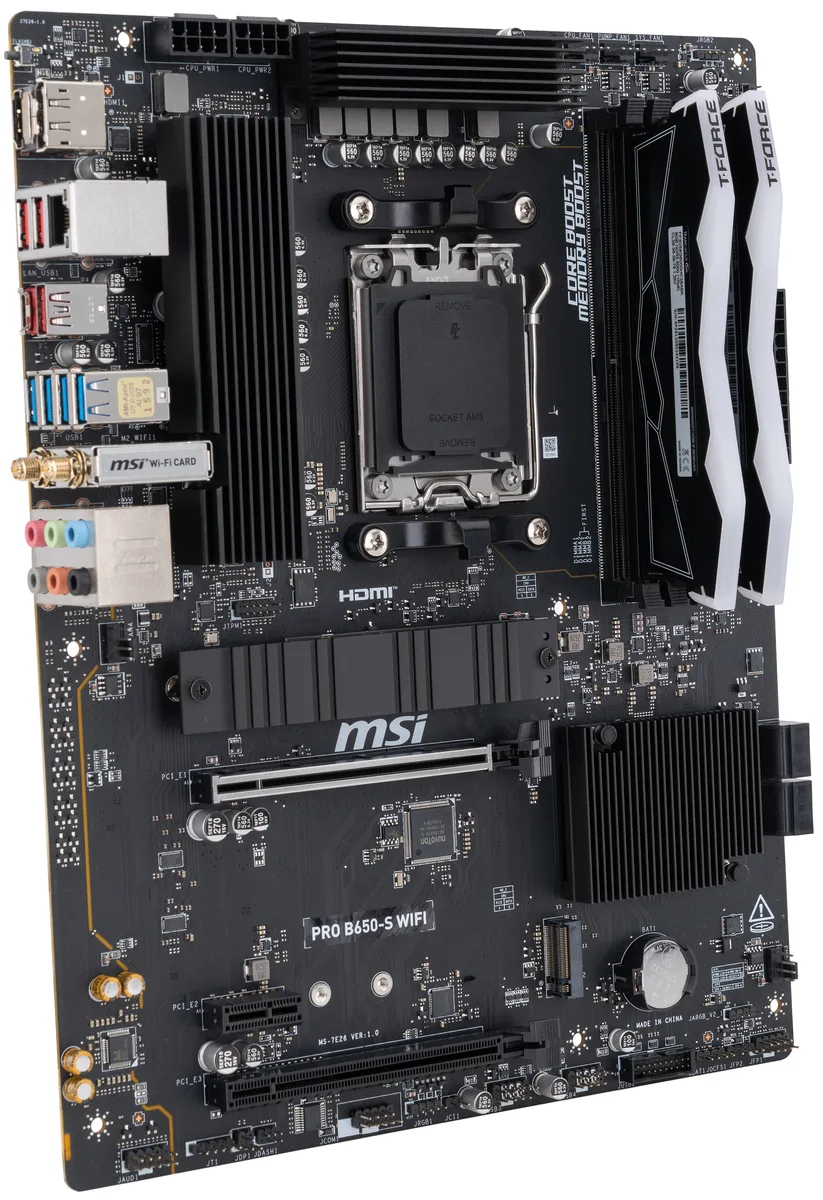

ATX motherboard with two DDR5 memory modules and an M.2 SSD installed

ABS

ABS MOBO MEM SSD 002 embedded solution B650-S 16GB DDR5 1TB NVME

SKU CH-QGCH-E96TQ MPN MOBO MEM SSD 002

Pre-installed DDR5 memory and NVME SSD on an AM5 motherboard supporting Ryzen 9000, 8000 and 7000 series processors

  • Combo TypeMotherboard / Memory / Storage Combo
  • MotherboardMSI PRO B650-S WIFI
  • MemoryTeam Group 16GB (2 x 8GB) DDR5 6000
  • StorageKingSpec XG 7000 1TB M.2 2280 PCIe Gen 4.0x4 NVME SSD
  • CPU Socket TypeAM5
  • CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processor

Option MSI PRO B650-S WiFi · TeamGroup 16GB DDR5 · KingSpec M.2 SSD

  • Ready for AMD Ryzen 9000, 8000 and 7000 series CPUs via AM5 socket
  • Pre-installed 16GB DDR5-6000 kit with AMD EXPO support and four slots for 256GB max
  • KingSpec XG 7000 1TB NVME SSD delivers 7400MB/s read and 6600MB/s write
  • Motherboard, memory and storage already fitted so fewer parts to handle during assembly
  • Dual PCIe 4.0 M.2 slots plus four SATA 6.0Gb/s ports for flexible storage expansion

Starter kit for AM5 builds

This ABS Start Kit bundles an MSI PRO B650-S WIFI motherboard with Team Group 16GB DDR5-6000 memory and a KingSpec XG 7000 1TB NVME SSD. Memory and storage come pre-installed, so fewer parts need fitting during assembly. The board supports AMD Ryzen 9000, 8000 and 7000 series desktop processors in the AM5 socket. It suits gaming PCs, home office systems and student workstations.

Sustained throughput with Gen 4.0

The KingSpec SSD delivers sequential read speeds up to 7400MB/s and write speeds up to 6600MB/s over a PCIe 4.0x4 link. Dual-channel DDR5-6000 memory provides high bandwidth for multi-threaded workloads and gaming. Four DDR5 slots allow expansion up to 256GB using non-ECC un-buffered modules. AMD EXPO profiles simplify memory overclocking for stable long sessions.

ATX layout with dual M.2 and four SATA

The ATX motherboard includes two M.2 2280 slots, both wired for PCIe 4.0x4, and four SATA 6.0Gb/s ports for additional drives. Expansion slots comprise one PCIe 4.0 x16, one PCIe 4.0 x4 and one PCIe 3.0 x1, all from the CPU or chipset. Onboard audio uses the Realtek ALC897 codec. Builders who need more than two M.2 drives or a second graphics card should plan around the available lanes.

Highlights

  • Ready for AMD Ryzen 9000, 8000 and 7000 series CPUs via AM5 socket
  • Pre-installed 16GB DDR5-6000 kit with AMD EXPO support and four slots for 256GB max
  • KingSpec XG 7000 1TB NVME SSD delivers 7400MB/s read and 6600MB/s write
  • Motherboard, memory and storage already fitted so fewer parts to handle during assembly
  • Dual PCIe 4.0 M.2 slots plus four SATA 6.0Gb/s ports for flexible storage expansion

Specifications

BrandABS
ModelStart Kit
Combo TypeMotherboard / Memory / Storage Combo
MotherboardMSI PRO B650-S WIFI
MemoryTeam Group 16GB (2 x 8GB) DDR5 6000
StorageKingSpec XG 7000 1TB M.2 2280 PCIe Gen 4.0x4 NVME SSD
CPU Socket TypeAM5
CPU TypeSupports AMD Ryzen 9000/ 8000/ 7000 Series Desktop Processors
Number of Memory Slots4x288pin (DDR5)
Memory StandardDDR5 4800 / DDR5 5000 / DDR5 5200 / DDR5 5400 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200
Maximum Memory Supported256GB
Memory Performance ProfileAMD EXPO
Channel SupportedDual Channel
Memory FeatureSupports non-ECC, un-buffered memory
PCI Express x16PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI Express x4PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI Express x1PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
M.22 x M.2 (Support PCIe 4.0 x4)
SATA4 x SATA 6.0Gb/s
Audio ChipsetRealtek ALC897
Audio Channels7.1 Channels
LAN Speed2.5Gbps
Max LAN Speed2.5Gbps
Back I/O Ports1 x DisplayPort
1 x 2.5G LAN
3 x USB 3.2 Gen 2 10Gbps (Type-A)
4 x USB 3.2 Gen 1 5Gbps (Type-A)
2 x Wi-Fi / Bluetooth
6 x Audio connectors
1 x Flash BIOS Button
1 x HDMI
1 x USB 3.2 Gen 2x2 20Gbps (Type-C)
Other Connectors1 x Power Connector(ATX_PWR)
2 x Power Connector(CPU_PWR)
1 x CPU Fan
1 x Pump Fan
4 x System Fan
2 x Front Panel (JFP)
1 x Chassis Intrusion (JCI)
1 x Front Audio (JAUD)
1 x Com Port (JCOM)
1 x Tuning Controller connector(JDASH)
2 x Addressable V2 RGB LED connector (JARGB_V2)
2 x RGB LED connector(JRGB)
1 x TPM pin header(Support TPM 2.0)
4 x USB 2.0 ports
2 x USB 5Gbps Type A ports
1 x USB 10Gbps Type C ports
Form FactorATX
Dimensions (W x L)12.0" x 9.6"
Shipping weight1.54 kg
Package size351 × 274 × 66 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

How loud does the MSI PRO B650-S WiFi motherboard run with the Team Group DDR5-6000 and KingSpec XG 7000 SSD installed all day?

The board uses passive chipset cooling and the SSD has no moving parts, so system noise depends on the CPU cooler and case fans you choose.

Which AM5 processor do I need to add for this starter kit to boot?

You must supply any AMD Ryzen 9000, 8000 or 7000 series desktop CPU; the socket is AM5 and memory and storage are already fitted.

Can I keep my SATA 6.0Gb/s hard drives and PCIe 3.0 x1 cards when building with this B650-S board?

Yes, the motherboard provides four SATA 6.0Gb/s ports and one PCIe 3.0 x1 slot from the chipset for older drives and add-in cards.
