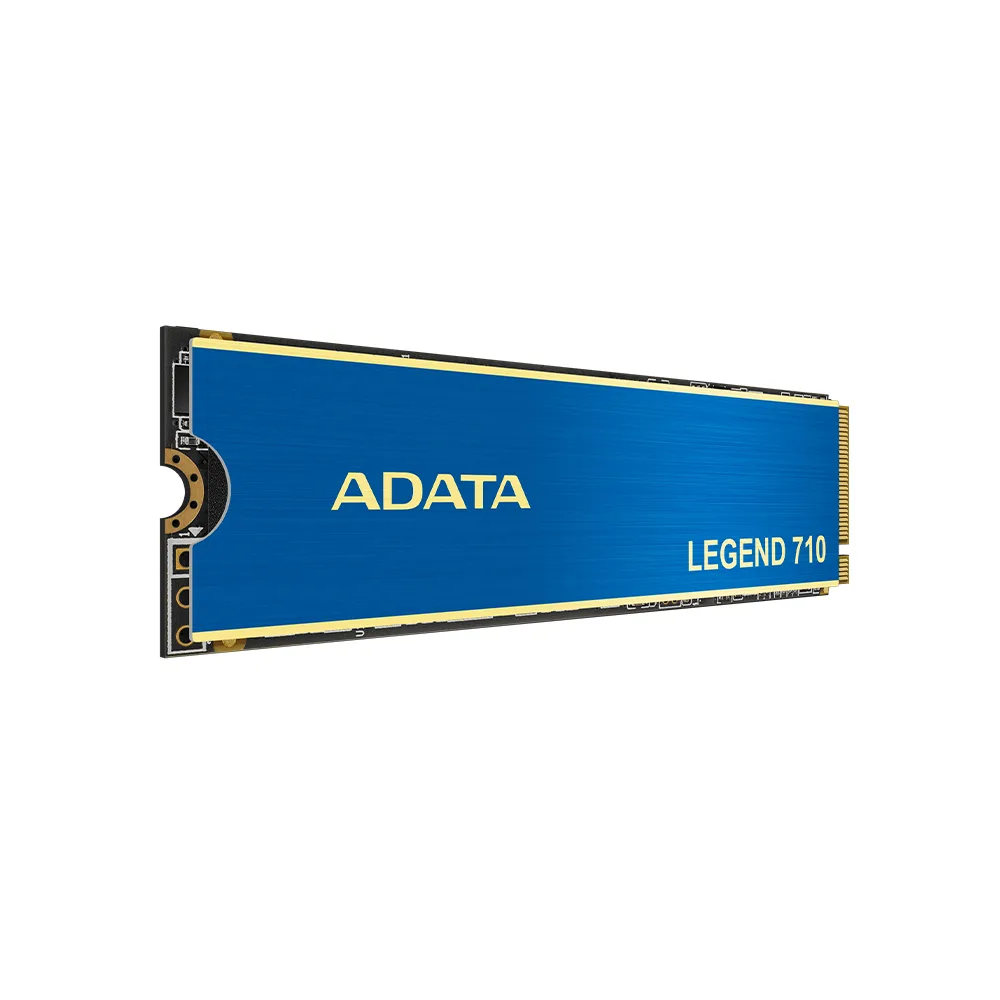

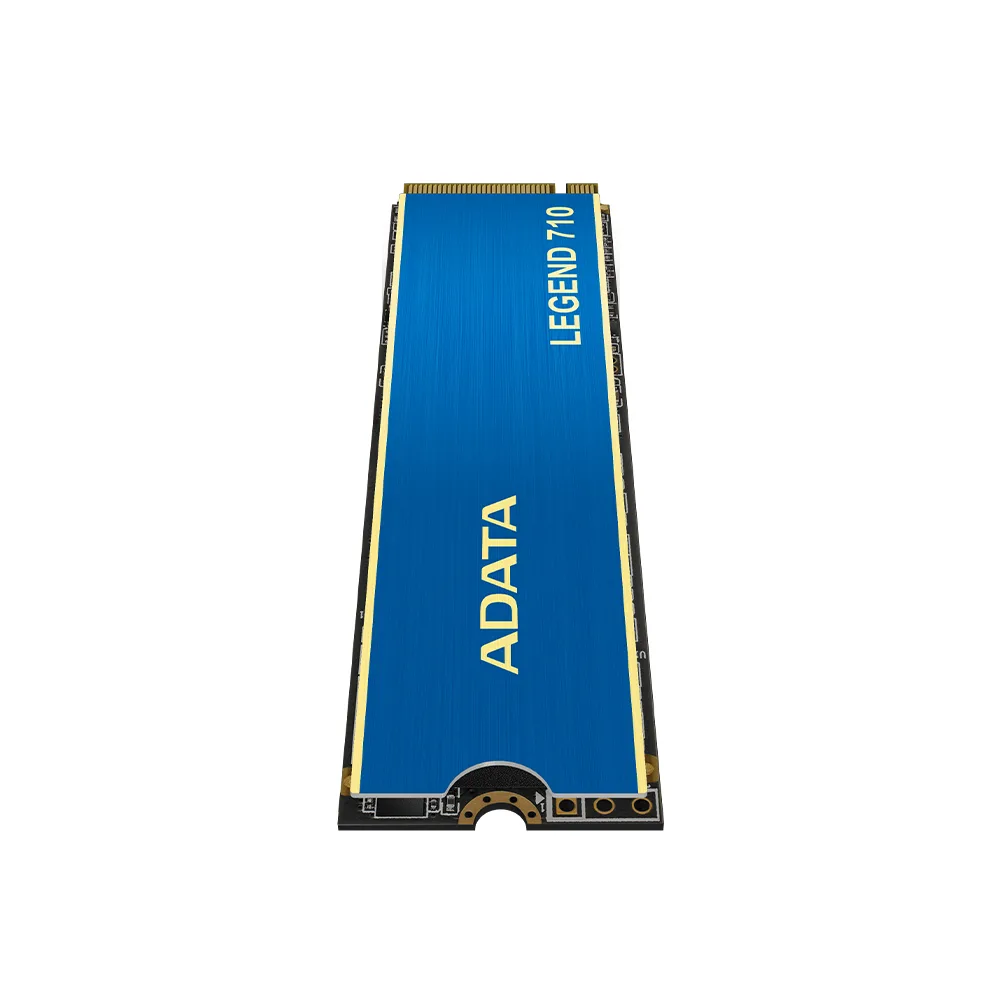

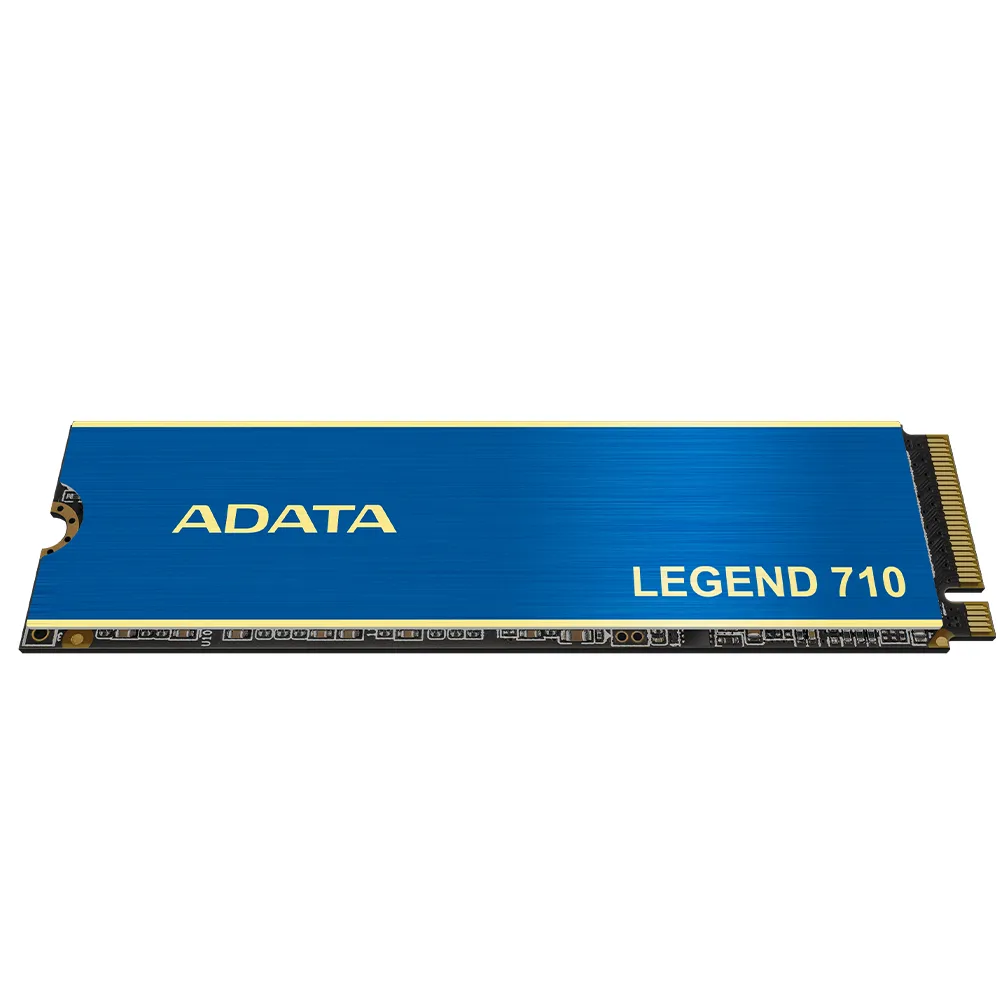

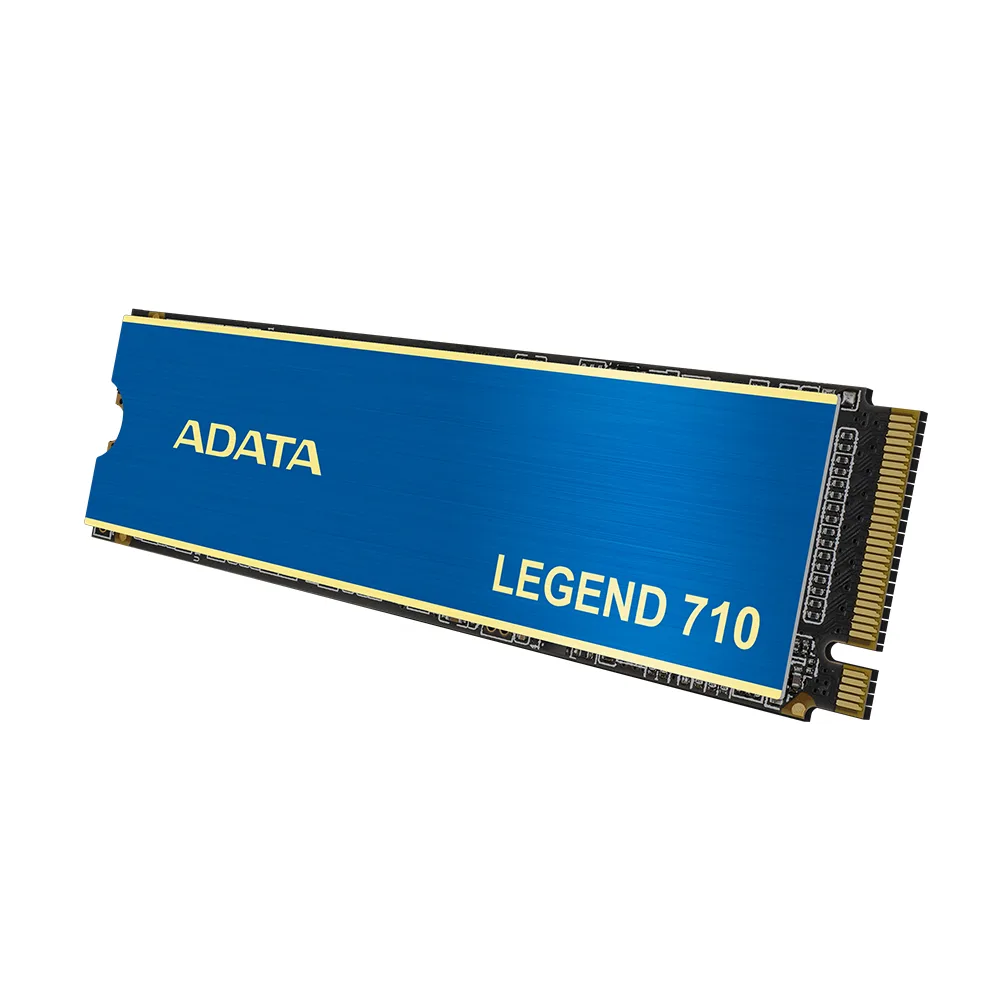

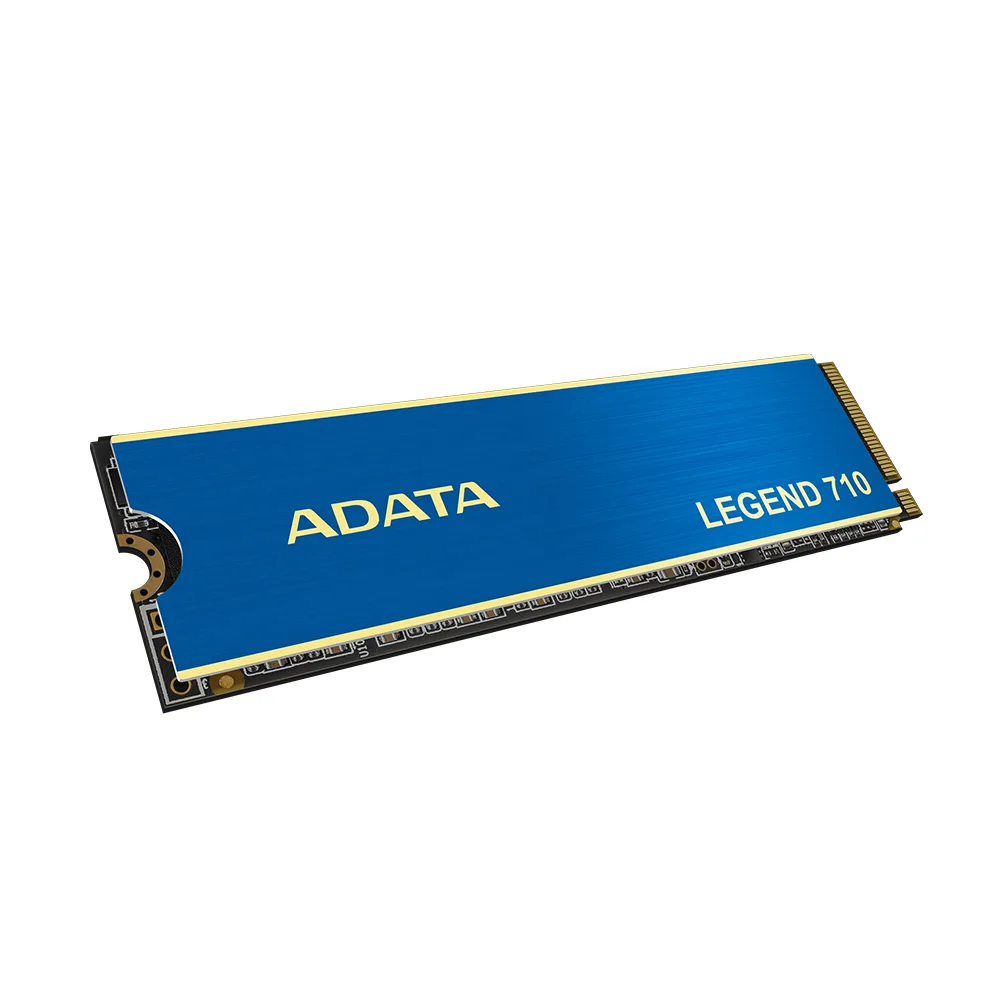

ADATA LEGEND 710 M.2 2280 internal SSD with silver heatsink

ADATA

ADATA LEGEND 710 512GB M.2 2280 internal SSD ALEG-710-512GCS

SKU CH-GRC9-Q0CNJ MPN ALEG-710-512GCS

A 512GB PCIe 3.0 x4 internal SSD with 2400 MBps read, 1800 MBps write, 130TB endurance and integrated heatsink

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity512GB
  • Memory Components3D NAND
  • InterfacePCI-Express 3.0 x4

Capacity 512GB

Model LEGEND 710

  • Up to 2400 MB/s sequential read speeds data faster
  • Up to 1800 MB/s sequential write speeds files quicker
  • 130 TBW endurance rating protects data longer
  • Built-in heatsink lowers drive temperature by 15 percent
  • NVMe 1.4 protocol improves command efficiency

ADATA LEGEND 710 512GB NVMe SSD

The ADATA LEGEND 710 is a 512GB internal solid-state drive built for consumer PCs and laptops. It uses an M.2 2280 form factor and a Realtek RTS5766DL controller with 3D NAND flash. The drive targets everyday workloads, gaming, and content creation where consistent speed matters.

PCI-Express 3.0 x4 practical limits

The drive connects through a PCI-Express 3.0 x4 link using the NVMe 1.4 protocol. Sequential reads reach up to 2400 MBps and writes up to 1800 MBps. Random 4KB performance hits 90000 IOPS read and 150000 IOPS write. The 130TB endurance rating and 1500000-hour MTBF reflect the limits of this interface generation.

Heatsink build and daily implications

An integrated heatsink cuts operating temperatures by up to 15 percent under sustained loads. The controller relies on Host Memory Buffer instead of onboard DRAM, keeping the PCB slim for tight M.2 slots. AES 256-bit encryption and LDPC error correction protect data without extra software steps.

Highlights

  • Up to 2400 MB/s sequential read speeds data faster
  • Up to 1800 MB/s sequential write speeds files quicker
  • 130 TBW endurance rating protects data longer
  • Built-in heatsink lowers drive temperature by 15 percent
  • NVMe 1.4 protocol improves command efficiency

Specifications

BrandADATA
SeriesLEGEND 710
ModelALEG-710-512GCS
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity512GB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4
ProtocolNVMe 1.4
ControllerRealtek RTS5766DL
CacheNo DRAM (HMB)
Max Sequential ReadUp to 2400 MBps
Max Sequential WriteUp to 1800 MBps
4KB Random ReadUp to 90,000 IOPS
4KB Random WriteUp to 150,000 IOPS
Terabytes Written (TBW)130TB
MTBF1,500,000 hours
HeatSinkwith HeatSink
Features* Ultra-fast PCIe Gen3 x4 interface
* R/W speed up to 2,400/1,800MB/s
* NVMe 1.4 support
* Heat sink reduces temp. by up to 15%
* Supports Host Memory Buffer(HMB)
* Advanced hardware LDPC ECC Technology
* AES 256-bit encryption support
* Great upgrade option for creators
* For aspiring or amateur content creators looking to edit photos/videos, illustrate, and other tasks.
* Free software: SSD Toolbox and Migration Utility
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height3.13mm
Width80mm
Depth22mm
Shipping weight0.05 kg
Package size132 × 105 × 17 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Is the 512GB capacity the only option for the ADATA LEGEND 710 series?

The LEGEND 710 series is available in multiple capacities beyond the 512GB model shown here.

What does the 2400 MBps sequential read figure mean for daily workloads?

The 2400 MBps read speed allows operating systems and large applications to load quickly, while the 1800 MBps write speed handles file saves and game installs efficiently.

How does the PCIe 3.0 x4 interface affect the drive's maximum performance?

The PCIe 3.0 x4 link supports the rated 2400 MBps read and 1800 MBps write speeds, while NVMe 1.4 protocol and HMB maintain low latency for random workloads up to 90000 read and 150000 write IOPS.
