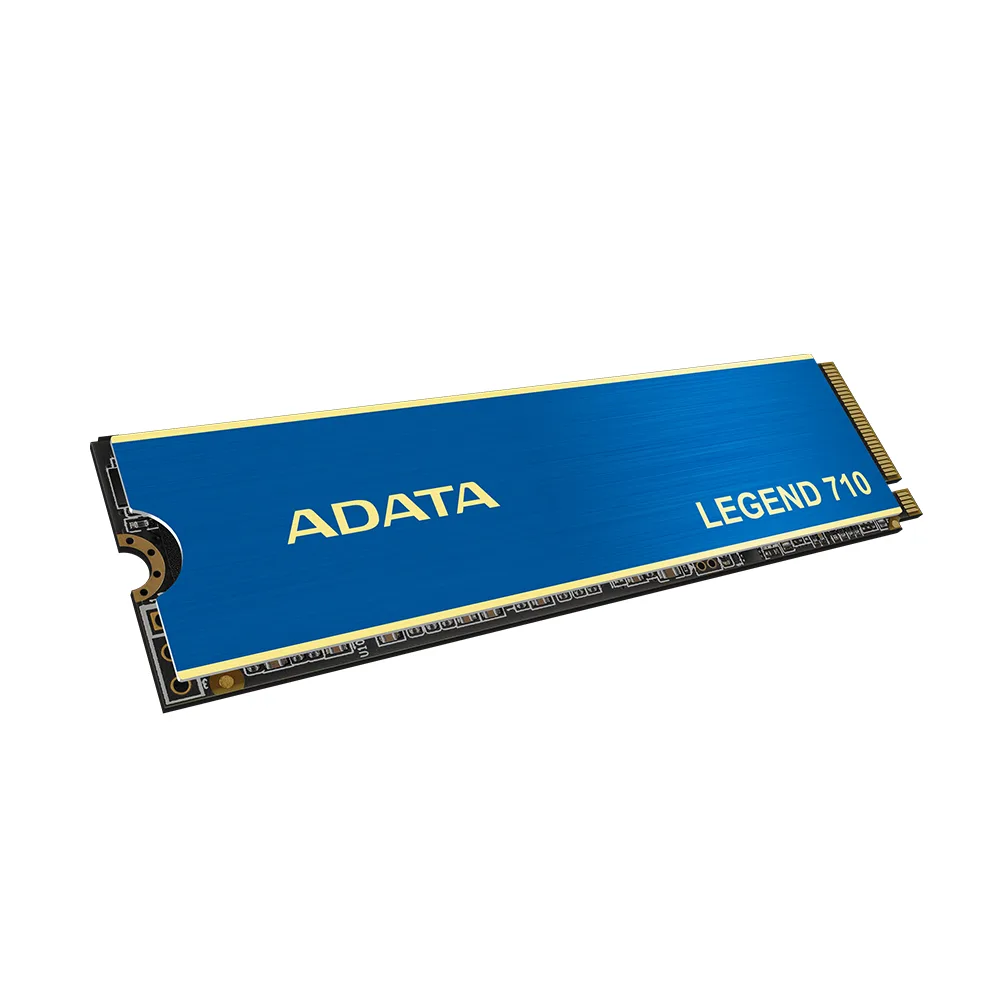

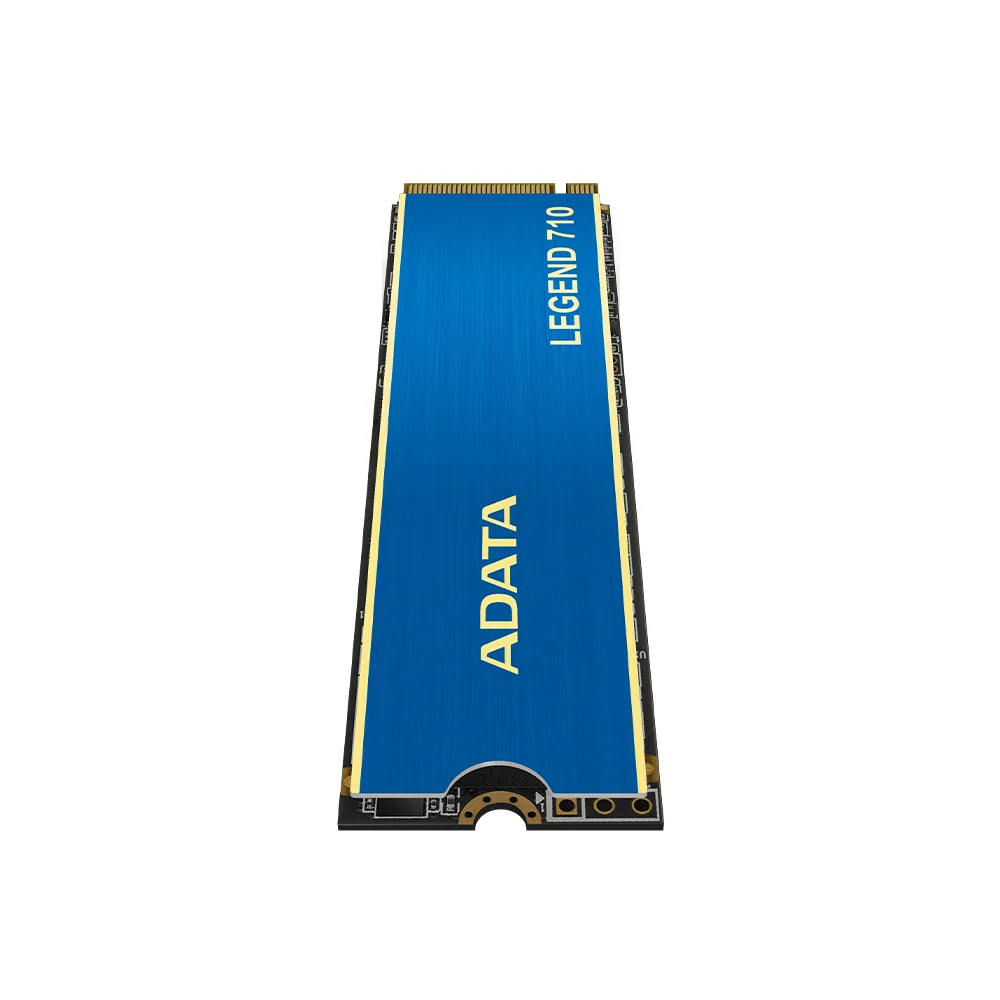

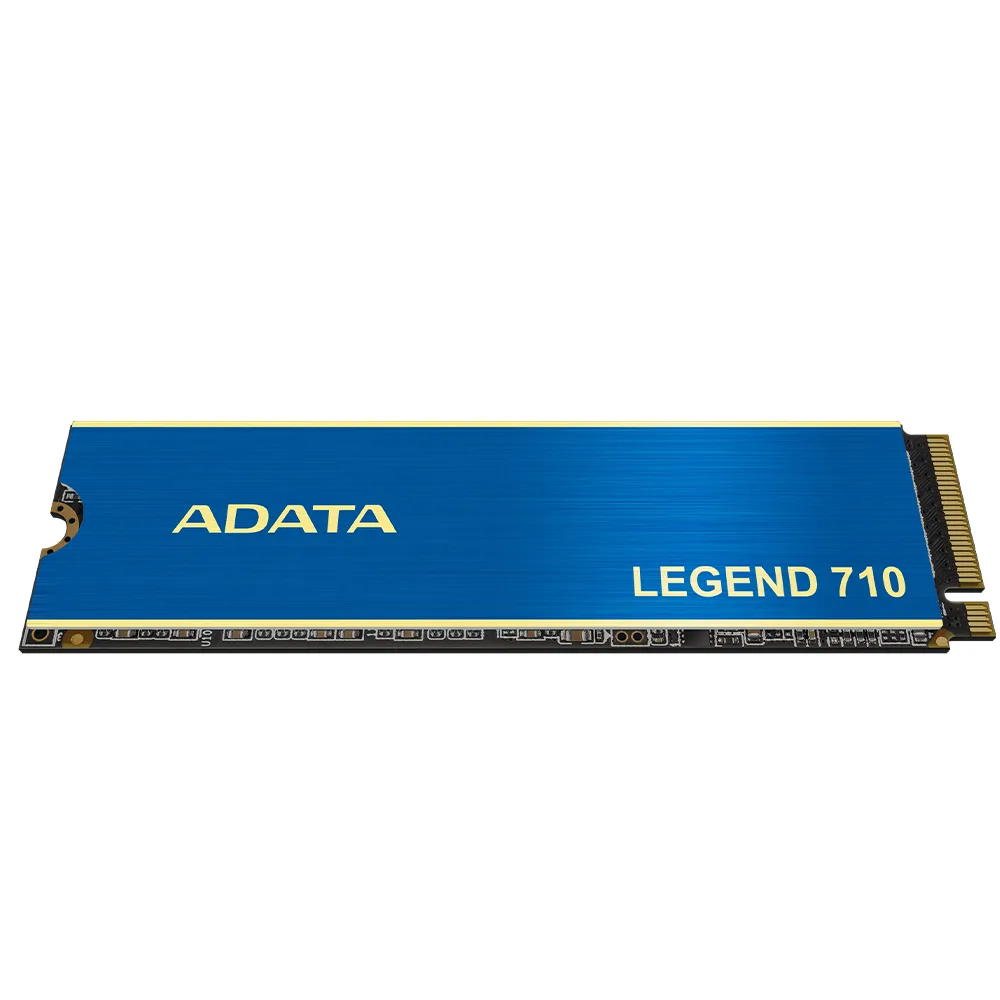

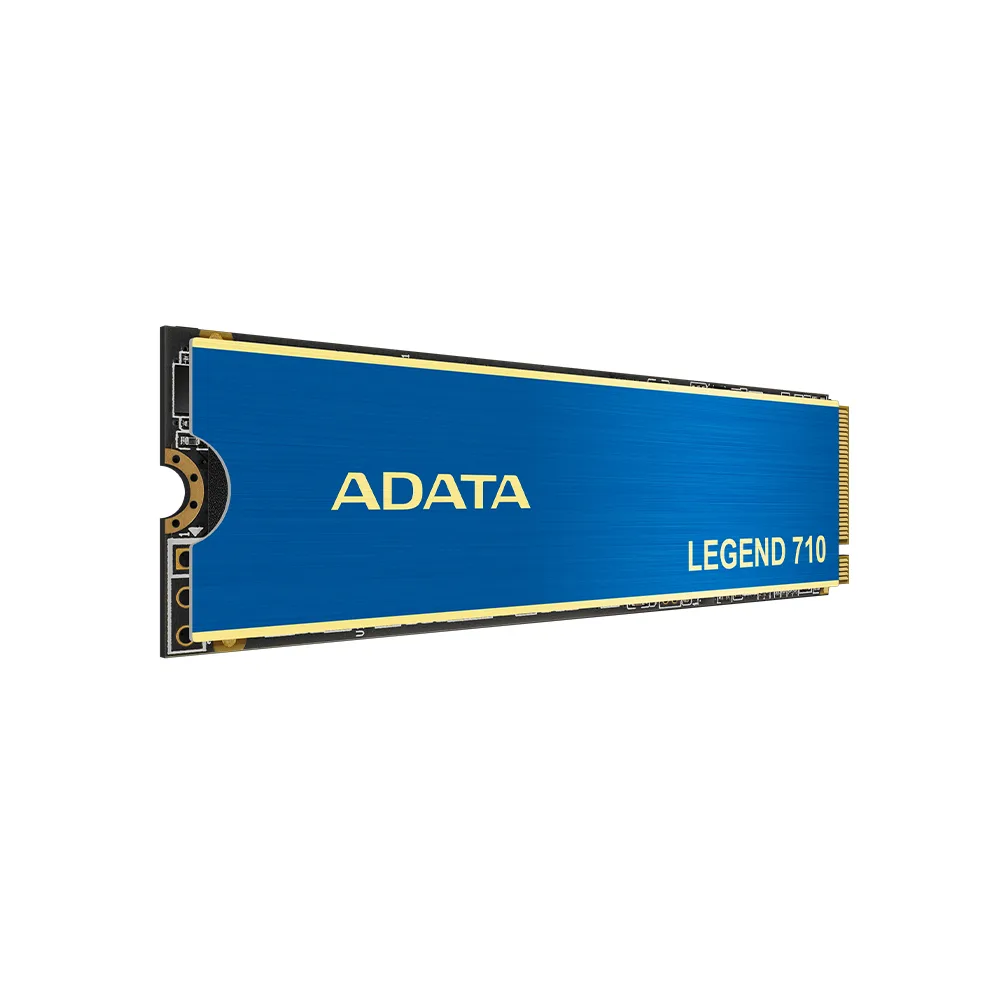

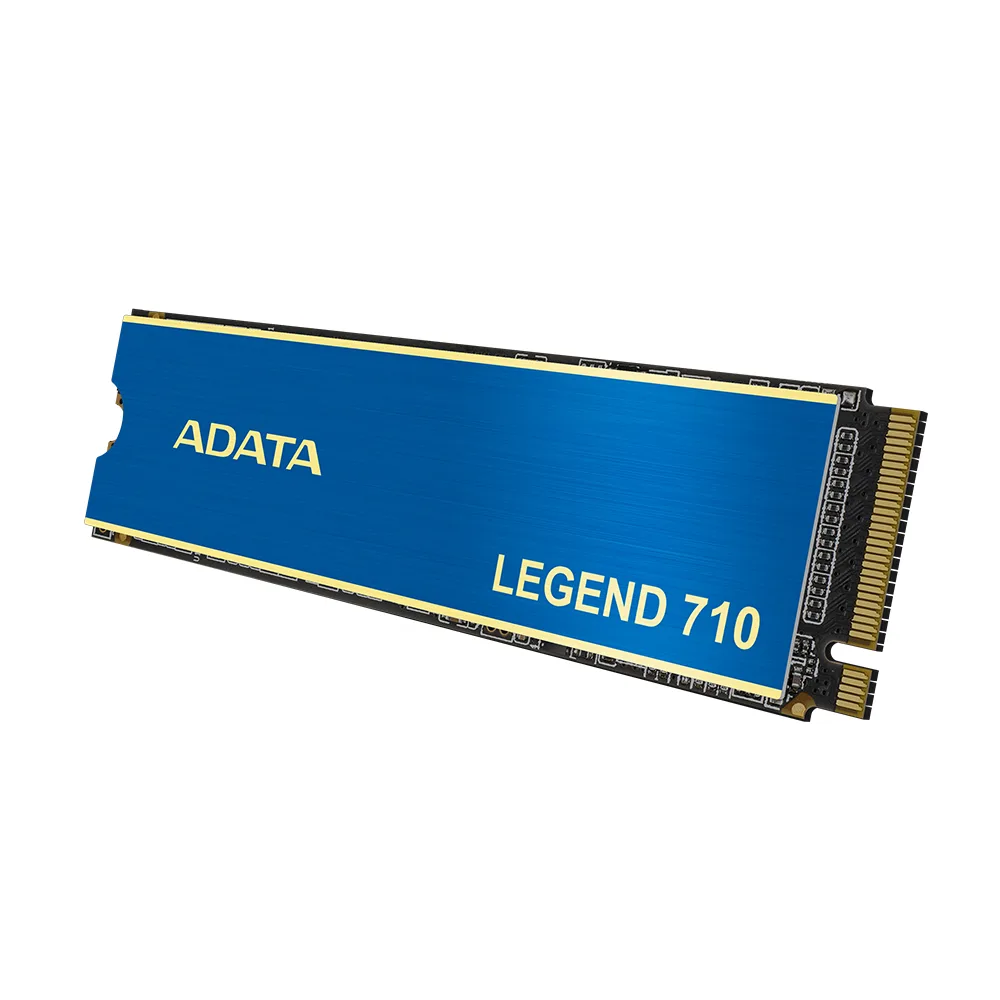

Rectangular M.2 2280 SSD with silver heatsink and ADATA LEGEND 710 branding

ADATA

ADATA LEGEND 710 ALEG-710-2TCS 2TB M.2 2280 internal SSD

SKU CH-M6D1-1RACN MPN ALEG-710-2TCS

2TB M.2 2280 NVMe SSD with PCIe 3.0 x4 interface, up to 2400 MB/s read and 1800 MB/s write, integrated heatsink lowering temperature by up to 15%, 520 TBW endurance and 1.5 million hour MTBF

  • Device TypeInternal Solid State Drive (SSD)
  • Used ForConsumer
  • Form FactorM.2 2280
  • Capacity2TB
  • Memory Components3D NAND
  • InterfacePCI-Express 3.0 x4

Capacity 2TB

Model LEGEND 710

  • 2TB capacity stores large game libraries and media
  • PCIe 3.0 x4 interface delivers up to 2400 MB/s read speed
  • NVMe 1.4 protocol enables up to 1800 MB/s write performance
  • Integrated heatsink lowers operating temperature by up to 15%
  • 520 TBW endurance rating backs long-term reliability

Capacity and audience

The ADATA LEGEND 710 provides 2TB of storage in an M.2 2280 form factor. It connects through a PCIe 3.0 x4 interface and uses 3D NAND flash with an NVMe 1.4 controller. The drive is aimed at consumers who need reliable capacity for everyday workloads.

Sustained load behaviour

A built-in heatsink lowers operating temperature by up to 15 percent during extended transfers. The Realtek RTS5766DL controller manages wear through LDPC error correction and Host Memory Buffer support. Endurance is rated at 520 TBW with a 1,500,000 hour MTBF figure.

Build and daily use

The heatsink adds thermal headroom without requiring extra case clearance. AES 256-bit encryption protects data at rest. Sequential reads reach 2400 MBps and writes reach 1800 MBps, while random performance hits 200,000 read and 150,000 write IOPS.

Highlights

  • 2TB capacity stores large game libraries and media
  • PCIe 3.0 x4 interface delivers up to 2400 MB/s read speed
  • NVMe 1.4 protocol enables up to 1800 MB/s write performance
  • Integrated heatsink lowers operating temperature by up to 15%
  • 520 TBW endurance rating backs long-term reliability

Specifications

BrandADATA
SeriesLEGEND 710
ModelALEG-710-2TCS
Device TypeInternal Solid State Drive (SSD)
Used ForConsumer
Form FactorM.2 2280
Capacity2TB
Memory Components3D NAND
InterfacePCI-Express 3.0 x4
ProtocolNVMe 1.4
ControllerRealtek RTS5766DL
CacheNo DRAM (HMB)
Max Sequential ReadUp to 2400 MBps
Max Sequential WriteUp to 1800 MBps
4KB Random ReadUp to 200,000 IOPS
4KB Random WriteUp to 150,000 IOPS
Terabytes Written (TBW)520TB
MTBF1,500,000 hours
HeatSinkwith HeatSink
Features* Ultra-fast PCIe Gen3 x4 interface
* R/W speed up to 2,400/1,800MB/s
* NVMe 1.4 support
* Heat sink reduces temp. by up to 15%
* Supports Host Memory Buffer(HMB)
* Advanced hardware LDPC ECC Technology
* AES 256-bit encryption support
* Great upgrade option for creators
* For aspiring or amateur content creators looking to edit photos/videos, illustrate, and other tasks.
* Free software: SSD Toolbox and Migration Utility
Operating Temperature0°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Max Shock Resistance1500G
Height3.13mm
Width80mm
Depth22mm
Shipping weight0.05 kg
Package size131 × 104 × 17 mm

Other versions of this model

2 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

Does the included heatsink keep the Legend 710 cool enough for all-day workloads?

The integrated heatsink lowers operating temperature by up to 15 percent, helping the Realtek RTS5766DL controller sustain 2400 MBps read and 1800 MBps write speeds during extended use.

My motherboard only has an M.2 slot wired for PCIe 3.0 x4 — will the drive work at its rated speed?

Yes, the Legend 710 is built for a PCIe 3.0 x4 interface and NVMe 1.4, so it delivers up to 2400 MBps sequential read and 1800 MBps write on that exact slot.

Can I pair this 2 TB NVMe drive with my existing PCIe 3.0 NVMe SSD without bottlenecks?

Each drive connects through its own M.2 2280 PCIe 3.0 x4 lane, so the Legend 710 runs at its full 200000 read IOPS and 150000 write IOPS independently of the other SSD.
