Rectangular aluminium chassis, dual front and rear fans, Ethernet port, integrated power supply unit

AFRNDK

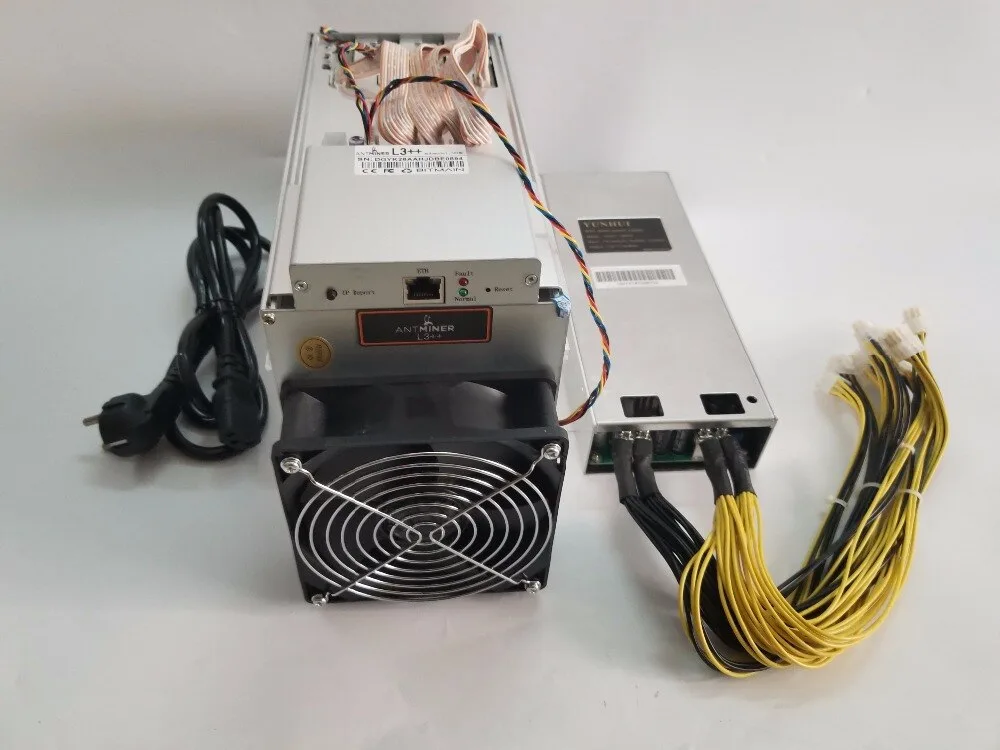

AFRNDK ANTMINER L3++ 580MH/s Scrypt Miner with PSU

SKU CH-MK09-23683

Scrypt ASIC miner delivers 580 MH/s at 1.62 J/MH with integrated 962 W PSU and dual fans

  • TypeMining Machine/Miner
  • Hashrate580MH/s
  • Quantity of Hash Chips288
  • Network ConnectionEthernet
  • Noise level96db
  • Fan2

Options L3++

  • 580 MH/s hashrate with ±5 % tolerance
  • 62 J/MH power efficiency at the wall
  • 288 BM1485 ASIC chips on four hash boards
  • Dual-fan aluminium chassis with independent heatsinks
  • 962 W PSU included, 11.60–13.00 V DC input

Purpose-built Scrypt miner

The AFRNDK ANTMINER L3++ delivers a hash rate of 580MH/s for Litecoin and other Scrypt-based coins. It integrates 288 BM1485 ASIC chips arranged across four hashing boards with 72 chips each. The unit connects to the network through a wired Ethernet link and is intended for operators who need dedicated Scrypt hashing hardware with an included power supply.

Thermals noise and power draw

Two fans provide front-to-rear airflow while each chip has its own heat sink bonded with a revised attachment method. The chassis is formed from aluminium alloy for structural rigidity and heat spreading. At the wall the system draws 942W plus ten percent with the supplied 962W PSU operating at 93 percent efficiency in a 25°C ambient environment. Acoustic output reaches 96dB and the rated operating temperature range spans 0°C to 40°C.

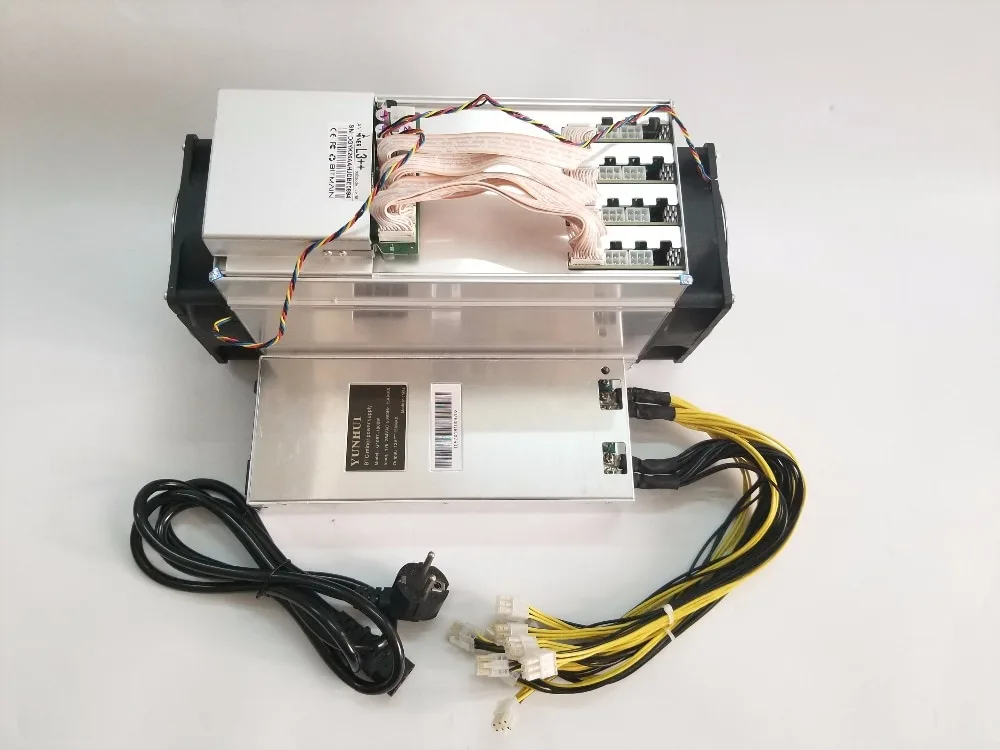

Bundled PSU and power topology

A 962W power supply is included and the manufacturer recommends powering the complete machine from this single source. If an independent supply is not used each of the four hash boards must be fed from a separate power source and no hash board may be split across multiple supplies. The DC input window is 11.60V to 13.00V and the design targets a power efficiency of 1.62J/MH plus ten percent under the stated test conditions.

Highlights

  • 580 MH/s hashrate with ±5 % tolerance
  • 62 J/MH power efficiency at the wall
  • 288 BM1485 ASIC chips on four hash boards
  • Dual-fan aluminium chassis with independent heatsinks
  • 962 W PSU included, 11.60–13.00 V DC input

Specifications

BrandAntminer
SeriesL3++
ModelL3++
TypeMining Machine/Miner
Hashrate580MH/s
Quantity of Hash Chips288
Network ConnectionEthernet
Noise level96db
Fan2
Power Supply962W
Power Efficiency1.62J/MH+10%
Dimension352mm(l) x 130mm(w) x 187.5mm(h)

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What power supply do I need to run the AFRNDK ANTMINER L3++?

The unit ships with a 962 W PSU. At the wall it draws about 942 W plus ten percent with the APW3 supply at 93 percent efficiency and 25 °C ambient. Input voltage must be between 11.60 V and 13.00 V DC.

How much noise and heat should I expect in my room?

The miner runs two fans and reaches 96 dB. Operating temperature range is 0 °C to 40 °C, so plan for strong airflow or a dedicated space.

Can I connect the four hash boards to separate power sources?

Yes, each of the four hash boards can use its own power source, but a single board must not be split across multiple supplies. An independent PSU for the whole machine is recommended.
