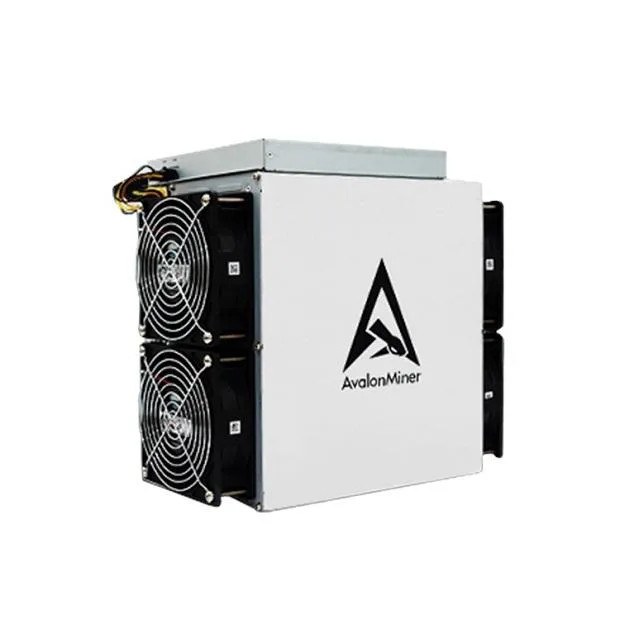

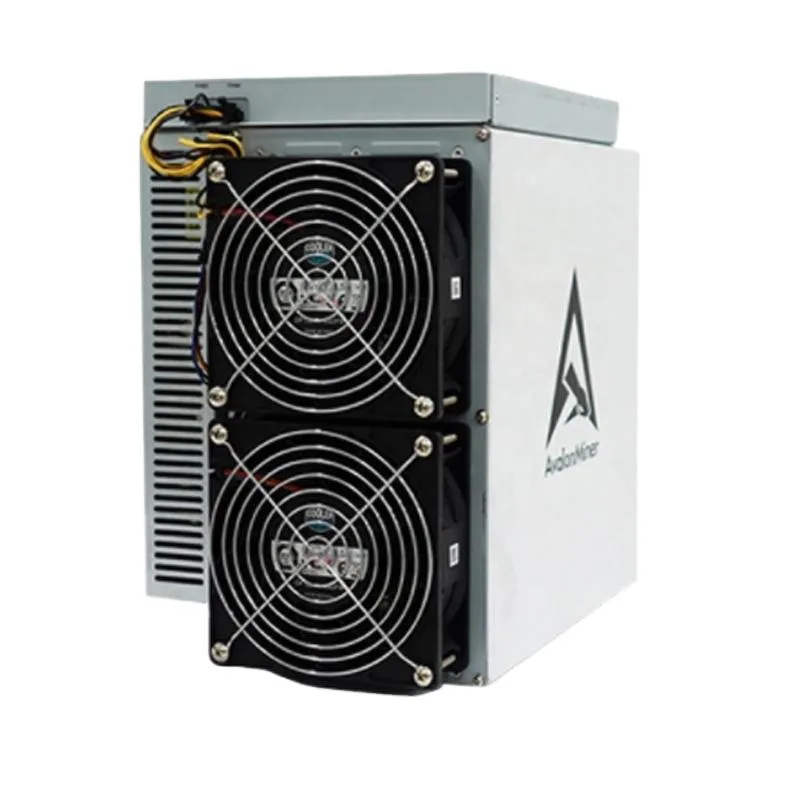

Rectangular metal ASIC miner with four large fans, Ethernet and USB ports, 2021 AvalonMiner 1066 Pro

AFRNDK

AFRNDK AvalonMiner 1066 Pro 55Th/s 3300W SHA-256 ASIC Miner

SKU CH-FNH0-Z04CW

SHA-256 ASIC miner delivers 55 Th/s at 3300 W with 60 J/T efficiency using 342 16 nm chips, four 12038 fans, Ethernet and USB 2.0, and requires 220–260 V operation

Options Avalon 1066 PRO

  • Delivers 55 TH/s for SHA-256 mining
  • Power efficiency of 60 J/T ±5% at 25 °C
  • 342 16 nm A3205 chips drive hashrate
  • Four 12038 fans cool from -5 °C to 35 °C
  • Requires 220 V to 260 V supply for operation

Purpose-built SHA-256 miner

The AFRNDK AvalonMiner 1066 Pro delivers a hash rate of 55 Th/s using the SHA-256 algorithm, making it suitable for Bitcoin and Bitcoin Cash mining. It is an ASIC device designed for operators who need dedicated hashing hardware rather than general-purpose compute.

Deployment and power needs

The unit ships with a power supply and connects via Ethernet and USB 2.0. It requires a 220 V to 260 V supply and draws up to 3300 W. Four 12038 fans provide cooling across an operating range of -5 °C to 35 °C. The metal chassis uses a reinforced design intended to simplify maintenance.

Upgrade context

The miner uses 342 Canaan 16 nm A3205 chips with a 256-bit memory interface clocked at 600 MHz and a power ratio of 60 J/T ±5 %. It replaces earlier Avalon models that fall short of the 55 Th/s target or exceed the 3300 W envelope. The efficiency jump is worth it when electricity cost and infrastructure can support the voltage and thermal requirements.

Highlights

  • Delivers 55 TH/s for SHA-256 mining
  • Power efficiency of 60 J/T ±5% at 25 °C
  • 342 16 nm A3205 chips drive hashrate
  • Four 12038 fans cool from -5 °C to 35 °C
  • Requires 220 V to 260 V supply for operation

Specifications

No published specifications for this item yet.

Other versions of this model

4 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What voltage supply does the AvalonMiner 1066 Pro require?

The unit must be operated in a 220 V to 260 V environment. Running it outside this range can cause instability or damage.

How many hashing chips are inside and what process node do they use?

It contains 342 Canaan A3205 chips built on a 16 nm process, delivering the rated 55 TH/s at 60 J/TH.

What network connection does the miner use and is a separate controller needed?

It connects via Ethernet over USB 2.0; no separate controller is required — just plug it into your router or switch.
